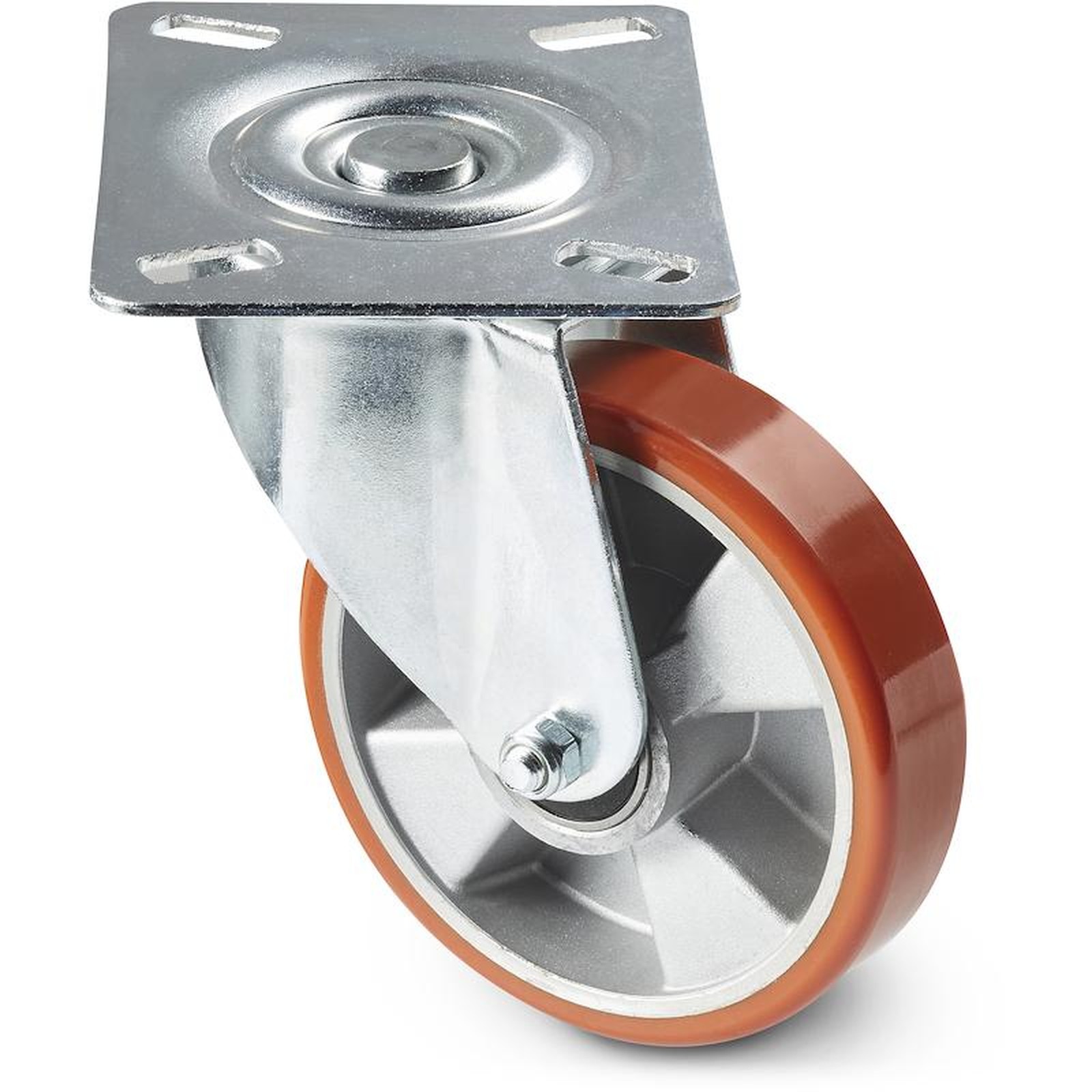

ALUMINIUM / POLYURETHANE WHEEL WITH RECTANGULAR SWIVEL PLATE AND STEEL BEARINGS
18
R277
Ruote in Nylon/Poliuretano
Materials:
Wheel body (1):
Die-cast aluminium alloy.
Tread (2):
Mould-on polyurethane. Hardness 94 ± 2 Shore A.
Surface finish:
Smooth.
Colour:
(1) Natural aluminium.
(2) Light brown.
(3-4-5-6) Galvanised blue.
Wheel rotation (4):
A pair of steel ball bearings is inserted in the wheel hub to provide excellent rollability.
Bracket (3):
Extra-thick steel (DD13) fork.
Rotating assembly (5):
Steel rotating assembly with double ball race, assembled with steel screw grade 8.8 and rectangular swivel plate with four slotted mounting holes.
Wheel fastening (6):
Steel hex head screw, coupled with a self-locking steel nut.
Special requests:
None.

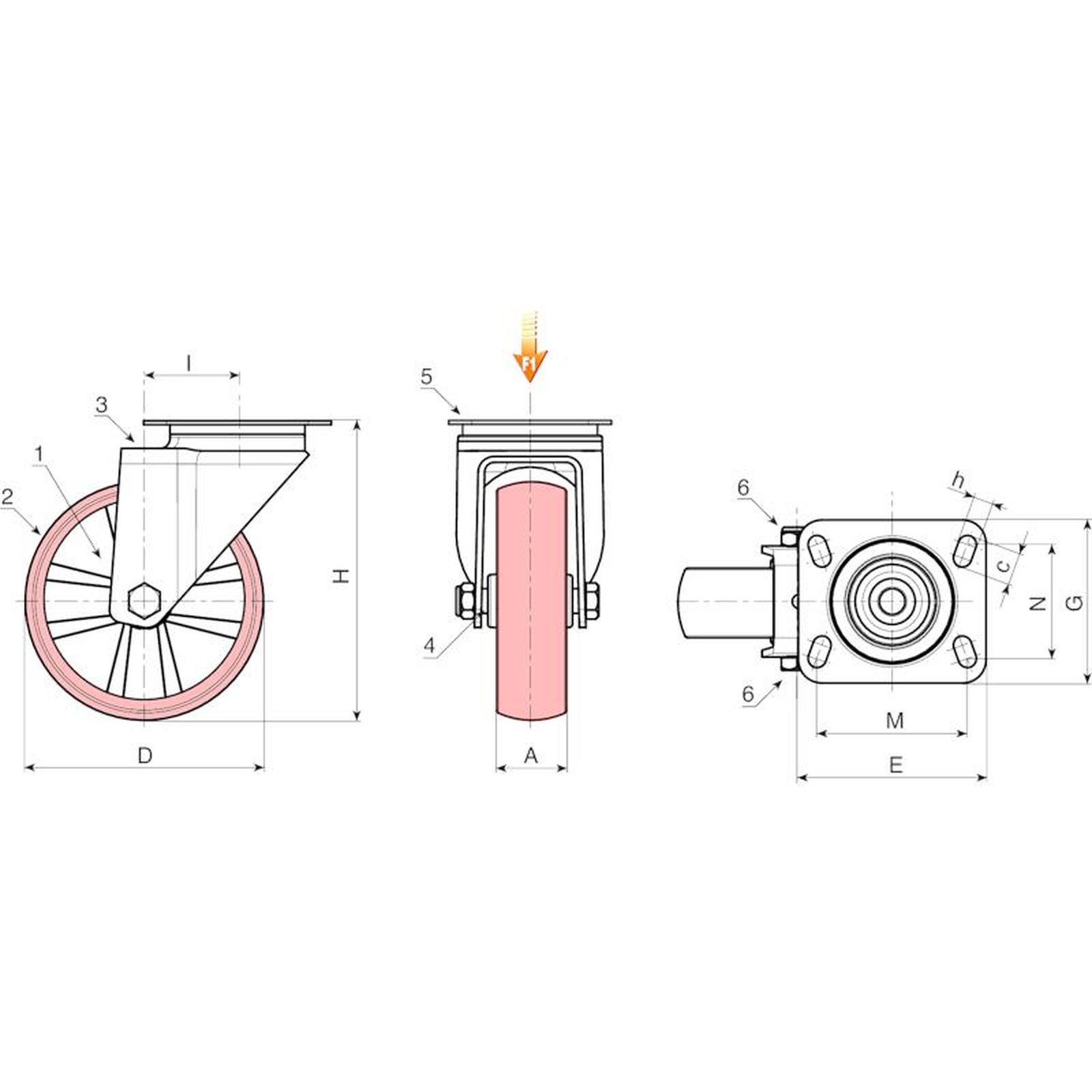

| Code | art. | D | A | H | I | E | G | M | N | c | h | Weight (g) | F1 (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R277080.0001 | R277080.T25P080X060 | 80 | 25 | 108 | 32 | 100 | 80 | 80 | 60 | 12 | 9 | - | 150 |
| R277100.0001 | R277100.T30P080X060 | 100 | 30 | 127 | 33 | 100 | 80 | 80 | 60 | 12 | 9 | - | 180 |
| R277125.0001 | R277125.T30P080X060 | 125 | 30 | 155 | 39 | 100 | 80 | 80 | 60 | 12 | 9 | - | 180 |
| R277150.0001 | R277150.T40P105X080 | 150 | 40 | 186 | 47 | 133 | 106 | 105 | 80 | 23 | 11 | - | 300 |
| R277200.0001 | R277200.T50P105X080 | 200 | 50 | 240 | 56 | 132 | 110 | 105 | 80 | 23 | 12 | - | 300 |
