18

R270

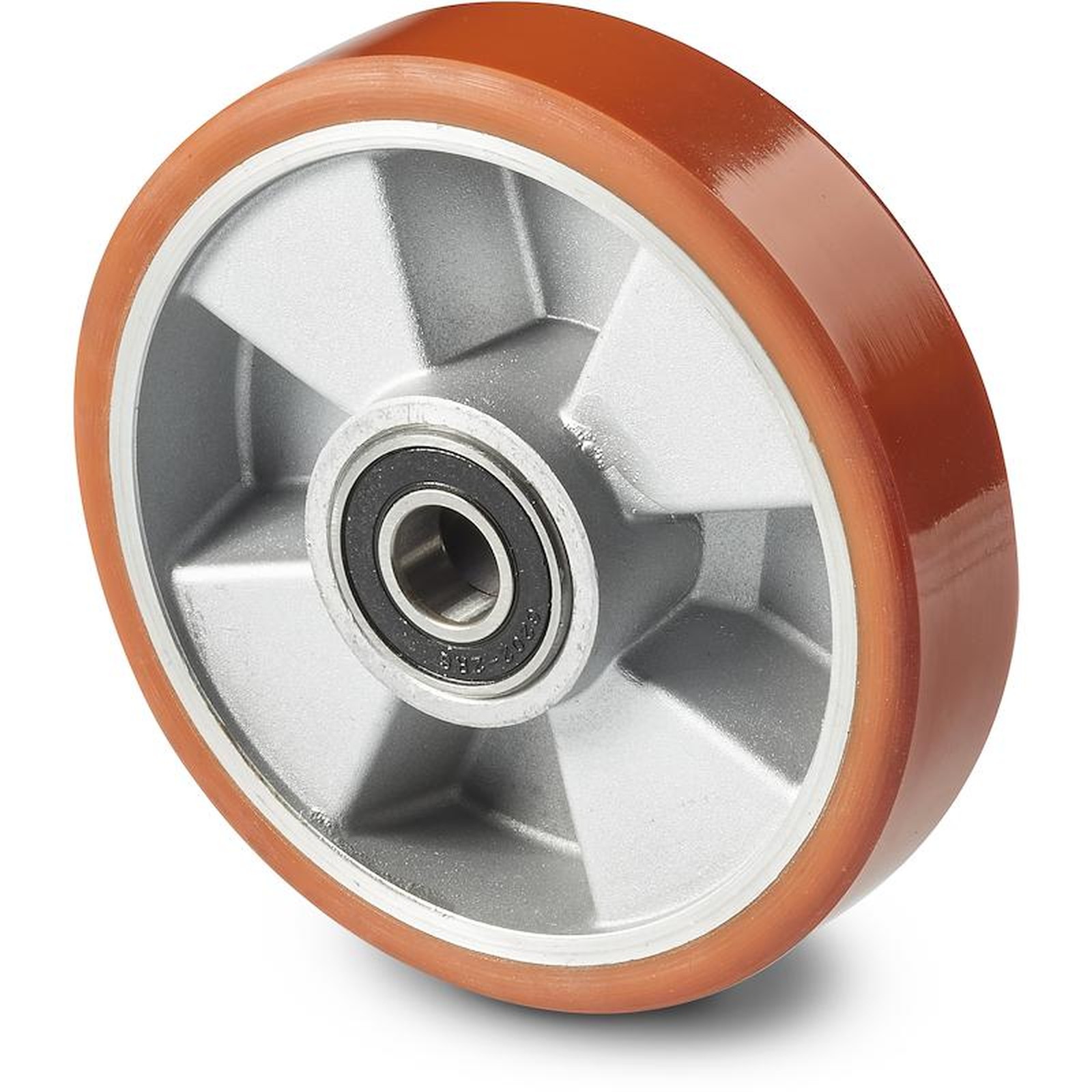

WHEEL WITH ALUMINIUM BODY AND MOULD-ON POLYURETHANE TREAD WITH BALL BEARINGS WITHOUT RIG

Nylon/Polyurethane wheels

Data sheet More information

Alternative products

18

R150

POLYAMIDE MONOLITHIC WHEEL WITH BALL BEARING WITHOUT RIG (HEAVY DUTY)

Nylon monolithic wheels
18

R200

WHEEL WITH POLYAMIDE BODY AND INJECTED POLYURETHANE TREAD (WITHOUT RIG)

Nylon/Polyurethane wheels
18

R250

WHEEL WITH POLYAMIDE BODY AND INJECTED POLYURETHANE TREAD WITH BALL BEARINGS WITHOUT RIG (HEAVY DUTY SERIES)

Nylon/Polyurethane wheels
18

R300

WHEEL WITH SHEET METAL RIM AND RUBBER TREAD (WITHOUT RIG)

Sheet metal/natural rubber wheels
18

R400

WHEEL WITH POLYPROPYLENE BODY AND THERMOPLASTIC RUBBER TREAD (WITHOUT RIG)

PP/Synthetic rubber wheels (institutional)

Materials:

Wheel body:

Die-cast aluminium alloy.

Tread:

Mould-on polyurethane. Hardness 94 ± 2 Shore A.

Surface finish:

Smooth.

Colour:

Body:

Natural aluminium.

Tread:

Light brown.

Wheel rotation:

(1) A pair of steel ball bearings is inserted in the wheel hub to provide excellent rollability under a heavy load.

Special requests:

None.

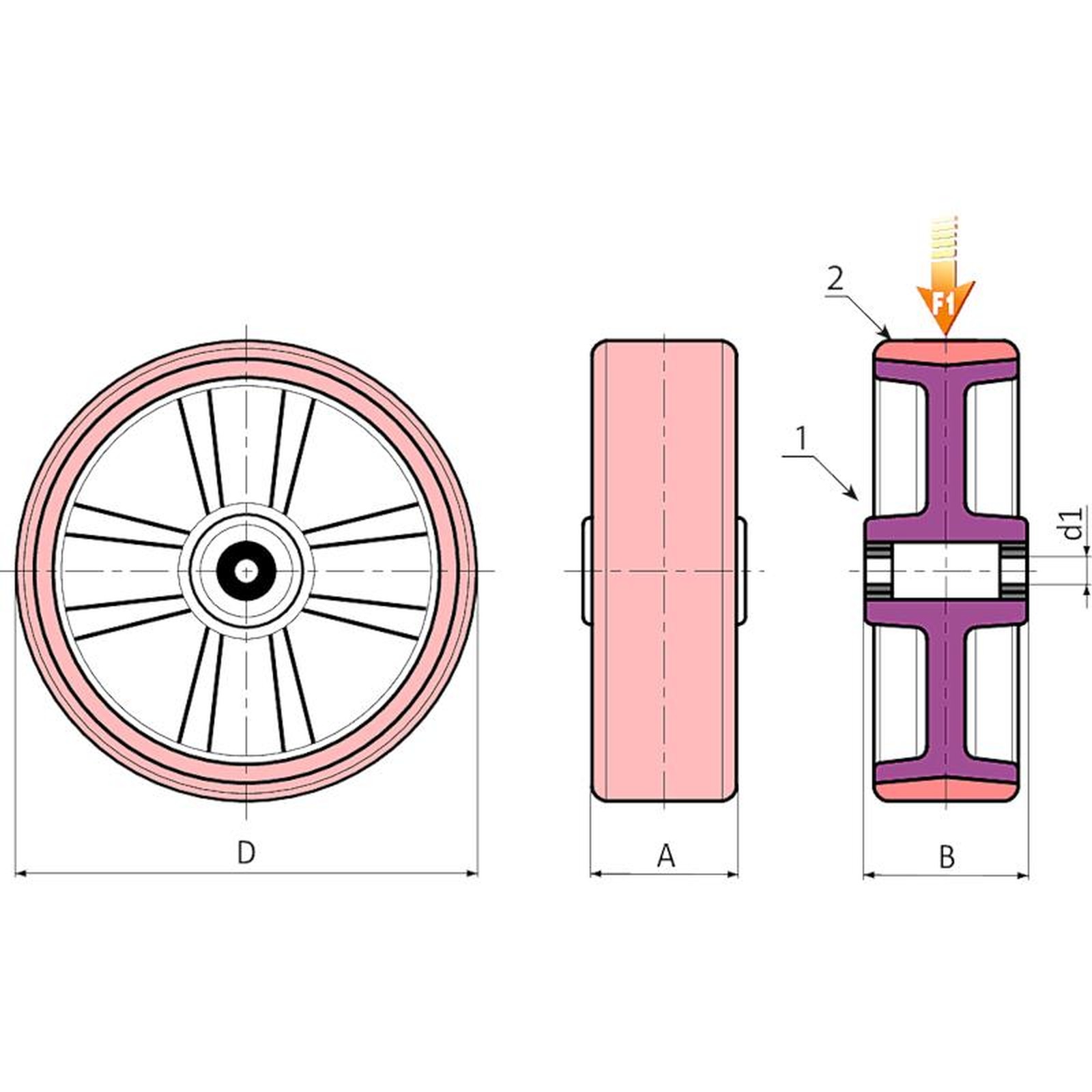

Code	art.	D	A	B	d1	Weight (g)	F1 (Kg)
R270080.0001	R270080.T25D12	80	25	30	12	-	150
R270100.0001	R270100.T30D15	100	30	30	15	-	200
R270125.0001	R270125.T30D15	125	30	40	15	-	250
R270150.0001	R270150.T40D17	150	40	45	17	-	400
R270200.0001	R270200.T50D25	200	50	60	25	-	750
