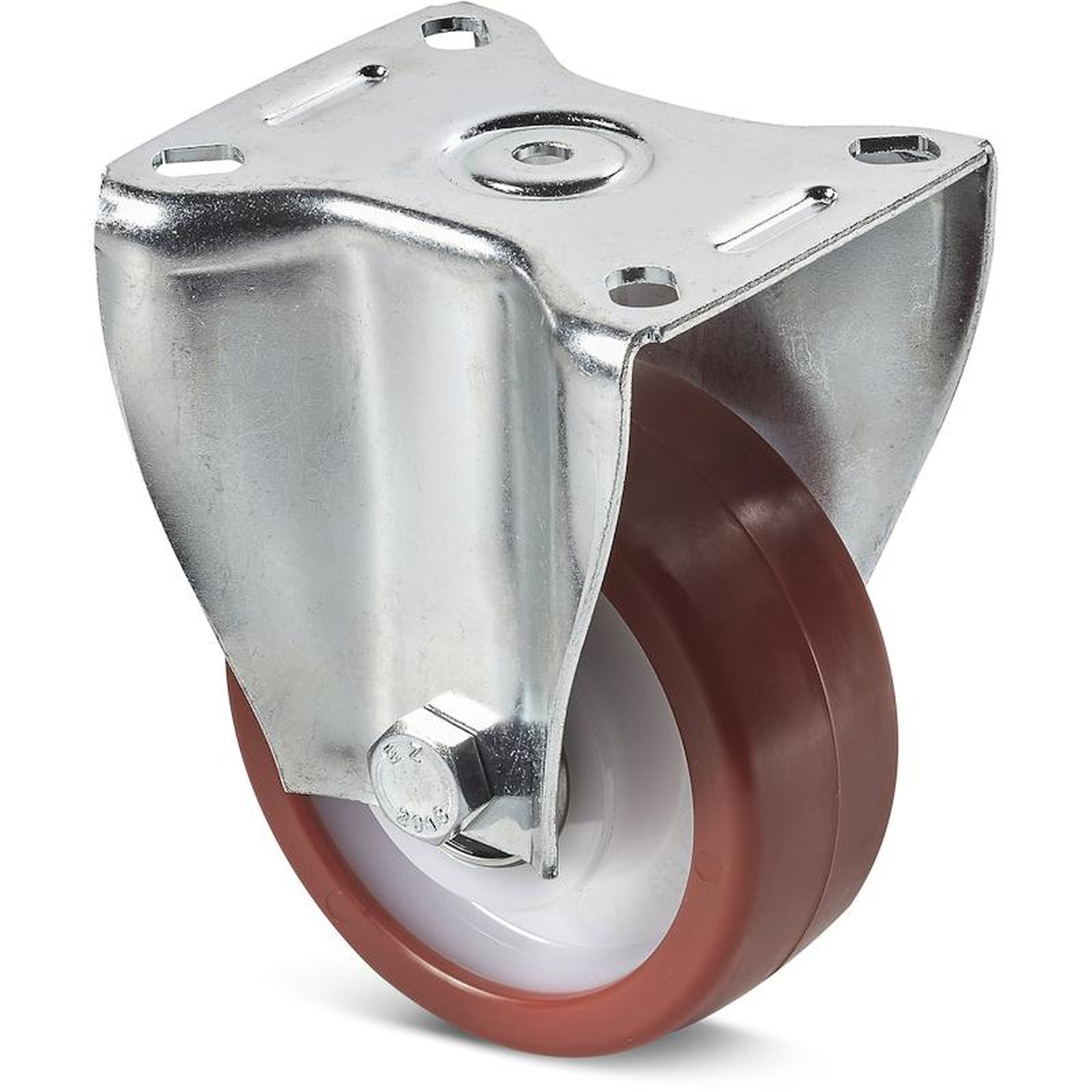

POLYAMIDE / POLYURETHANE WHEEL WITH RIGID STEEL FORK AND STEEL BEARINGS (HEAVY DUTY SERIES)
18
R259
Ruote in Nylon/Poliuretano
Materials:
Wheel body (1):
Polyamide. Resistant to oils and greases.
Tread (2):
Injected polyurethane. Hardness 60 ± 5 Shore D.
Surface finish:
Smooth.
Colour:
(1) Natural white.
(2) Red (Ral 3013).
(3-4-5-6) Galvanised blue.
Wheel rotation (4):
A pair of steel ball bearings is inserted in the wheel hub to provide excellent rollability.
Bracket (3):
Extra-thick steel (DD13) fork, with mounting holes in the base.
Wheel fastening (6):
Steel hex head screw, coupled with a self-locking steel nut.
Special requests:
Upon request and for a minimum of 20 pieces, the wheel can be supplied with a needle roller cage, (replace code no. R259 with code no. R249).

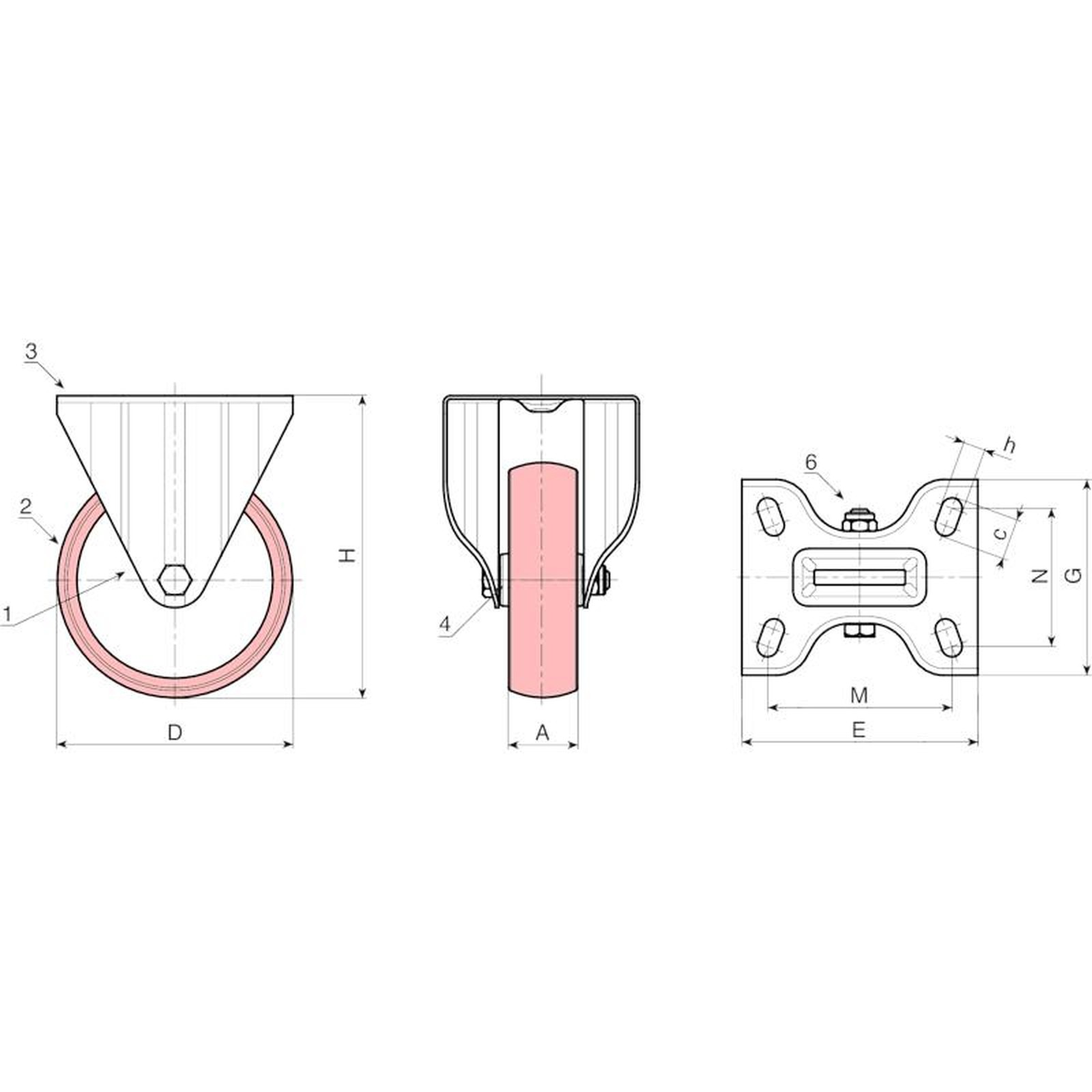

Code | art. | D | A | H | E | G | M | N | c | h | Weight (g) | F1 (Kg) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
R259080.0001 | R259080.T34P080X060 | 80 | 34 | 125 | 100 | 88 | 80 | 60 | 12 | 9 | - | 260 |
R259100.0001 | R259100.T40P080X060 | 100 | 40 | 135 | 100 | 88 | 80 | 60 | 12 | 9 | - | 300 |
R259125.0001 | R259125.T40P080X060 | 125 | 40 | 161 | 100 | 88 | 80 | 60 | 12 | 9 | - | 400 |
R259150.0001 | R259150.T45P105X080 | 150 | 45 | 195 | 134 | 114 | 105 | 80 | 23 | 12 | - | 600 |
R259200.0001 | R259200.T50P105X080 | 200 | 50 | 242 | 134 | 114 | 105 | 80 | 23 | 12 | - | 700 |
