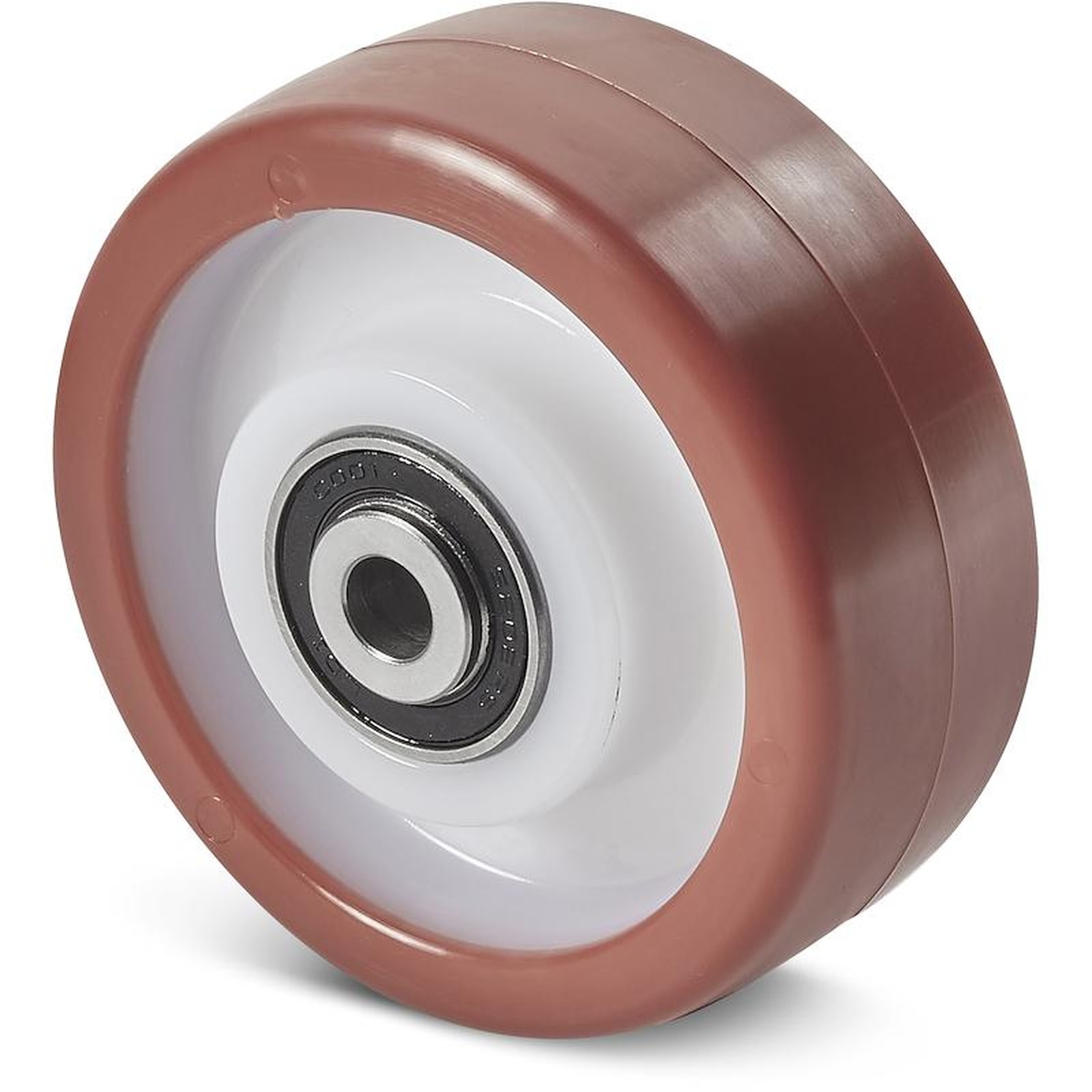

WHEEL WITH POLYAMIDE BODY AND INJECTED POLYURETHANE TREAD WITH BALL BEARINGS WITHOUT RIG (HEAVY DUTY SERIES)
18
R250
Ruote in Nylon/Poliuretano
Materials:
Wheel body:
Polyamide. Resistant to oils and greases.
Tread:
Injected polyurethane. Hardness 60 ± 5 Shore D.
Surface finish:
Smooth.
Colour:
Body:
Natural white.
Tread:
Red (Ral 3013).
Wheel rotation:
(1) A pair of steel ball bearings is inserted in the wheel hub to provide excellent rollability under a heavy load.
Special requests:
Upon request and for a minimum of 20 pieces, the wheel can be supplied with a needle roller cage, (replace code no. R250 with code no. R240).

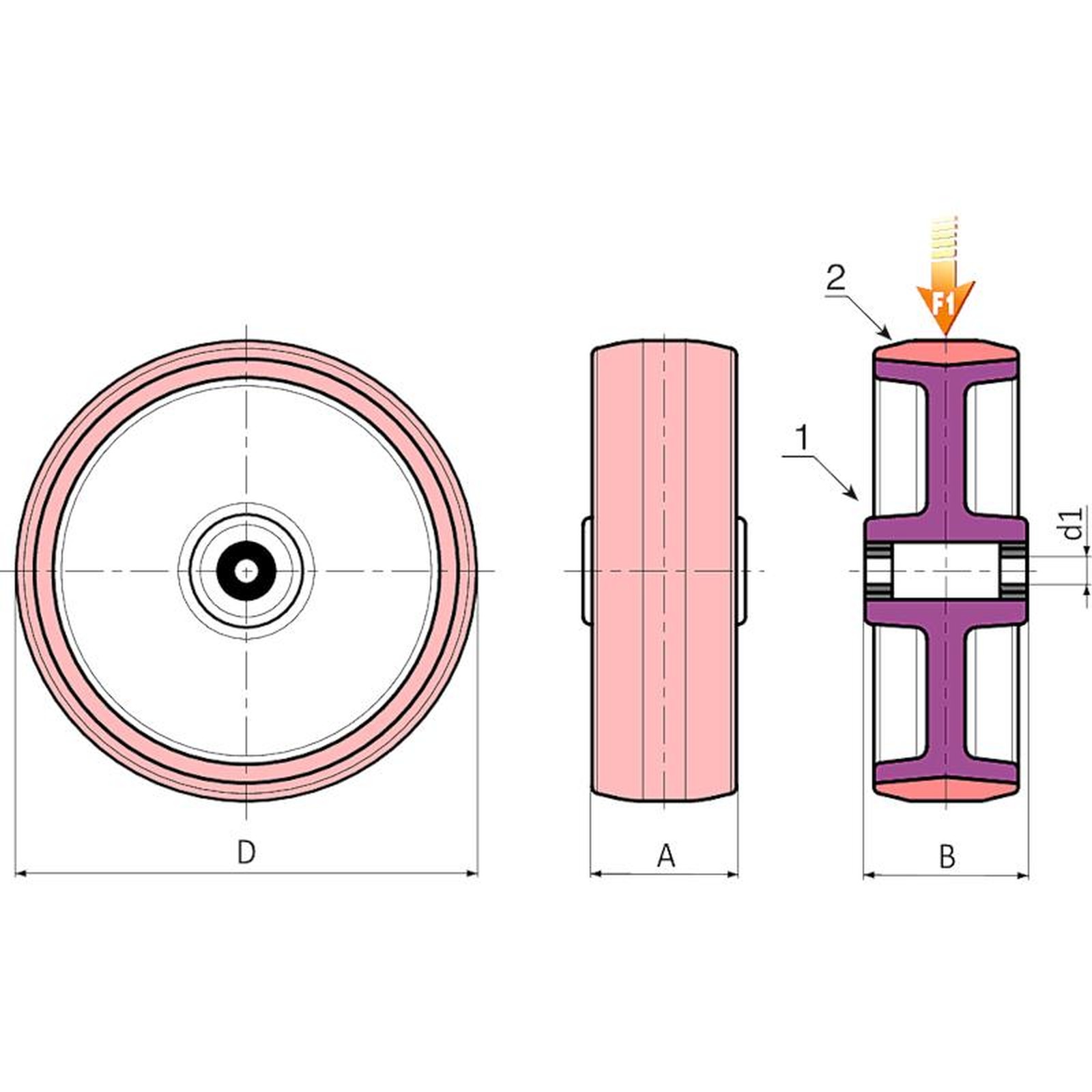

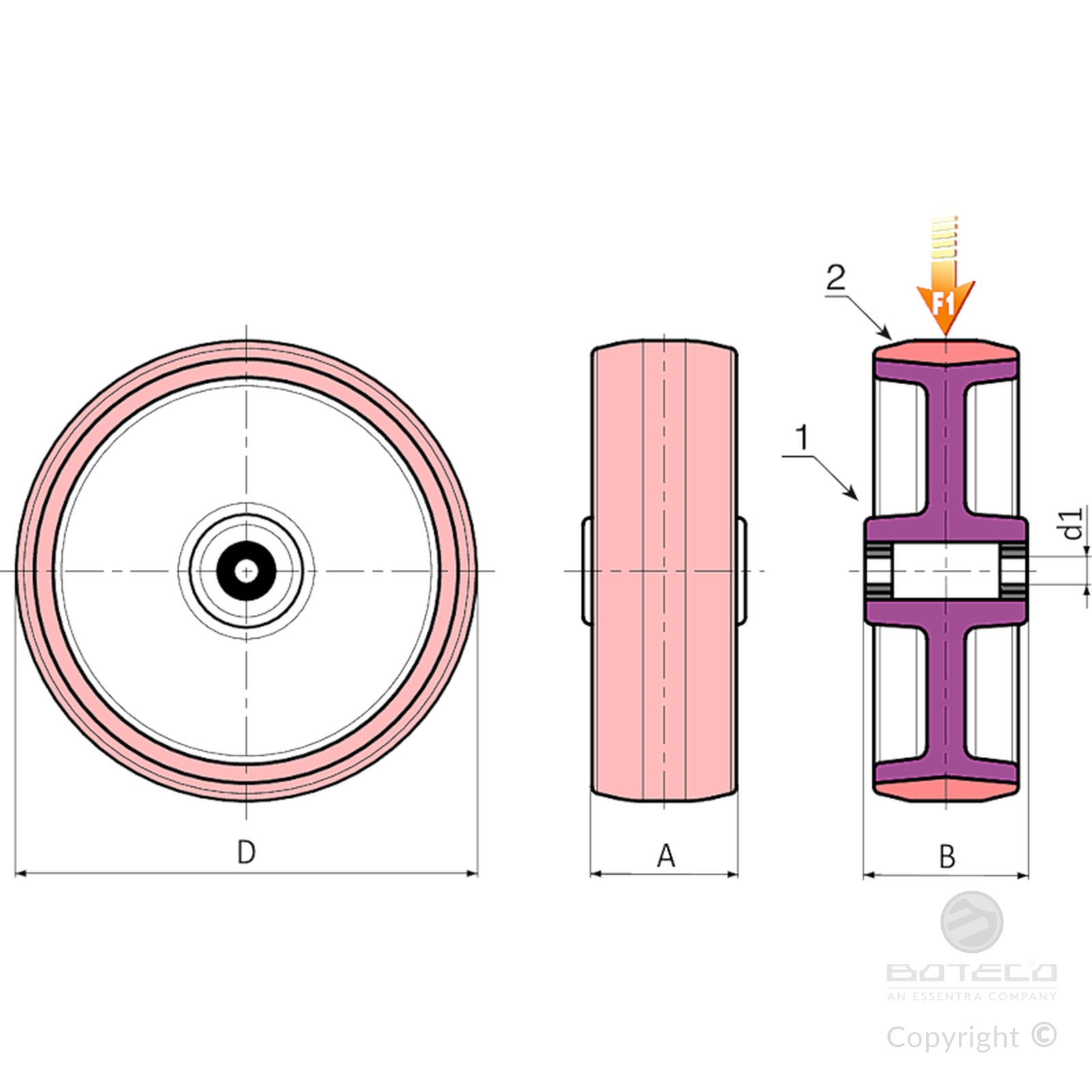

| Code | art. | D | A | B | d1 | Weight (g) | F1 (Kg) |
|---|---|---|---|---|---|---|---|
| R250080.0001 | R250080.T34D12 | 80 | 34 | 40 | 12 | - | 260 |
| R250100.0001 | R250100.T40D15 | 100 | 40 | 44 | 15 | - | 300 |
| R250125.0001 | R250125.T40D15 | 125 | 40 | 45 | 15 | - | 400 |
| R250150.0001 | R250150.T45D20 | 150 | 45 | 58 | 20 | - | 600 |
| R250200.0001 | R250200.T50D20 | 200 | 50 | 58 | 20 | - | 750 |
