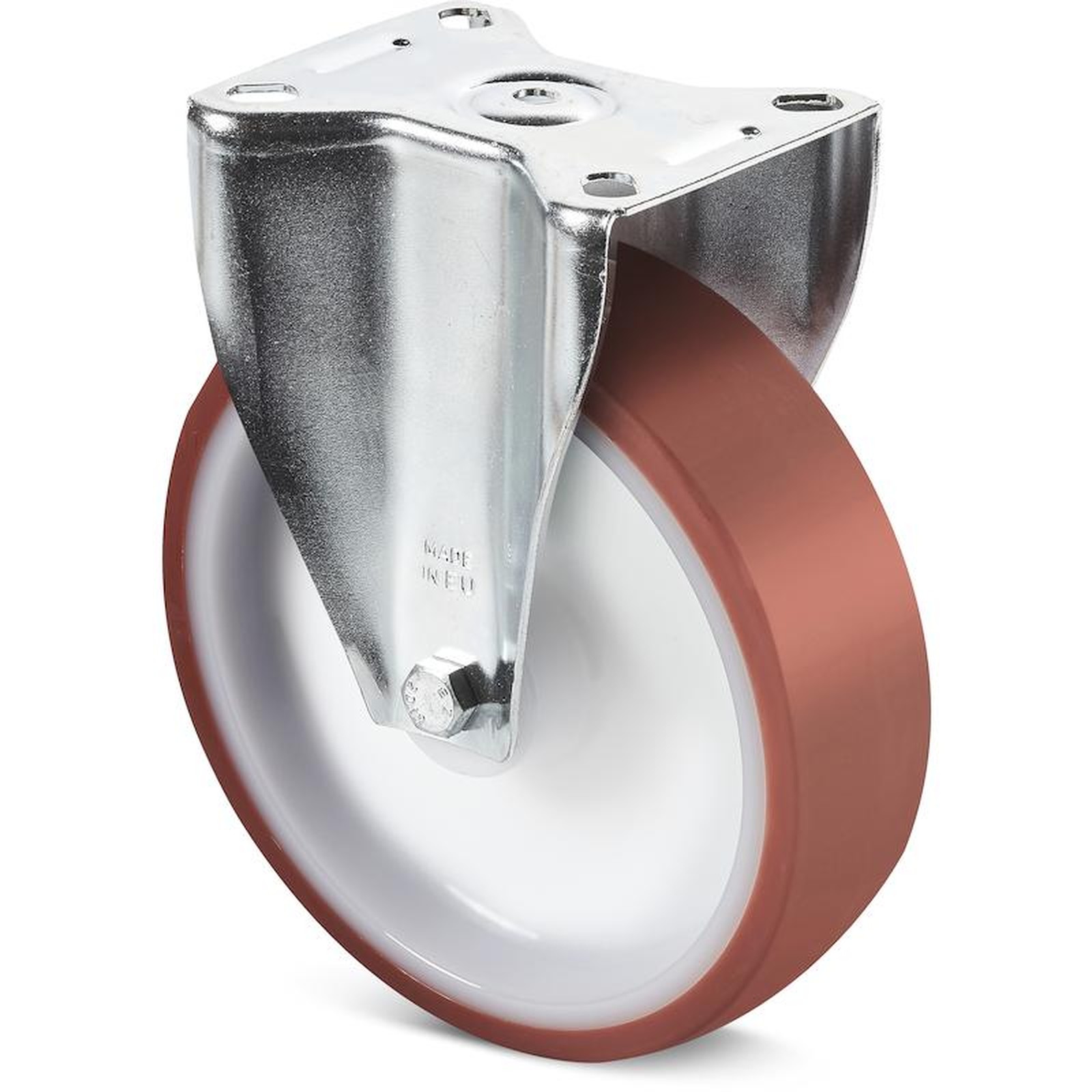

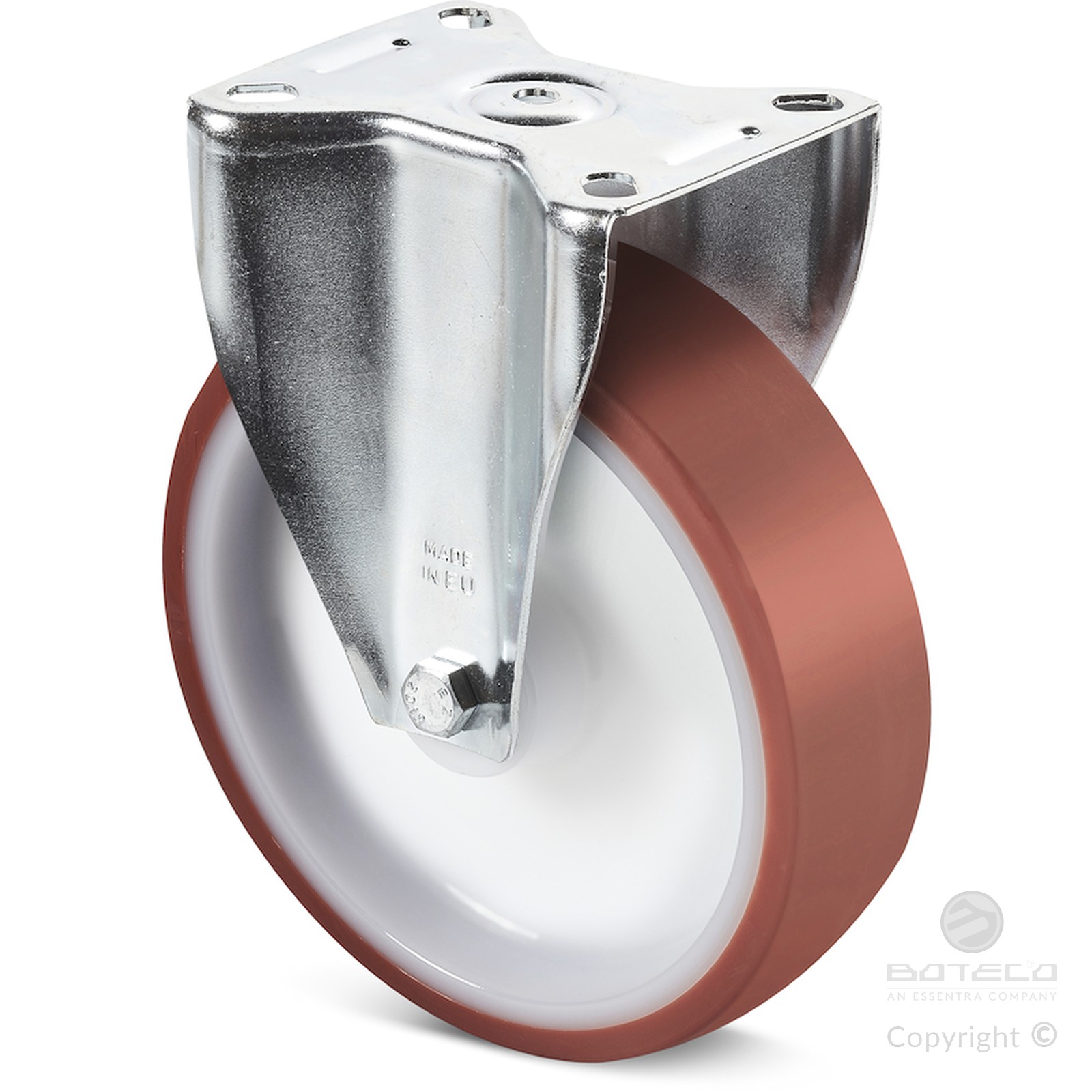

POLYAMIDE / POLYURETHANE WHEEL WITH RIGID STEEL FORK
18
R209
Ruote in Nylon/Poliuretano
Materials:
Wheel body (1):
Polyamide. Resistant to oils and greases.
Tread (2):
Injected polyurethane. Hardness 60 ± 5 Shore D.
Surface finish:
Smooth.
Colour:
(1) Natural white.
(2) Red (Ral 3013).
(3-4-6) Galvanised blue.
Wheel rotation (4):
The hole for the pivot pin is formed by plastic moulding. A galvanised steel tube is positioned between the stud and the hole for protection.
Bracket (3):
Rigid steel (DD13) fork, with mounting holes in the base.
Wheel fastening (6):
Steel hex head screw, coupled with a steel nut.
Special requests:
Upon request and for a minimum of 20 pieces, the wheel can be supplied with a needle roller cage, (replace code no. R209 with code no. R239).

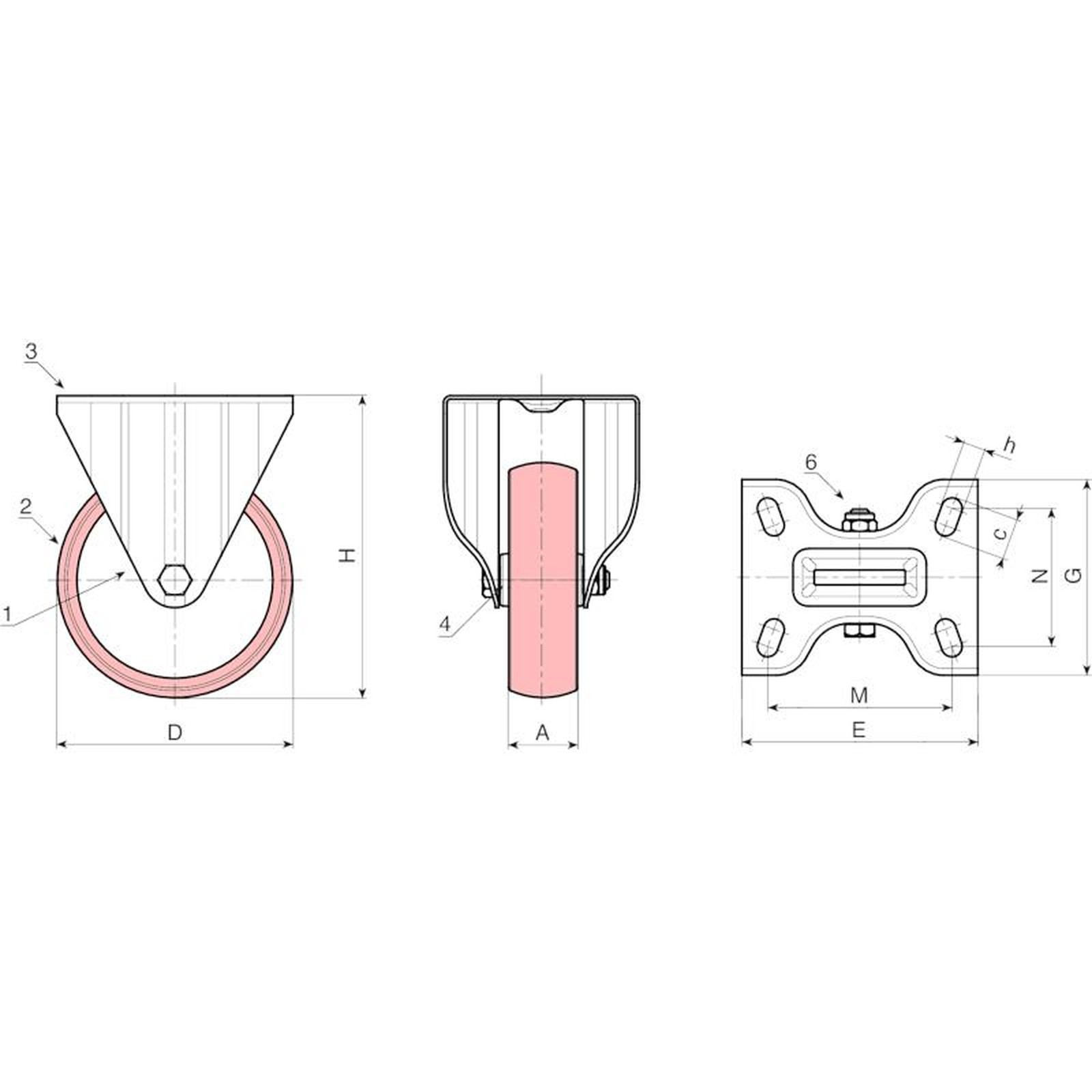

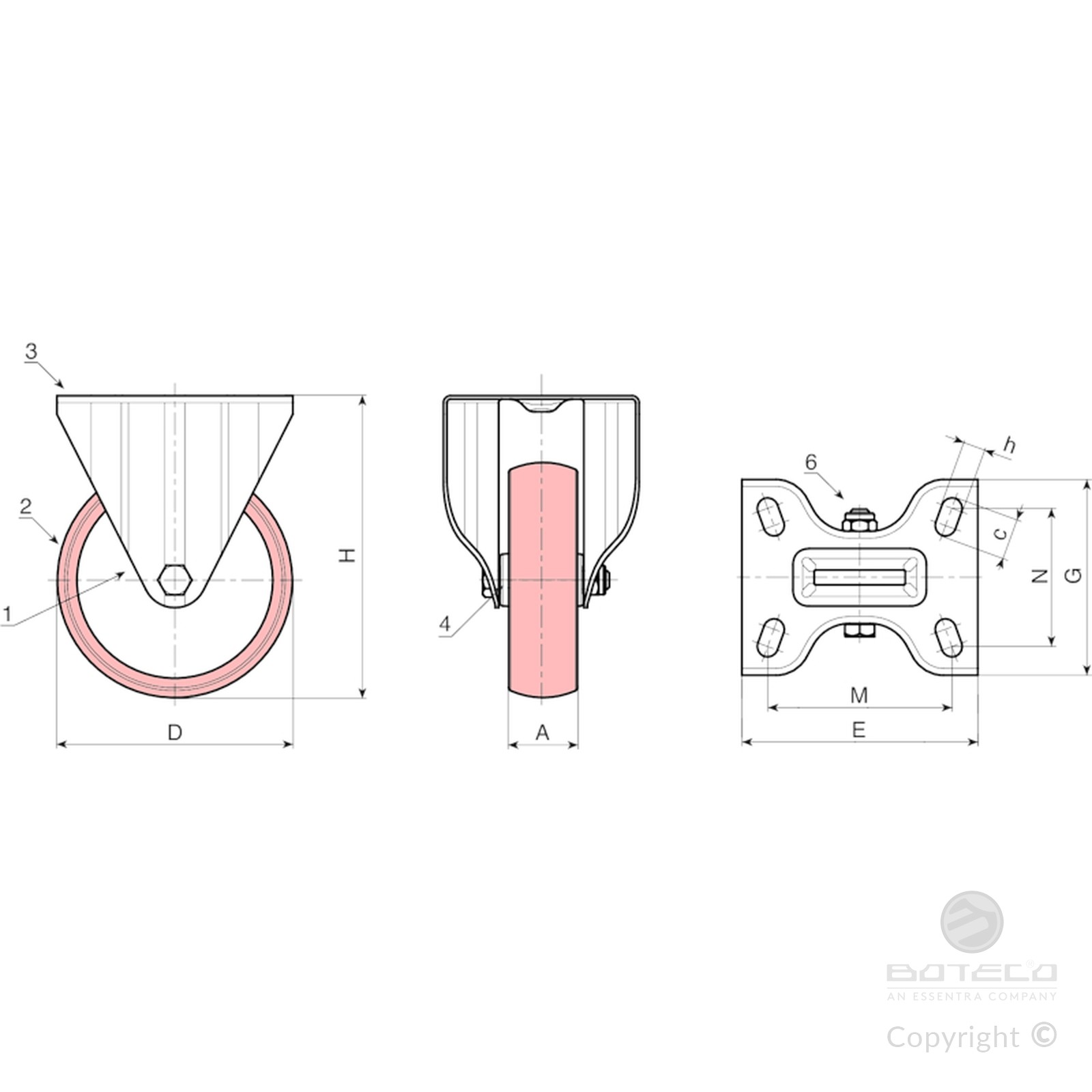

| Code | art. | D | A | H | E | G | M | N | c | h | Weight (g) | F1 (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R209080.0001 | R209080.T30P080X060 | 80 | 30 | 108 | 100 | 84 | 80 | 60 | 12 | 9 | 379 | 100 |
| R209100.0001 | R209100.T30P080X060 | 100 | 30 | 127 | 100 | 84 | 80 | 60 | 12 | 9 | 436 | 130 |
| R209125.0001 | R209125.T35P080X060 | 125 | 35 | 155 | 100 | 84 | 80 | 60 | 12 | 9 | 685 | 180 |
| R209150.0001 | R209150.T40P080X060 | 150 | 40 | 184 | 100 | 84 | 80 | 60 | 12 | 9 | 577 | 140 |
| R209200.0001 | R209200.T50P105X080 | 200 | 50 | 240 | 135 | 110 | 105 | 80 | 23 | 11 | 1686 | 300 |
