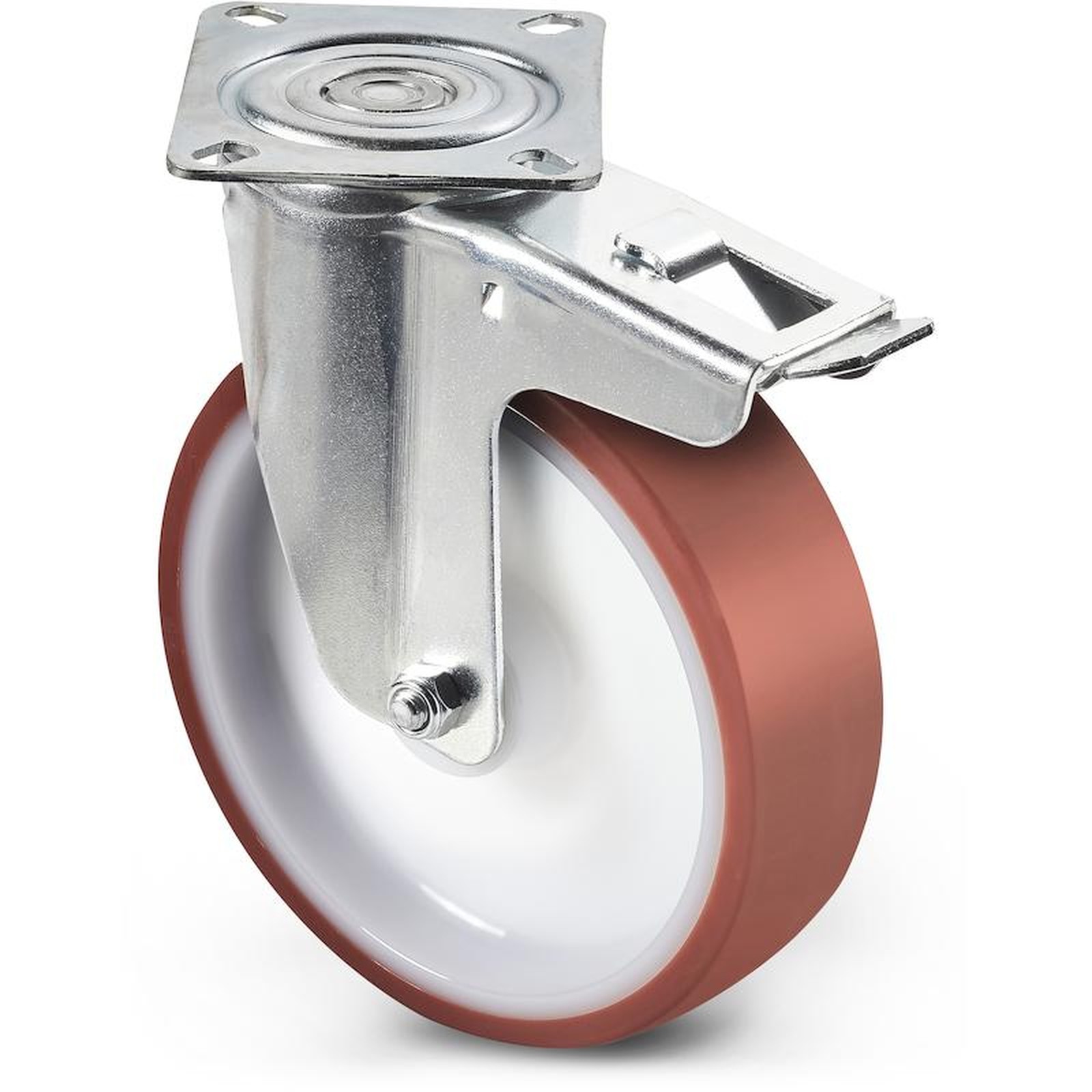

POLYAMIDE / POLYURETHANE WHEEL WITH RECTANGULAR SWIVEL STEEL PLATE - WITH BRAKE
18
R208
Ruote in Nylon/Poliuretano
Materials:
Wheel body (1):
Polyamide. Resistant to oils and greases.
Tread (2):
Injected polyurethane. Hardness 60 ± 5 Shore D.
Surface finish:
Smooth.
Colour:
(1) Natural white.
(2) Red (Ral 3013).
(3-4-5-6) Galvanised blue.
Wheel rotation (4):
The hole for the pivot pin is formed by plastic moulding. A galvanised steel tube is positioned between the stud and the hole for protection.
Bracket (3):
Steel fork (DD13), with integrated brake.
Rotating assembly (5):
Steel rotating assembly with double ball race, and rectangular swivel plate with four slotted mounting holes.
Wheel fastening (6):
Steel hex head screw, coupled with a steel nut.
Special requests:
Upon request and for a minimum of 20 pieces, the wheel can be supplied with a needle roller cage, (replace code no. R208 with code no. R238).

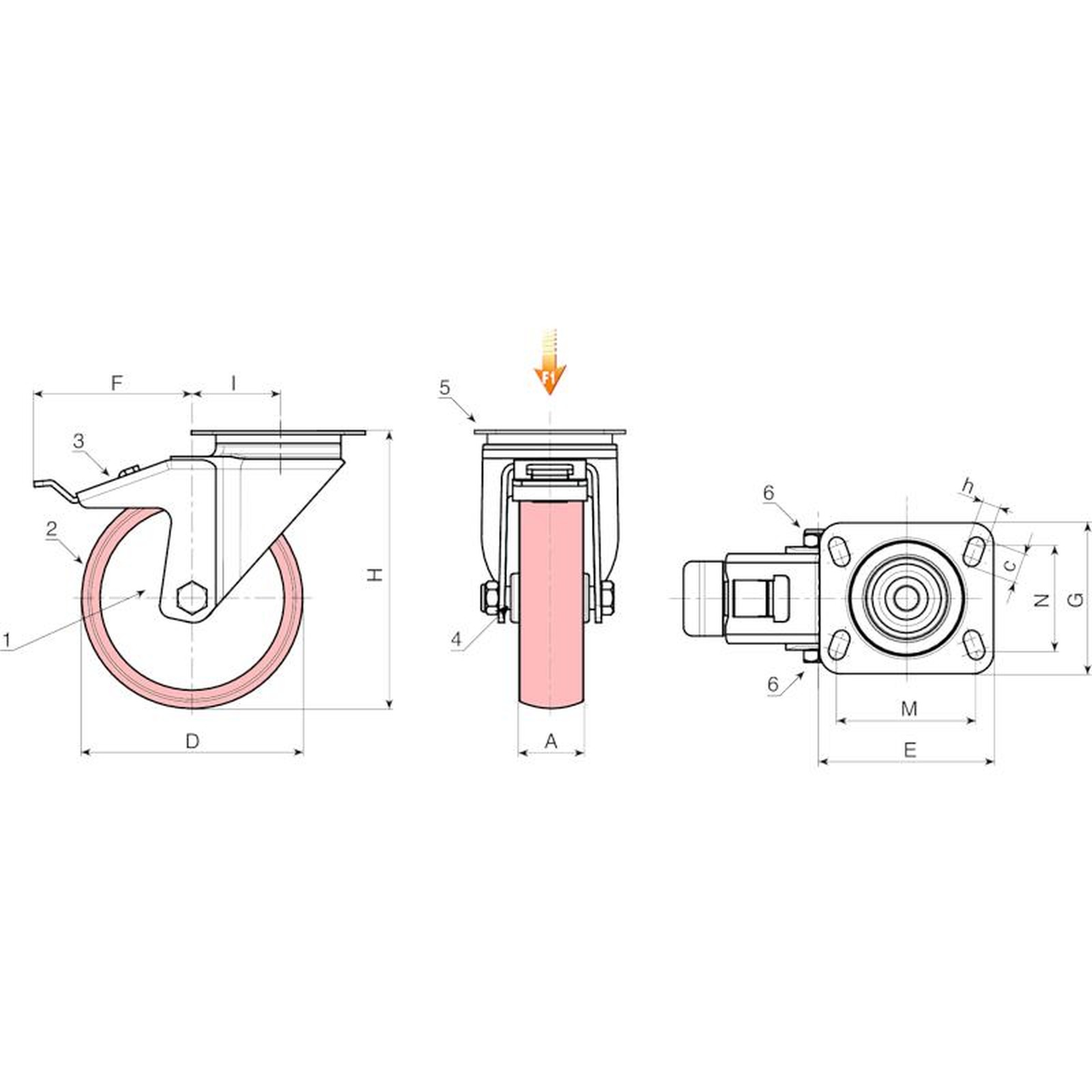

| Code | art. | D | A | H | I | E | G | M | N | c | h | F | Weight (g) | F1 (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R208080.0001 | R208080.T30P080X060 | 80 | 30 | 108 | 32 | 95 | 80 | 80 | 60 | 12 | 9 | 110 | 771 | 100 |
| R208100.0001 | R208100.T30P080X060 | 100 | 30 | 127 | 32 | 95 | 80 | 80 | 60 | 12 | 9 | 110 | 692 | 130 |
| R208125.0001 | R208125.T35P080X060 | 125 | 35 | 155 | 32 | 95 | 80 | 80 | 60 | 12 | 9 | 113 | 960 | 130 |
| R208150.0001 | R208150.T40P080X060 | 150 | 40 | 184 | 35 | 95 | 100 | 80 | 60 | 12 | 9 | 115 | - | 140 |
| R208200.0001 | R208200.T50P105X080 | 200 | 50 | 240 | 48 | 129 | 106 | 105 | 80 | 23 | 11 | 150 | - | 270 |
