R201

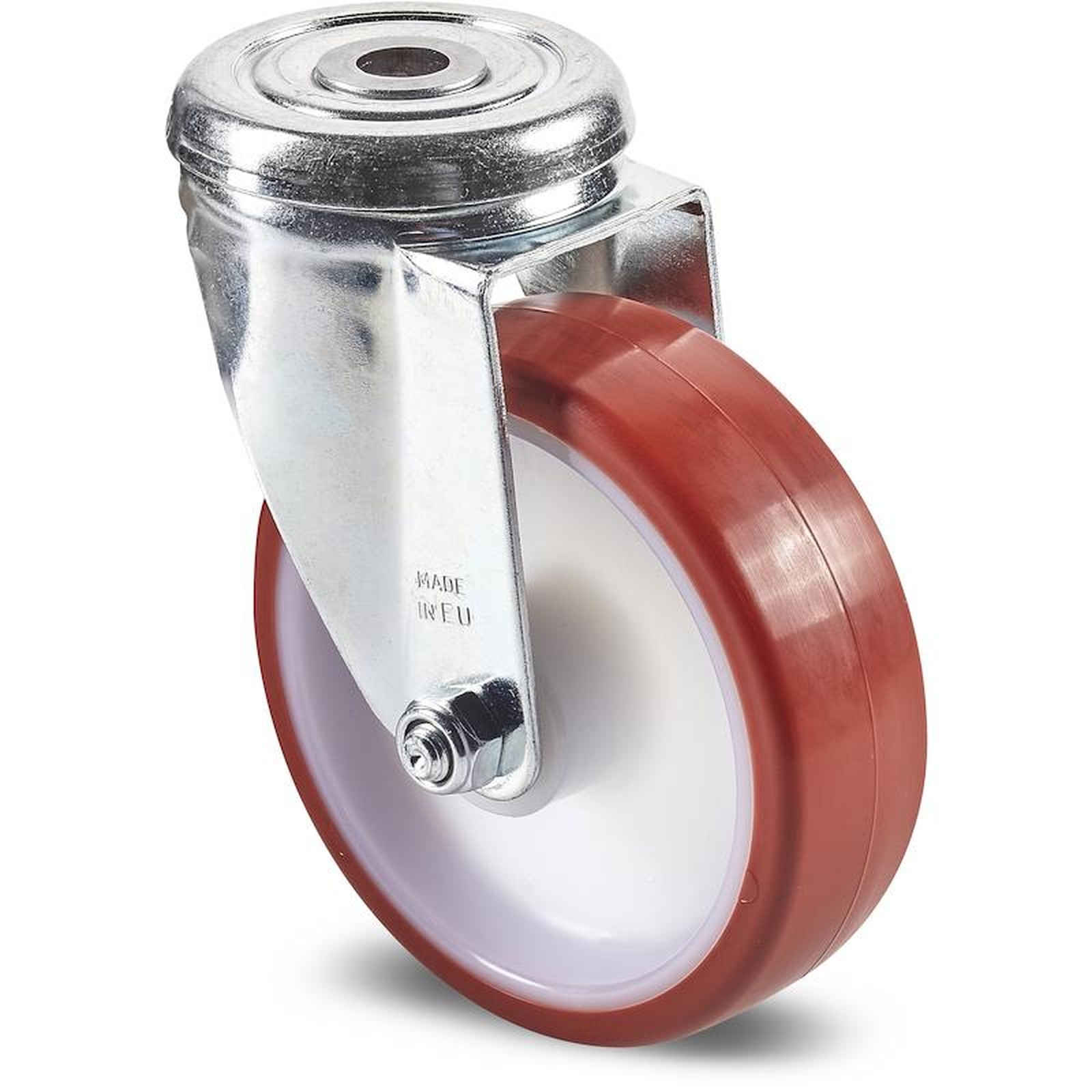

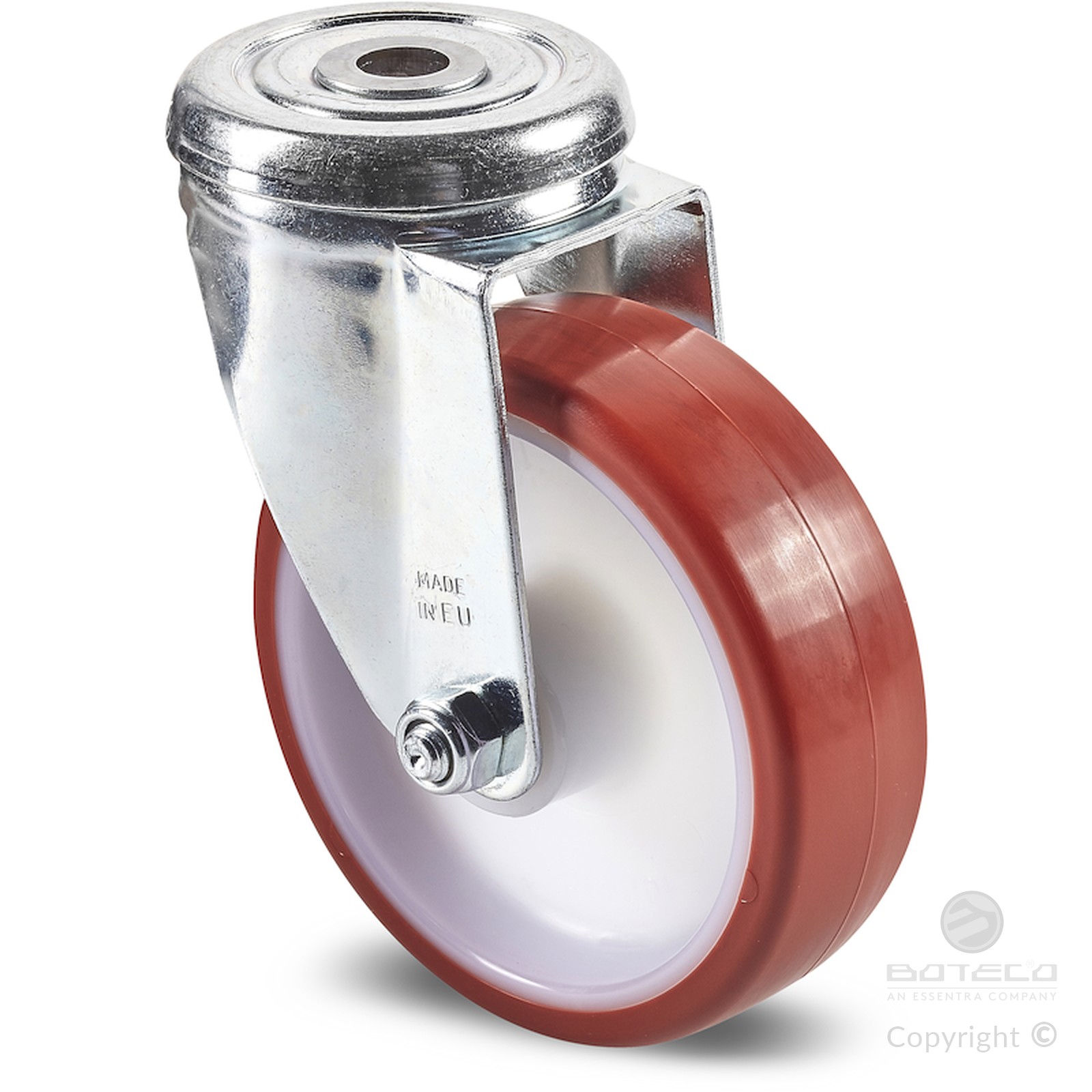

POLYAMIDE / POLYURETHANE WHEEL WITH ROUND STEEL SWIVEL SUPPORT AND SMOOTH THROUGH HOLE
Nylon/Polyurethane wheels

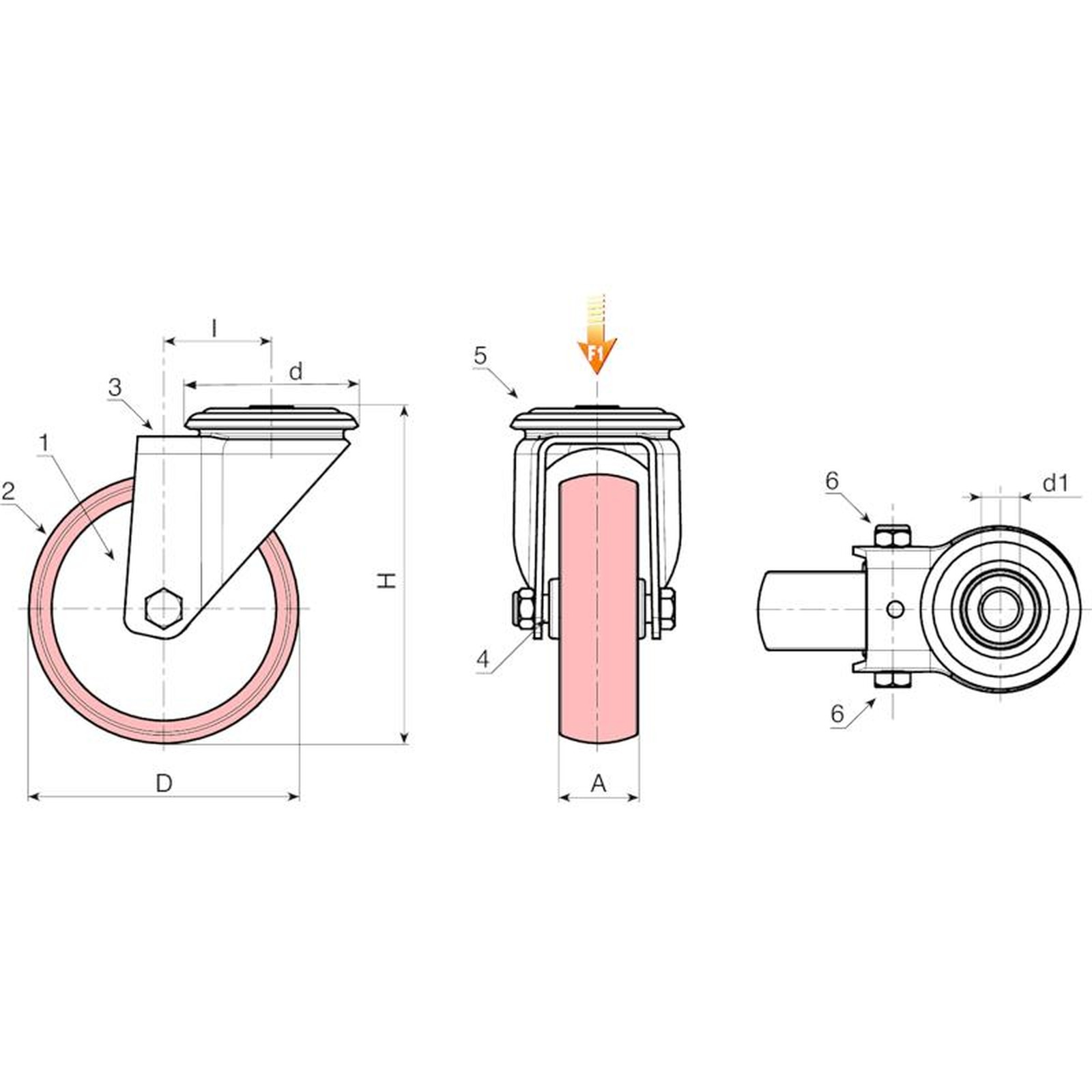

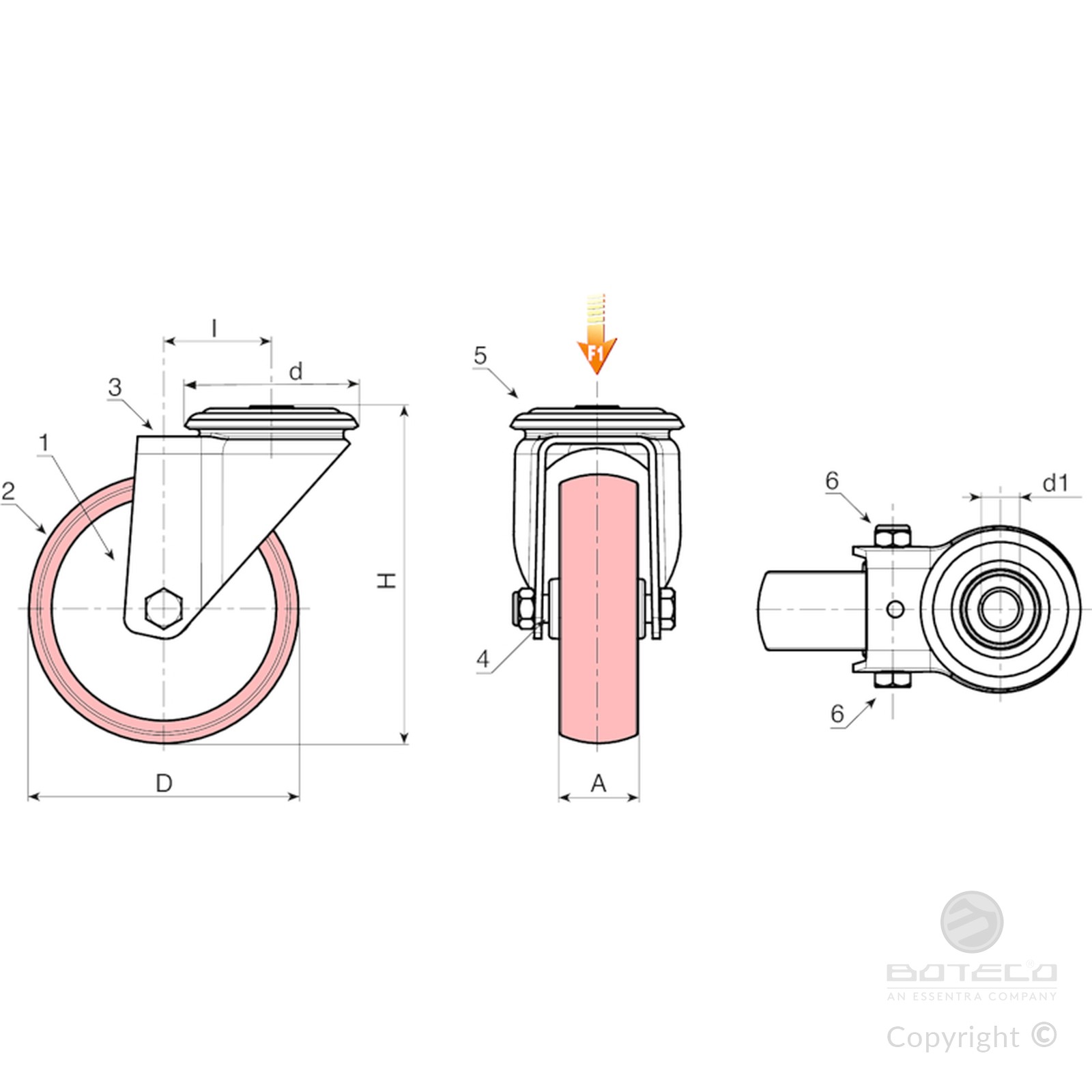

Materials:
Wheel body (1):
Polyamide. Resistant to oils and greases.
Tread (2):
Injected polyurethane. Hardness 60 ± 5 Shore D.
Surface finish:
Smooth.
Colour:
(1) Natural white.
(2) Red (Ral 3013).
(3-4-5-6) Galvanised blue.
Wheel rotation (4):
The hole for the pivot pin is formed by plastic moulding. A galvanised steel tube is positioned between the stud and the hole for protection.
Bracket (3):
Steel fork (DD13).
Rotating assembly (5):
Steel rotating assembly with double ball race and smooth fixing hole, (hole tolerance H7).
Wheel fastening (6):
Steel hex head screw, coupled with a steel nut.
Special requests:
Upon request and for a minimum of 20 pieces, the wheel can be supplied with a needle roller cage, (replace code no. R201 with code no. R231).
| Code | art. | D | A | H | I | d | d1 H7 | Weight (g) | F1 (Kg) |
|---|---|---|---|---|---|---|---|---|---|
| R201080.0001 | R201080.T30D12 | 80 | 30 | 108 | 32 | 64 | 12 | 486 | 100 |
| R201100.0001 | R201100.T30D12 | 100 | 30 | 127 | 32 | 64 | 12 | 1170 | 130 |
| R201125.0001 | R201125.T35D12 | 125 | 35 | 155 | 32 | 64 | 12 | 772 | 130 |
| R201150.0001 | R201150.T40D12 | 150 | 40 | 184 | 35 | 65 | 12 | - | 140 |
| R201200.0001 | R201200.T50D16 | 200 | 50 | 240 | 48 | 95 | 16 | 1934 | 270 |
