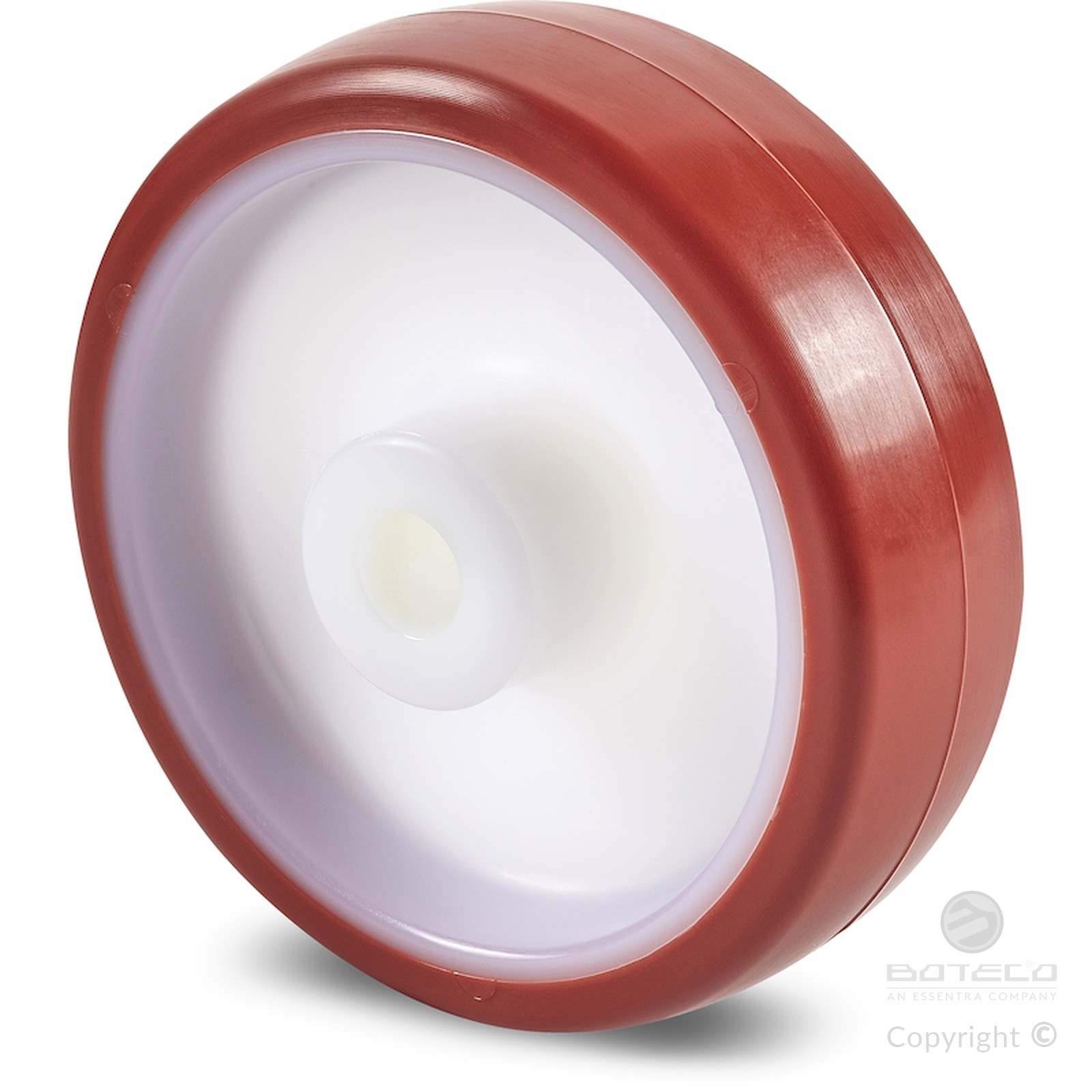

WHEEL WITH POLYAMIDE BODY AND INJECTED POLYURETHANE TREAD (WITHOUT RIG)

18

R200


Ruote in Nylon/Poliuretano

Materials:

Wheel body:

Polyamide. Resistant to oils and greases.

Tread:

Injected polyurethane. Hardness 60 ± 5 Shore D.

Surface finish:

Smooth.

Colour:

Body:

Natural white.

Tread:

Red (Ral 3013).

Wheel rotation:

The hole for the pivot pin is formed by plastic moulding.

Special requests:

Upon request and for a minimum of 20 pieces, the wheel can be supplied with a needle roller cage, (replace code no. R200 with code no. R230).

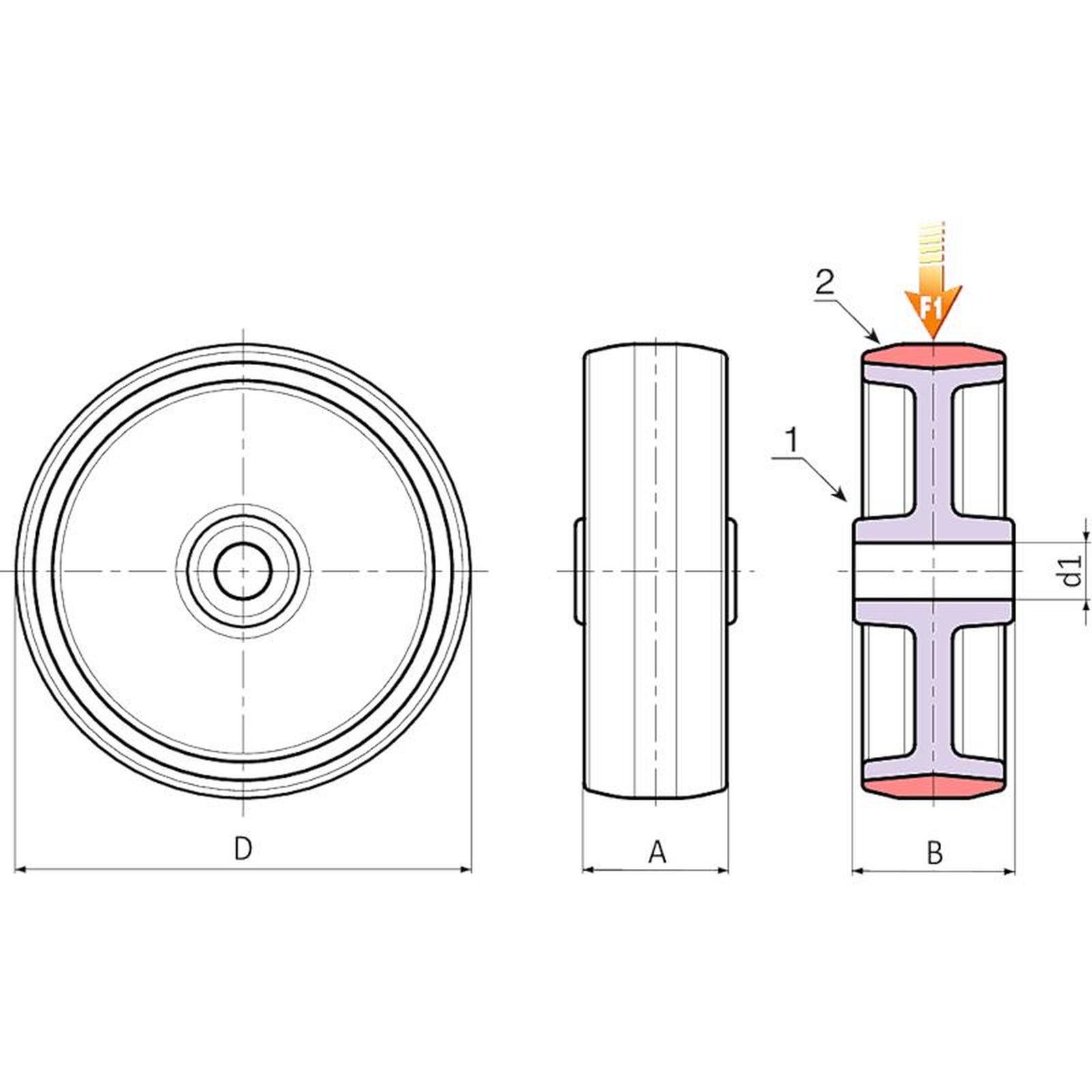

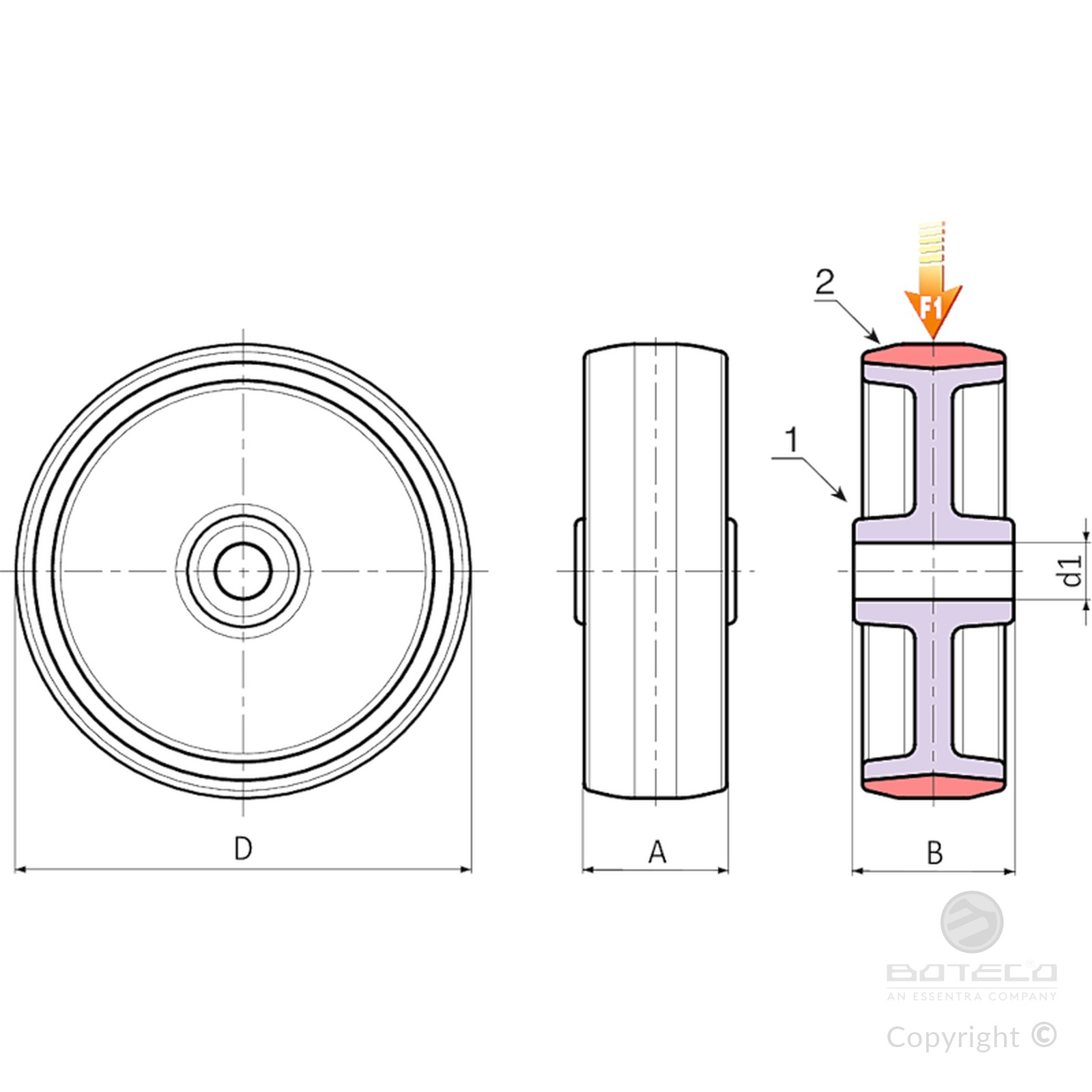

Data sheet

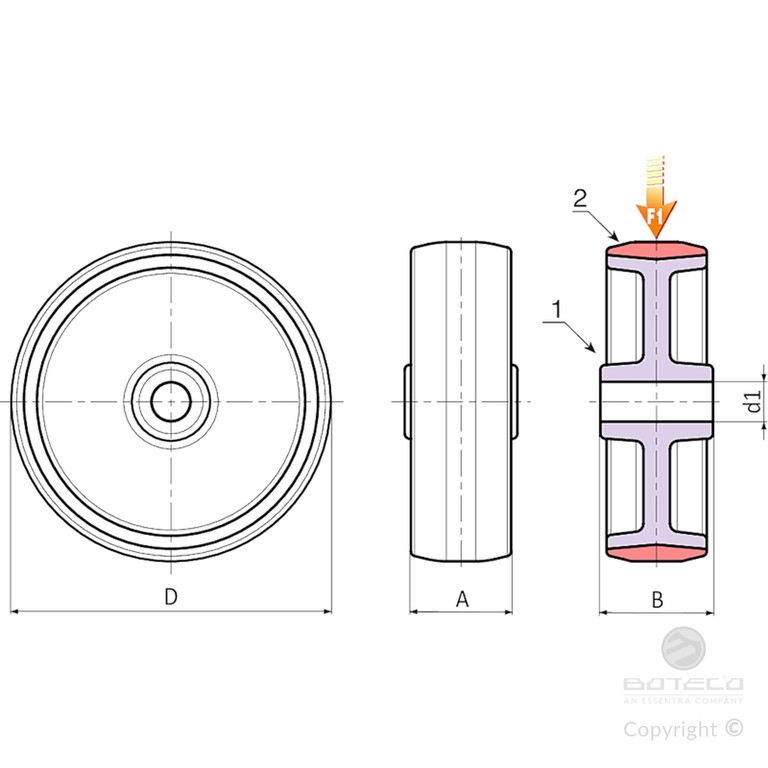

Code art. D A B d1 Weight (g) F1 (Kg)
R200080.0001 R200080.T30D12 80 30 40 12 104 100
R200100.0001 R200100.T30D12 100 30 40 12 152 130
R200125.0001 R200125.T35D15 125 35 44 15 254 200
R200150.0001 R200150.T40D15 150 40 44 15 229 250
R200200.0001 R200200.T50D20 200 50 58 20 818 365

Alternative products:

18

R100

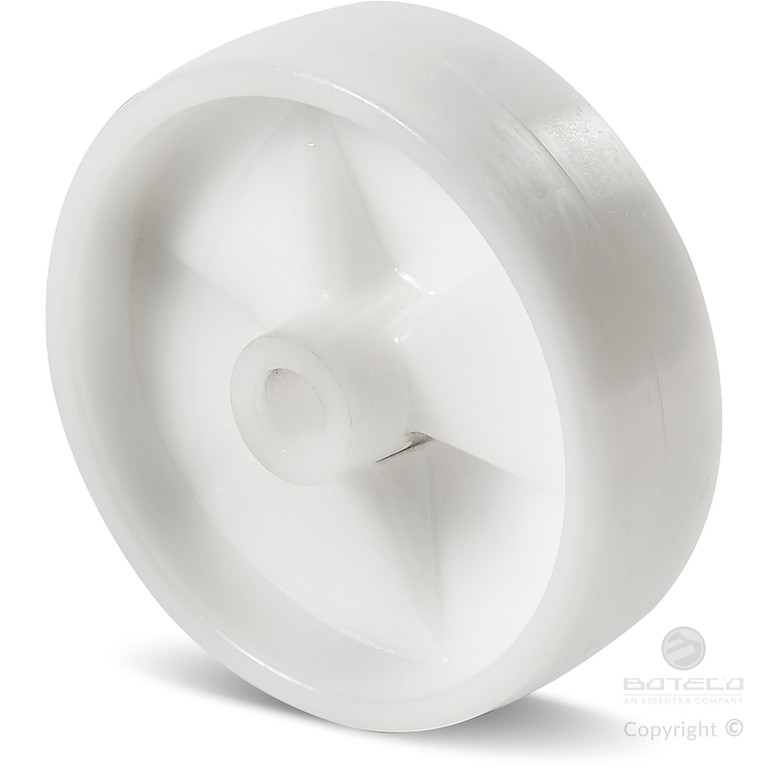

POLYAMIDE MONOLITHIC WHEEL (WITHOUT RIG)
18

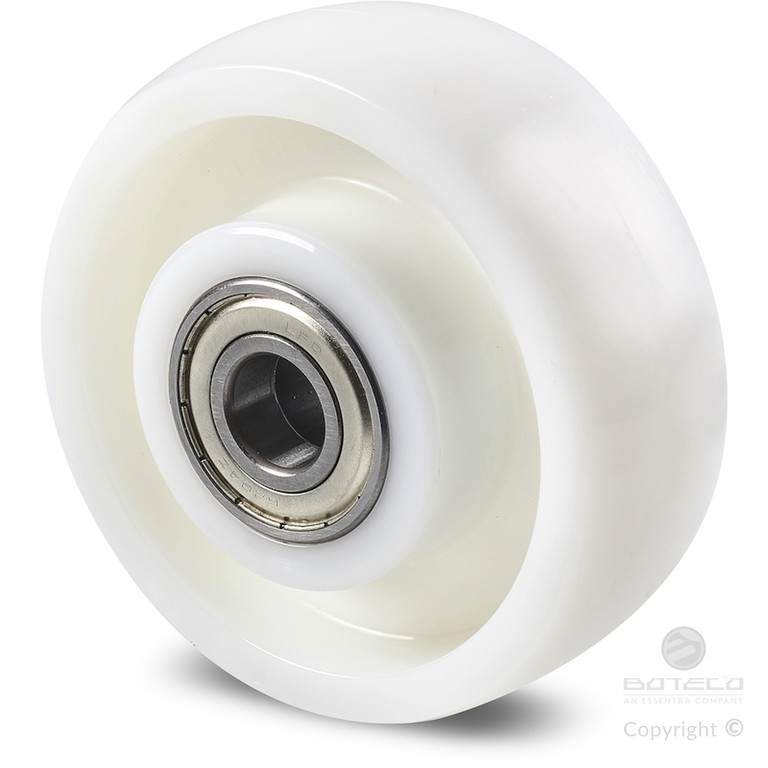

R150

POLYAMIDE MONOLITHIC WHEEL WITH BALL BEARING WITHOUT RIG (HEAVY DUTY)
18

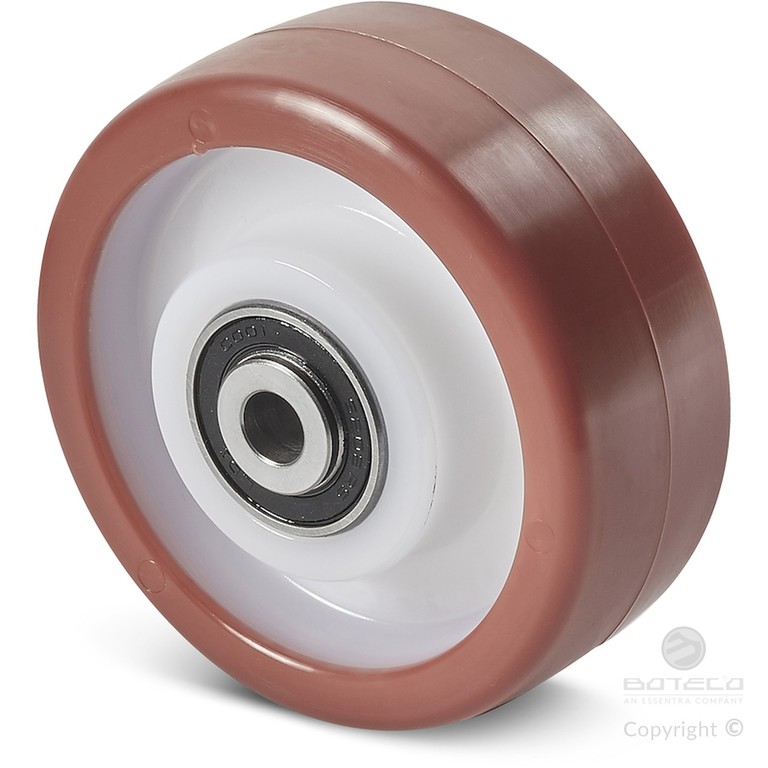

R250

WHEEL WITH POLYAMIDE BODY AND INJECTED POLYURETHANE TREAD WITH BALL BEARINGS WITHOUT RIG (HEAVY DUTY SERIES)
18

R300

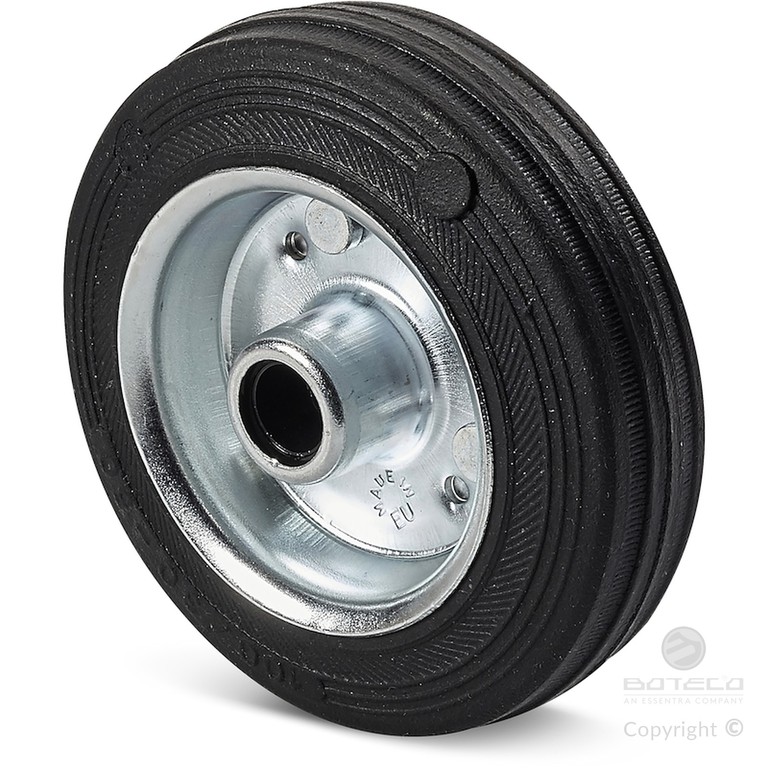

WHEEL WITH SHEET METAL RIM AND RUBBER TREAD (WITHOUT RIG)
18

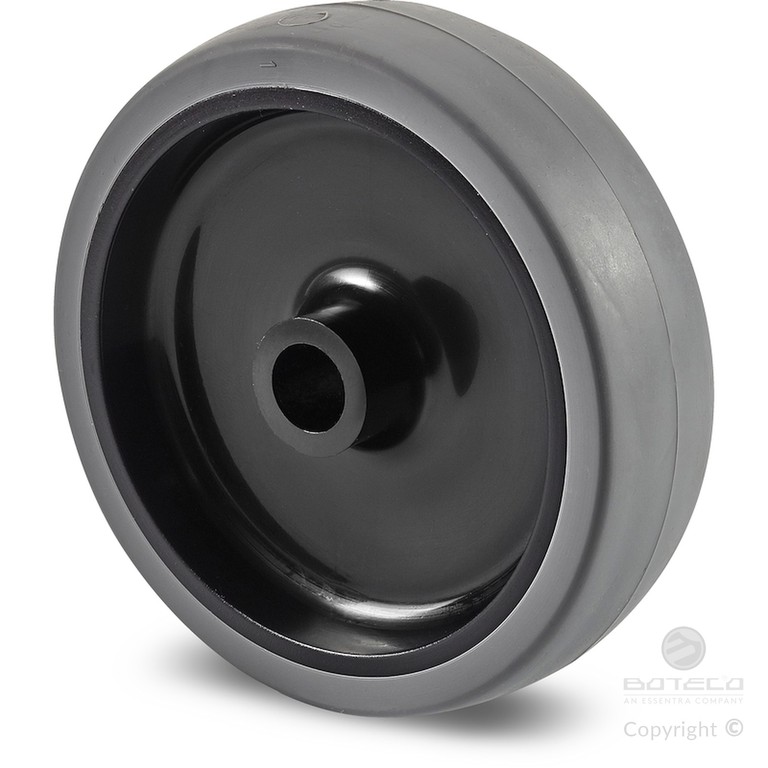

R400
