R158

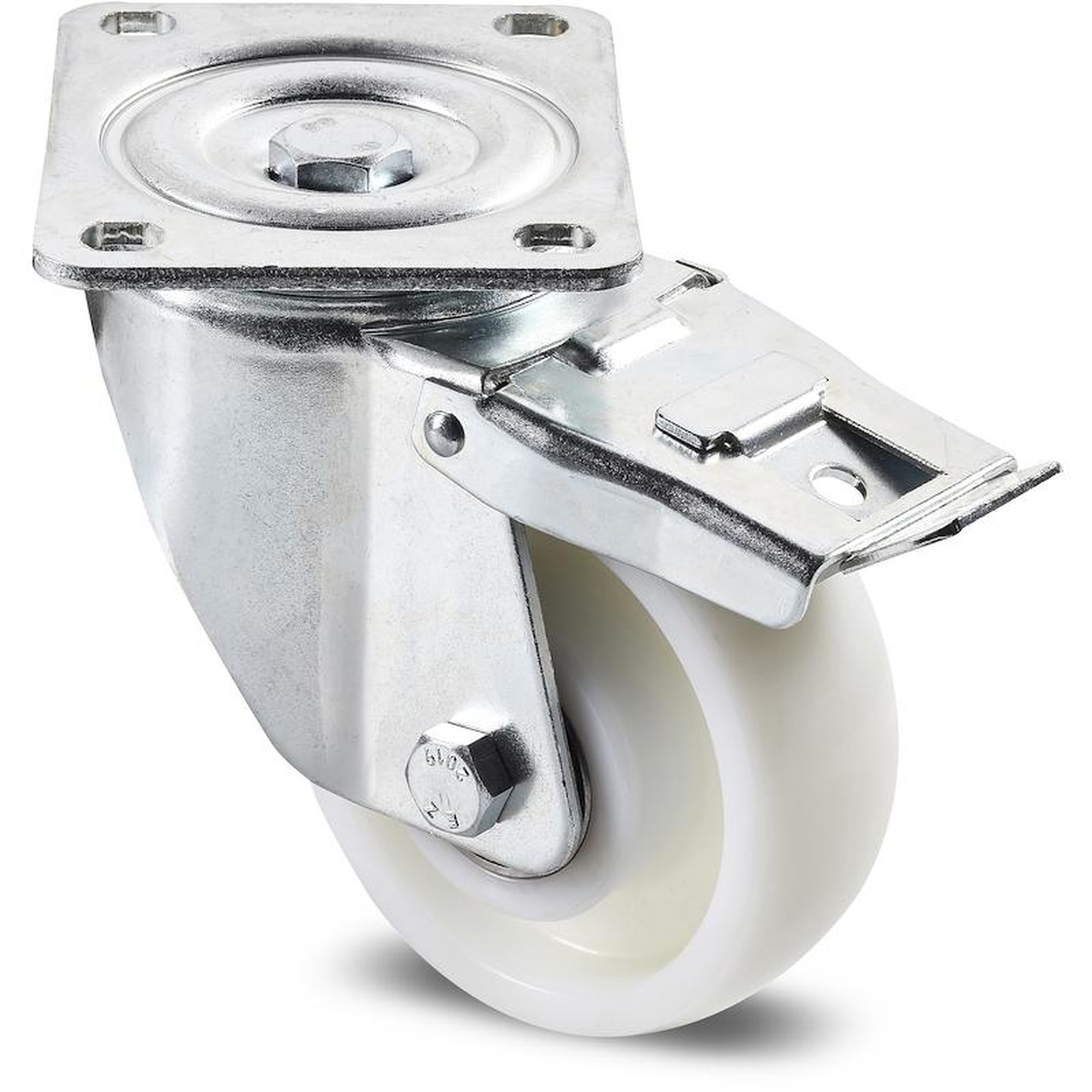

POLYAMIDE MONOLITHIC WHEEL WITH RECTANGULAR SWIVEL STEEL PLATE WITH BEARING - WITH BRAKE (HEAVY DUTY)
Nylon monolithic wheels
Materials:
Wheel body (1):
Polyamide. Resistant to oils and greases.
Tread (2):
Polyamide. Resistant to oils and greases.
Surface finish:
Smooth.
Colour:
(1-2) Natural white.
(3-4-5-6) Galvanised blue.
Wheel rotation (4):
A pair of steel ball bearings is inserted to provide excellent rollability.
Bracket (3):
Extra-thick steel (DD13) fork, with integrated brake.
Rotating assembly (5):
Steel rotating assembly with double ball race, assembled with steel screw grade 8.8 and rectangular swivel plate with four slotted mounting holes.
Wheel fastening (6):
Steel hex head screw, coupled with a self-locking steel nut.
Special requests:
Upon request and for a minimum of 20 pieces, the wheel can be supplied with a needle roller cage, (replace code no. R158 with code no. R148).

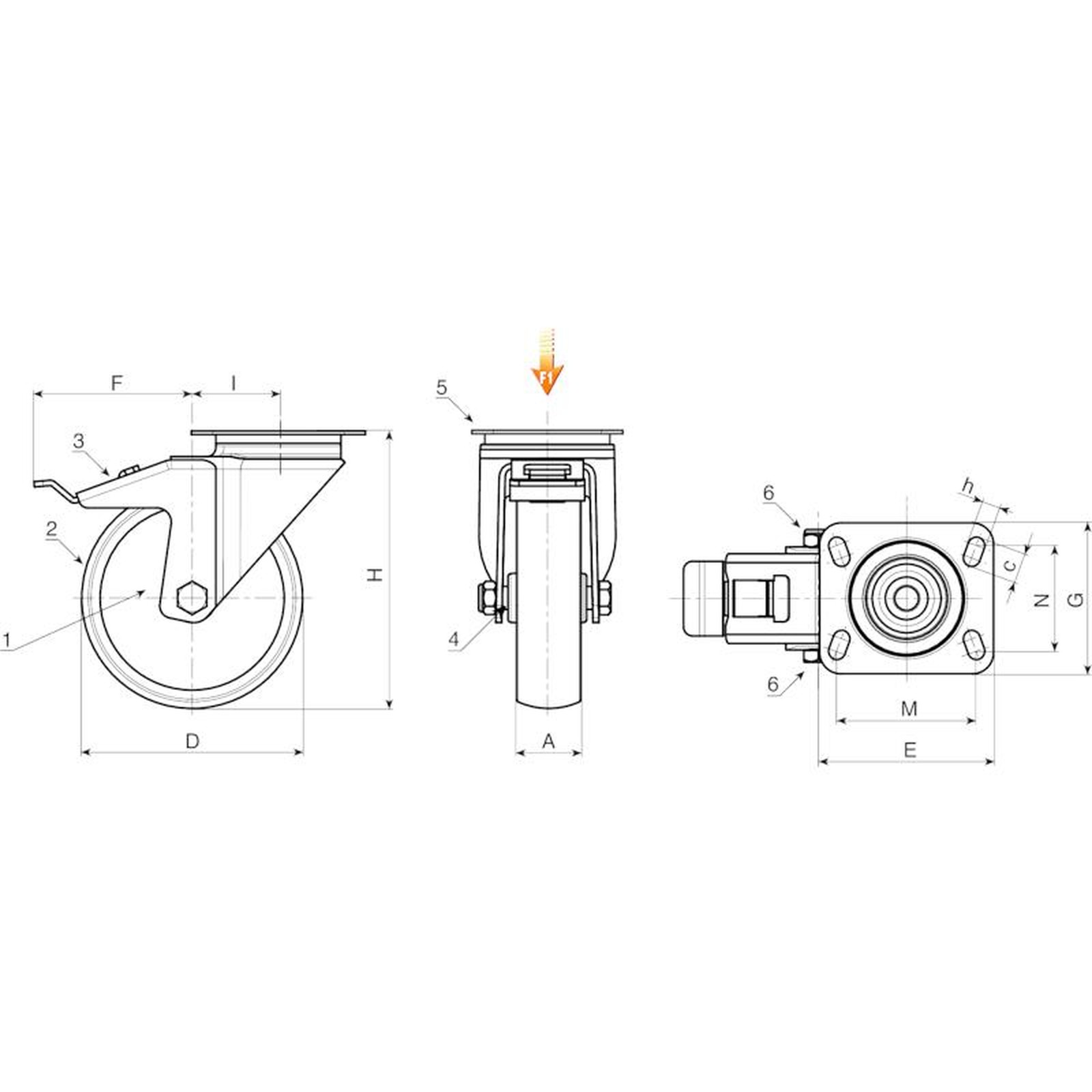

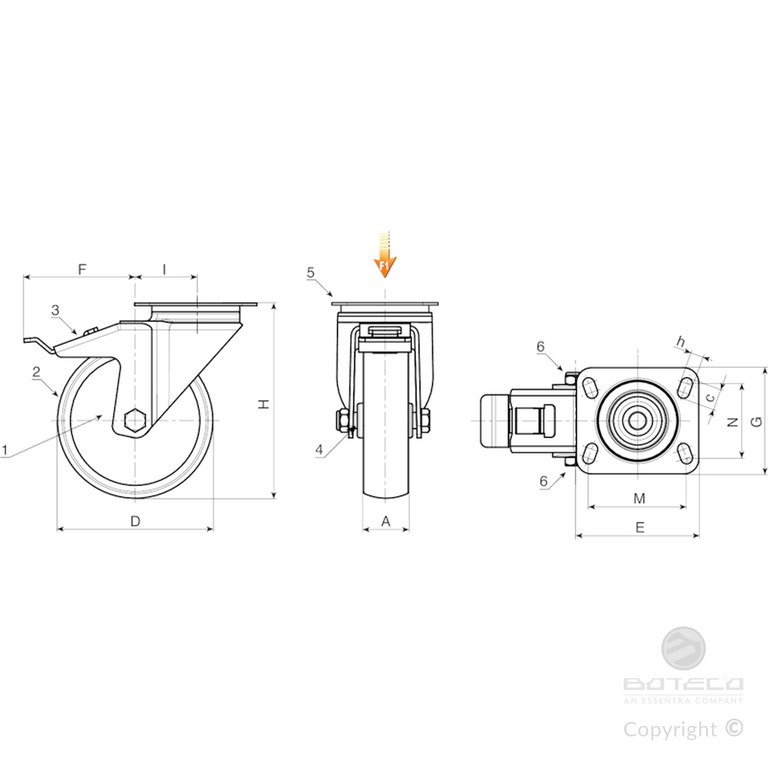

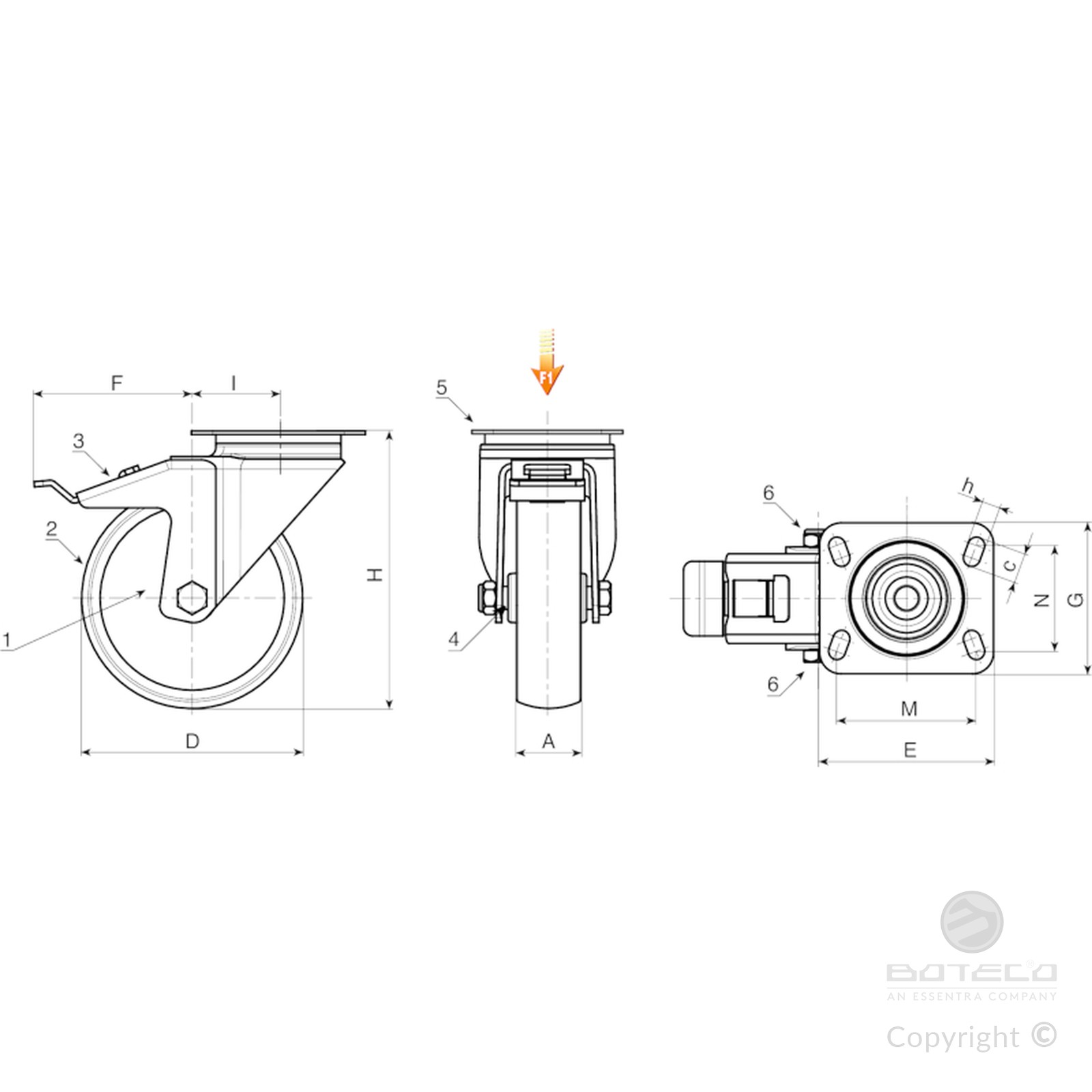

| Code | art. | D | A | H | I | E | G | M | N | c | h | F | Weight (g) | F1 (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R158100.0001 | R158100.T35P080X060 | 100 | 35 | 135 | 47 | 100 | 84 | 80 | 60 | 12 | 9 | 99 | - | 370 |
| R158125.0001 | R158125.T35P080X060 | 125 | 35 | 161 | 51 | 100 | 84 | 80 | 60 | 12 | 9 | 100 | - | 380 |
| R158125.0002 | R158125.T45P105X080 | 125 | 45 | 164 | 61 | 132 | 110 | 105 | 80 | 23 | 12 | 104 | - | 600 |
| R158150.0001 | R158150.T40P105X080 | 150 | 40 | 188 | 45 | 132 | 110 | 105 | 80 | 23 | 12 | 108 | - | 330 |
| R158150.0002 | R158150.T45P105X080 | 150 | 45 | 195 | 60 | 132 | 110 | 105 | 80 | 23 | 12 | 107 | - | 600 |
| R158200.0001 | R158200.T50P105X080 | 200 | 50 | 242 | 59 | 132 | 110 | 105 | 80 | 23 | 12 | 109 | - | 600 |
