18
R150

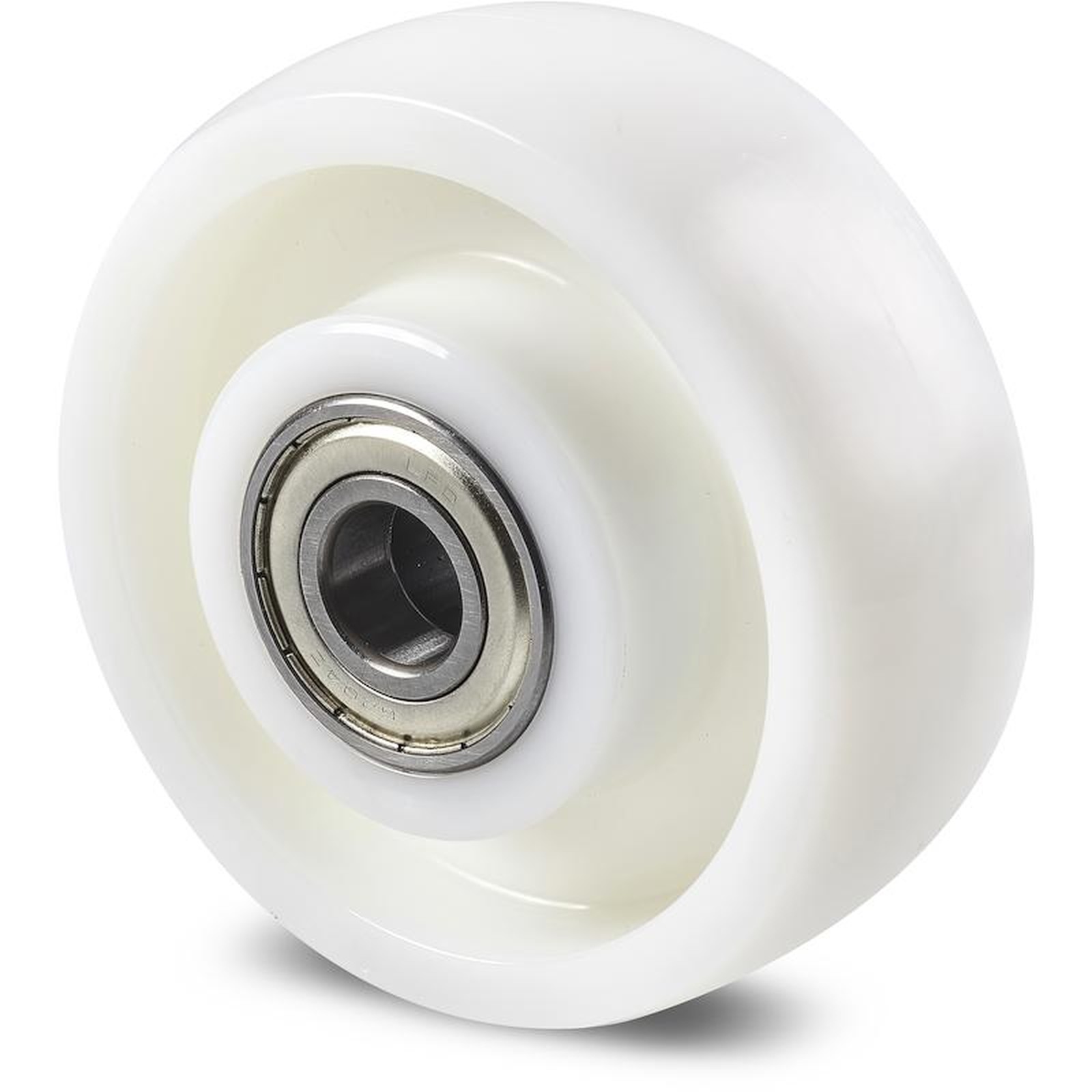

POLYAMIDE MONOLITHIC WHEEL WITH BALL BEARING WITHOUT RIG (HEAVY DUTY)
Nylon monolithic wheels
Materials:
Wheel body:
Polyamide. Resistant to oils and greases.
Tread:
Polyamide. Resistant to oils and greases.
Surface finish:
Smooth.
Colour:
Natural white.
Wheel rotation:
(1) A pair of steel ball bearings is inserted in the wheel hub to provide excellent rollability under a heavy load.
Special requests:
Upon request and for a minimum of 20 pieces, the wheel can be supplied with a needle roller cage, (replace code no. R150 with code no. R140).

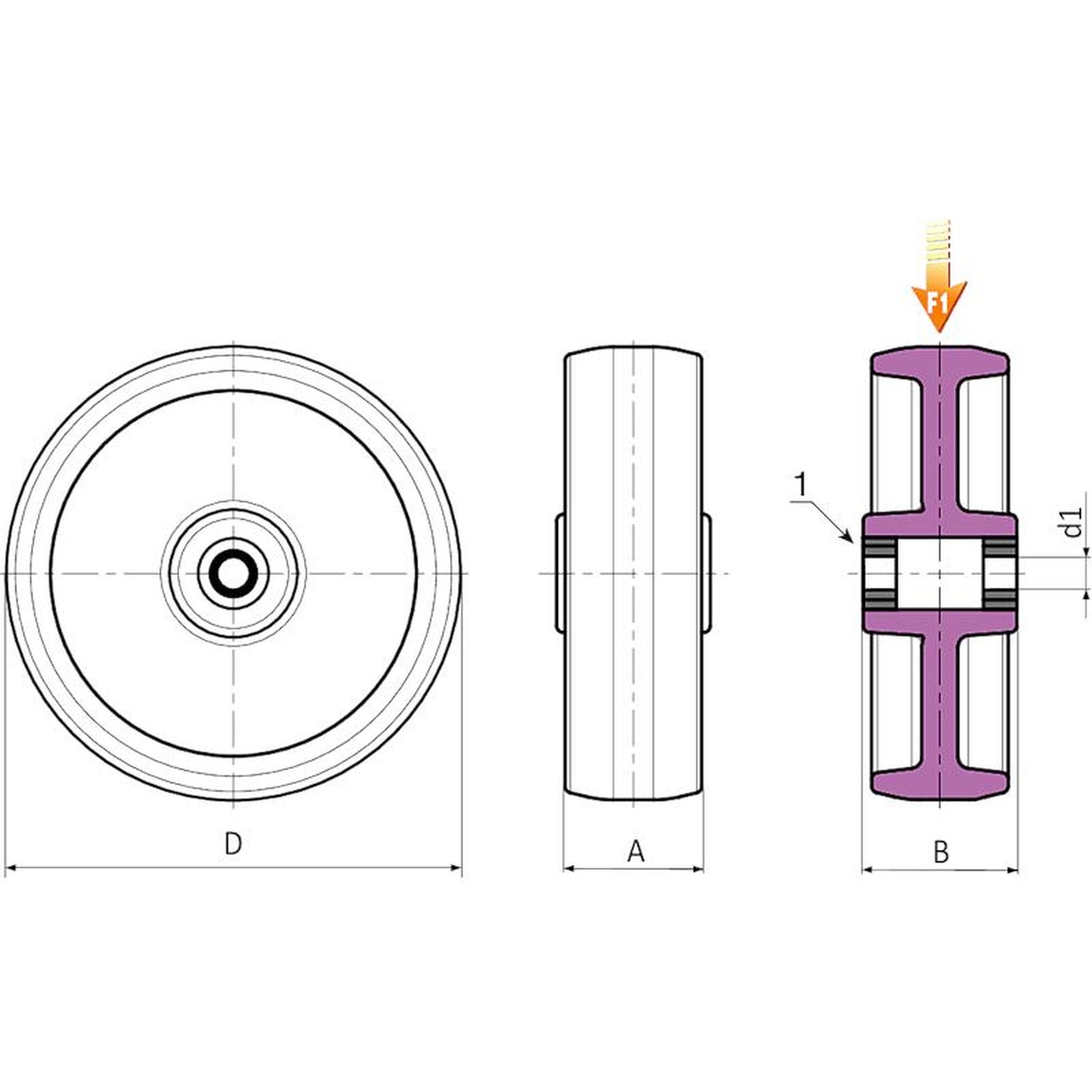

| Code | art. | D | A | B | d1 | Weight (g) | F1 (Kg) |
|---|---|---|---|---|---|---|---|
| R150100.0001 | R150100.T35D15 | 100 | 35 | 40 | 15 | - | 370 |
| R150125.0001 | R150125.T35D15 | 125 | 35 | 40 | 15 | - | 380 |
| R150125.0002 | R150125.T45D20 | 125 | 45 | 58 | 20 | - | 600 |
| R150150.0001 | R150150.T40D20 | 150 | 40 | 49 | 20 | - | 380 |
| R150150.0002 | R150150.T45D20 | 150 | 45 | 58 | 20 | - | 700 |
| R150200.0001 | R150200.T50D20 | 200 | 50 | 58 | 20 | - | 800 |
