POLYAMIDE MONOLITHIC WHEEL WITH RIGID STAINLESS STEEL FORK
18
R109CIN
Ruote in Nylon monolitico

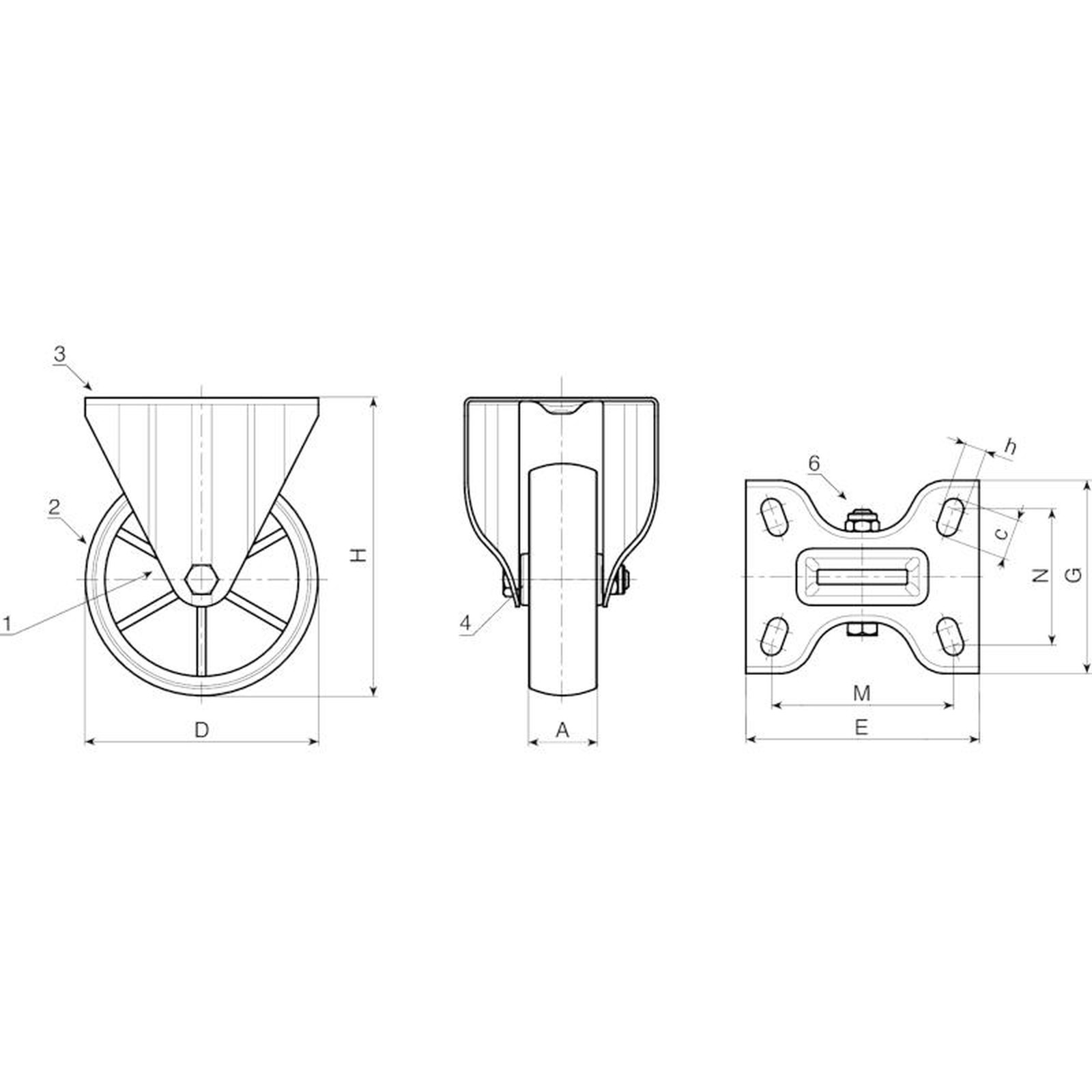

Materials:
Wheel body (1):
Polyamide. Resistant to oils and greases.
Tread (2):
Polyamide. Resistant to oils and greases.
Surface finish:
Smooth.
Colour:
(1-2) Natural white.
(3-4-6) Natural stainless steel.
Wheel rotation (4):
The hole for the pivot pin is formed by plastic moulding. A stainless steel (Aisi 304) tube is positioned between the stud and the hole for protection.
Bracket (3):
Rigid stainless steel (Aisi 304) fork, with mounting holes in the base.
Wheel fastening (6):
Stainless steel (Aisi 304) hex head bolt, coupled with a stainless steel (Aisi 304) nut.
Special requests:
Upon request and for a minimum of 20 pieces, the wheel can be supplied with a needle roller cage, (replace code no. R109CIN with code no. R139CIN).
| Code | art. | D | A | H | E | G | M | N | c | h | Weight (g) | F1 (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R109080.0002 | R109080.T30P080X060CIN | 80 | 30 | 108 | 100 | 84 | 80 | 60 | 12 | 9 | 312 | 100 |
| R109100.0002 | R109100.T30P080X060CIN | 100 | 30 | 127 | 100 | 84 | 80 | 60 | 12 | 9 | 347 | 130 |
| R109125.0002 | R109125.T39P080X060CIN | 125 | 39 | 155 | 100 | 84 | 80 | 60 | 12 | 9 | 532 | 180 |
| R109150.0002 | R109150.T40P080X060CIN | 150 | 40 | 184 | 100 | 84 | 80 | 60 | 12 | 9 | - | 140 |
| R109175.0002 | R109175.T45P105X080CIN | 175 | 45 | 228 | 135 | 110 | 105 | 80 | 23 | 11 | - | 300 |
| R109200.0002 | R109200.T50P105X080CIN | 200 | 50 | 240 | 135 | 110 | 105 | 80 | 23 | 11 | 1444 | 300 |
