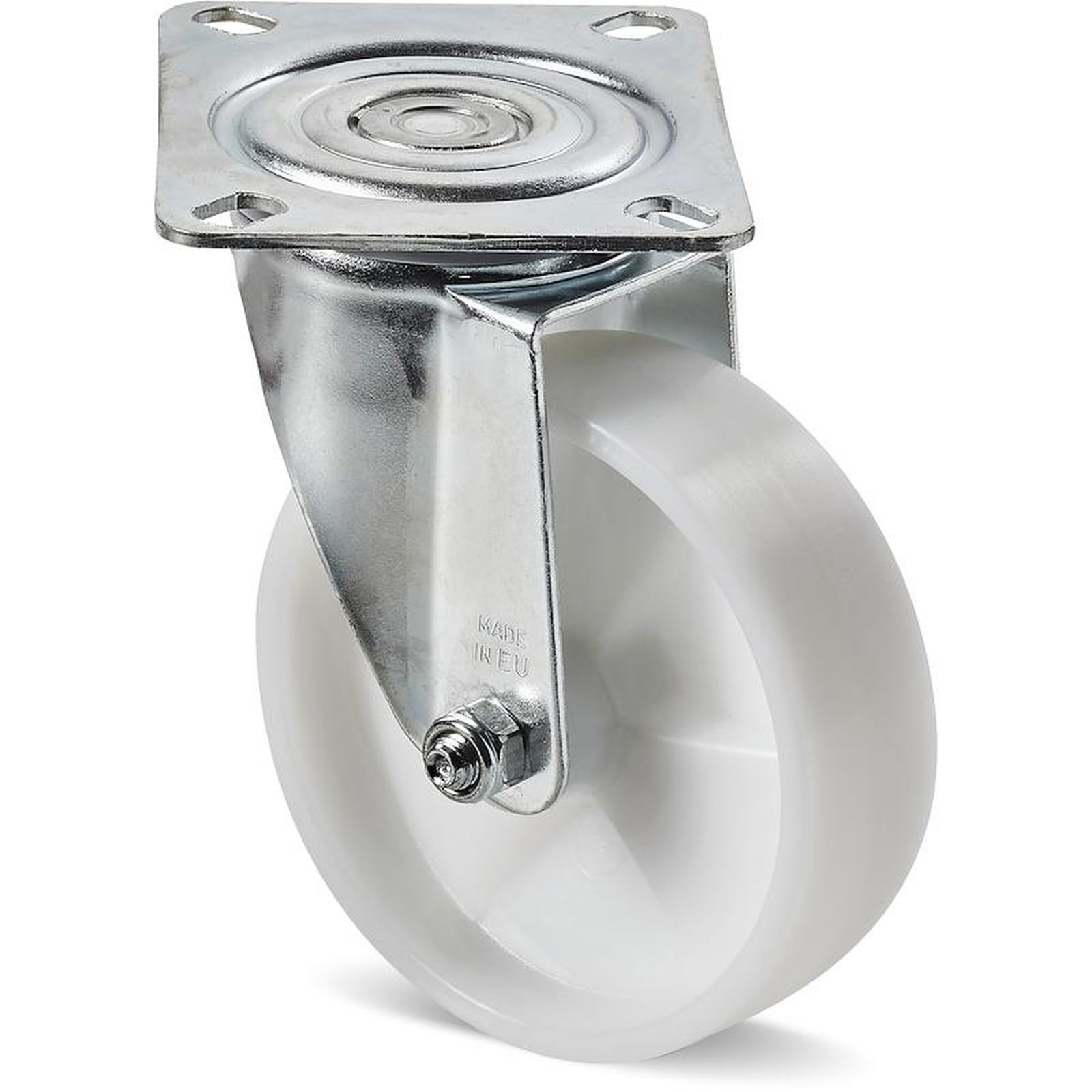

POLYAMIDE MONOLITHIC WHEEL WITH RECTANGULAR SWIVEL STEEL PLATE
18
R107
Ruote in Nylon monolitico
Materials:
Wheel body (1):
Polyamide. Resistant to oils and greases.
Tread (2):
Polyamide. Resistant to oils and greases.
Surface finish:
Smooth.
Colour:
(1-2) Natural white.
(3-4-5-6) Galvanised blue.
Wheel rotation (4):
The hole for the pivot pin is formed by plastic moulding. A galvanised steel tube is positioned between the stud and the hole for protection.
Bracket (3):
Steel fork (DD13).
Rotating assembly (5):
Steel rotating assembly with double ball race, and rectangular swivel plate with four slotted mounting holes.
Wheel fastening (6):
Steel hex head screw, coupled with a steel nut.
Special requests:
Upon request and for a minimum of 20 pieces, the wheel can be supplied with a needle roller cage, (replace code no. R107 with code no. R137).

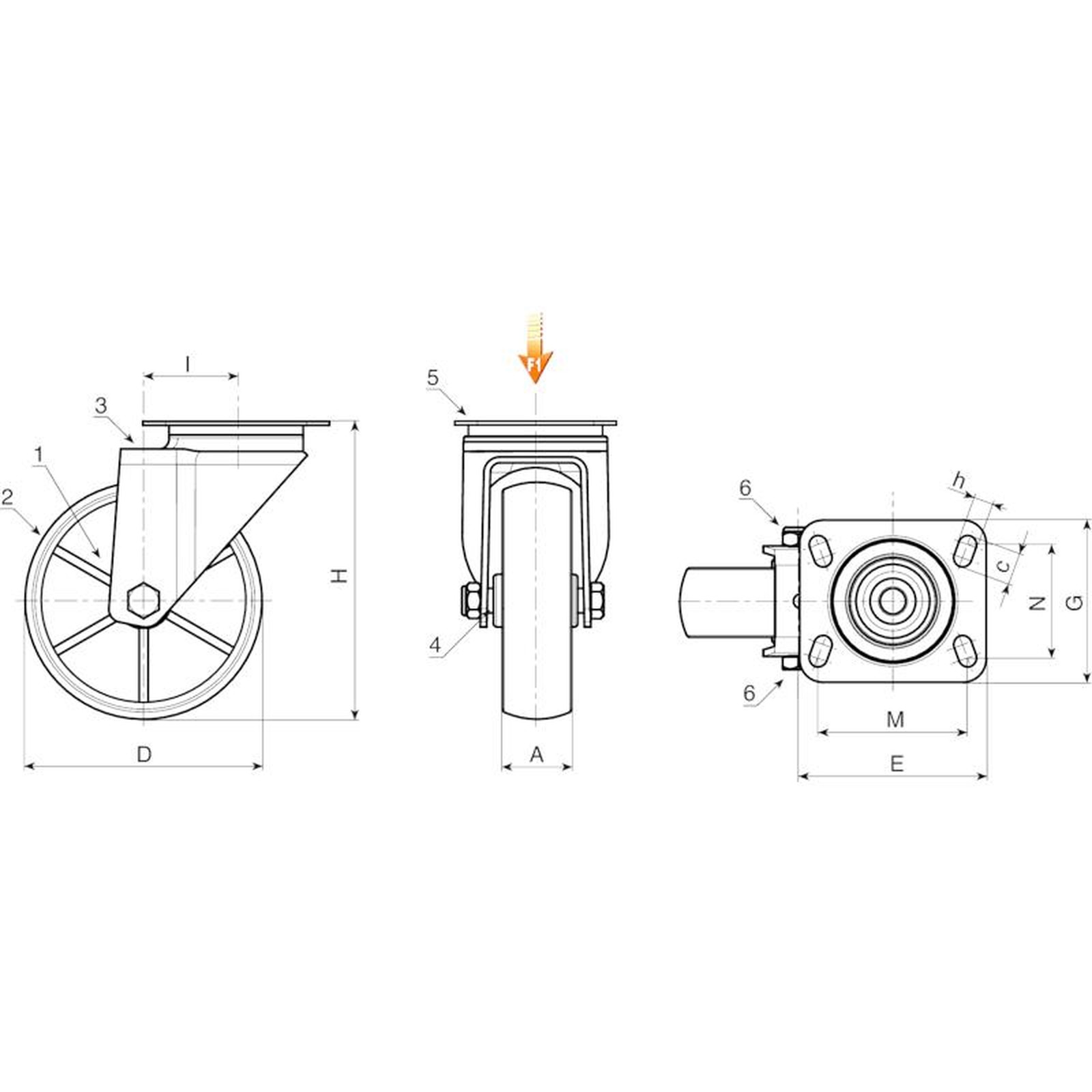

| Code | art. | D | A | H | I | E | G | M | N | c | h | Weight (g) | F1 (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R107080.0001 | R107080.T30P080X060 | 80 | 30 | 108 | 32 | 95 | 80 | 80 | 60 | 12 | 9 | 427 | 100 |
| R107100.0001 | R107100.T30P080X060 | 100 | 30 | 127 | 32 | 95 | 80 | 80 | 60 | 12 | 9 | 468 | 130 |
| R107125.0001 | R107125.T39P080X060 | 125 | 39 | 155 | 32 | 95 | 80 | 80 | 60 | 12 | 9 | 617 | 130 |
| R107150.0001 | R107150.T40P080X060 | 150 | 40 | 184 | 35 | 95 | 100 | 80 | 60 | 12 | 9 | - | 140 |
| R107175.0001 | R107175.T45P105X080 | 175 | 45 | 228 | 48 | 129 | 106 | 105 | 80 | 23 | 11 | 1866 | 270 |
| R107200.0002 | R107200.T50P105X080 | 200 | 50 | 240 | 48 | 129 | 106 | 105 | 80 | 23 | 11 | 2105 | 270 |
