R102CIN

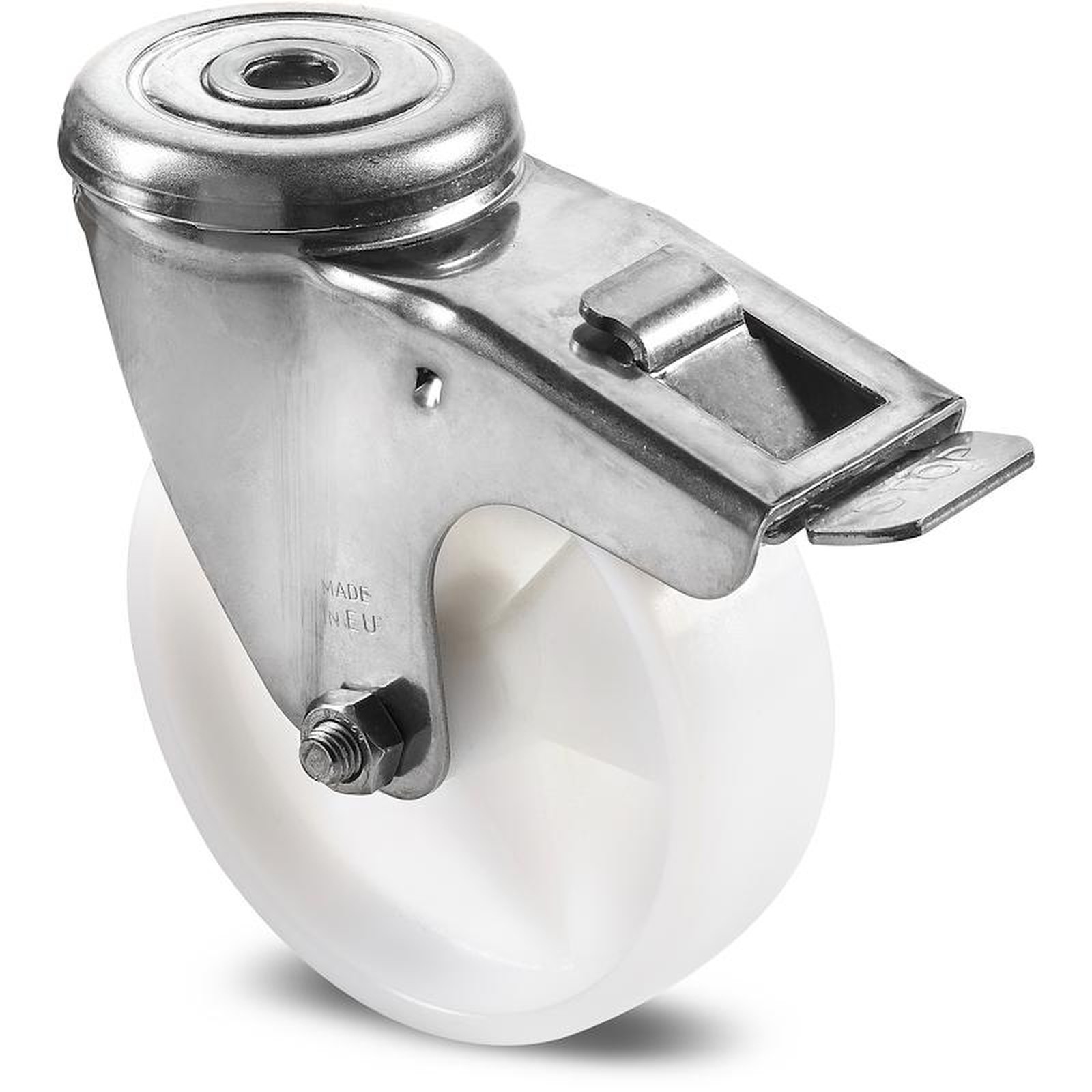

POLYAMIDE MONOLITHIC WHEEL WITH ROUND STAINLESS STEEL SWIVEL SUPPORT AND SMOOTH THROUGH HOLE WITH BRAKE
Nylon monolithic wheels

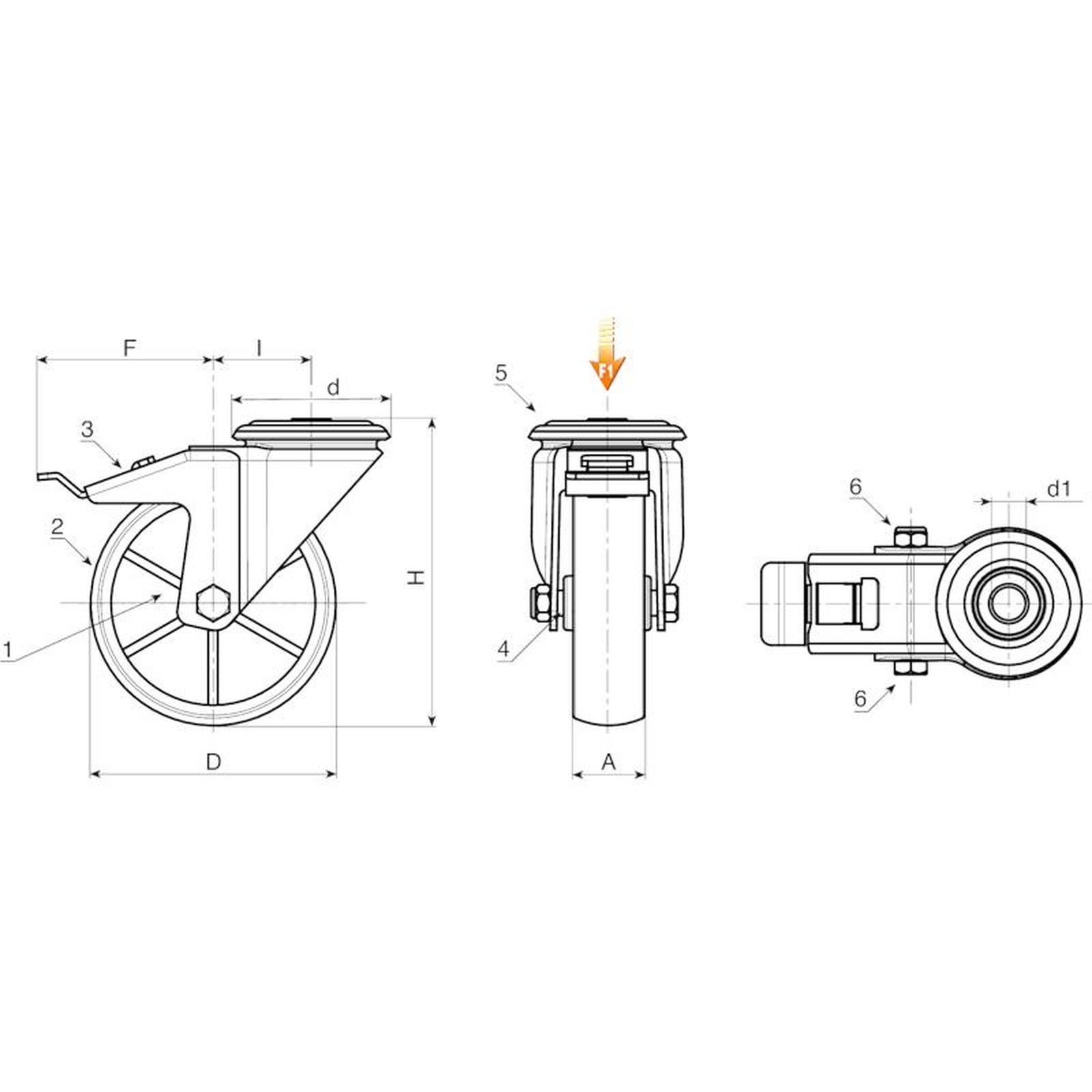

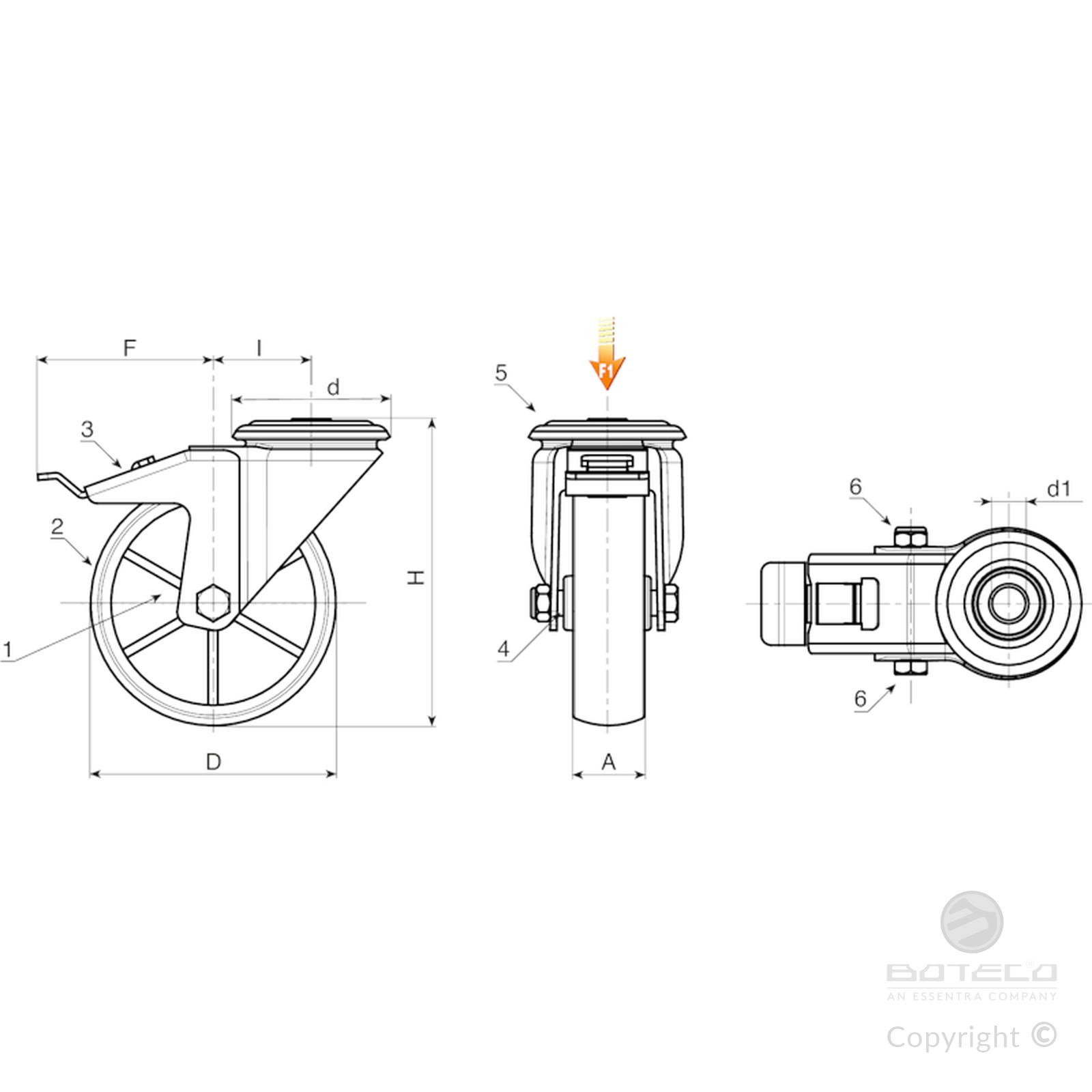

Materials:
Wheel body (1):
Polyamide. Resistant to oils and greases.
Tread (2):
Polyamide. Resistant to oils and greases.
Surface finish:
Smooth.
Colour:
(1-2) Natural white.
(3-4-5-6) Natural stainless steel.
Wheel rotation (4):
The hole for the pivot pin is formed by plastic moulding. A stainless steel (Aisi 304) tube is positioned between the stud and the hole for protection.
Bracket (3):
Stainless steel (Aisi 304) fork, with integrated brake.
Rotating assembly (5):
Stainless steel (Aisi 304) rotating assembly with double stainless steel (Aisi 420) ball race and smooth fixing hole, (hole tolerance H7).
Wheel fastening (6):
Stainless steel (Aisi 304) hex head bolt, coupled with a stainless steel (Aisi 304) nut.
Special requests:
Upon request and for a minimum of 20 pieces, the wheel can be supplied with a needle roller cage, (replace code no. R102CIN with code no. R132CIN).
| Code | art. | D | A | H | I | d | F | d1 H7 | Weight (g) | F1 (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| R102080.0002 | R102080.T30D12CIN | 80 | 30 | 108 | 32 | 64 | 110 | 12 | 451 | 100 |
| R102100.0002 | R102100.T30D12CIN | 100 | 30 | 127 | 32 | 64 | 110 | 12 | 706 | 130 |
| R102125.0002 | R102125.T39D12CIN | 125 | 39 | 155 | 32 | 64 | 113 | 12 | 776 | 130 |
| R102150.0002 | R102150.T40D12CIN | 150 | 40 | 184 | 35 | 65 | 115 | 12 | - | 140 |
| R102175.0002 | R102175.T45D16CIN | 175 | 45 | 228 | 48 | 95 | 150 | 16 | - | 300 |
| R102200.0002 | R102200.T50D16CIN | 200 | 50 | 240 | 48 | 95 | 150 | 16 | - | 300 |
