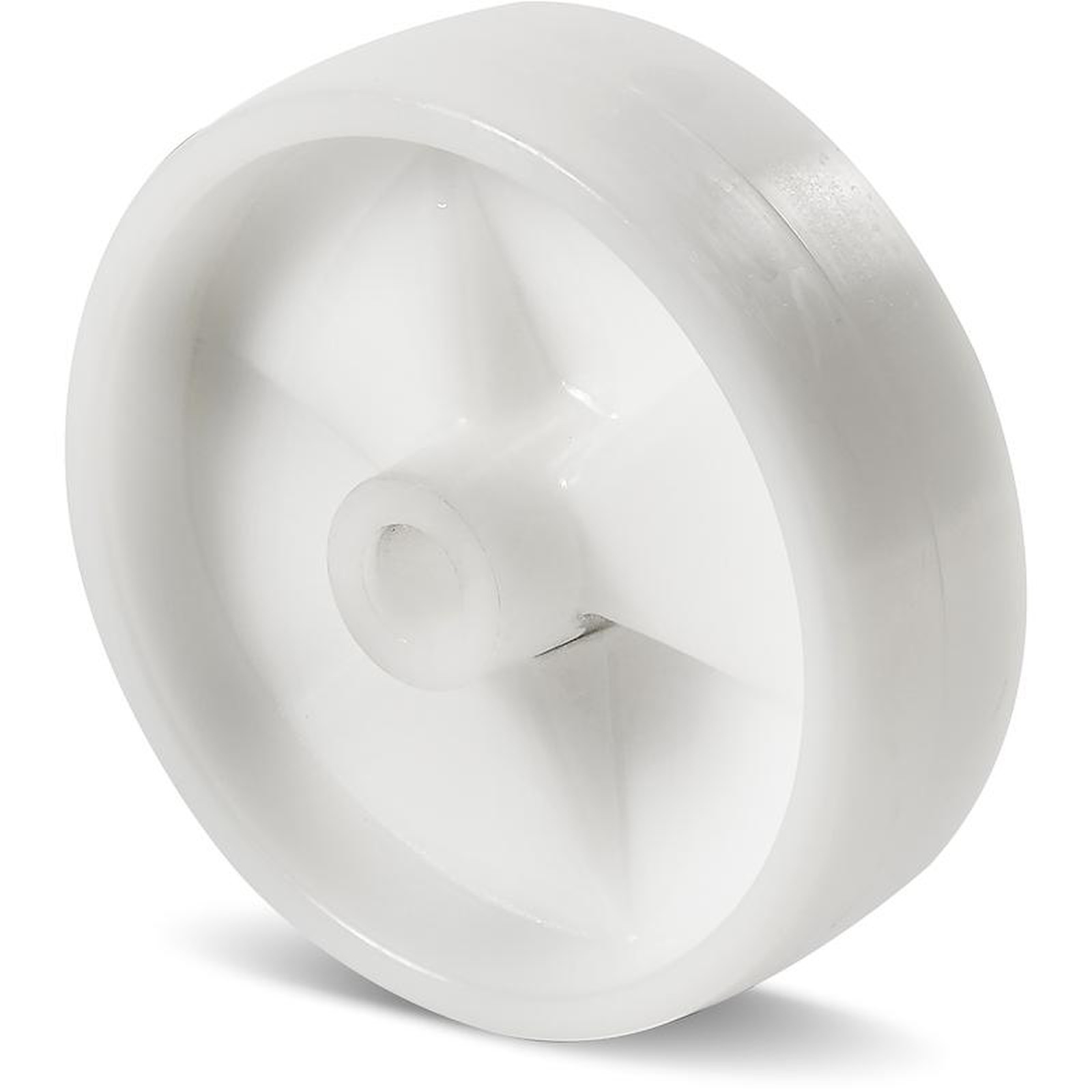

POLYAMIDE MONOLITHIC WHEEL (WITHOUT RIG)
18
R100
Ruote in Nylon monolitico
Materials:
Wheel body:
Polyamide. Resistant to oils and greases.
Tread:
Polyamide. Resistant to oils and greases.
Surface finish:
Smooth.
Colour:
Natural white.
Wheel rotation:
The hole for the pivot pin is formed by plastic moulding.
Special requests:
Upon request and for a minimum of 20 pieces, the wheel can be supplied with a needle roller cage, (replace code no. R100 with code no. R130).

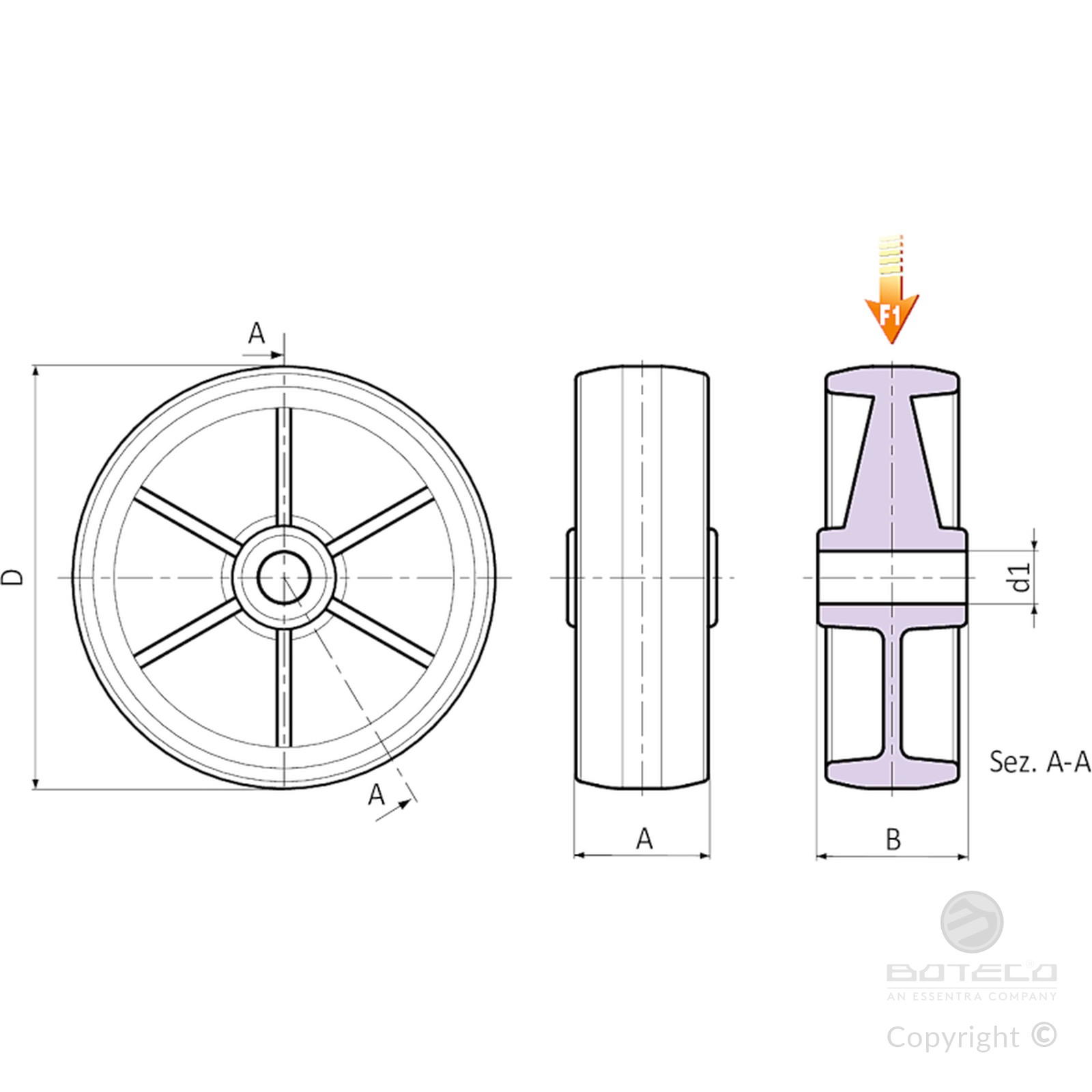

| Code | art. | D | A | B | d1 | Weight (g) | F1 (Kg) |
|---|---|---|---|---|---|---|---|
| R100080.0001 | R100080.T30D12 | 80 | 30 | 39 | 12 | 60 | 100 |
| R100100.0001 | R100100.T30D12 | 100 | 30 | 39 | 12 | 96 | 130 |
| R100125.0001 | R100125.T39D15 | 125 | 39 | 44 | 15 | 206 | 200 |
| R100150.0001 | R100150.T40D20 | 150 | 40 | 45 | 20 | 300 | 250 |
| R100175.0001 | R100175.T45D20 | 175 | 45 | 58 | 20 | 488 | 300 |
| R100200.0001 | R100200.T50D20 | 200 | 50 | 58 | 20 | 576 | 380 |
