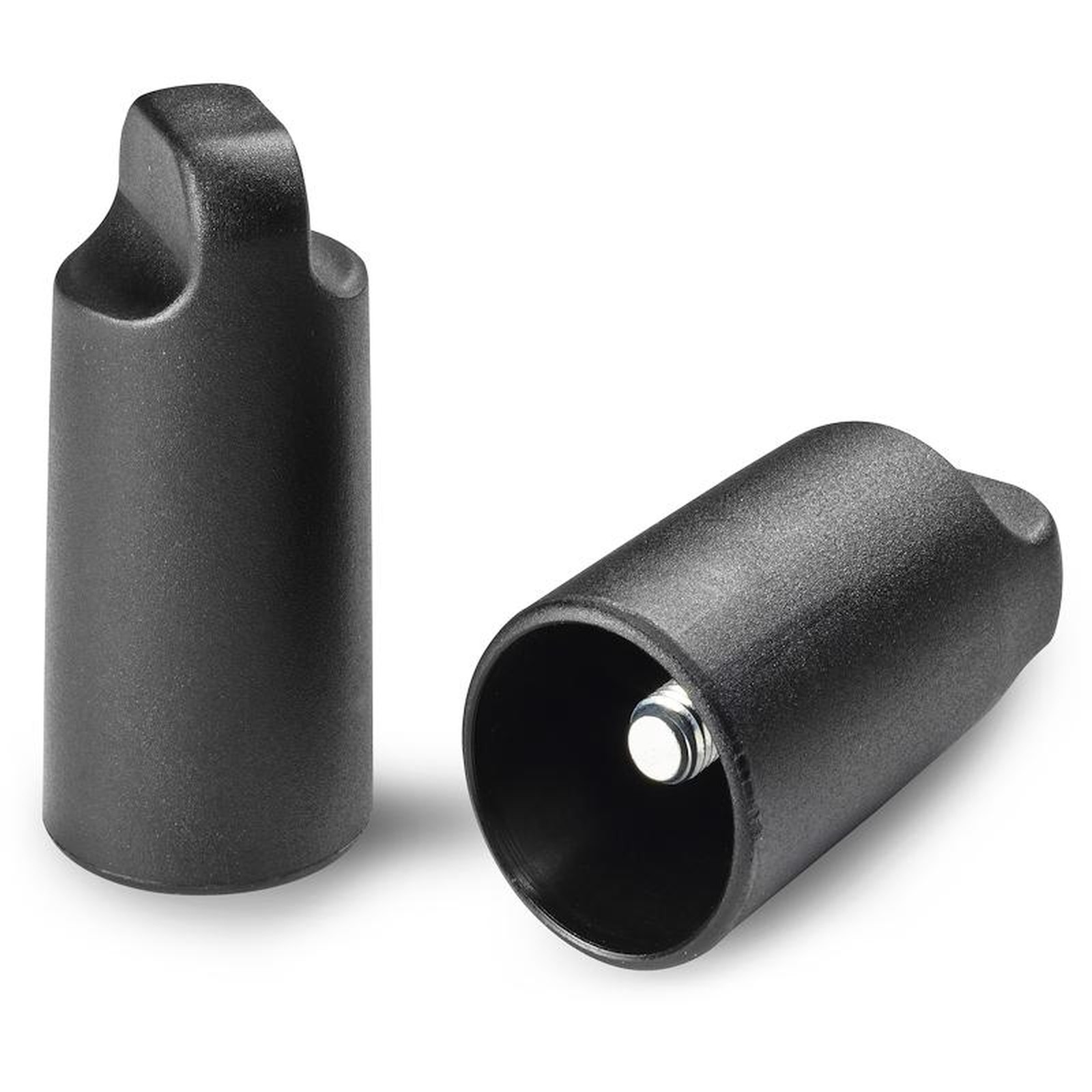

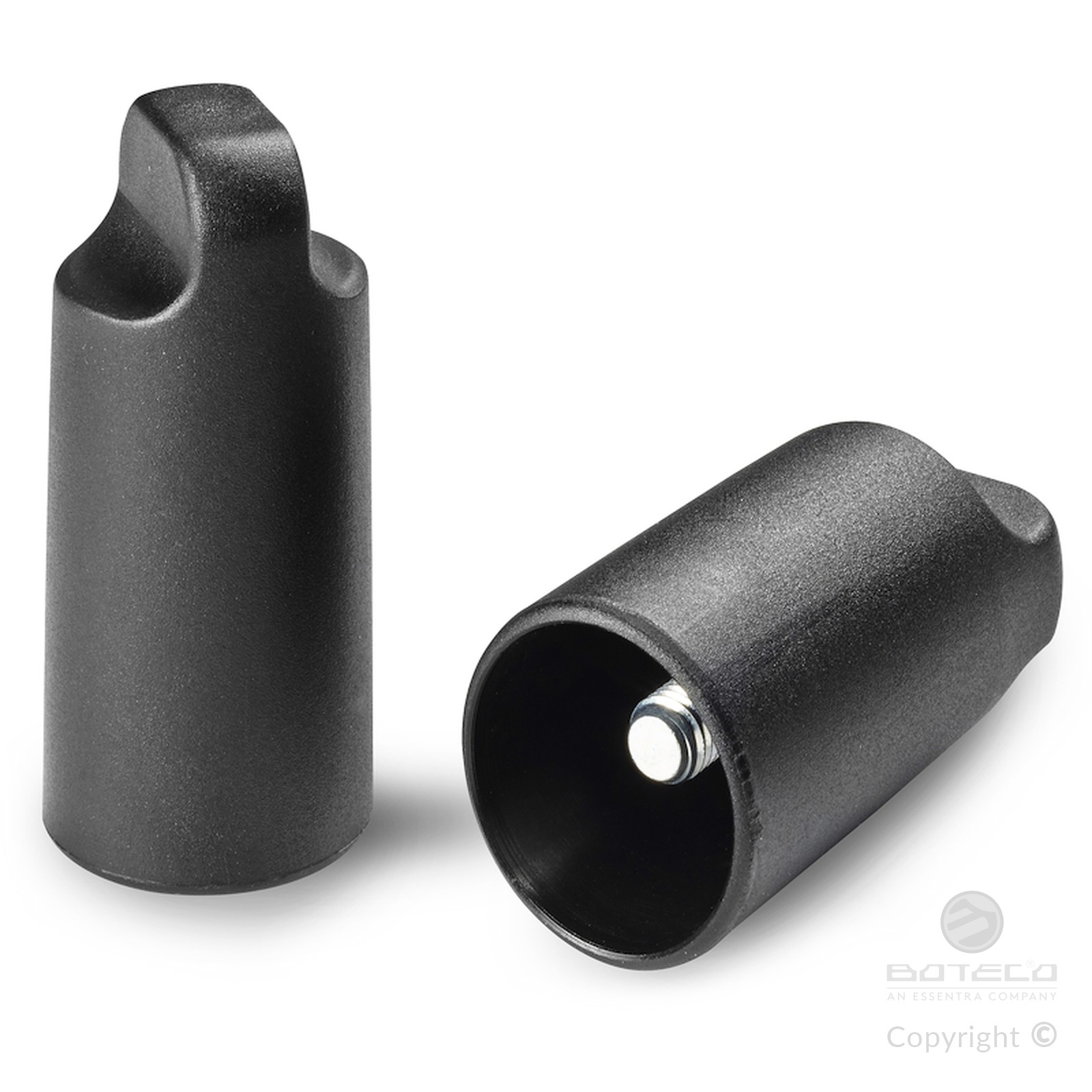

ELONGATED KNOB WITH THREADED STUD
07
G799
Pomelli
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Galvanised steel threaded stud (thread tolerance 6g).
Special requests:
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart.

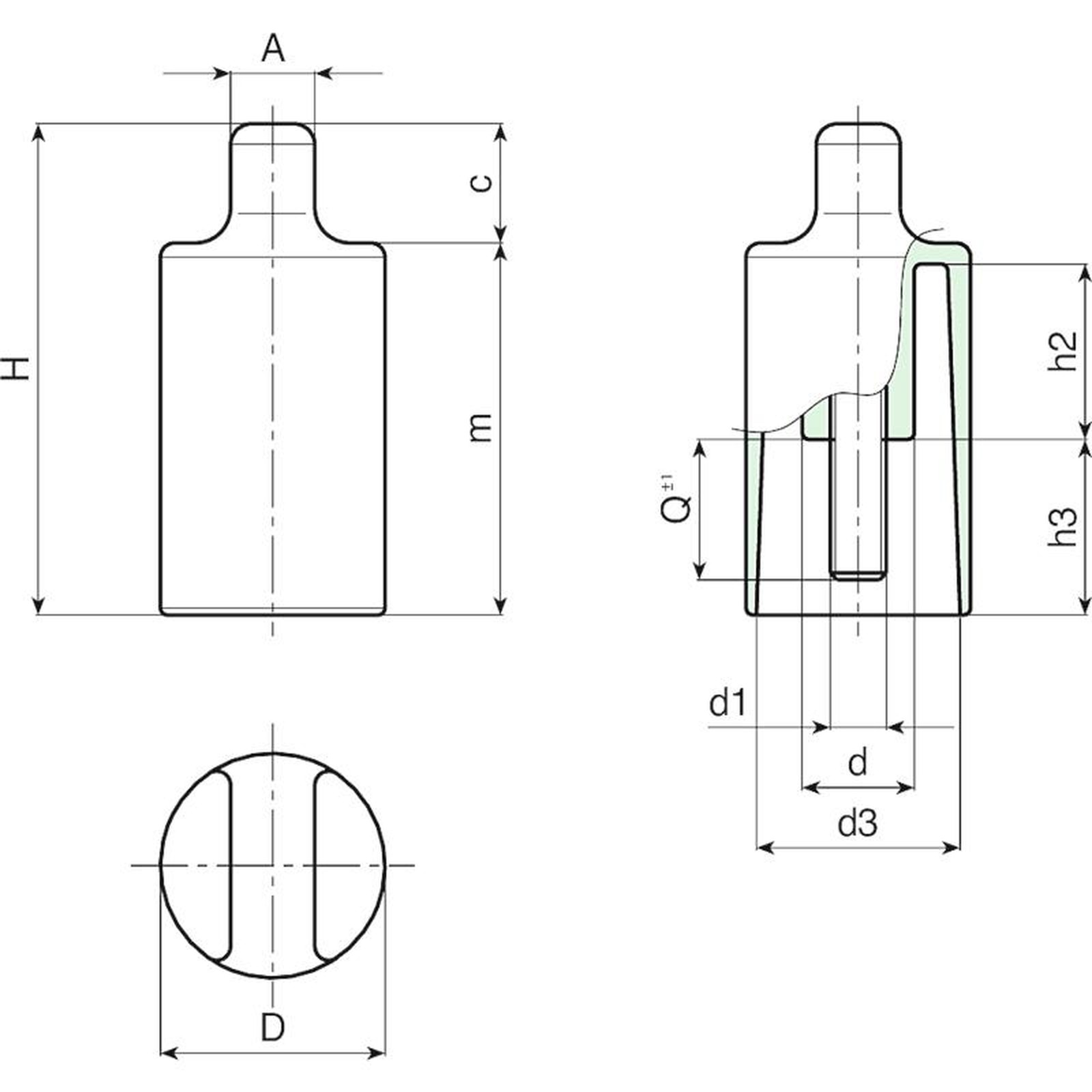

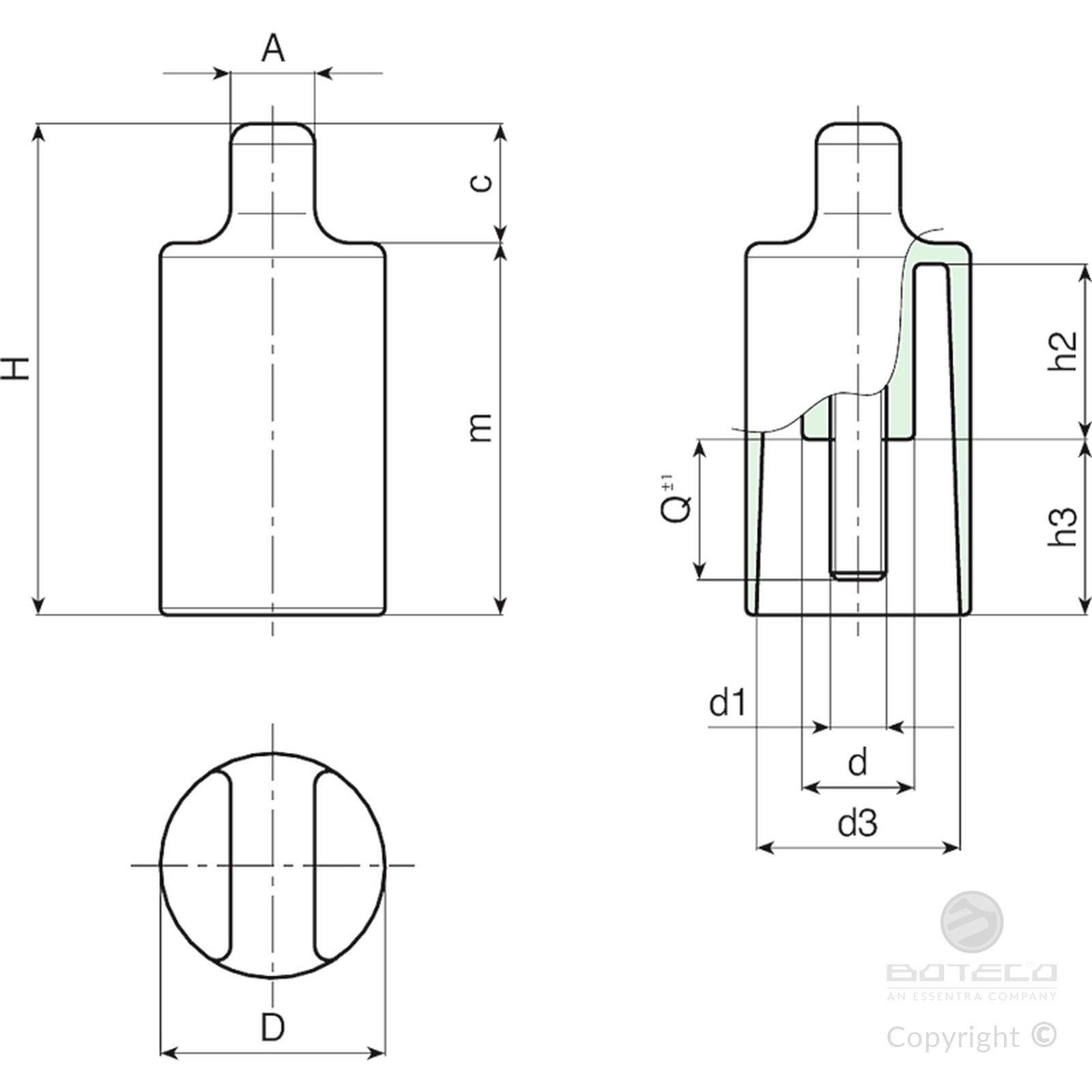

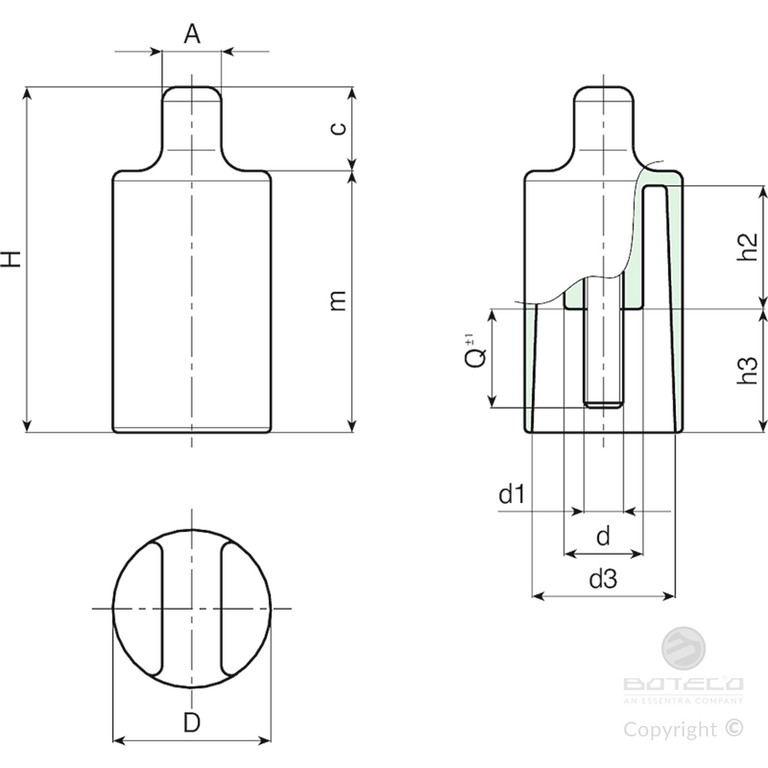

| Code | art. | D | H | d | A | c | m | h2 | h3 | d3 | d1 6g | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| G79932.0001 | G79932.TM06X1601 | 32 | 69 | 12 | 12 | 15 | 54 | 25 | 26 | 28 | M6 | 16 | 40 |
| G79932.0004 | G79932.TM08X1601 | 32 | 69 | 12 | 12 | 15 | 54 | 25 | 26 | 28 | M8 | 16 | 48 |
