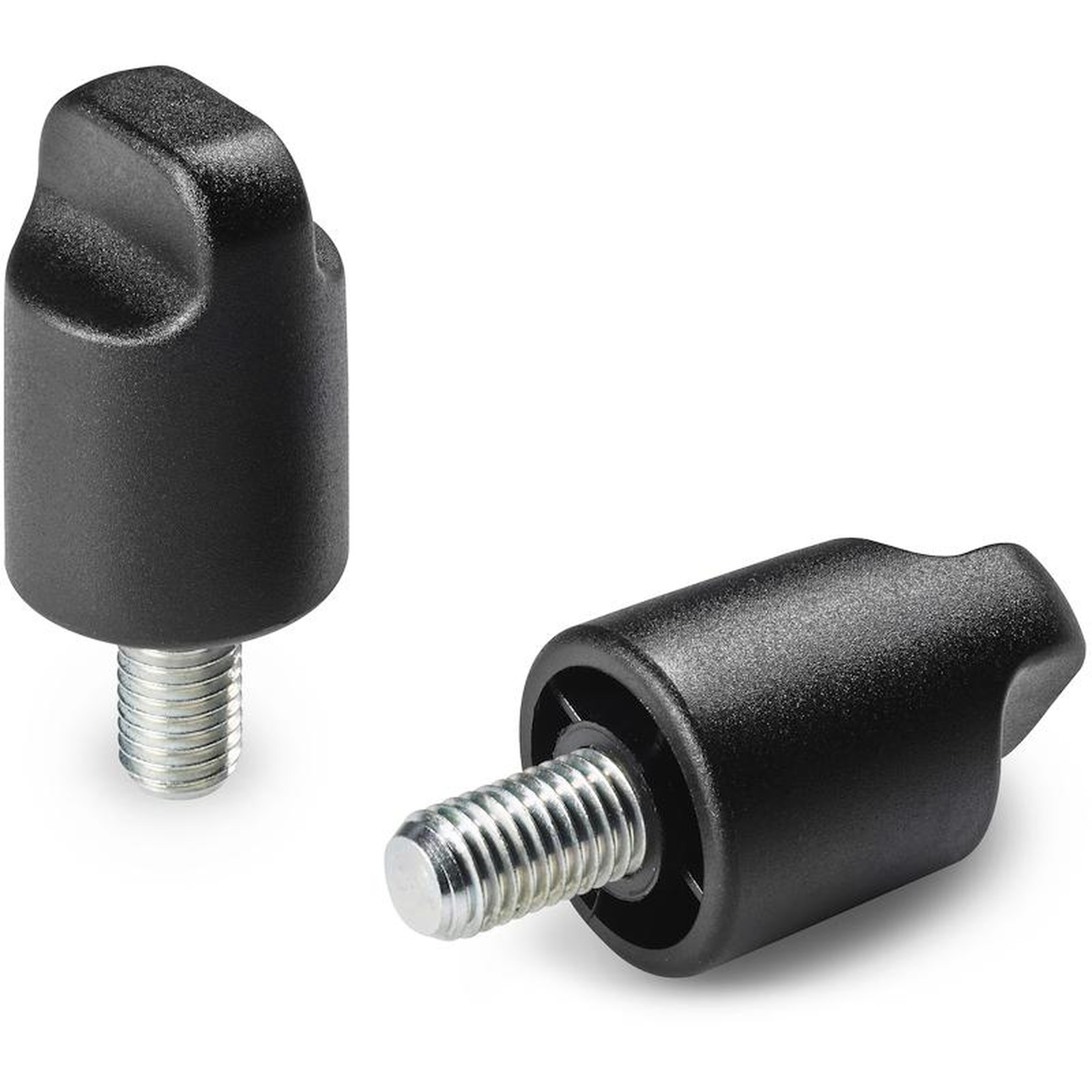

Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black(RAL 9011).
Inserts:
Galvanised steel threaded stud (thread tolerance 6g).
Special requests:
Upon request and for special quantities inserts can be supplied with customised lengths.
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart.

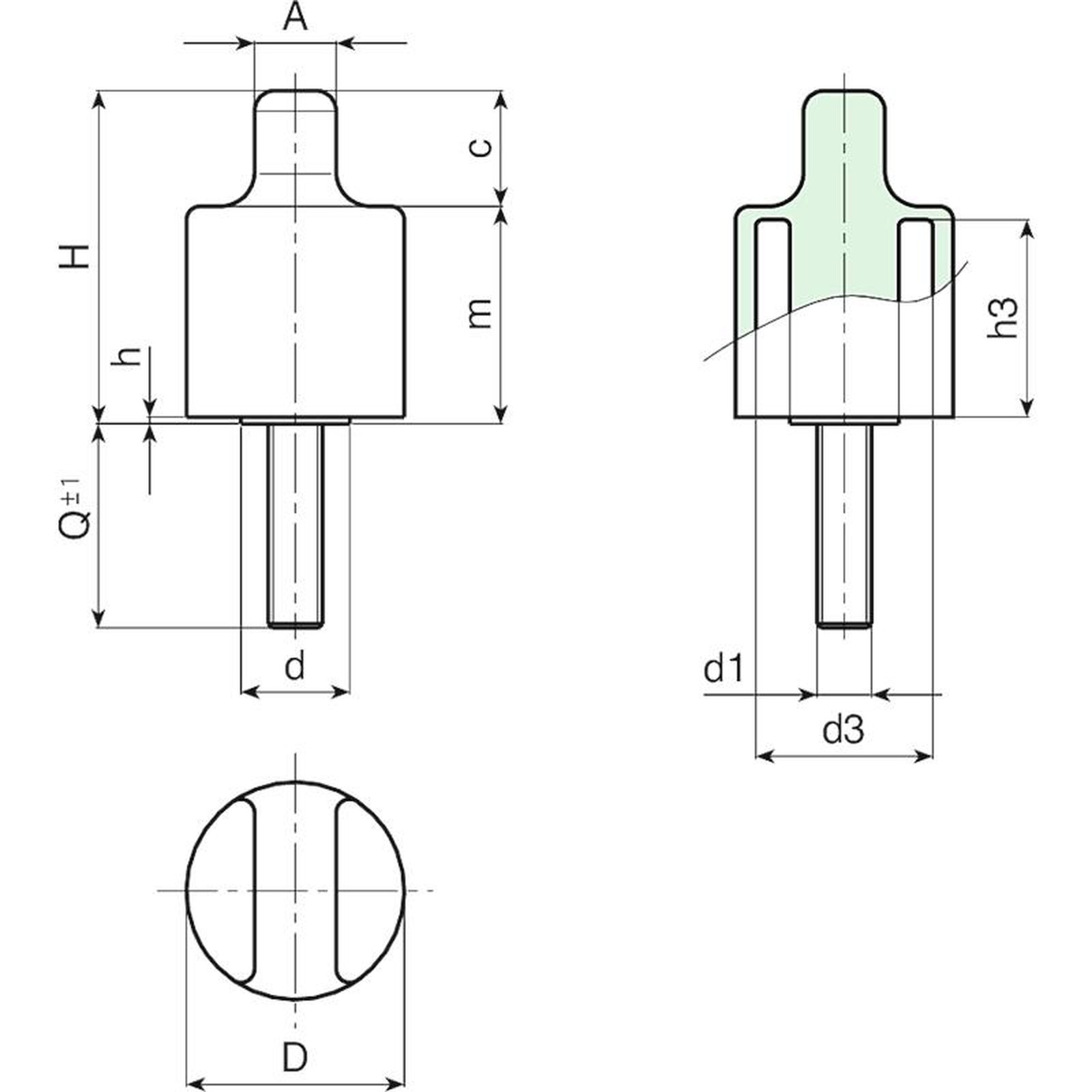

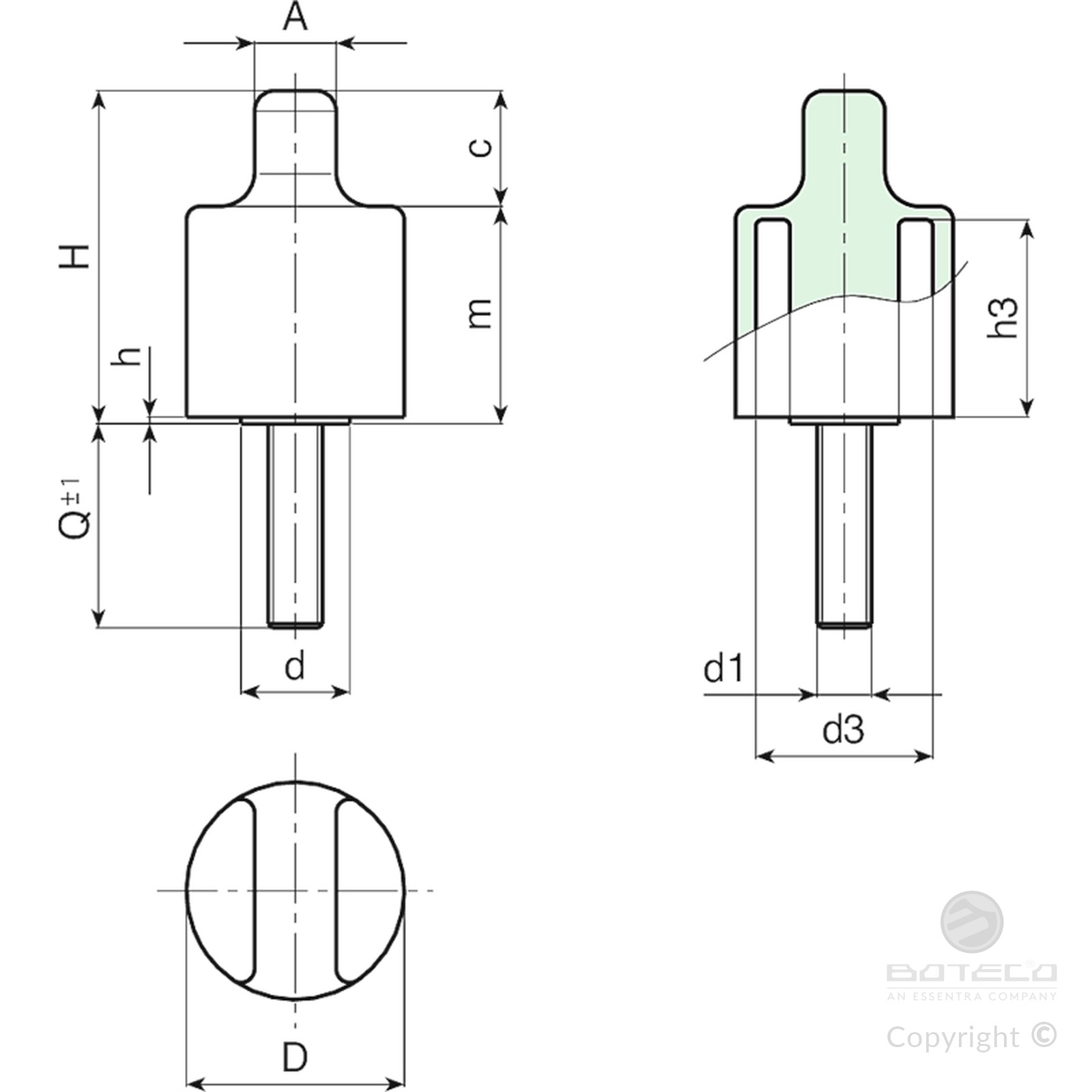

| Code | art. | D | H | d | A | c | m | h | h3 | d3 | LM | d1 6g | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| G79732.0002 | G79732.TM06X2001 | 32 | 49 | 16 | 12 | 15 | 34 | 1 | 29 | 25.5 | 60 | M6 | 20 | 37 |
| G79732.0005 | G79732.TM08X2501 | 32 | 49 | 16 | 12 | 15 | 34 | 1 | 29 | 25.5 | 60 | M8 | 25 | 43 |
| G79732.0011 | G79732.TM12X2001 | 32 | 49 | 16 | 12 | 15 | 34 | 1 | 29 | 25.5 | 60 | M12 | 20 | 59 |
Customised stud length available for a minimum of 250 pieces.
LM = Maximum mouldable length.
