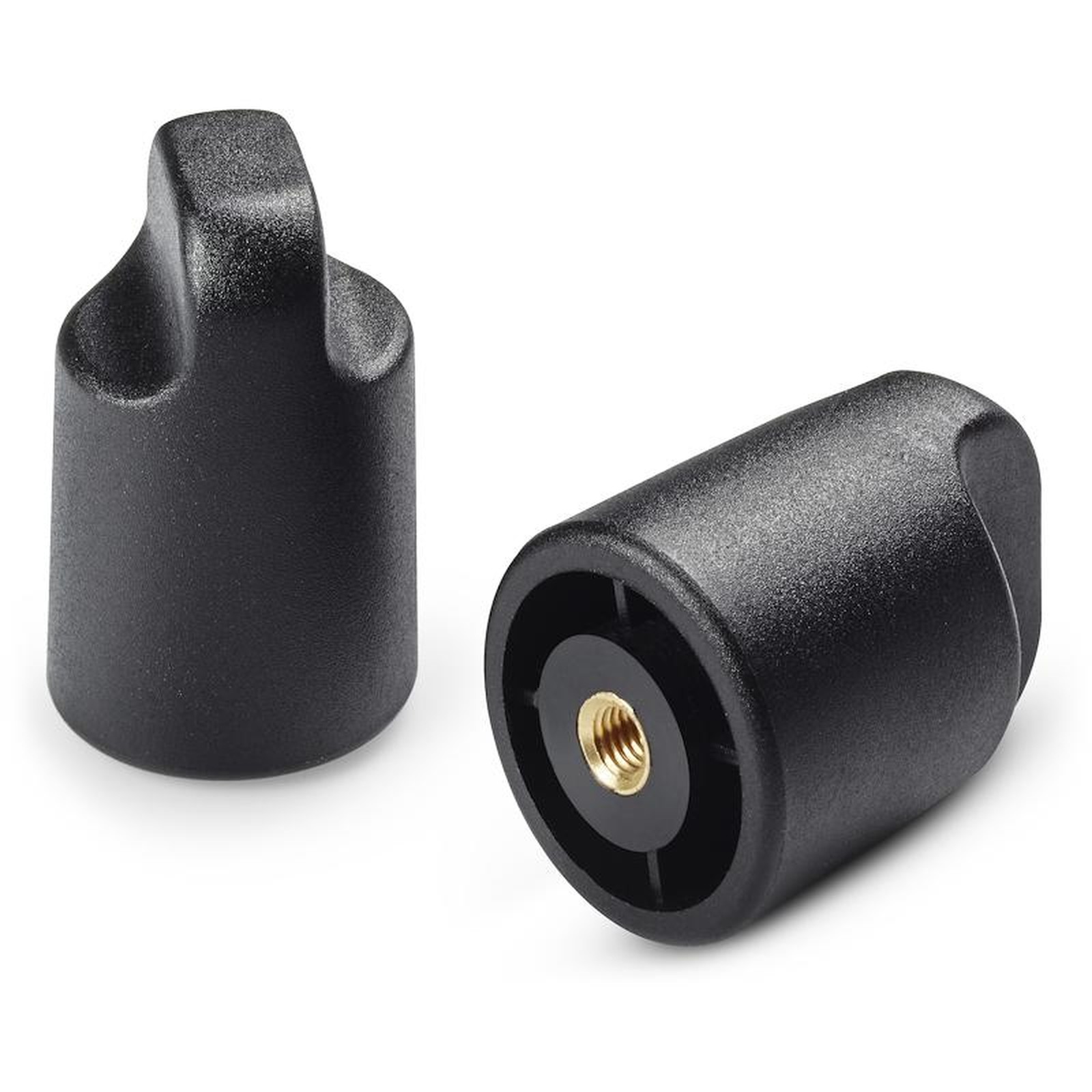

KNOB WITH THREADED INSERT
07
G796
Pomelli
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Brass insert with female threaded hole (thread tolerance 6H).
Special requests:
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart.

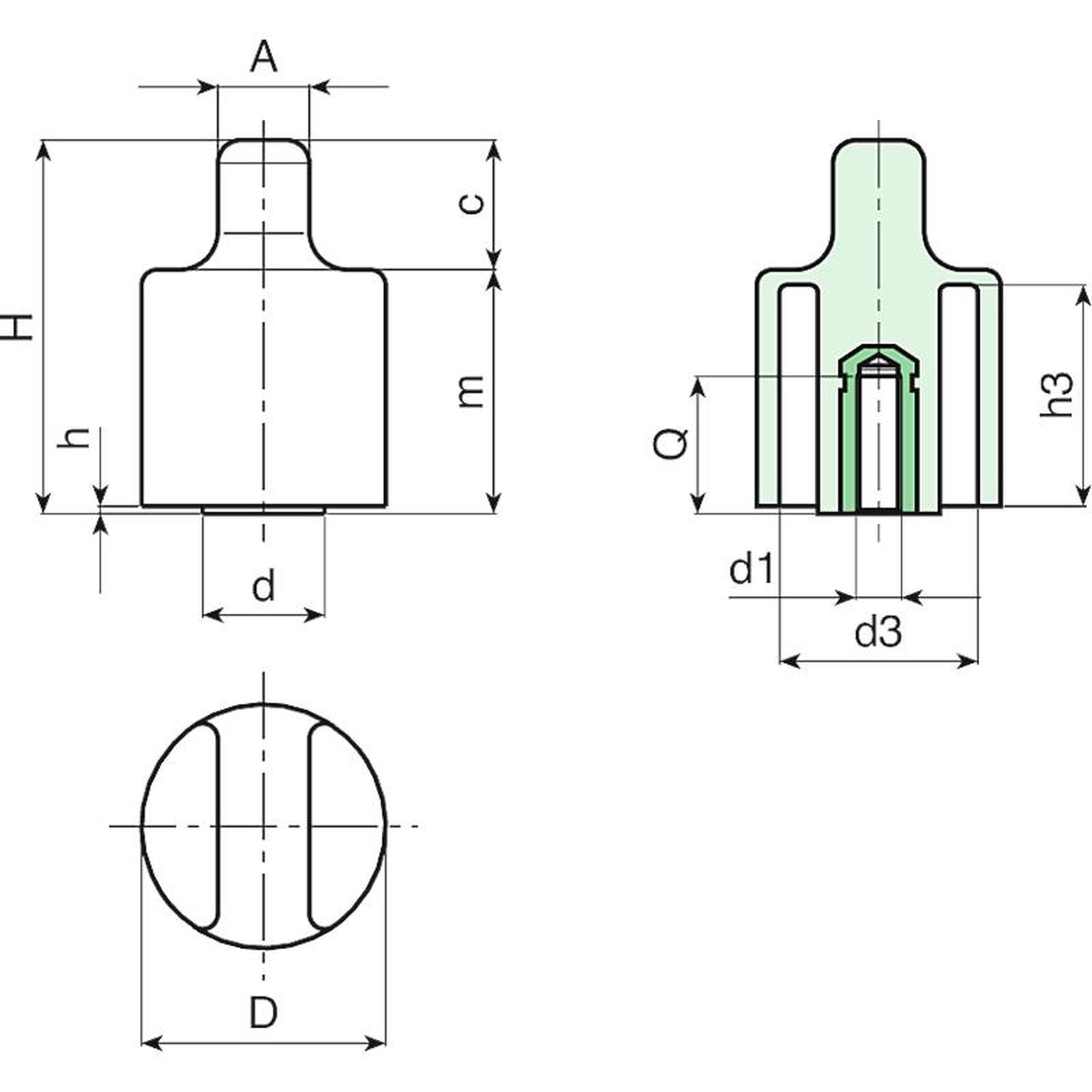

| Code | art. | D | H | d | A | c | m | h | h3 | d3 | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| G79632.0001 | G79632.TM0601 | 32 | 49 | 16 | 12 | 15 | 34 | 1 | 29 | 25.5 | M6 | 16 | 33 |
| G79632.0003 | G79632.TM0801 | 32 | 49 | 16 | 12 | 15 | 34 | 1 | 29 | 25.5 | M8 | 14 | 35 |
| G79632.0005 | G79632.TM1001 | 32 | 49 | 16 | 12 | 15 | 34 | 1 | 29 | 25.5 | M10 | 13 | 36 |
