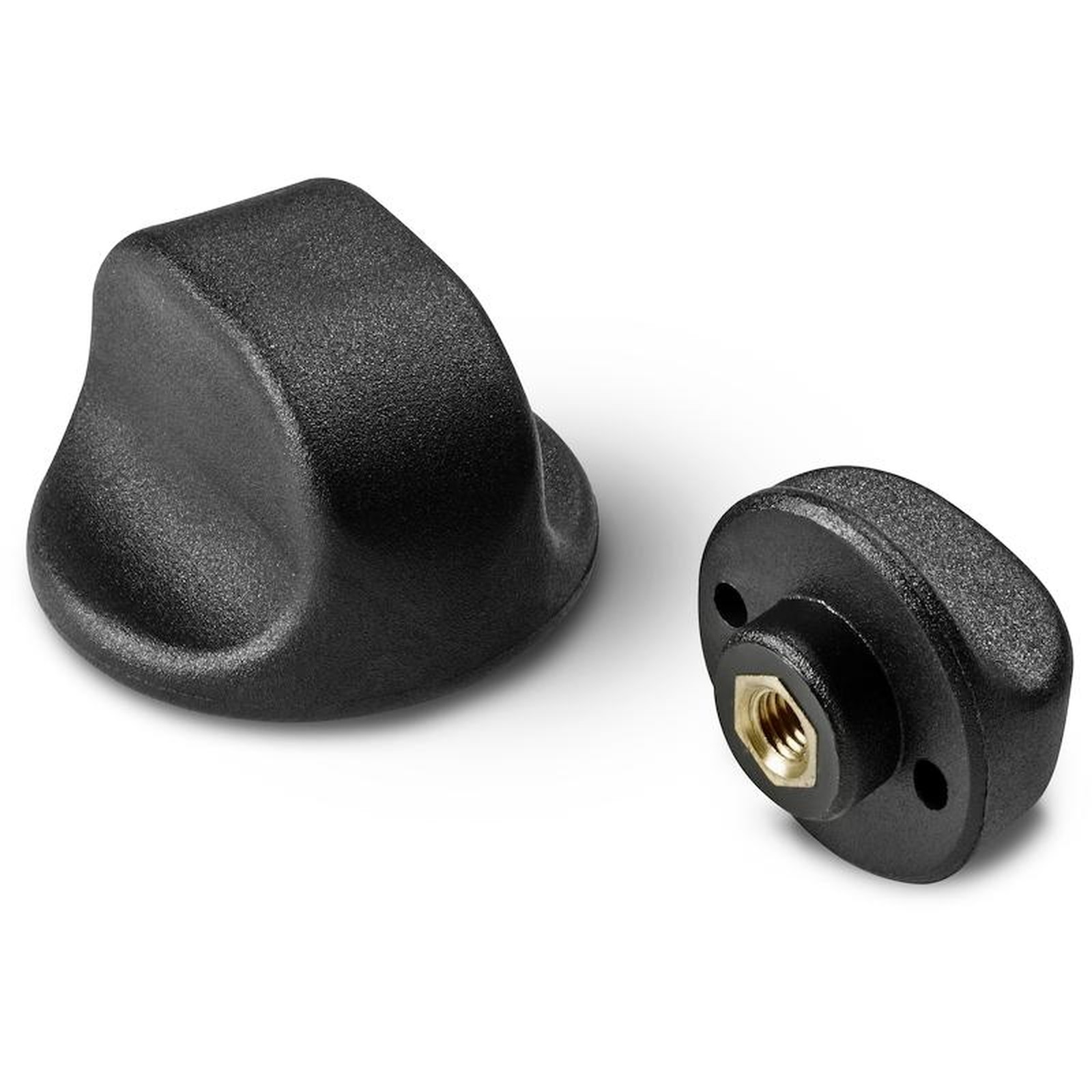

KNOB WITH THREADED INSERT
07
G794
Pomelli
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Brass insert with female threaded hole (thread tolerance 6H).
Special requests:
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart.

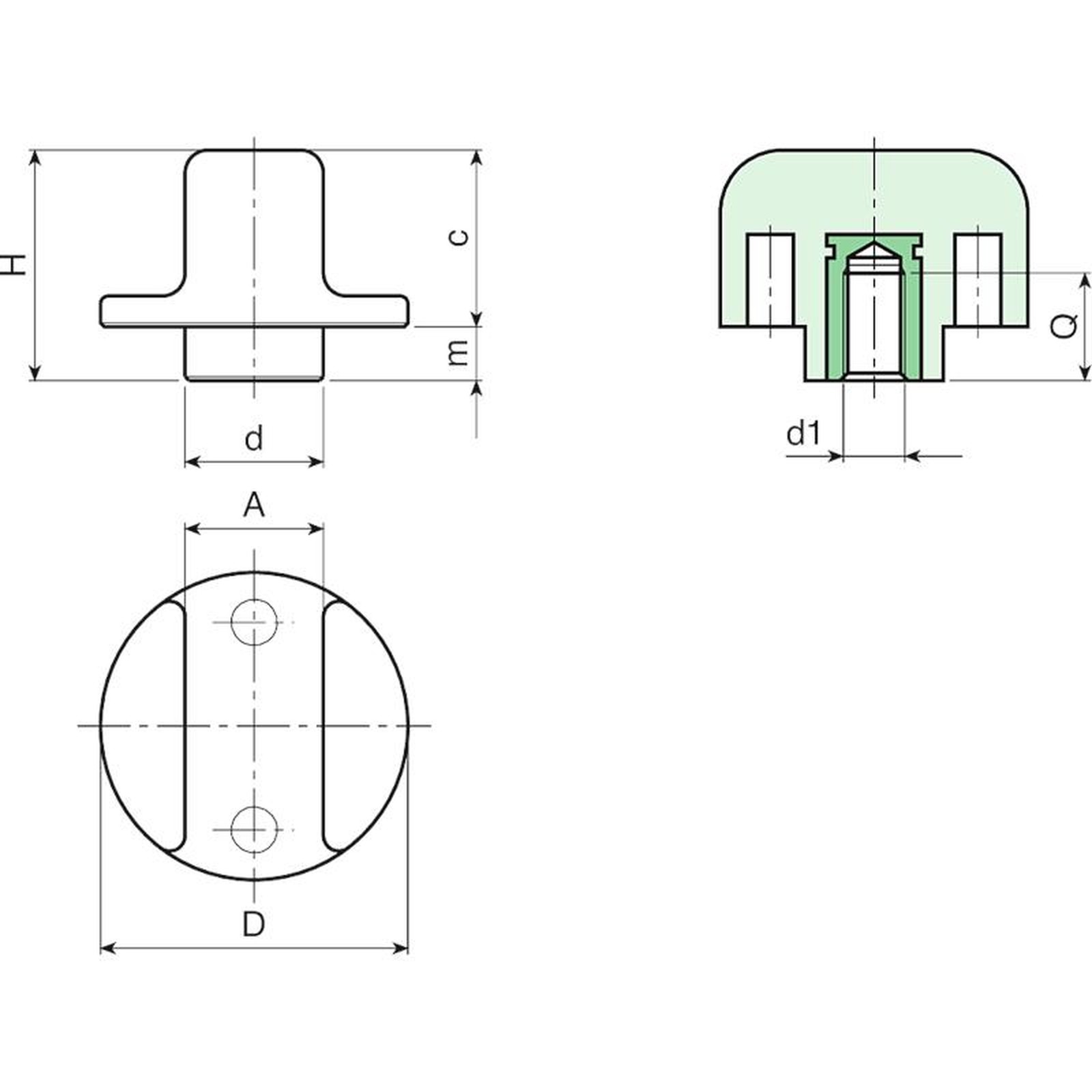

| Code | art. | D | H | d | A | c | m | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| G79425.0001 | G79425.TM0501 | 25 | 20 | 12 | 10 | 15 | 5 | M5 | 11 | 8 |
| G79425.0003 | G79425.TM0601 | 25 | 20 | 12 | 10 | 15 | 5 | M6 | 8 | 9 |
| G79425.0005 | G79425.TM0801 | 25 | 20 | 12 | 10 | 15 | 5 | M8 | 8 | 10 |
| G79440.0001 | G79440.TM0801 | 40 | 30 | 18 | 18 | 22 | 7 | M8 | 15 | 25 |
| G79440.0003 | G79440.TM1001 | 40 | 30 | 18 | 18 | 22 | 7 | M10 | 14 | 26 |
| G79440.0004 | G79440.TM1201 | 40 | 30 | 18 | 18 | 22 | 7 | M12 | 14 | 28 |
