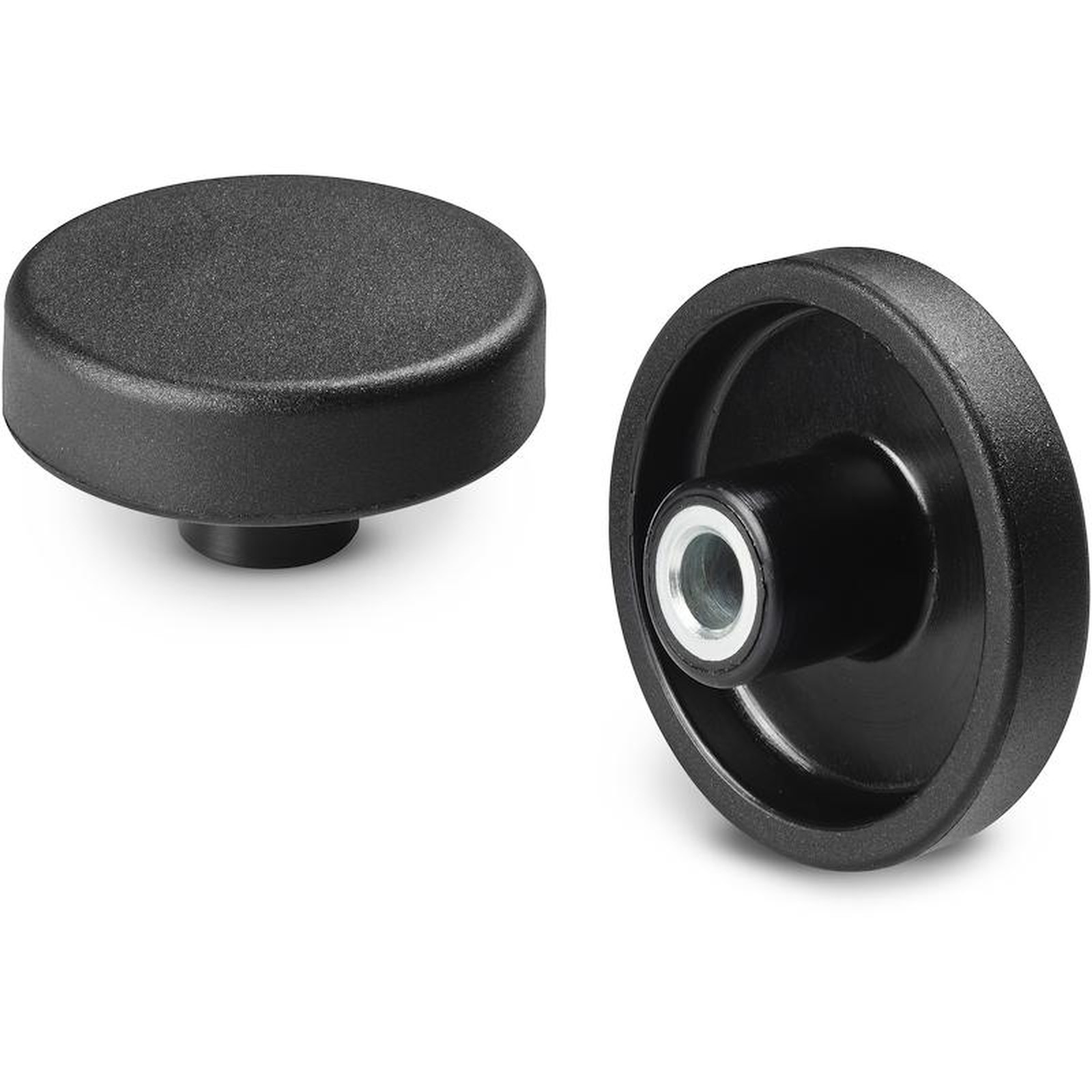

CYLINDRICAL HANDWHEEL WITH SMOOTH HOLE INSERT
07
G792
Volantini cilindrici
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Galvanised steel insert with smooth through bore (tolerance H10).
Special requests:
Upon request and for special quantities inserts can be supplied with custom hole diameter d1.
Upon request and for special quantities inserts can be supplied in different materials/with different coatings.
Upon request and for special quantities available in the colours indicated in the chart.

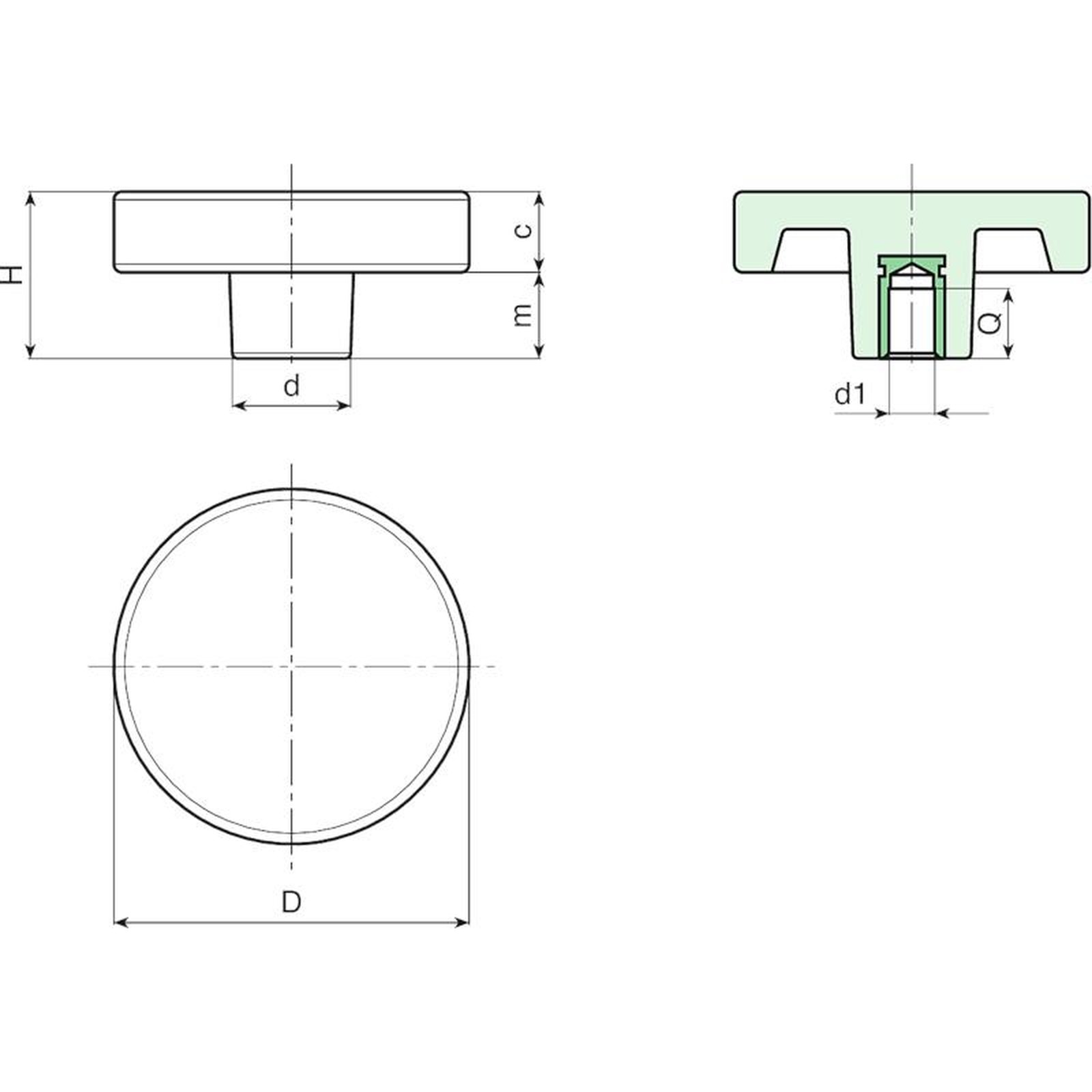

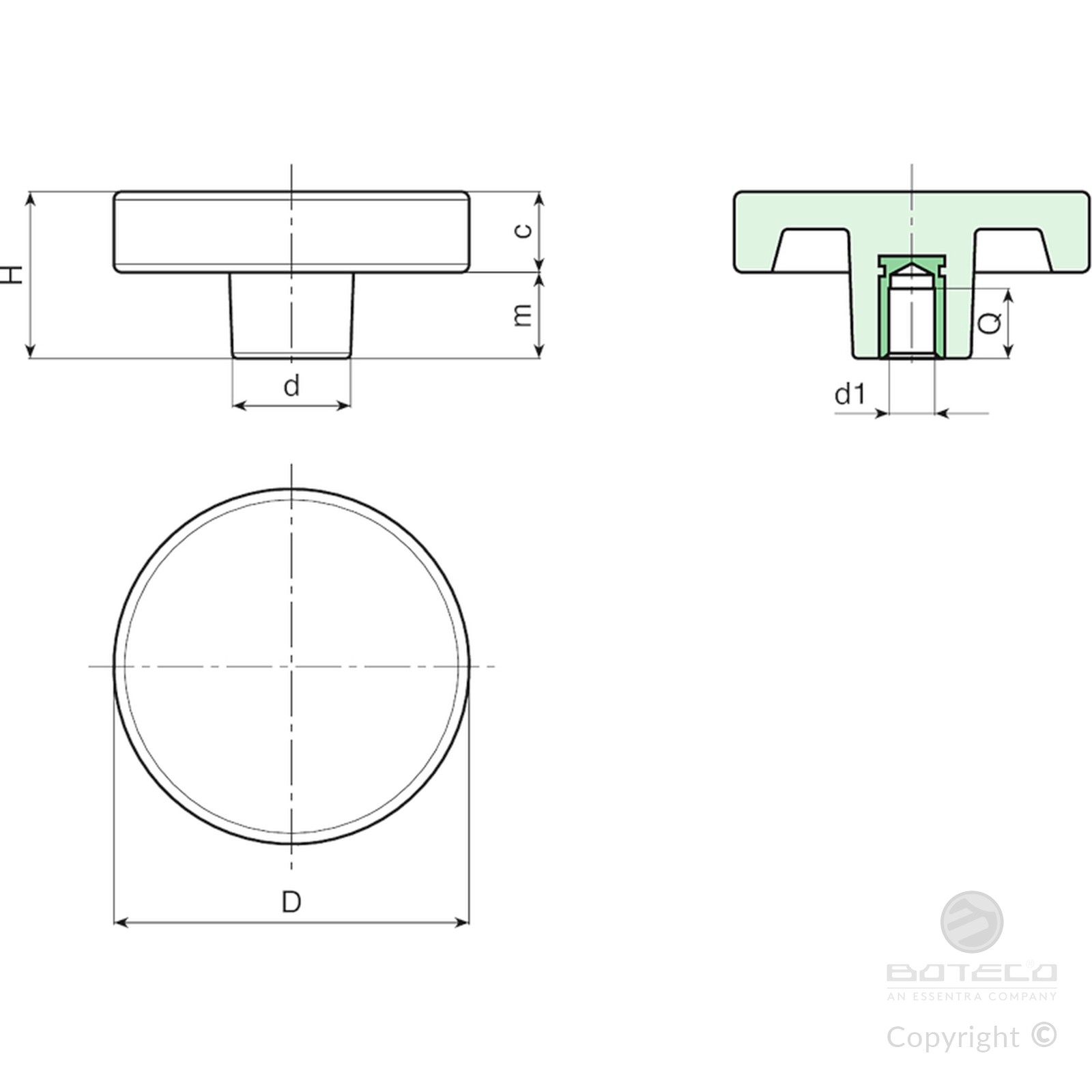

| Code | art. | D | H | d | c | m | Dm | d1 H10 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| G79250.0001 | G79250.TD0601 | 50 | 30 | 22 | 15 | 15 | 12 | 06 | 20 | 62 |
| G79266.0001 | G79266.TD1001 | 65 | 30 | 22 | 15 | 15 | 12 | 10 | 20 | 78 |
Attention: for a minimum of 200 pieces the diameter d1 can be produced with the requested dimensions with H10 tolerance.
Dm = Maximum obtainable diameter for subsequent machining (widening)
