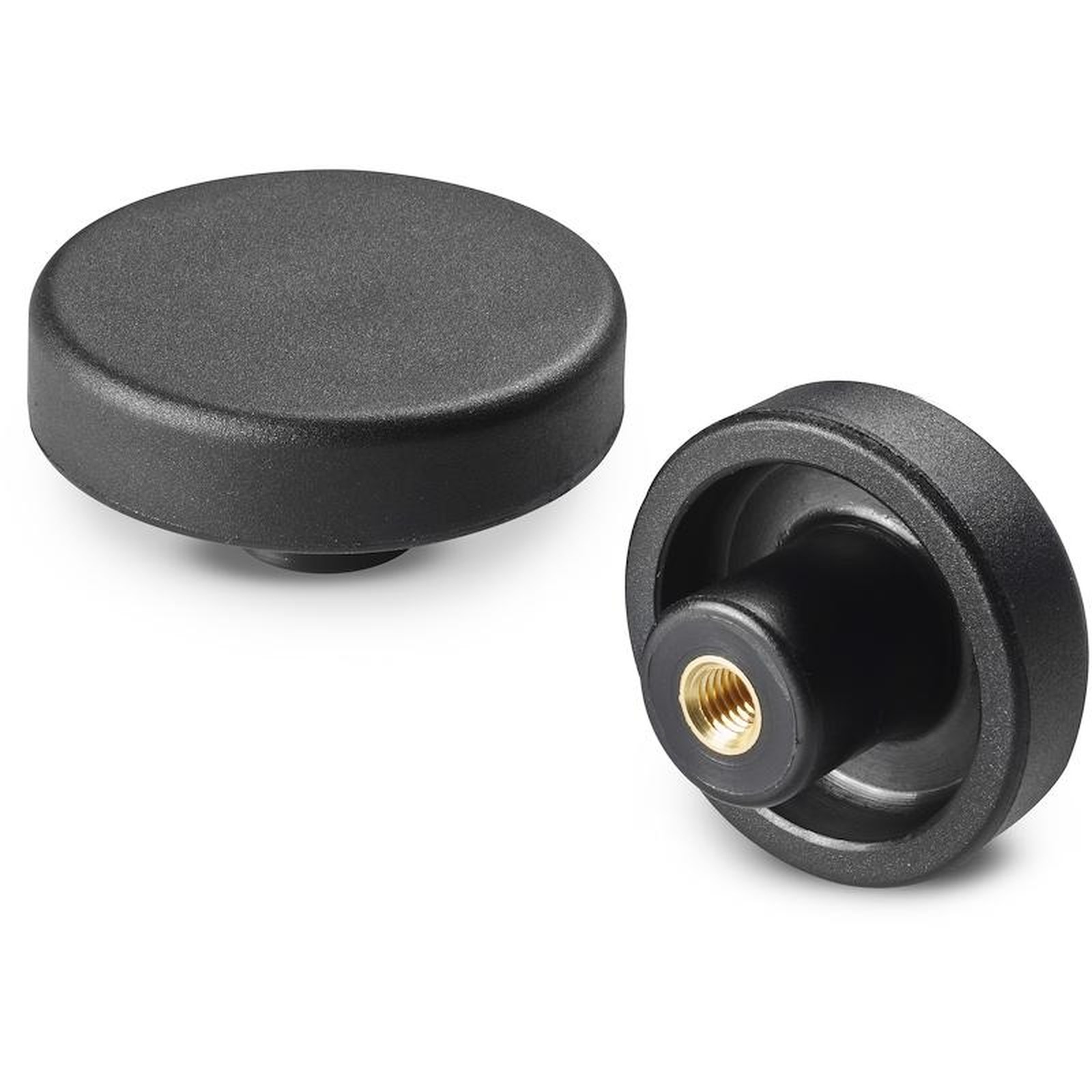

CYLINDRICAL HANDWHEEL WITH THREADED INSERT
07
G791
Volantini cilindrici
Materials:
Reinforced polyamide. Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Brass insert with female threaded hole (thread tolerance 6H).
Special requests:
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart.

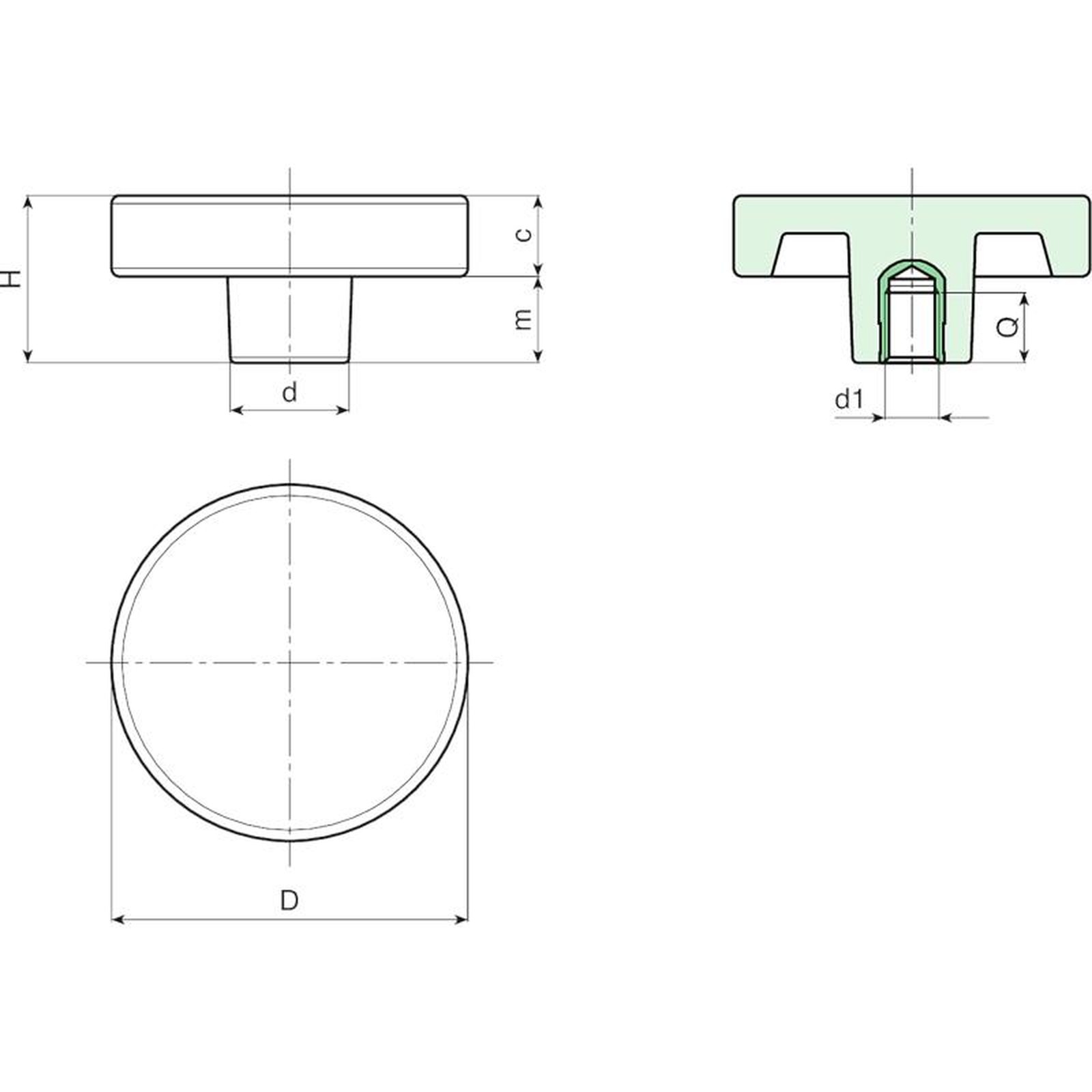

| Code | art. | D | H | d | c | m | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| G79136.0004 | G79136.TM0601 | 36,5 | 18,5 | 18 | 16,5 | 2 | M6 | 8 | 19 |
| G79136.0006 | G79136.TM0801 | 36,5 | 18,5 | 18 | 16,5 | 2 | M8 | 6 | 19 |
| G79136.0008 | G79136.TM1001 | 36,5 | 18,5 | 18 | 16,5 | 2 | M10 | 5,5 | 20 |
| G79150.0003 | G79150.TM0801 | 50 | 30 | 22 | 15 | 15 | M8 | 15 | 35 |
| G79150.0005 | G79150.TM1001 | 50 | 30 | 22 | 15 | 15 | M10 | 14 | 36 |
| G79150.0007 | G79150.TM1201 | 50 | 30 | 22 | 15 | 15 | M12 | 18 | 40 |
| G79166.0001 | G79166.TM0801 | 66 | 30 | 22 | 15 | 15 | M8 | 15 | 52 |
| G79166.0002 | G79166.TM1001 | 66 | 30 | 22 | 15 | 15 | M10 | 14 | 55 |
| G79166.0004 | G79166.TM1201 | 66 | 30 | 22 | 15 | 15 | M12 | 18 | 58 |
| G79166.0006 | G79166.TM1401 | 66 | 30 | 22 | 15 | 15 | M14 | 19 | 60 |
