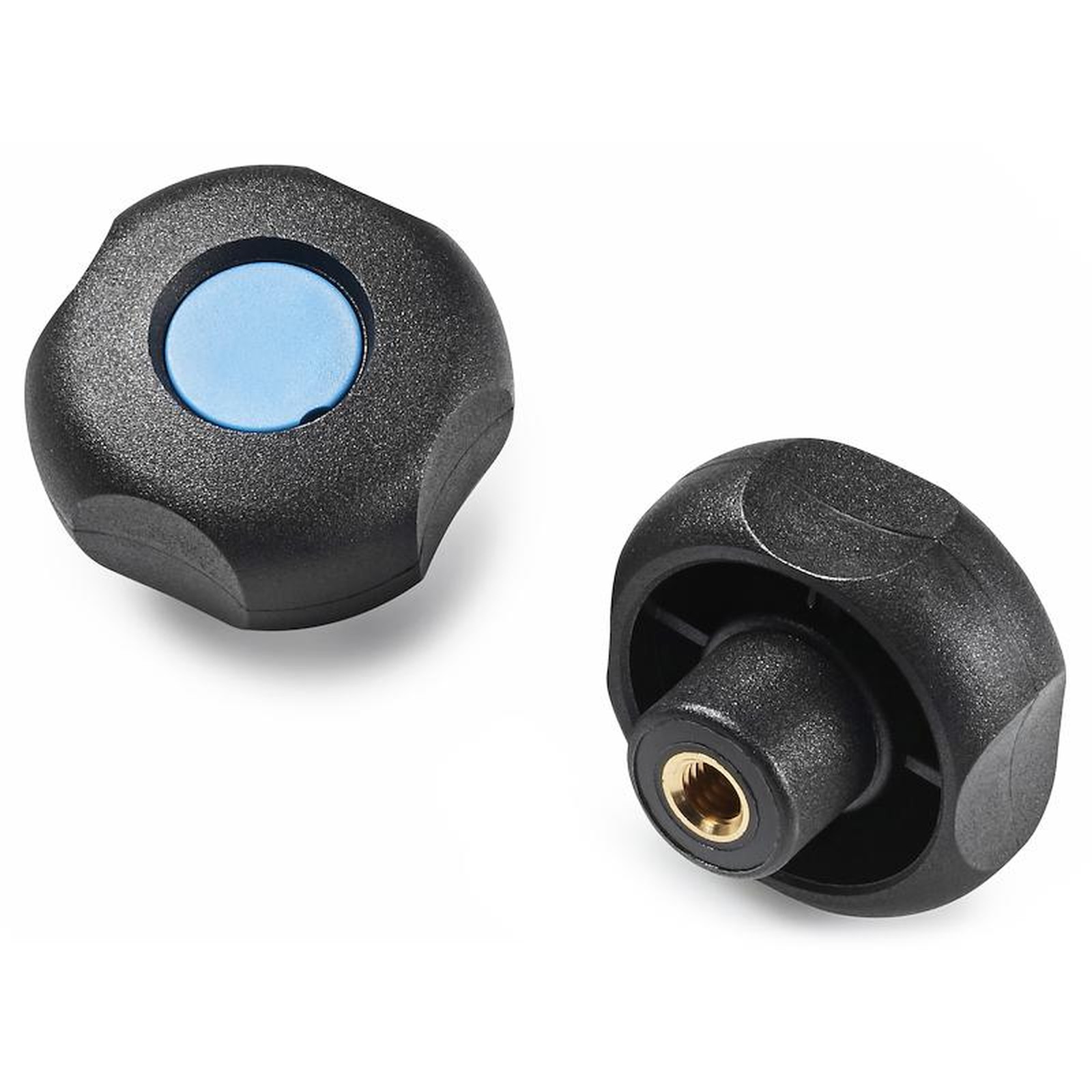

4-LOBE HANDWHEEL WITH CAP WITH THREADED FEMALE RIGHT THROUGH INSERT
07
G746
Volantini a 4 lobi
Materials:
Reinforced polyamide. Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Central cap:
Grey polyamide (RAL 7035). 13).
Alternative cap colours:
Orange (RAL 2004 code 02).
Blue (RAL 5015 code 07).
Yellow (RAL 1021 code 10).
Green (RAL 6024 code 17).
Red (RAL 3000 code 16).
Black (RAL 9011 code 01).
Inserts:
Brass insert with threaded right through bore, (thread tolerance 6H).
Special requests:
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart.

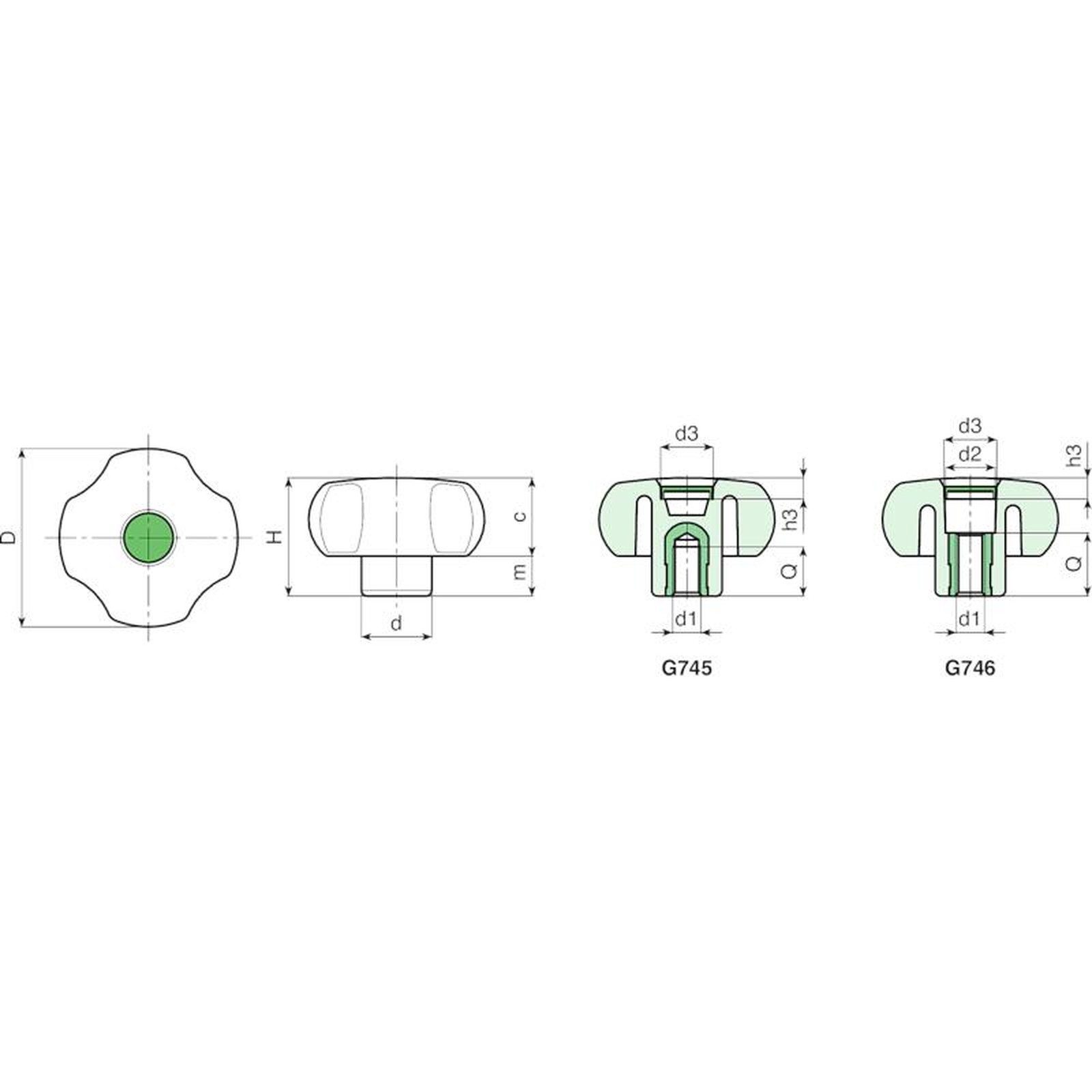

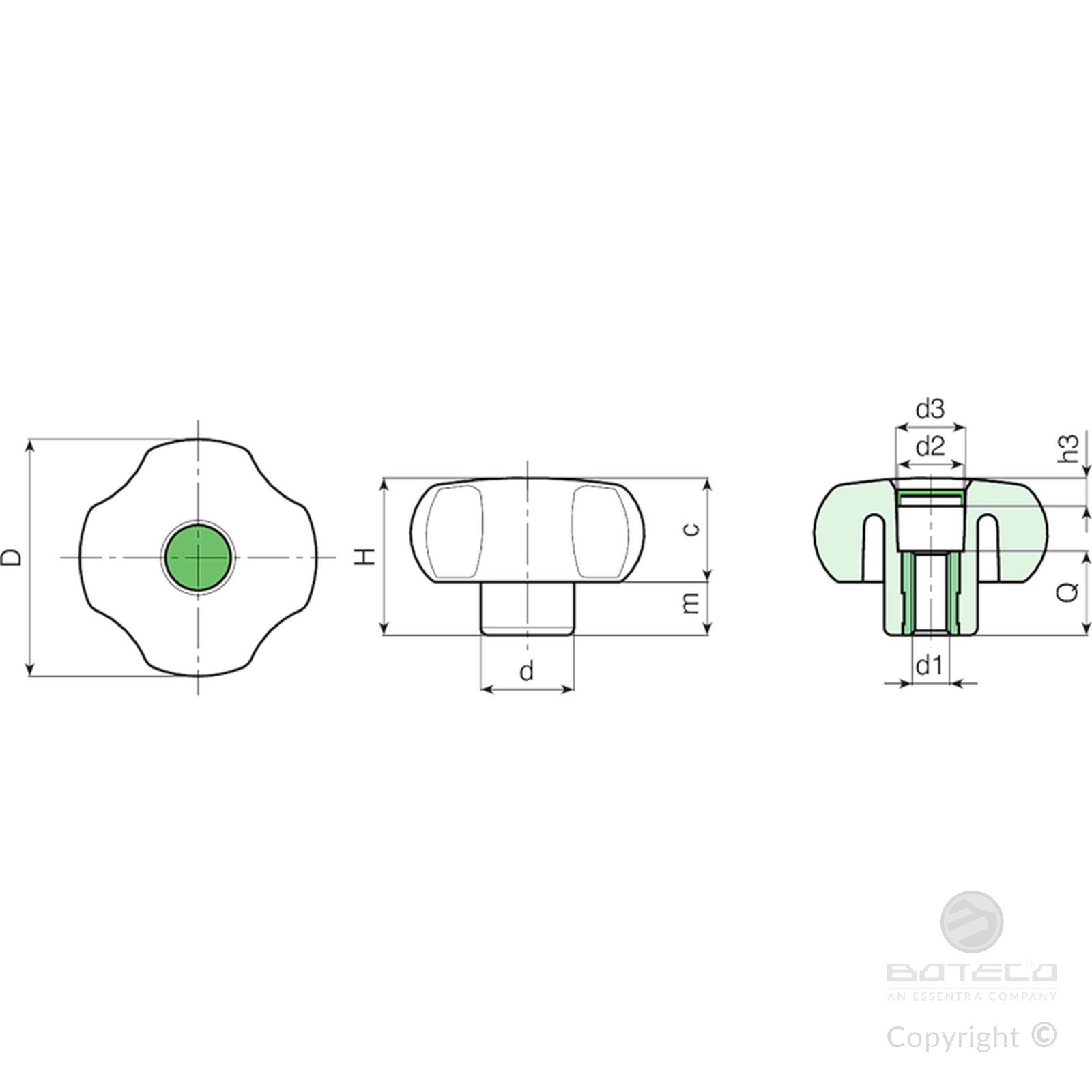

| Code | art. | D | H | d | c | m | d3 | h3 | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| G74640.0001 | G74640.TM0501 | 40.5 | 29.5 | 17 | 18.5 | 11 | 20 | 7.5 | M5 | 18 | 17 |
| G74640.0003 | G74640.TM0601 | 40.5 | 29.5 | 17 | 18.5 | 11 | 20 | 7.5 | M6 | 18 | 17 |
| G74640.0007 | G74640.TM0801 | 40.5 | 29.5 | 17 | 18.5 | 11 | 20 | 7.5 | M8 | 18 | 18 |
| G74640.0011 | G74640.TM1001 | 40.5 | 29.5 | 17 | 18.5 | 11 | 20 | 7.5 | M10 | 18 | 22 |
| G74640.0012 | G74640.TM1201 | 40.5 | 29.5 | 17 | 18.5 | 11 | 20 | 7.5 | M12 | 18 | 26 |
| G74650.0002 | G74650.TM0601 | 49 | 32 | 20.5 | 21.5 | 11 | 20 | 7.5 | M6 | 18 | 31 |
| G74650.0003 | G74650.TM0801 | 49 | 32 | 20.5 | 21.5 | 11 | 20 | 7.5 | M8 | 18 | 38 |
| G74650.0005 | G74650.TM1001 | 49 | 32 | 20.5 | 21.5 | 11 | 20 | 7.5 | M10 | 18 | 39 |
| G74650.0006 | G74650.TM1201 | 49 | 32 | 20.5 | 21.5 | 11 | 20 | 7.5 | M12 | 18 | 43 |
| G74660.0001 | G74660.TM0801 | 59 | 40 | 23 | 25 | 15 | 22 | 7.5 | M8 | 18 | 54 |
| G74660.0002 | G74660.TM1001 | 59 | 40 | 23 | 25 | 15 | 22 | 7.5 | M10 | 18 | 56 |
| G74660.0003 | G74660.TM1201 | 59 | 40 | 23 | 25 | 15 | 22 | 7.5 | M12 | 18 | 61 |
| G74660.0004 | G74660.TM1401 | 59 | 40 | 23 | 25 | 15 | 22 | 7.5 | M14 | 18 | 64 |
