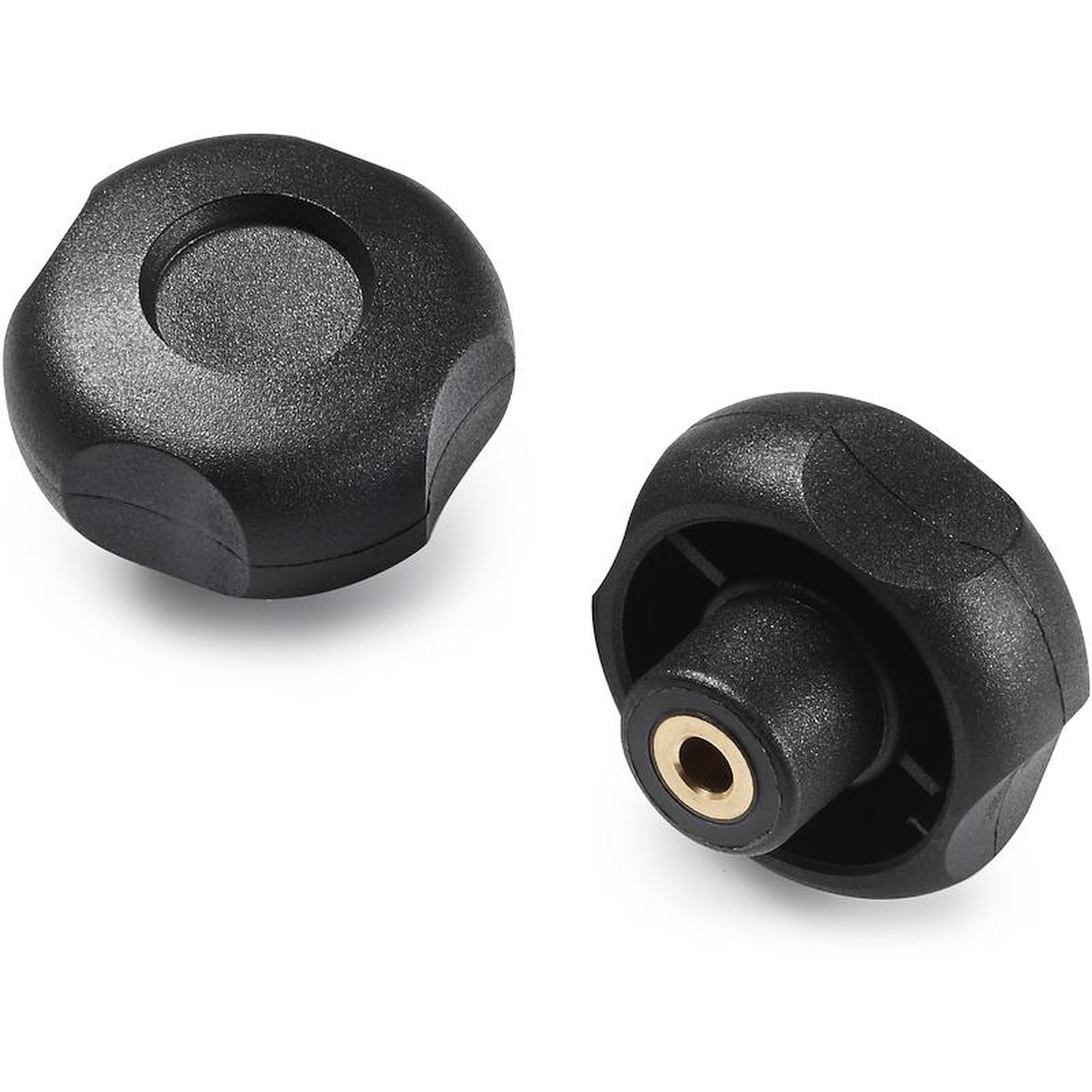

4-LOBE HANDWHEEL WITH SMOOTH HOLE INSERT
07
G733
Volantini a 4 lobi
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
(*) Brass insert with smooth blind hole (hole tolerance H7). ATTENTION: hole cannot be widened.
(#) Galvanised steel insert with blind smooth hole (hole tolerance H10).
Special requests:

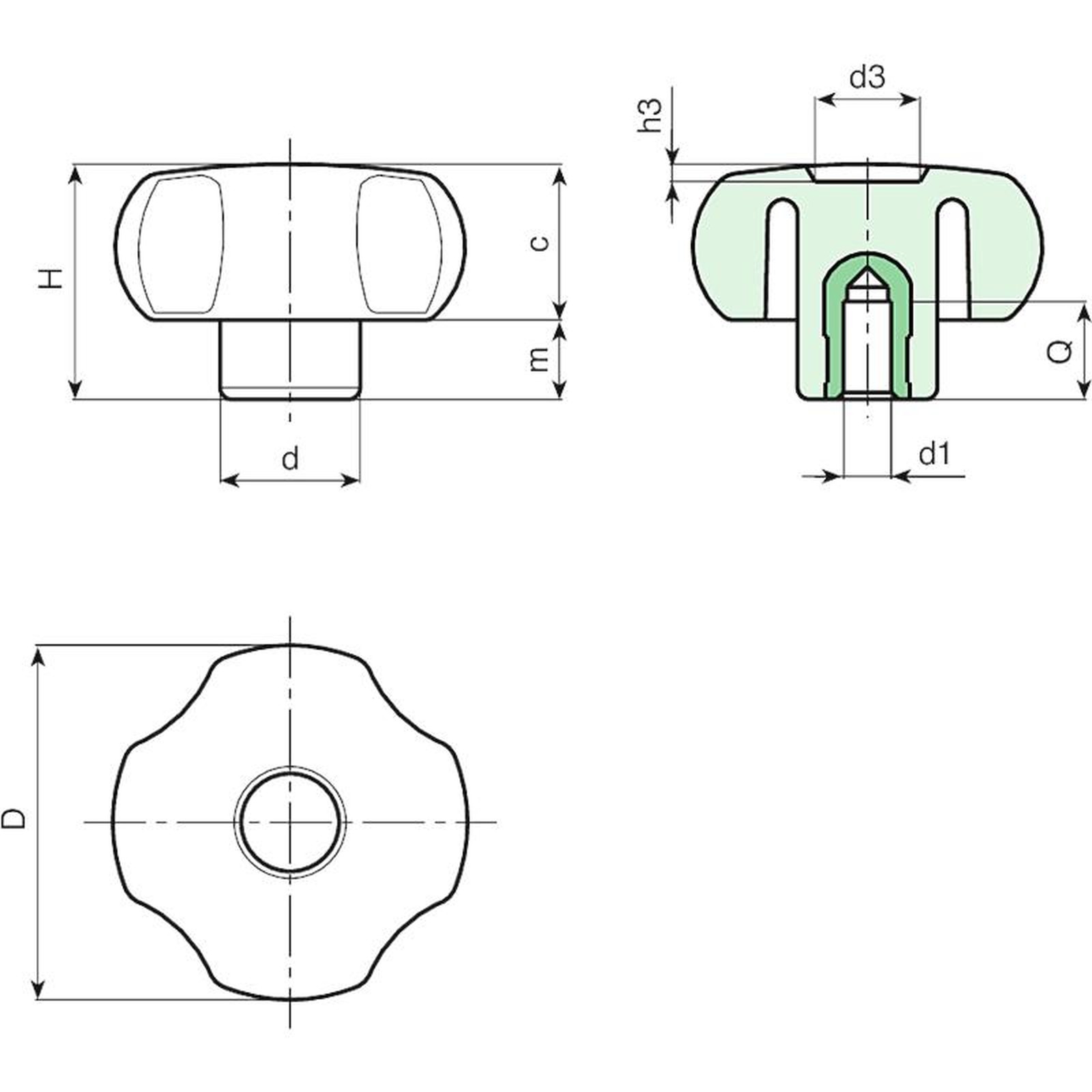

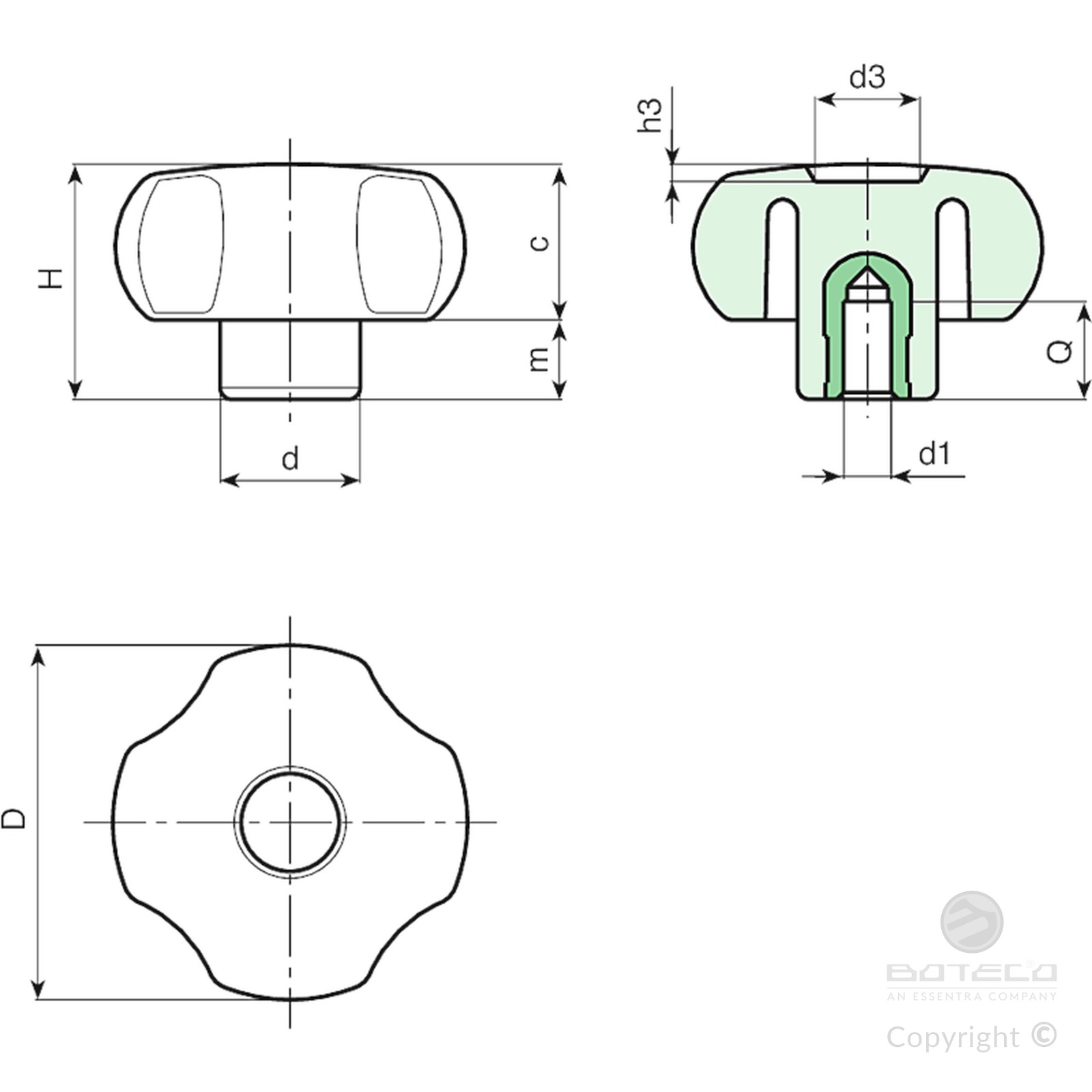

| Code | art. | D | H | d | c | m | d3 | h3 | Dm | d1 H7 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| G73330.0002 | G73330.TD0601 | 30 | 23 | 15 | 13,5 | 9,5 | 12 | 2 | - | (*) 06 | 15 | 16 |
| G73330.0005 | G73330.TD0801 | 30 | 23 | 15 | 13,5 | 9,5 | 12 | 2 | - | (*) 08 | 15 | 17 |
| G73340.0004 | G73340.TD0601 | 41 | 30 | 16 | 19 | 11 | 12 | 3 | - | (*) 06 | 15 | 24 |
| G73340.0005 | G73340.TD0801 | 41 | 30 | 16 | 19 | 11 | 12 | 3 | - | (*) 08 | 15 | 28 |
| G73340.0006 | G73340.TD1001 | 41 | 30 | 16 | 19 | 11 | 12 | 3 | - | (*) 10 | 15 | 30 |
| G73350.0001 | G73350.TD0601 | 49 | 32 | 20,5 | 21,5 | 11 | 14,5 | 2,5 | 12 | (#) 06 | 18 | 60 |
| G73350.0002 | G73350.TD0801 | 49 | 32 | 20,5 | 21,5 | 11 | 14,5 | 2,5 | 12 | (#) 08 | 18 | 62 |
| G73350.0003 | G73350.TD1001 | 49 | 32 | 20,5 | 21,5 | 11 | 14,5 | 2,5 | 12 | (#) 10 | 18 | 63 |
| G73360.0016 | G73360.TP0501 | 60 | 40,5 | 23 | 25 | 15,5 | 25 | 4 | 12 | (#) 05 | 18 | 90 |
| G73360.0002 | G73360.TD0801 | 60 | 40,5 | 23 | 25 | 15,5 | 25 | 4 | 12 | (#) 08 | 18 | 93 |
| G73360.0004 | G73360.TD1001 | 60 | 40,5 | 23 | 25 | 15,5 | 25 | 4 | 12 | (#) 10 | 18 | 96 |
| G73380.0025 | G73380.TP0501 | 79 | 41 | 30 | 24 | 17 | 21 | 3 | 18 | (#) 05 | 24 | 165 |
| G73380.0007 | G73380.TD0801 | 79 | 41 | 30 | 24 | 17 | 21 | 3 | 18 | (#) 08 | 24 | 159 |
| G73380.0012 | G73380.TD1201 | 79 | 41 | 30 | 24 | 17 | 21 | 3 | 18 | (#) 12 | 24 | 153 |
Attention: (#) for a minimum of 200 pieces the diameter d1 can be produced with the requested dimensions with H10 tolerance.
Dm = Maximum obtainable diameter for subsequent machining (widening)
