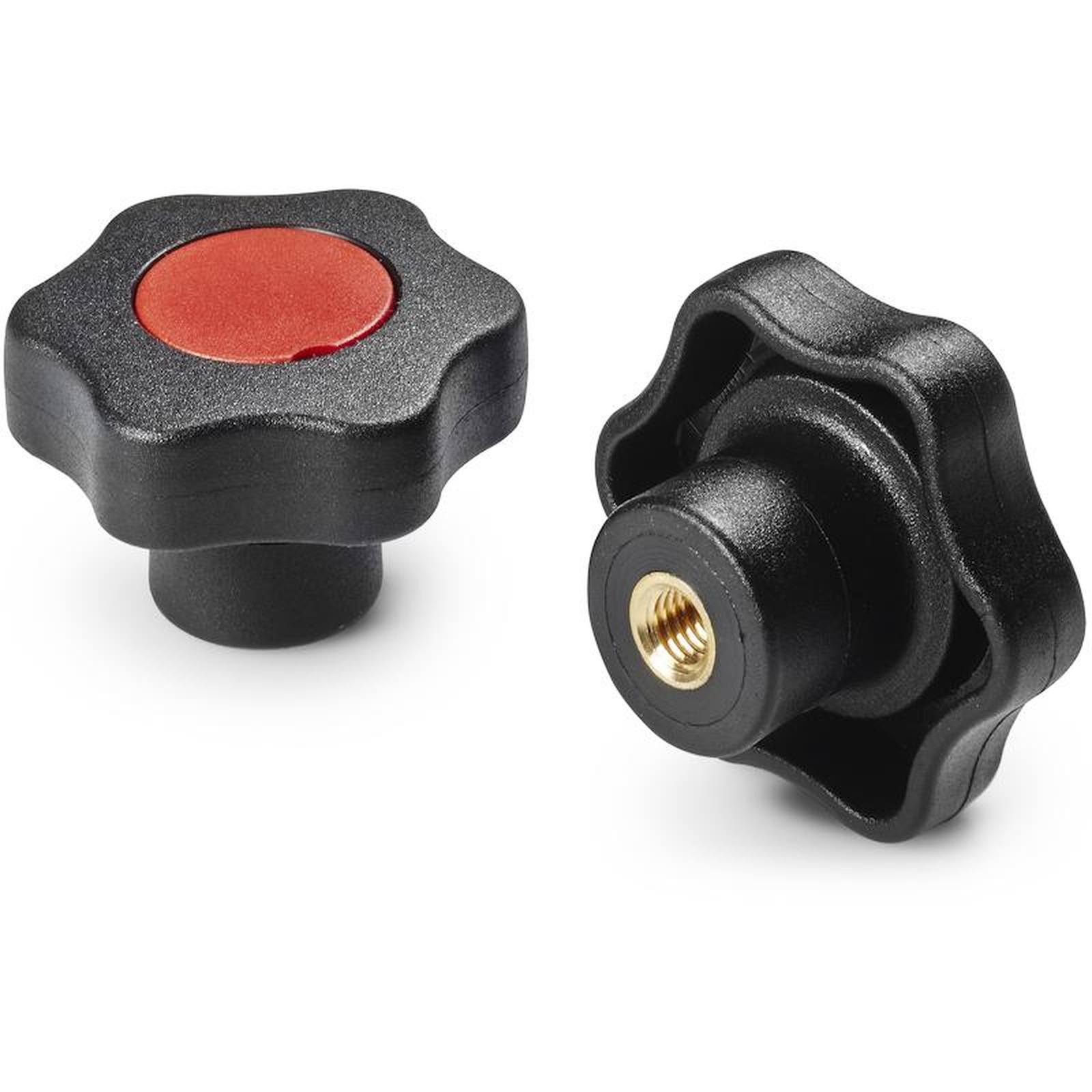

6-LOBE HANDWHEEL WITH CAP AND THREADED INSERT
07
G650
Volantini con altre forme
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Central Cap:
Grey polyamide (RAL 7035). 13).
Alternative Cap colours:
Orange (RAL 2004 code 02).
Blue (RAL 5015 code 07).
Yellow (RAL 1021 code 10).
Red (RAL 3000 code 16).
Green (RAL 6024 code 17).
Black (RAL 9011 code 01).
Inserts:
Brass insert with threaded through hole (thread tolerance 6H).
Special Requests:
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart.
PAD PRINTING SERVICE
Upon request and for special quantities caps can be supplied with custom pad printing.

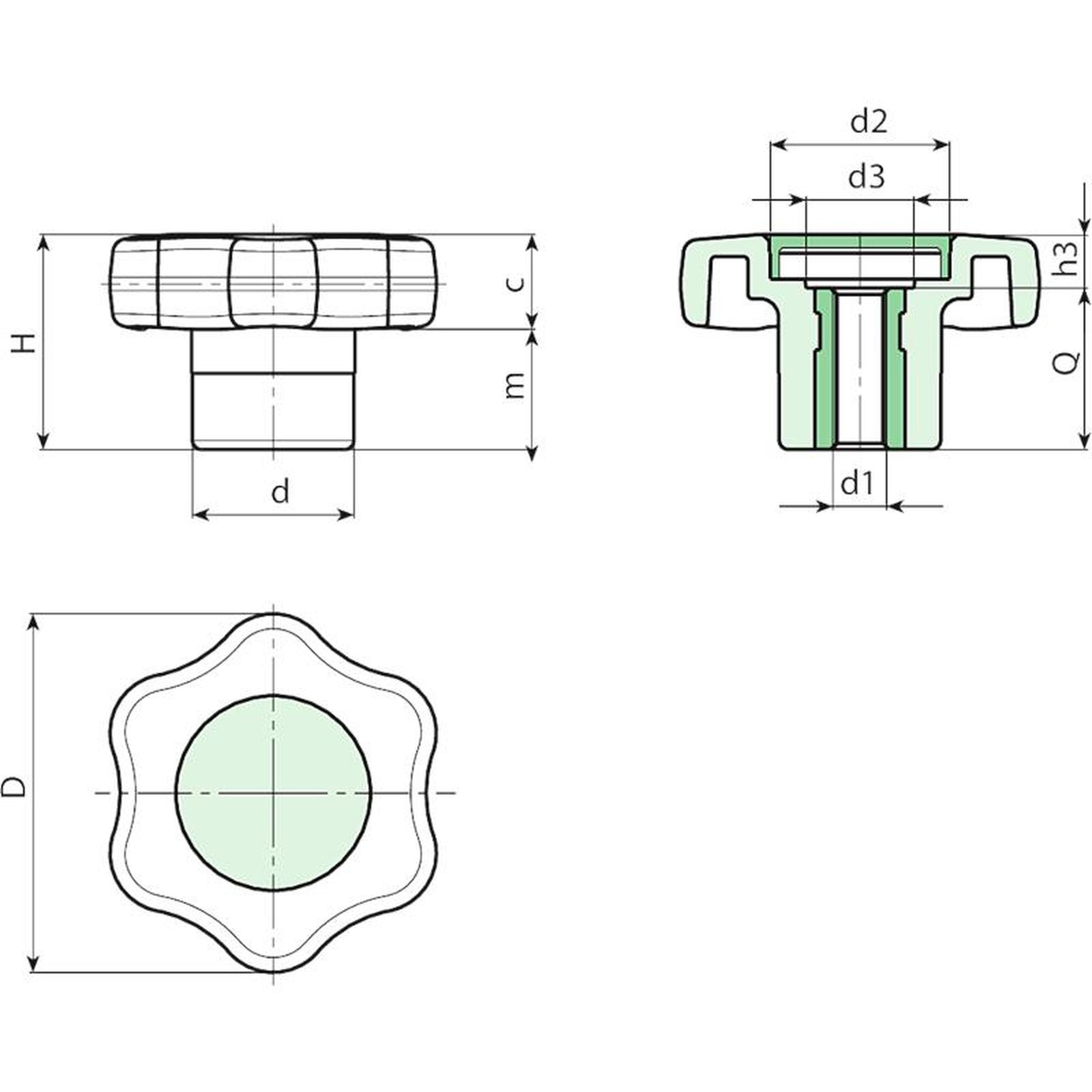

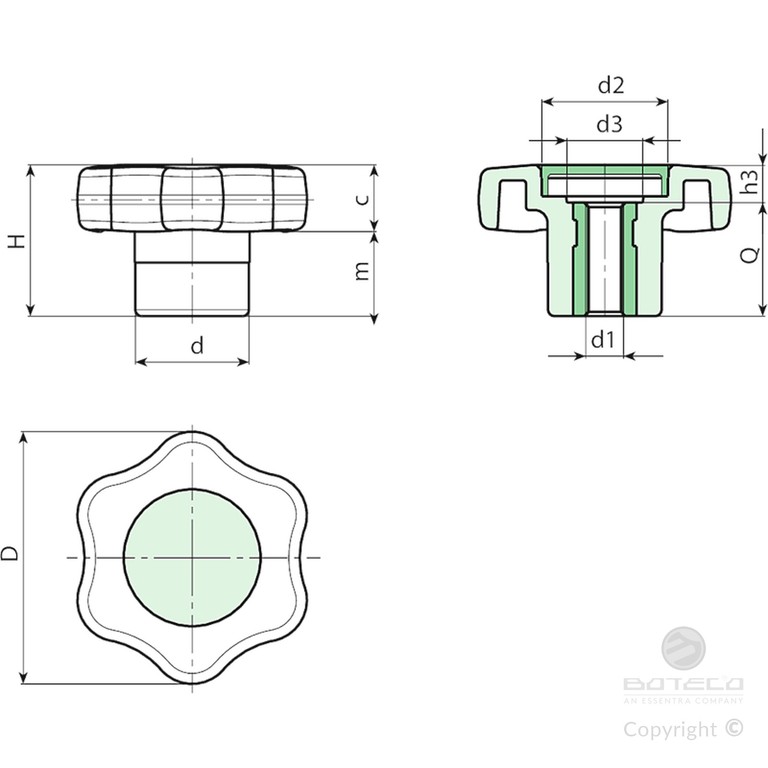

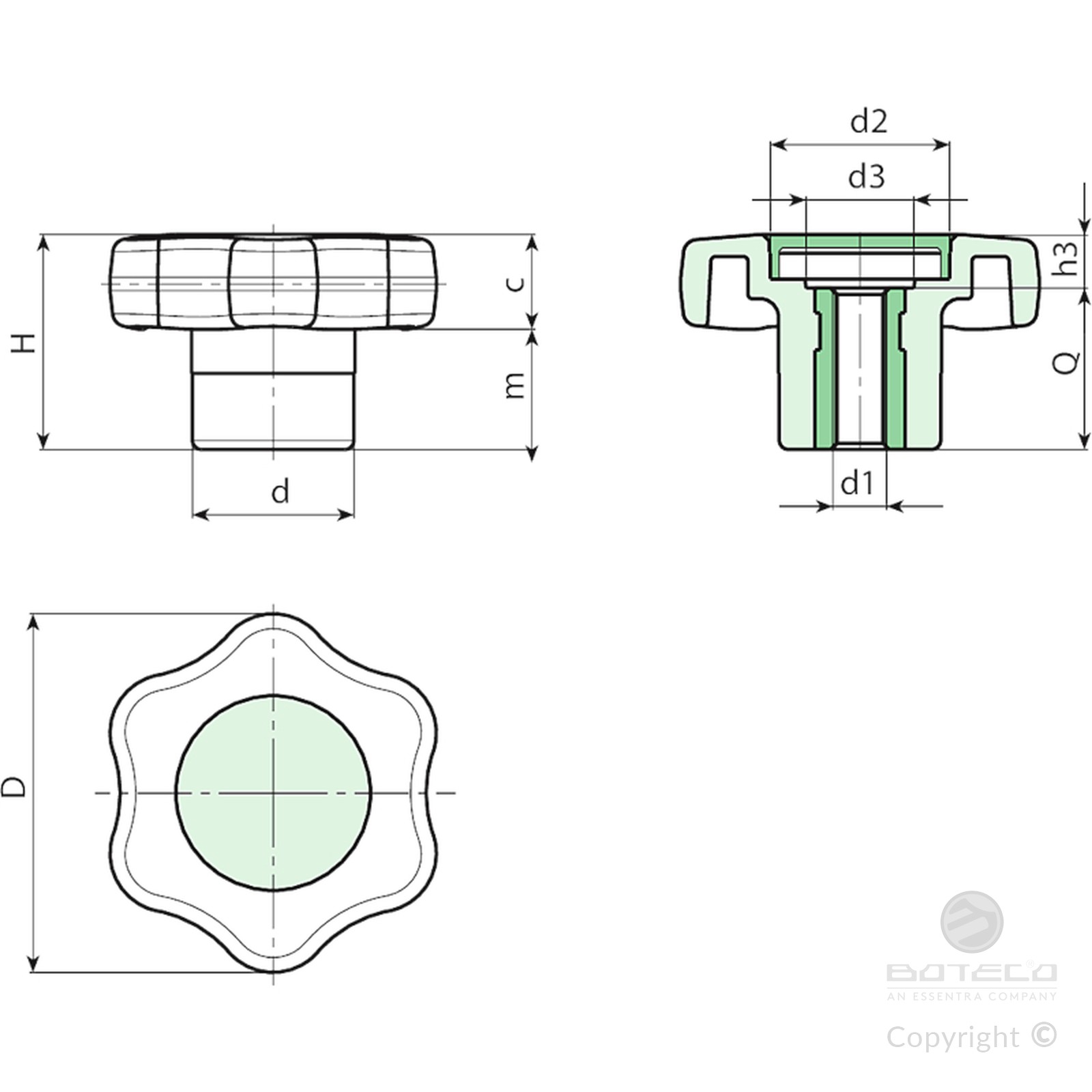

| Code | art. | D | H | d | c | m | d2 | d3 | h3 | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| G65040.0001 | G65040.TM0601 | 40 | 24 | 18 | 11 | 13 | 20 | 13 | 6 | M6 | 18 | 18 |
| G65040.0005 | G65040.TM0801 | 40 | 24 | 18 | 11 | 13 | 20 | 13 | 6 | M8 | 18 | 19 |
| G65040.0010 | G65040.TM1001 | 40 | 24 | 18 | 11 | 13 | 20 | 13 | 6 | M10 | 18 | 20 |
