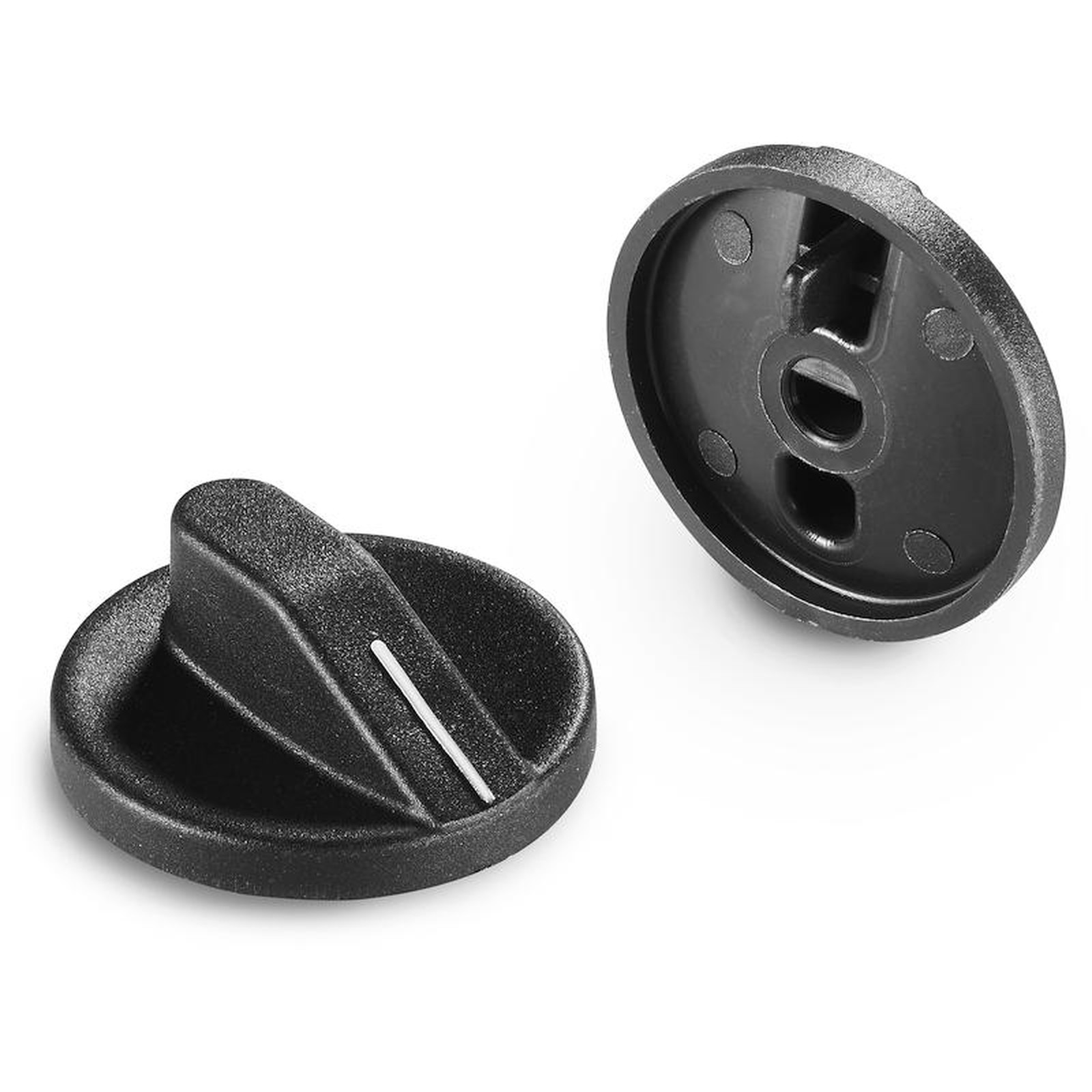

PUSH-FIT INDICATOR KNOB WITH HALFMOON HOLE
07
G210
Volantini con altre forme
Materials:
Reinforced copolymer polypropylene.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Pointer Colour:
White line obtained by pad printing.
Hole:
Halfmoon-shaped blind smooth hole obtained by moulding.
Assembly:
Push-fit.
Special requests:
None.

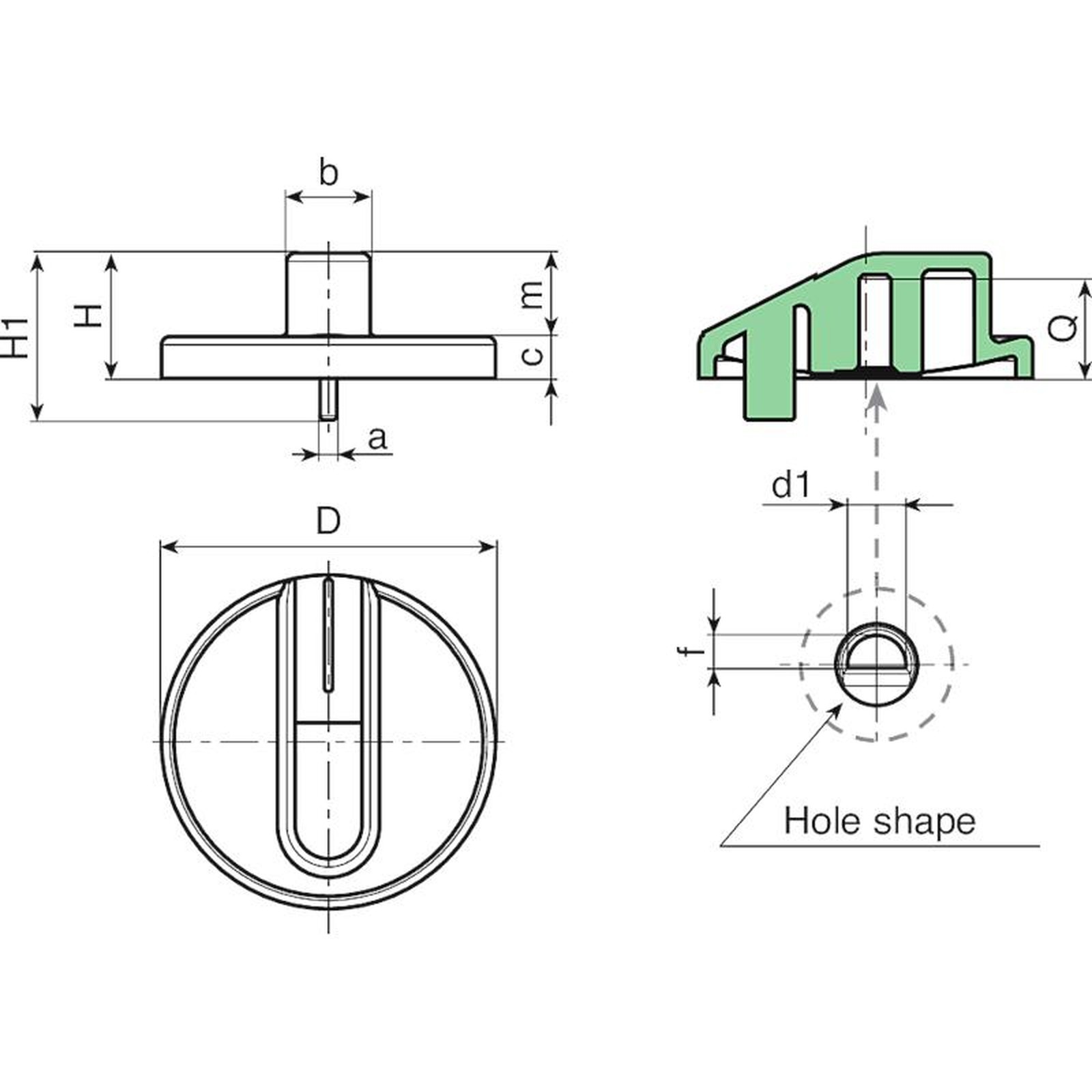

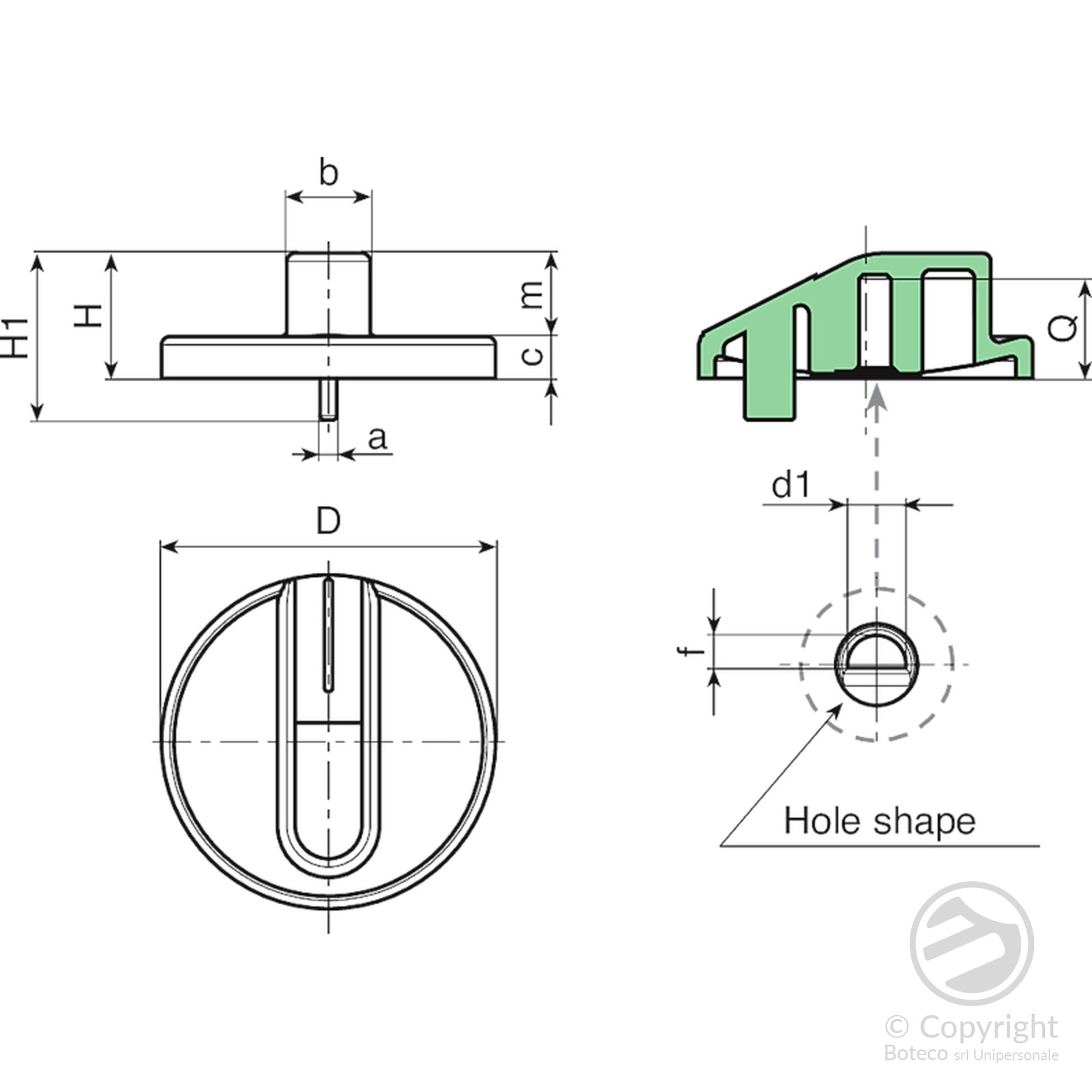

| Code | art. | D | H | H1 | a | b | c | m | f | d1 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| G210040.0001 | G210040.TG0601Z1 | 39.5 | 15 | 20 | 2 | 9.5 | 5 | 10 | 3.8 | 6 | 12 | 5 |
