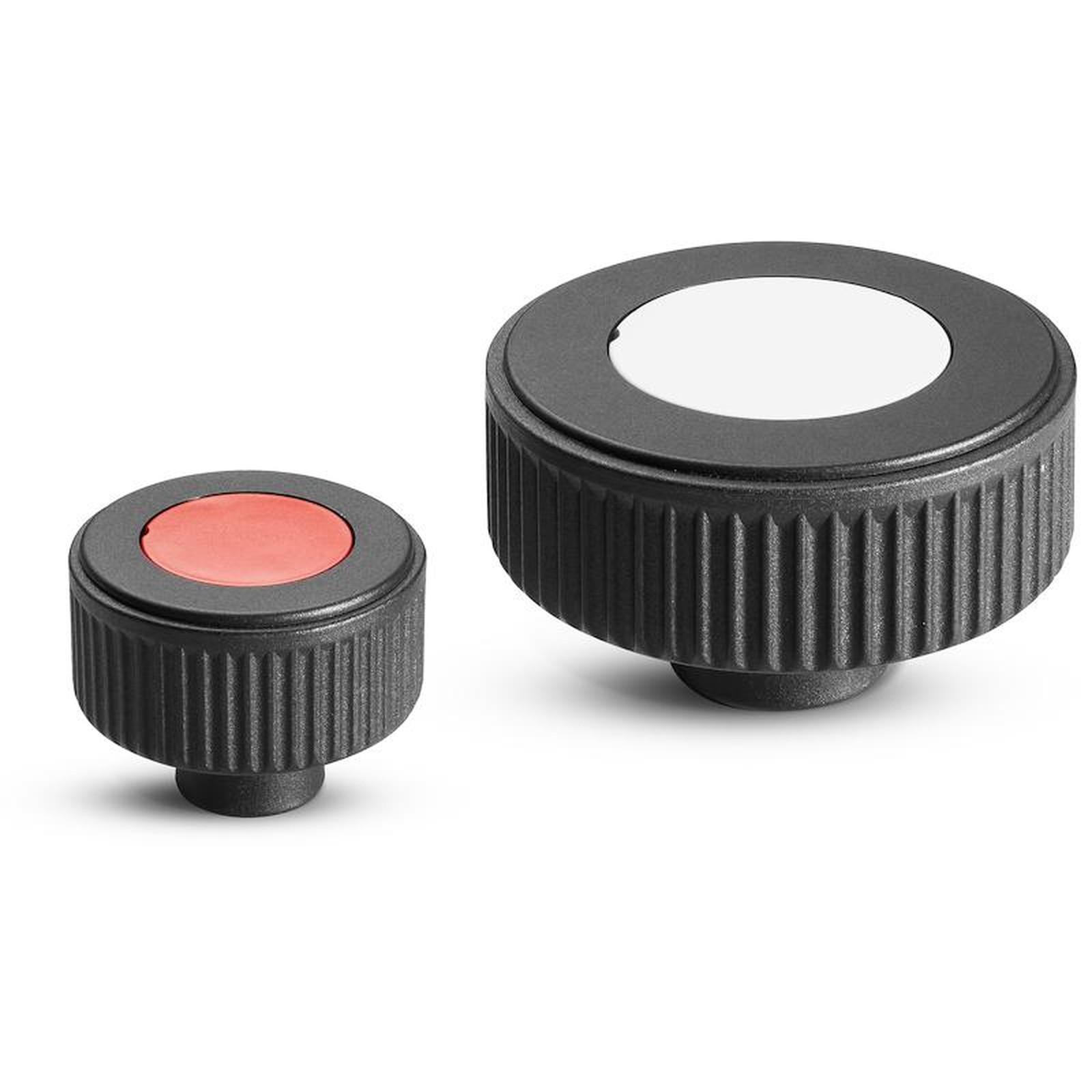

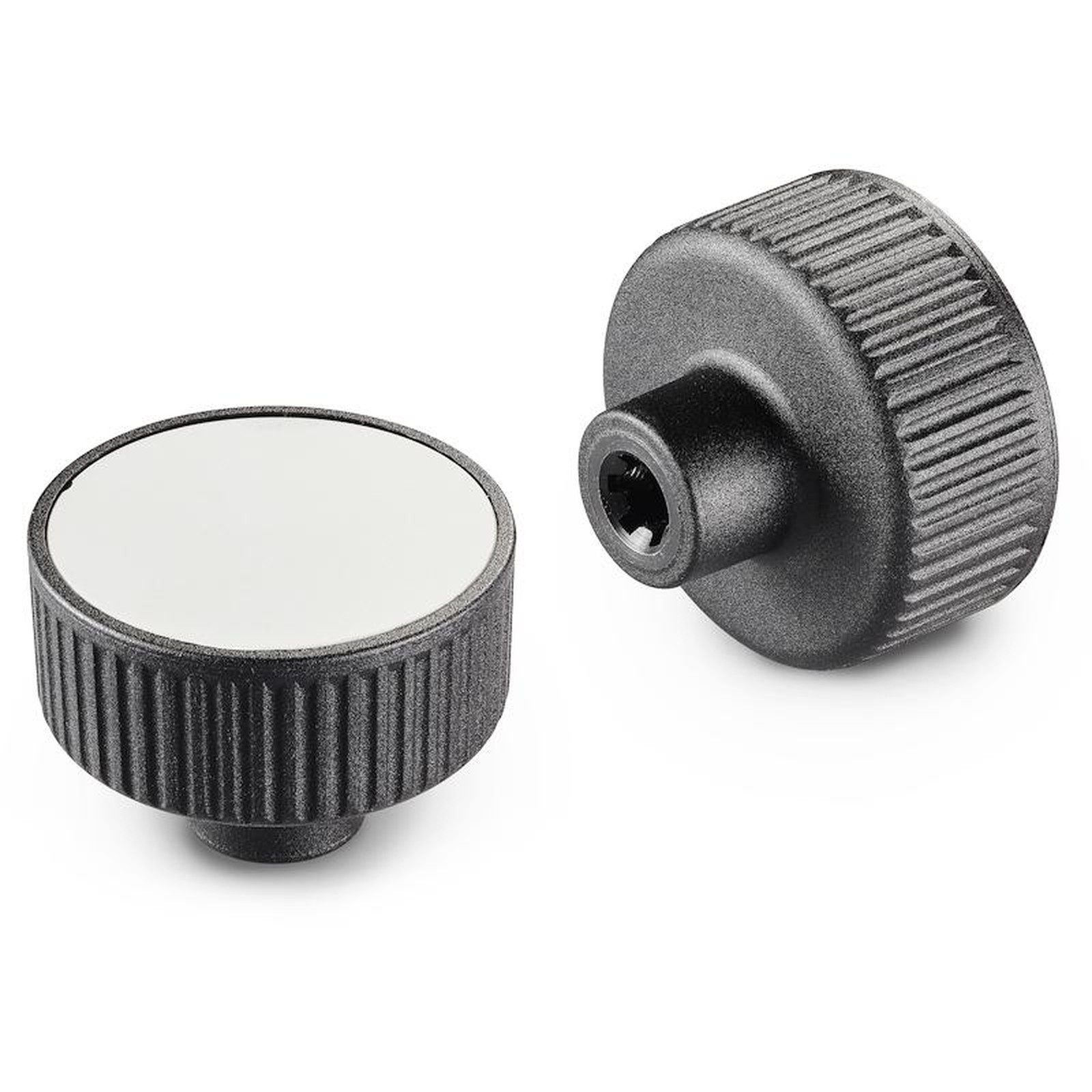

“EUROMODEL” KNURLED KNOB WITH CAP

07

G130


Volantini con altre forme

Materials:

Reinforced polyamide. Resistant to oils and greases.

Surface finish:

Satin.

Handwheel colour:

Black (RAL 9011).

Central cap:

Central cap in grey polyamide (RAL 7035 code 13) with black polyamide support ring for versions 57 and 94. Cap only without ring for version 72. Push-fit assembly. Removable.

Alternative cap colours:

Orange (RAL 2004 code 02).

Blue (RAL 5015 code 07).

Yellow (RAL 1021 code 10).

Red (RAL 3000 code 16).

Green (RAL 6024 code 17).

Black (RAL 9011 code 01).

Inserts:

Version TD:

Galvanised steel insert with smooth through bore (tolerance H10).

Version TM:

Galvanised steel insert with threaded through hole (tolerance hole 6H).

Fixing hole d2:

Version TD:

Fixing threaded hole.

Version TM:

None.

Special requests:

Upon request and for special quantities inserts can be supplied with custom hole diameter d1.

Upon request and for special quantities inserts can be supplied in different materials.

Upon request and for special quantities available in the colours indicated in the chart.

Data sheet

Version TD: with smooth through hole.

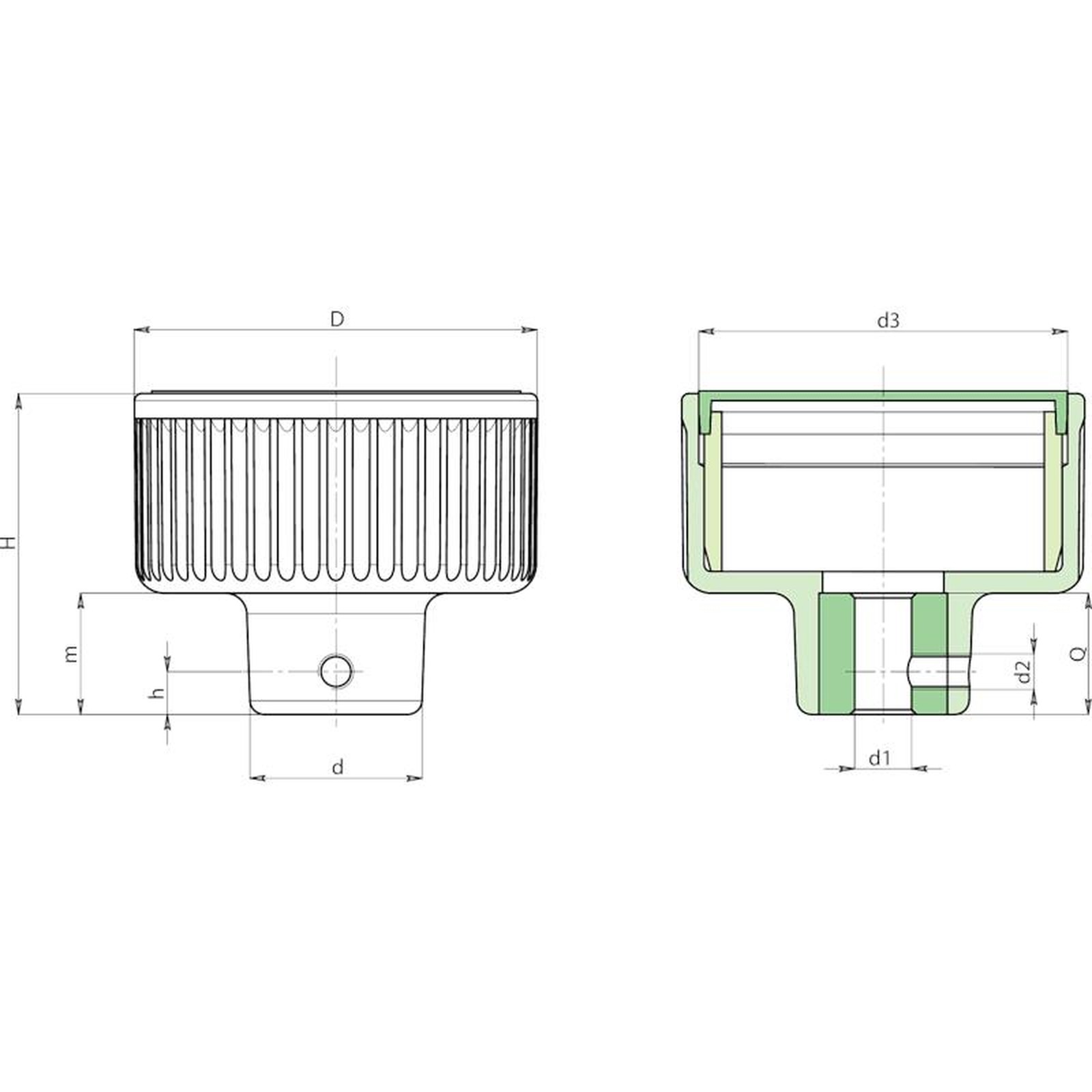

Code art. D d H m h d2 d3 dm d1 H10 Q Weight (g)

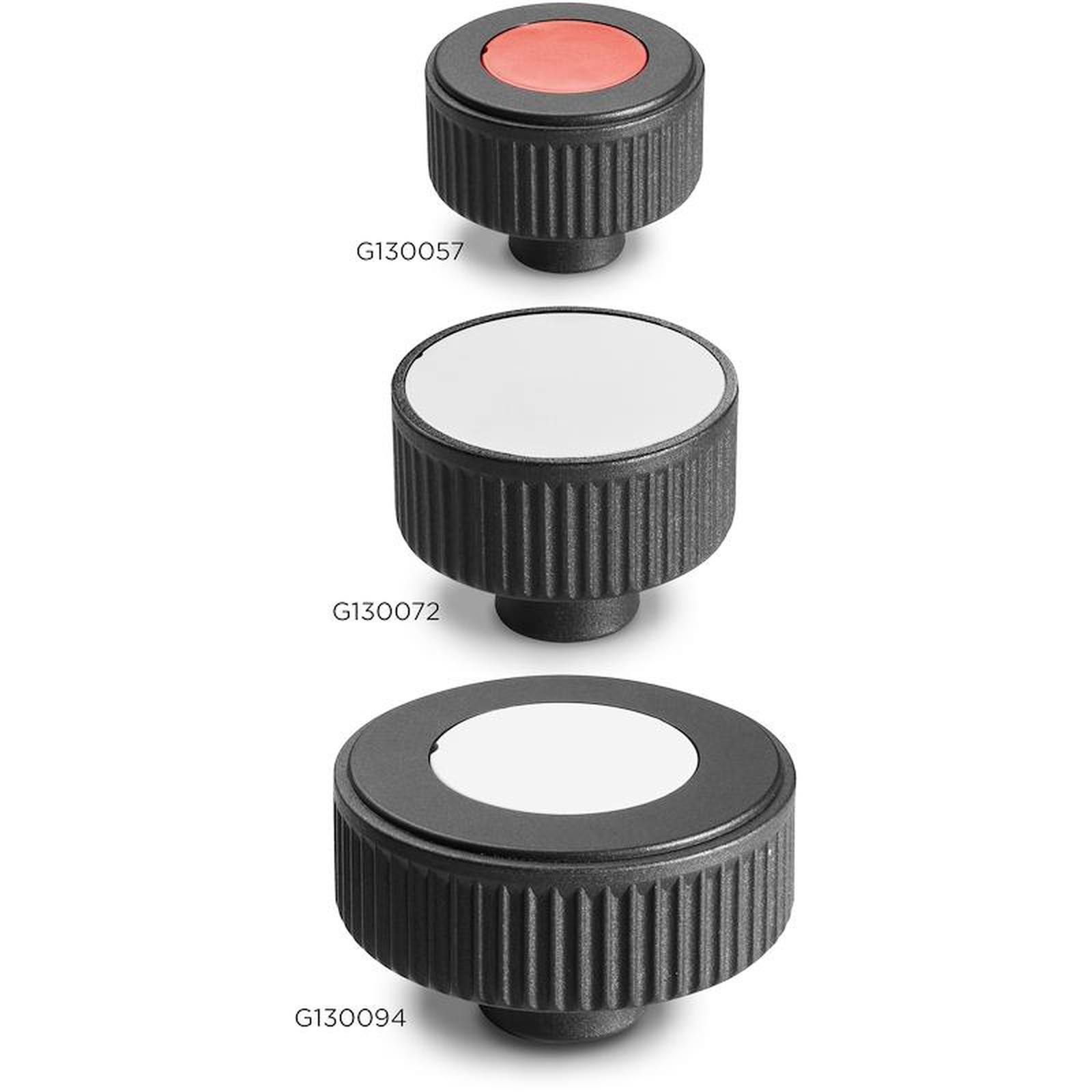

G130057.0001 G130057.TD080113 57 24 46 17 6 M5 52 12 8 16 105
G130072.0001 G130072.TD080113 72 28 53 21 6 M5 67 12 8 20 165
G130094.0002 G130094.TD100113 94 36 58 24 6 M5 87 15 10 24 376
Attention: for a minimum of 50 pieces the diameter d1 can be produced with the requested dimensions (H10 tolerance)
Dm = Maximum obtainable diameter for subsequent machining (widening).
#s##s##s##s#

Version TM with threaded through hole

Code art. D d H m h d2 d3 dm d1 6H Q Weight (g)
G130057.0002 G130057.TM080113 57 24 46 17 - - 52 12 M8 16 105
G130072.0002 G130072.TM100113 72 28 53 21 - - 67 12 M10 20 165
G130094.0003 G130094.TM120113 94 36 58 24 - - 87 15 M12 24 376
Attention: for a minimum of 50 pieces the diameter d1 can be produced with the requested dimensions.
