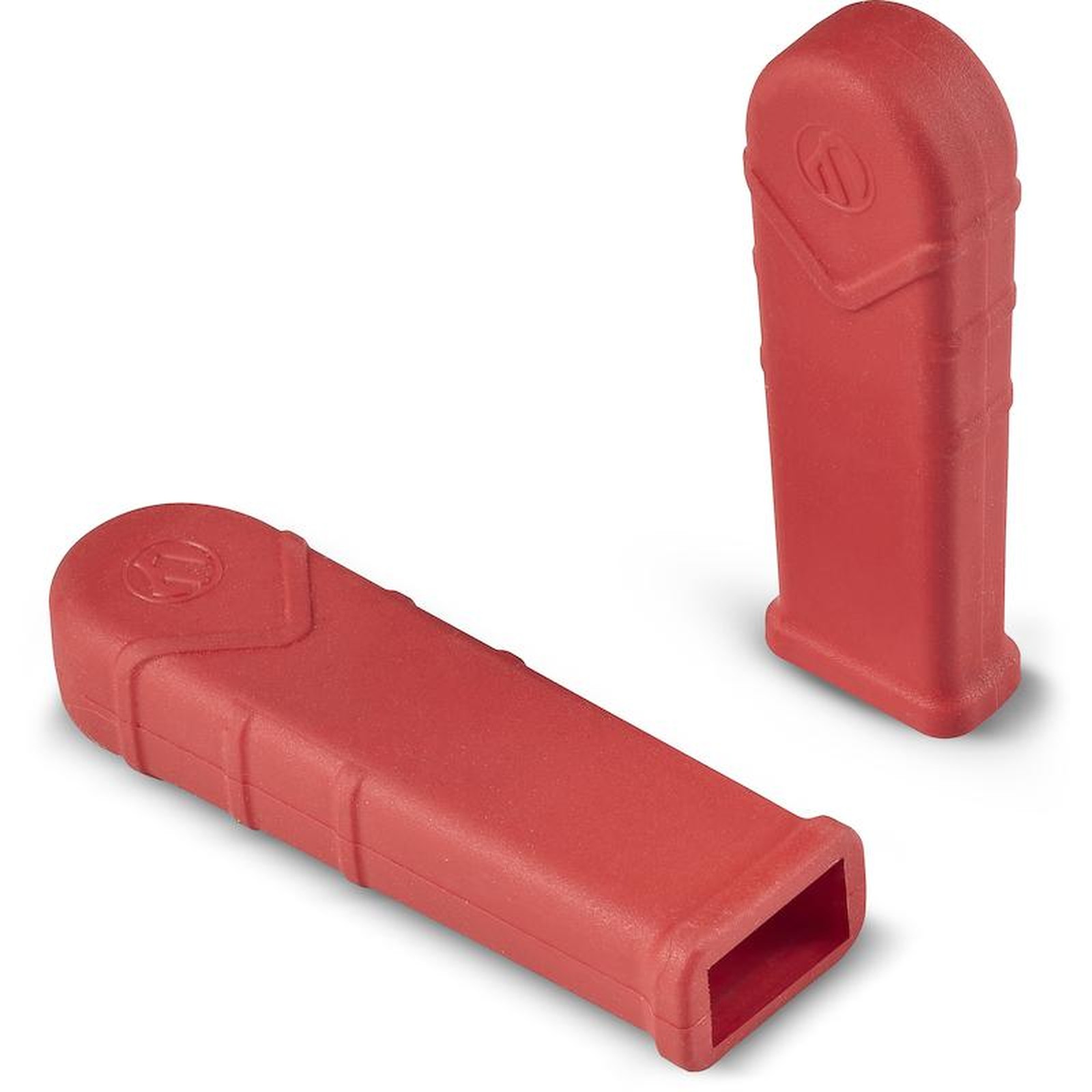

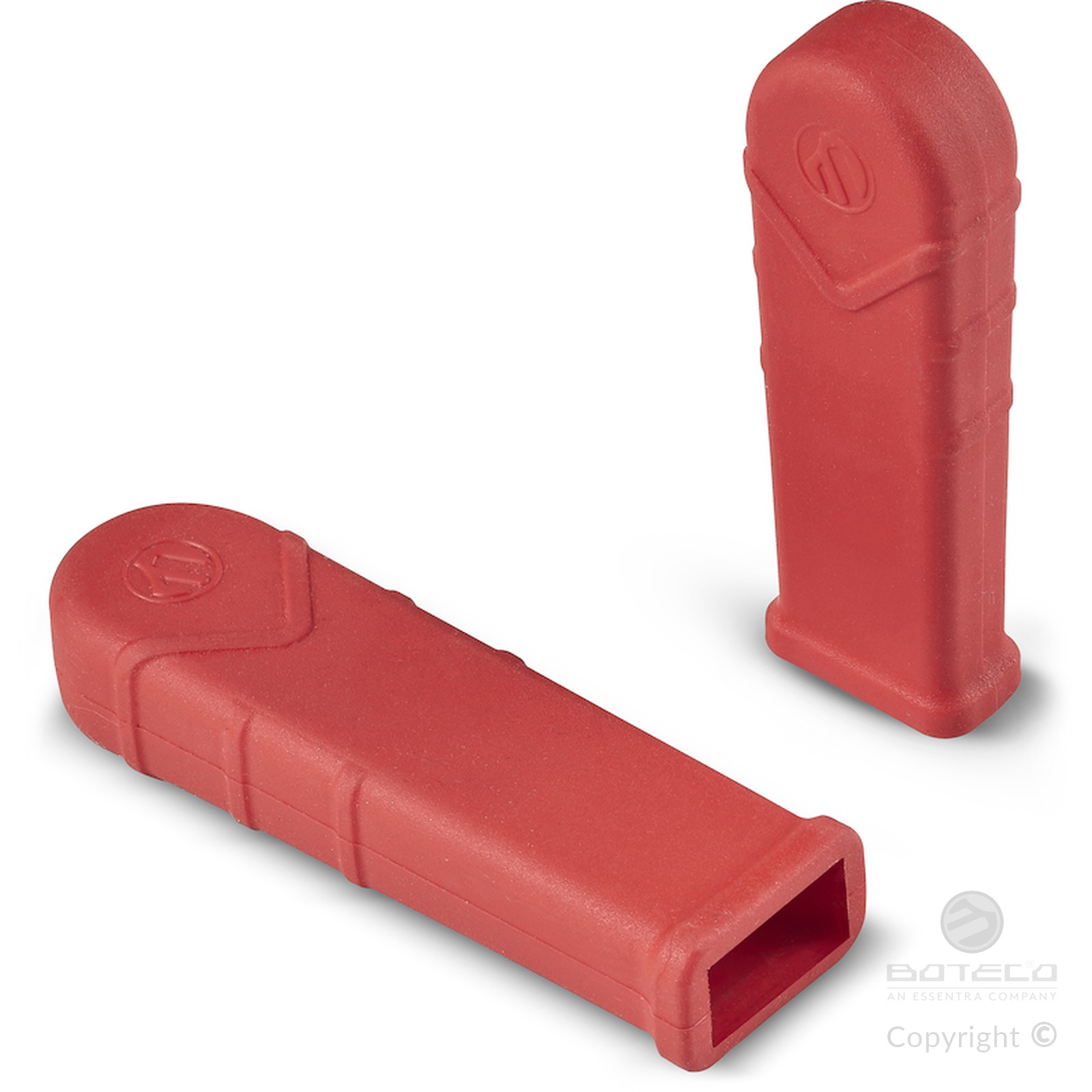

HANDLE WITH RECTANGULAR HOLE FOR TOGGLE CLAMPS (SPARE PART)
10
MANICO.LEVA
Chiusure a ginocchiera con leva e manico
Materials:
TPV thermoplastic rubber. Hardness 75 Shore.
Surface finish:
Smooth.
Colour:
Red (RAL 3000 code 16).
Special Requests:
None.

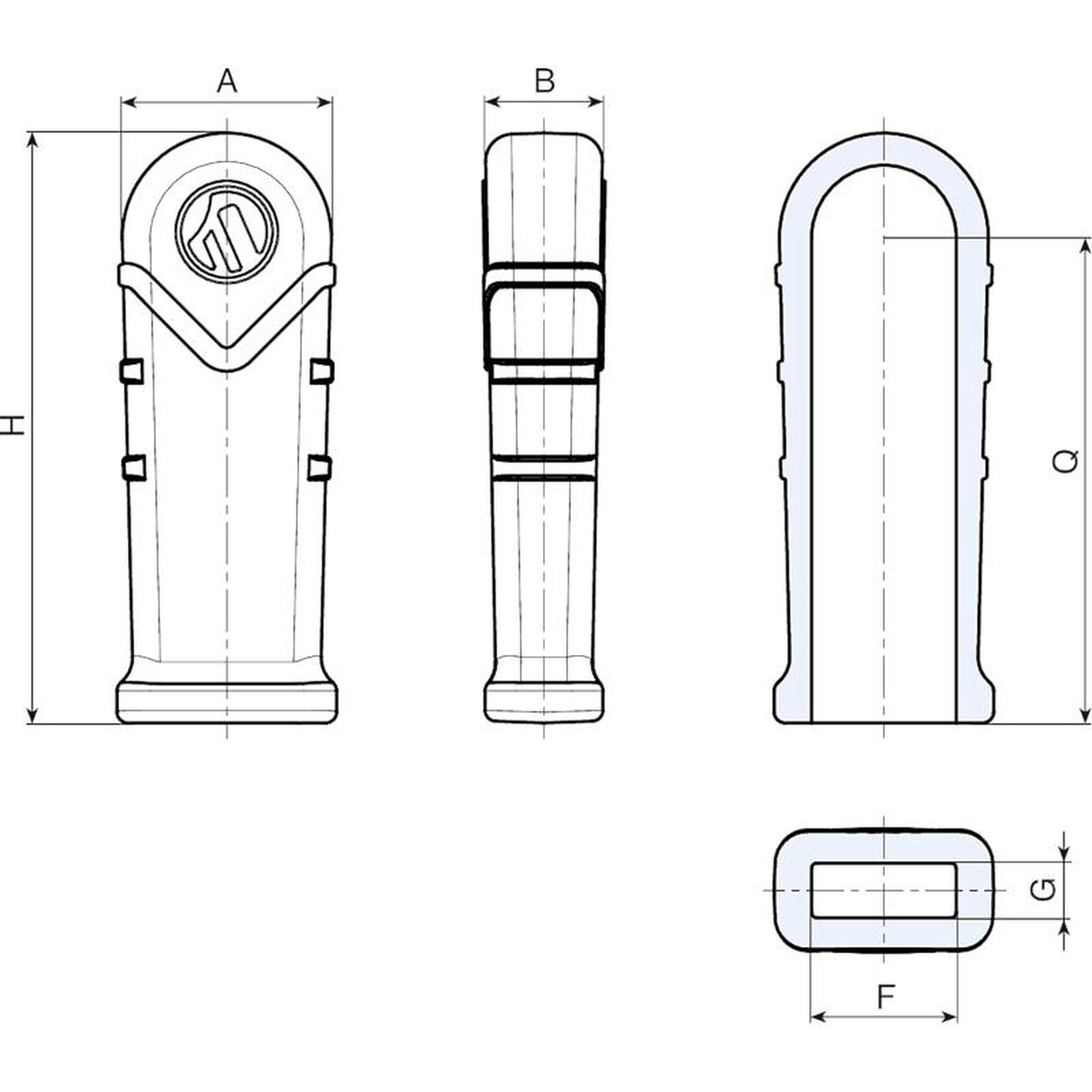

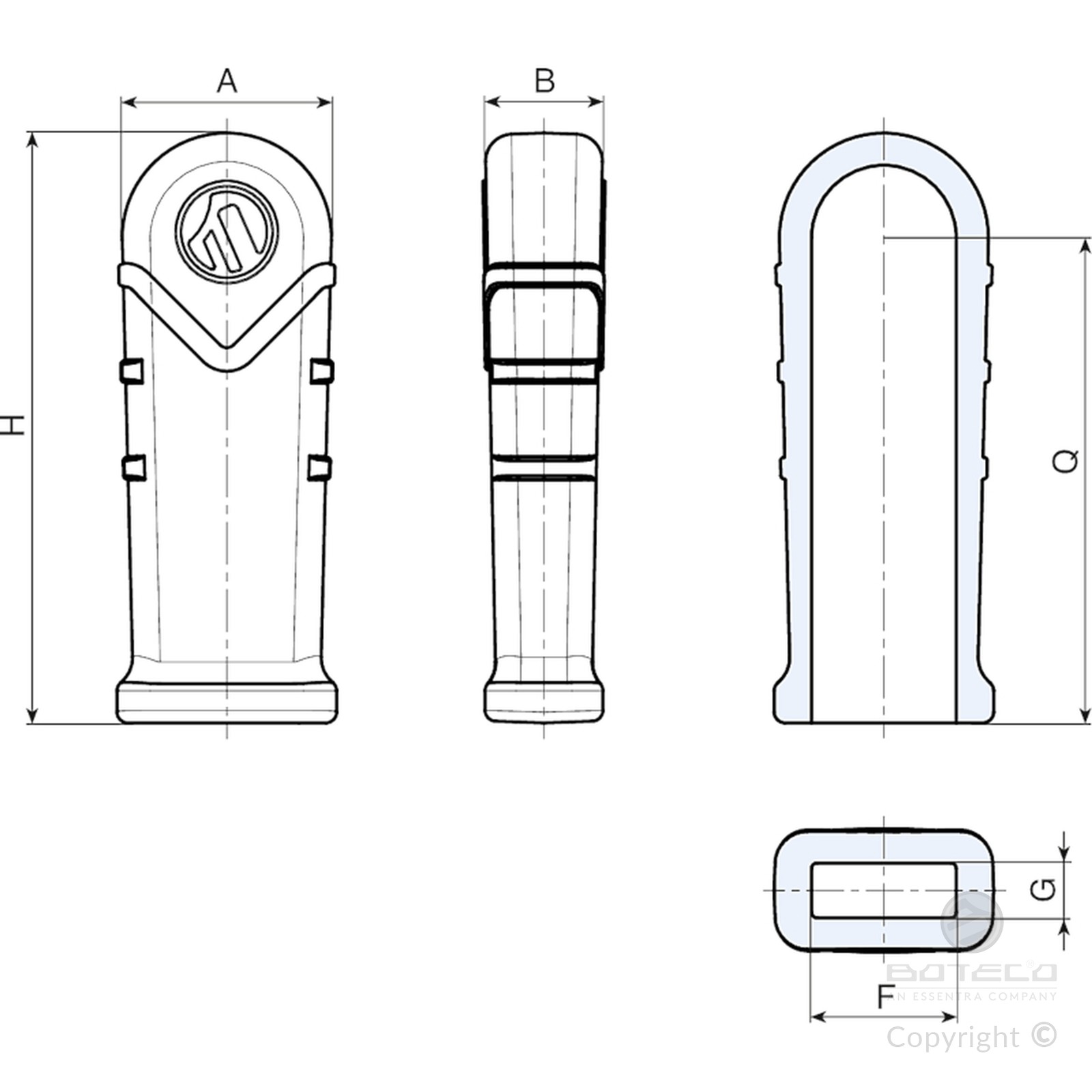

| Code | art. | H | A | B | F | G | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| MANICO.LEVA4216 | MANICO.LEVA4216 | 42 | 17 | 12,5 | 10 | 6 | 34 | 4 |
| MANICO.LEVA5516 | MANICO.LEVA5516 | 55 | 20,5 | 11,5 | 13 | 5 | 44 | 6 |
| MANICO.LEVA6516 | MANICO.LEVA6516 | 65 | 22 | 12,5 | 15 | 6 | 54 | 8 |
| MANICO.LEVA7516 | MANICO.LEVA7516 | 75 | 23 | 14,5 | 16 | 8 | 64 | 10 |
