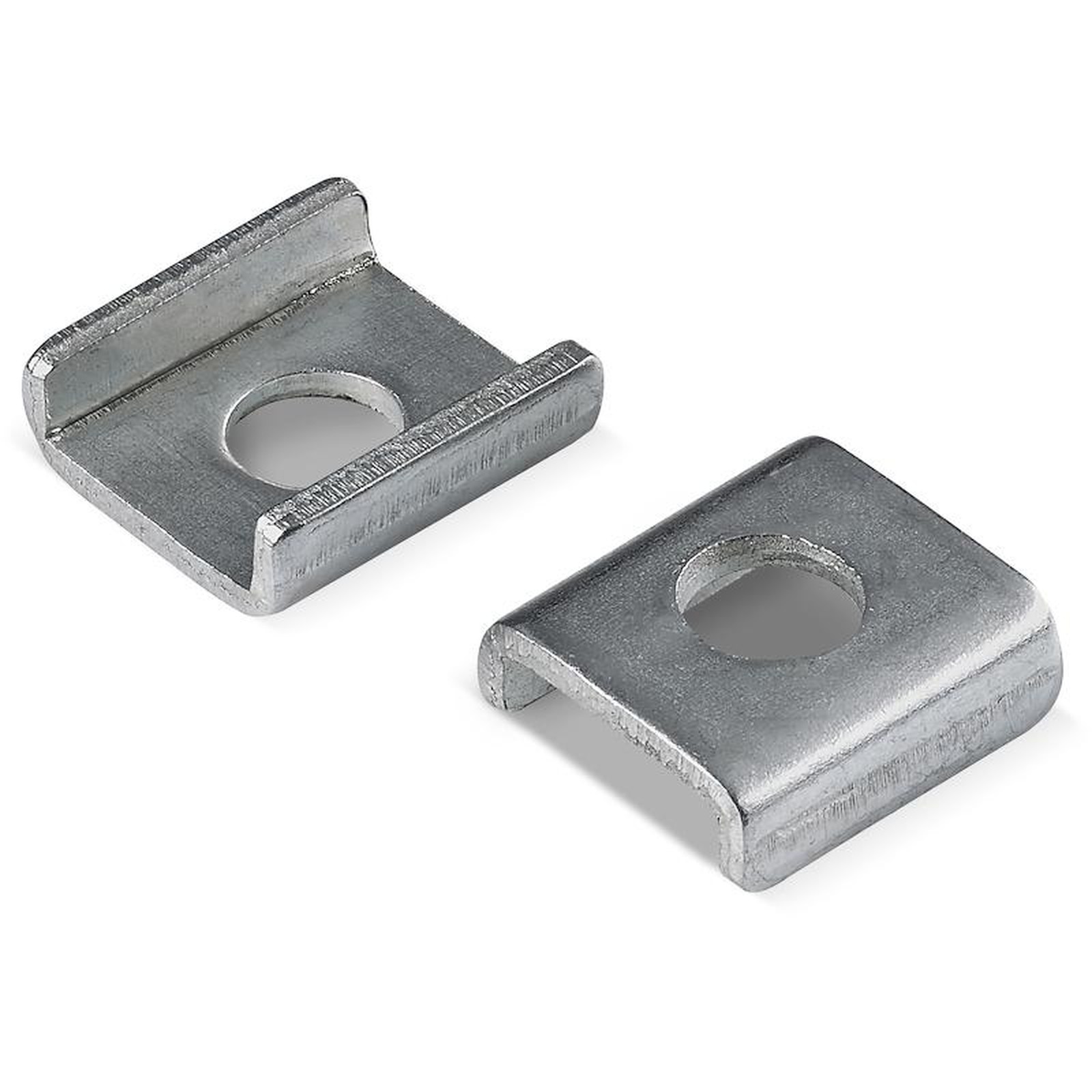

BENT WASHERS IN SHEET METAL (SPARE PART)
10
J801
Chiusure a ginocchiera con leva e manico
Materials:
Sheared and bent washer in sheet metal (DD13).
Surface finish:
Smooth.
Colour:
Standard blue galvanising.
Packaging:
No packaging, sold individually.
Special Requests:
None.

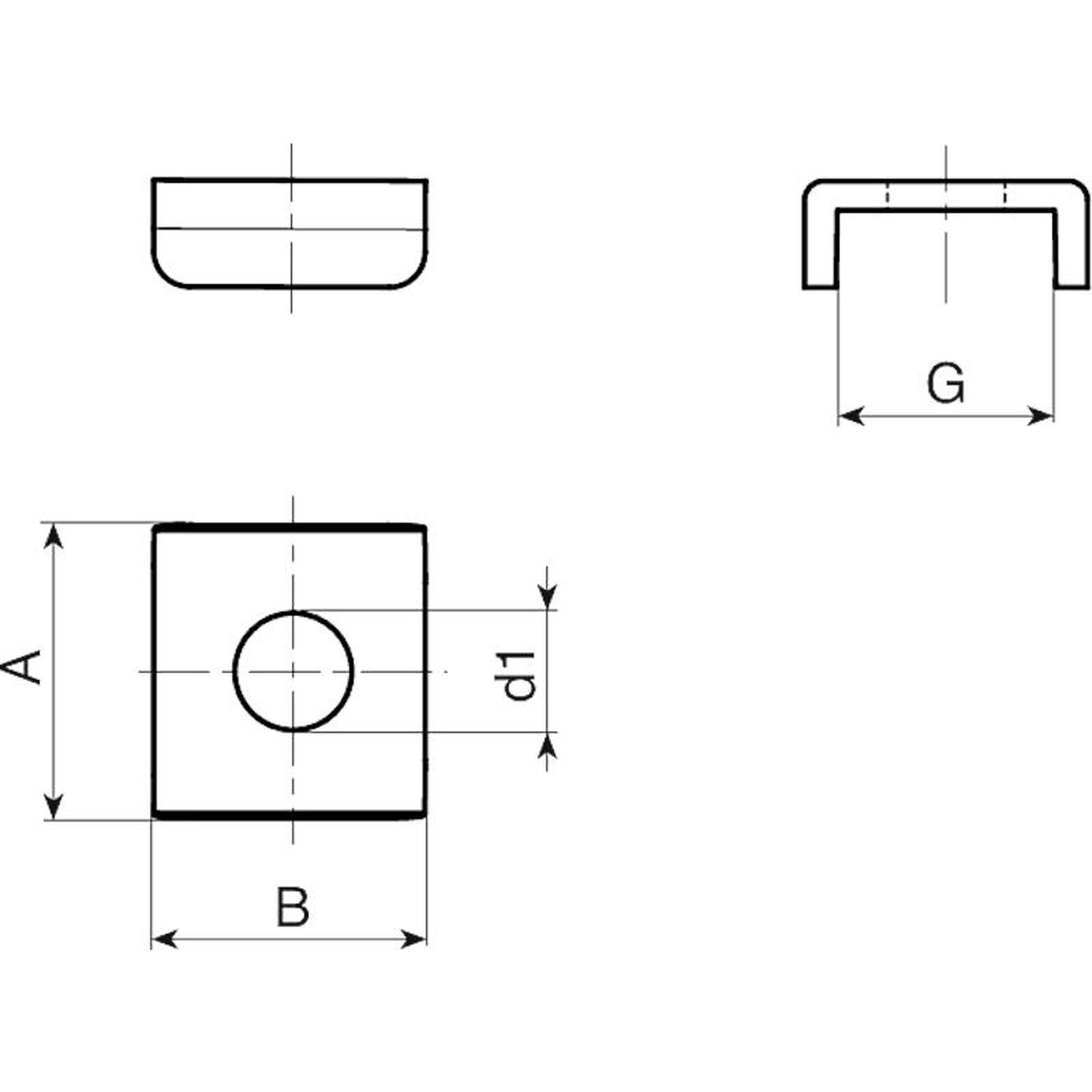

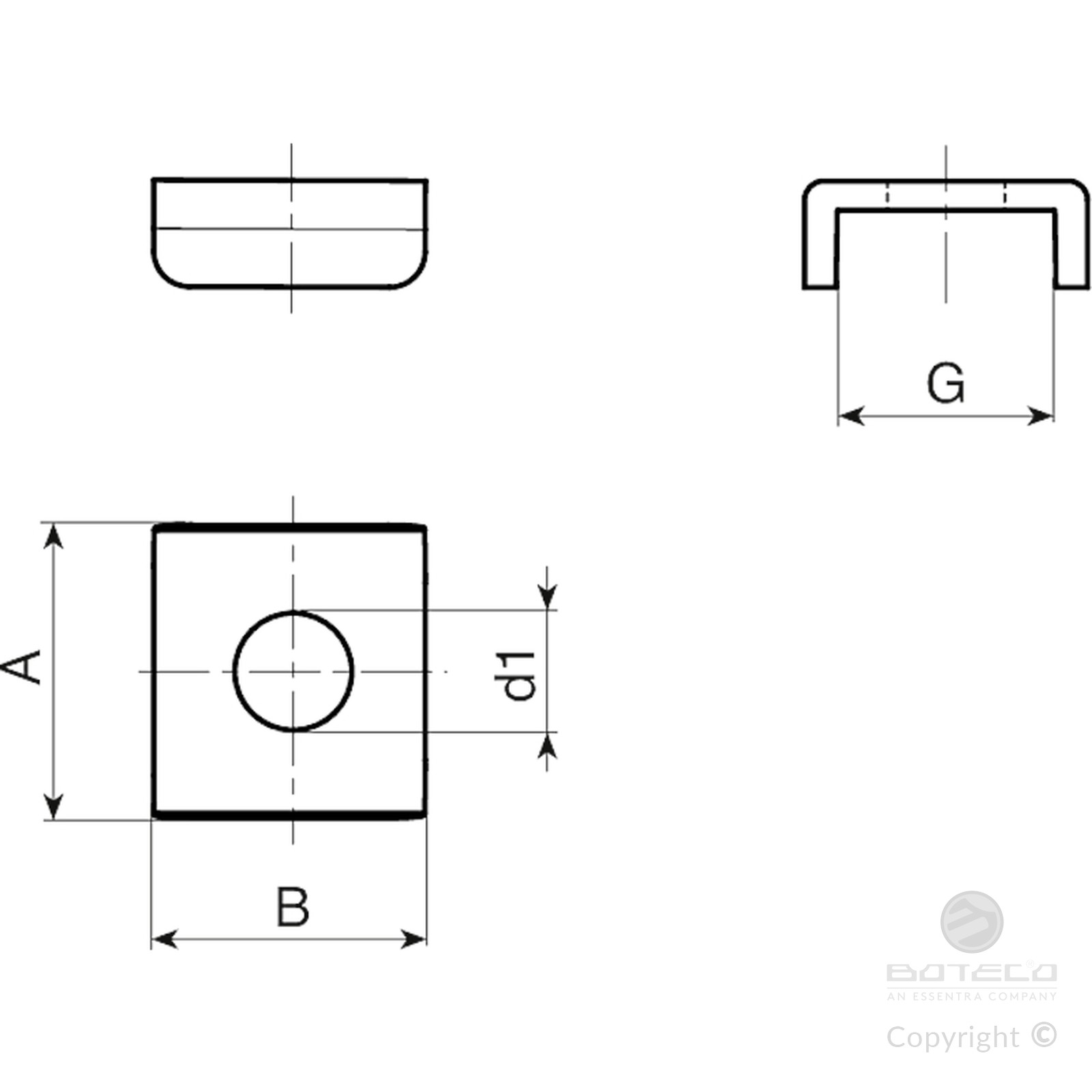

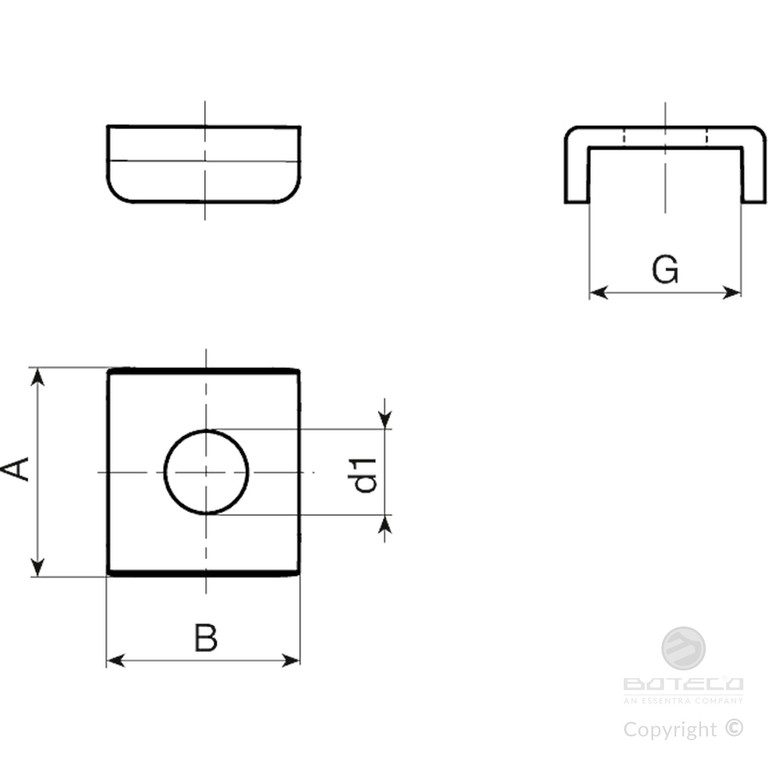

| Code | art. | A | B | G | d1 | Weight (g) |
|---|---|---|---|---|---|---|
| J801010.0001 | J801010.F06.5Z | 17 | 15 | 12 | 6,5 | 5 |
| J801012.0001 | J801012.F06.5Z | 18 | 15 | 13 | 6,5 | 5 |
| J801014.0001 | J801014.F08.5Z | 19 | 18 | 14 | 8,5 | 7 |
| J801018.0001 | J801018.F10.5Z | 24 | 25 | 18 | 10,5 | 14 |
