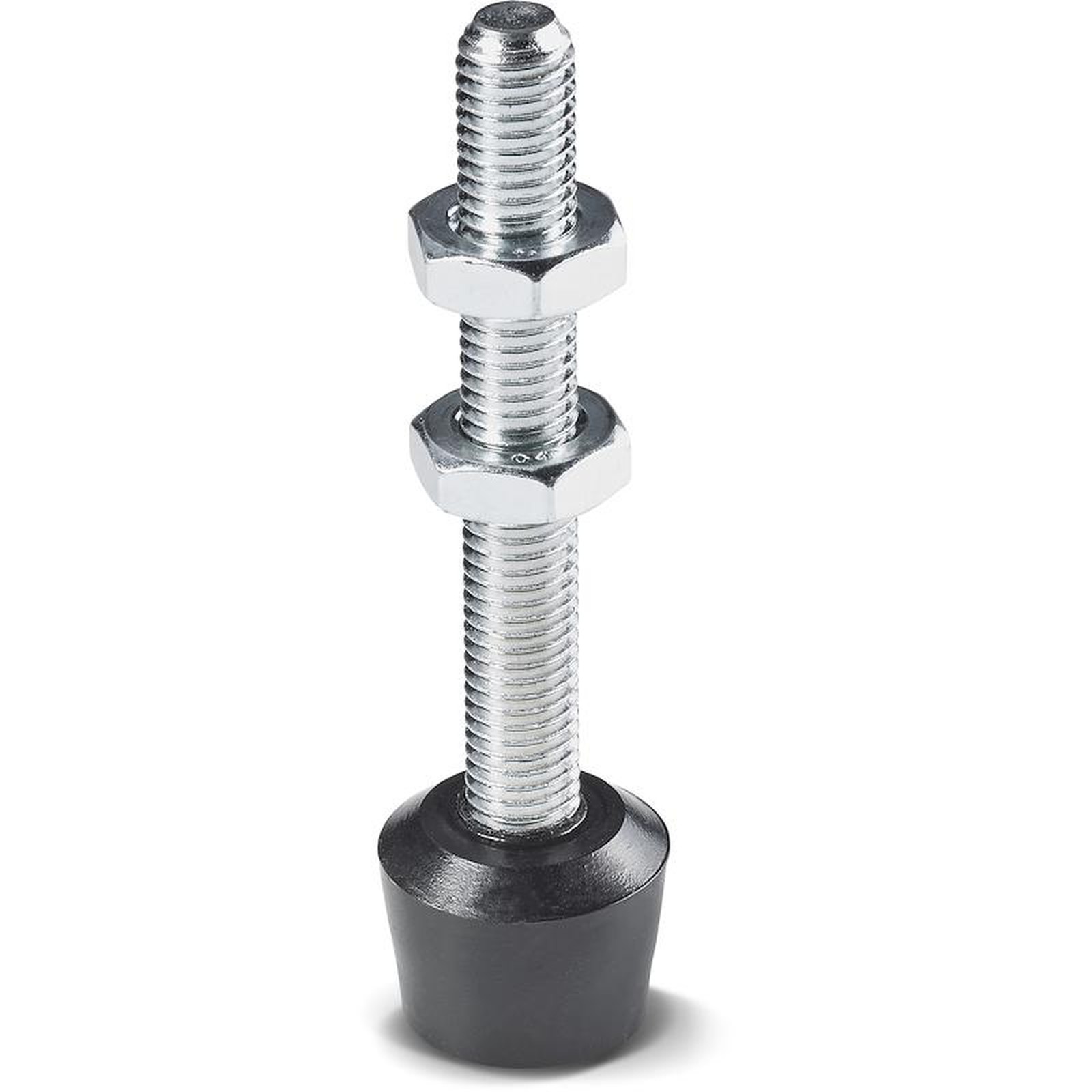

PRESSURE TIP (SPARE PART)
10
J800
Chiusure a ginocchiera con leva e manico

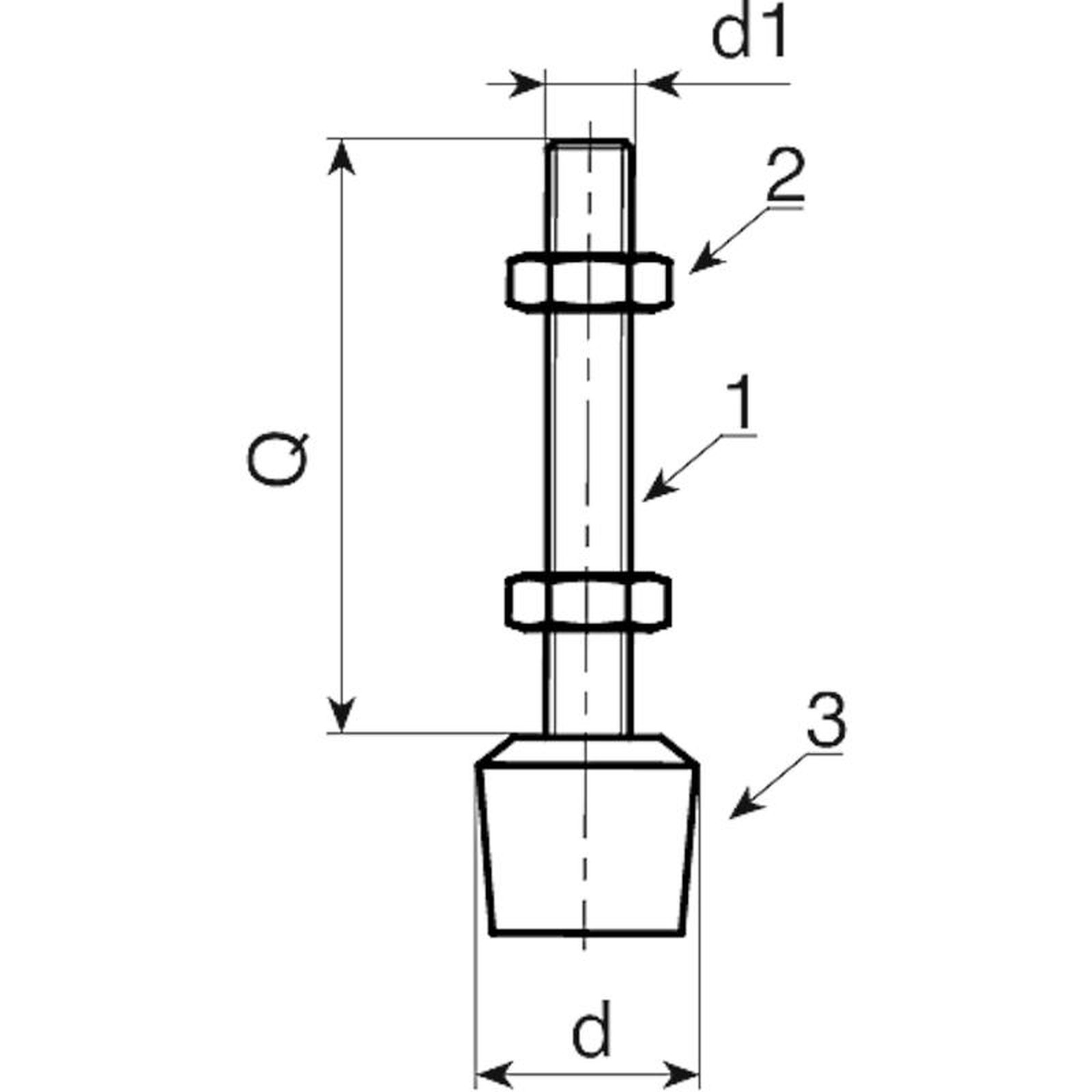

Materials:
(1) Free-cutting steel threaded stud.
(2) Pair of steel threaded lock nuts (DIN 913).
(3) Chloroprene rubber pressure tip (neoprene). Hardness 75 Shore.
Surface finish:
Smooth.
Colour:
(2) Black (RAL 9011).
(1-2) Standard blue galvanising.
Packaging:
Tip supplied with the two nuts mounted.
Special Requests:
None.
| Code | art. | d | d1 | Q | Weight (g) |
|---|---|---|---|---|---|
| J80015.0001 | J80015.TM06X3201 | 15 | M6 | 32 | 14 |
| J80015.0002 | J80015.TM06X4401 | 15 | M6 | 44 | 14 |
| J80020.0001 | J80020.TM08X5401 | 20 | M8 | 54 | 35 |
| J80025.0001 | J80025.TM10X7501 | 25 | M10 | 75 | 74 |
