LOCKING BRACKET WITH THROUGH HOLE
10
J300
Chiusure in plastica
Description

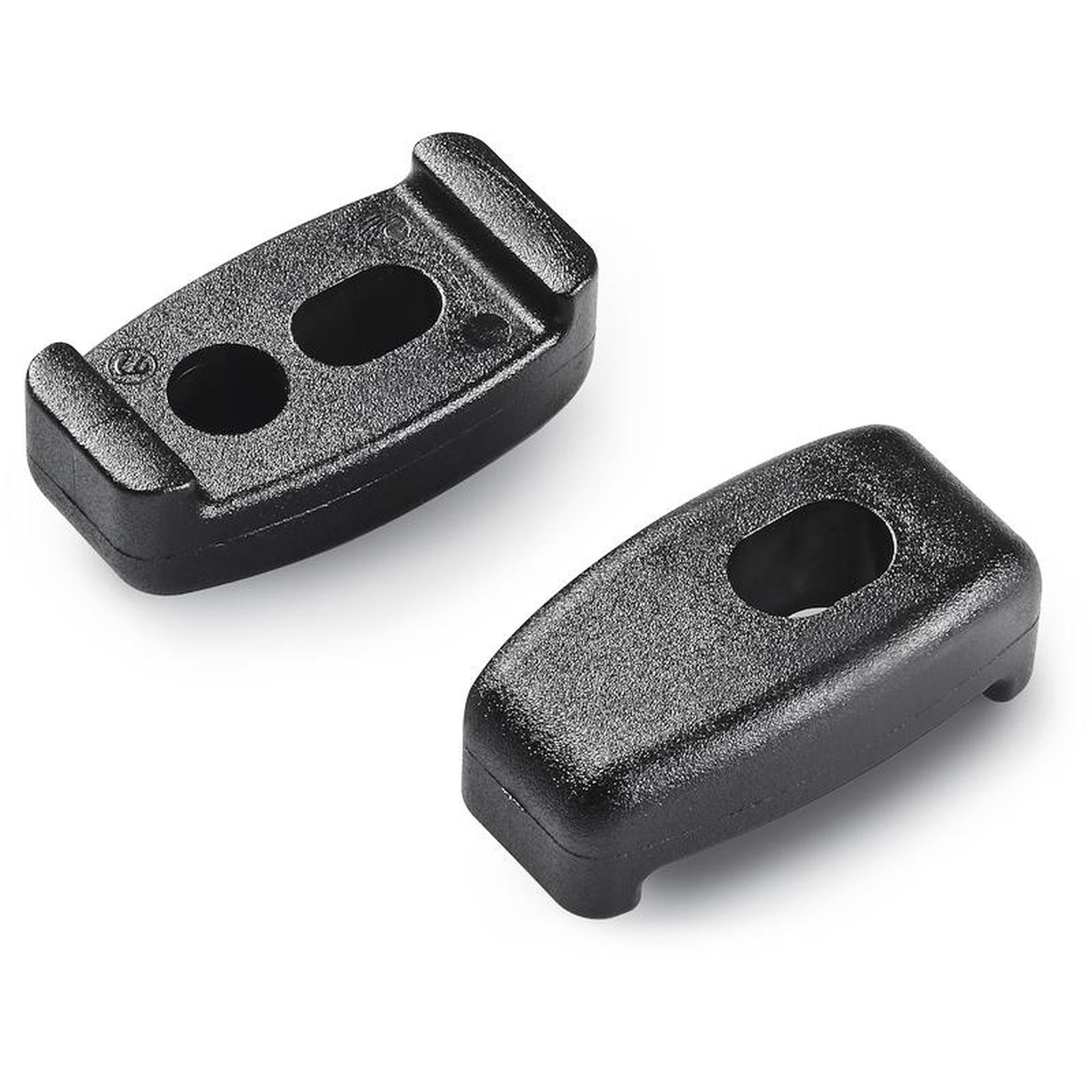

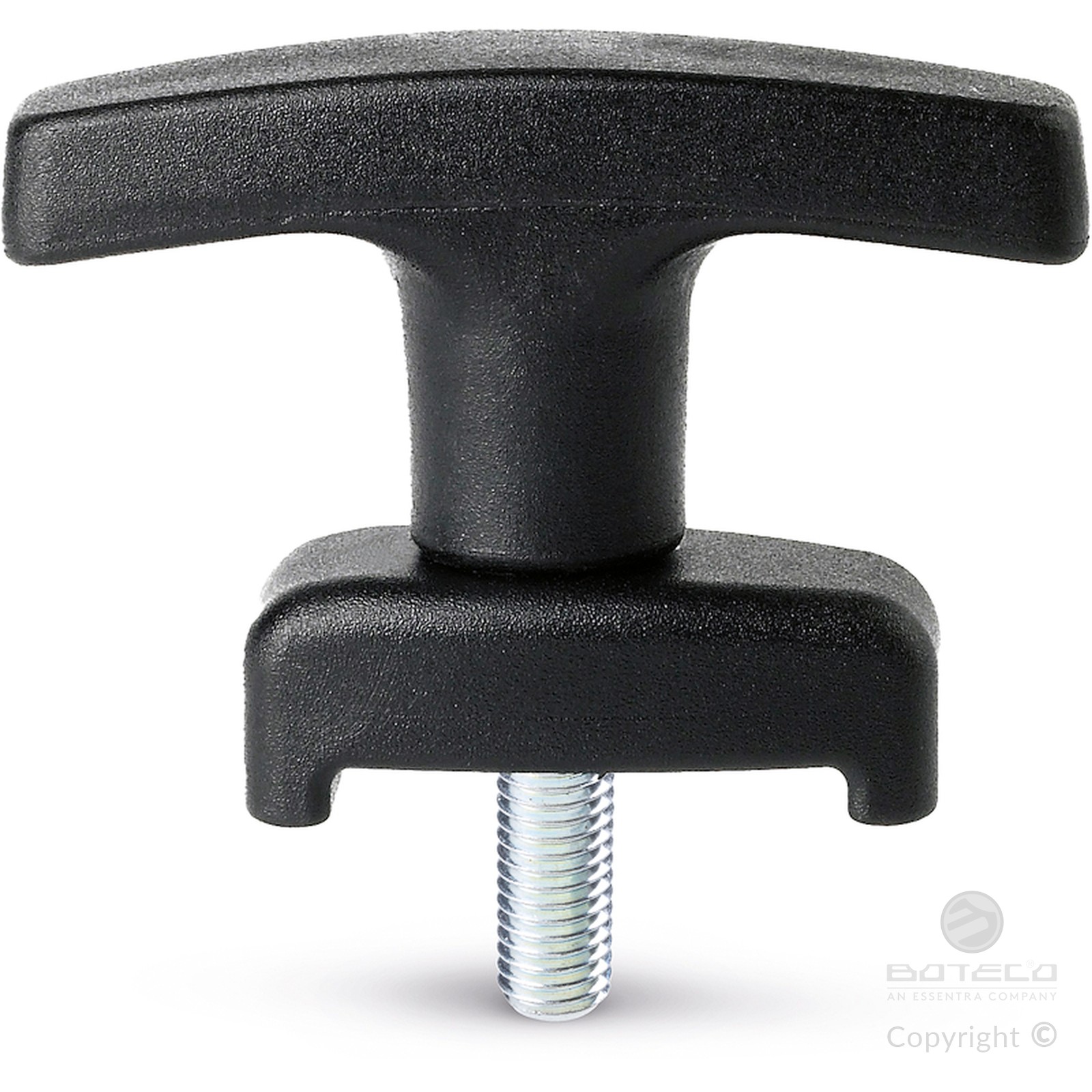

The use of the J300 bracket must be combined with a knob with a threaded stud. An effective combination could be the one with T-handle art. L271. Used together they function as a quick locking and release system for panels of machinery in general. Particularly suitable for insulating panels of large external air conditioning chiller units.
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Hole
Smooth through hole obtained by moulding the plastic.
Special Requests:
None.

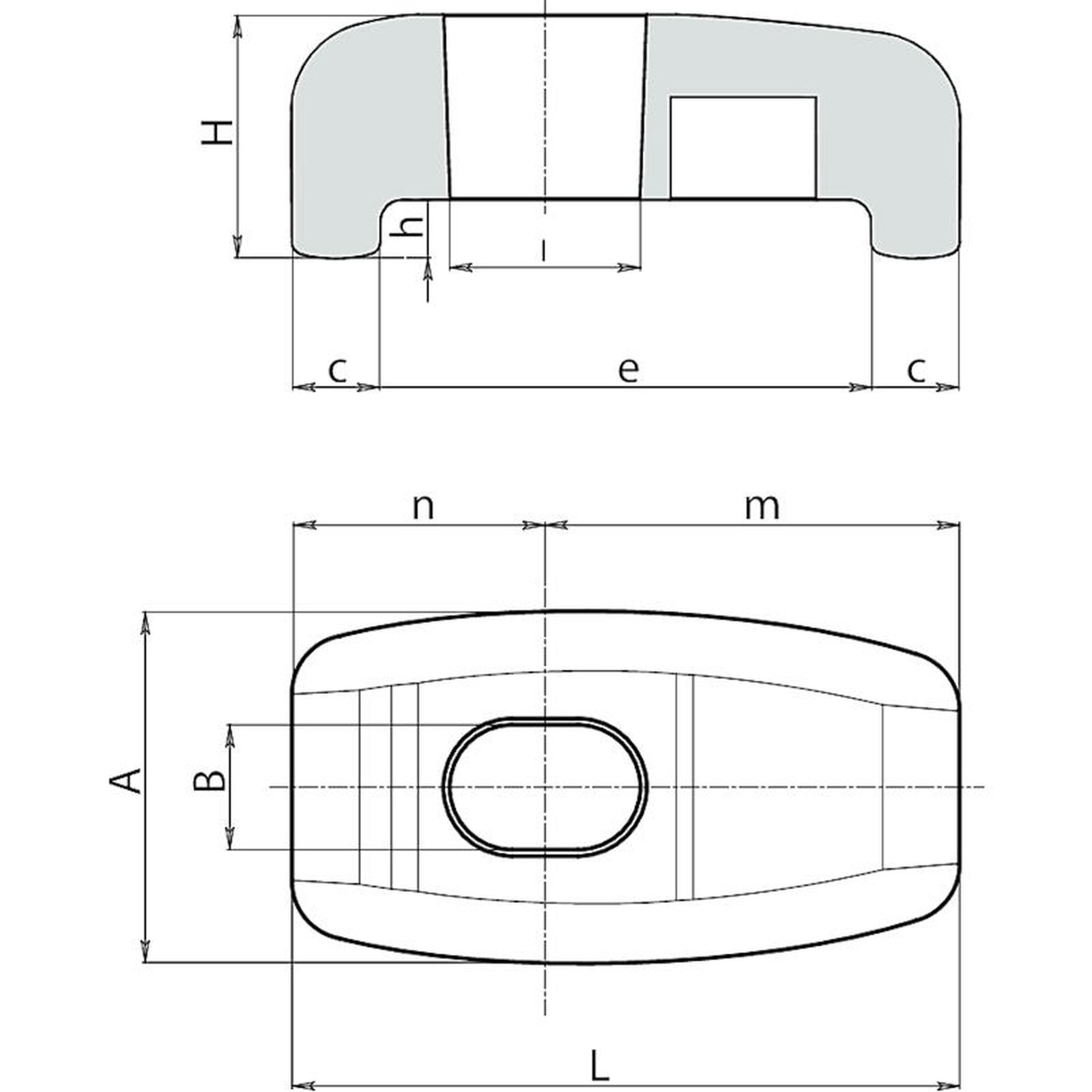

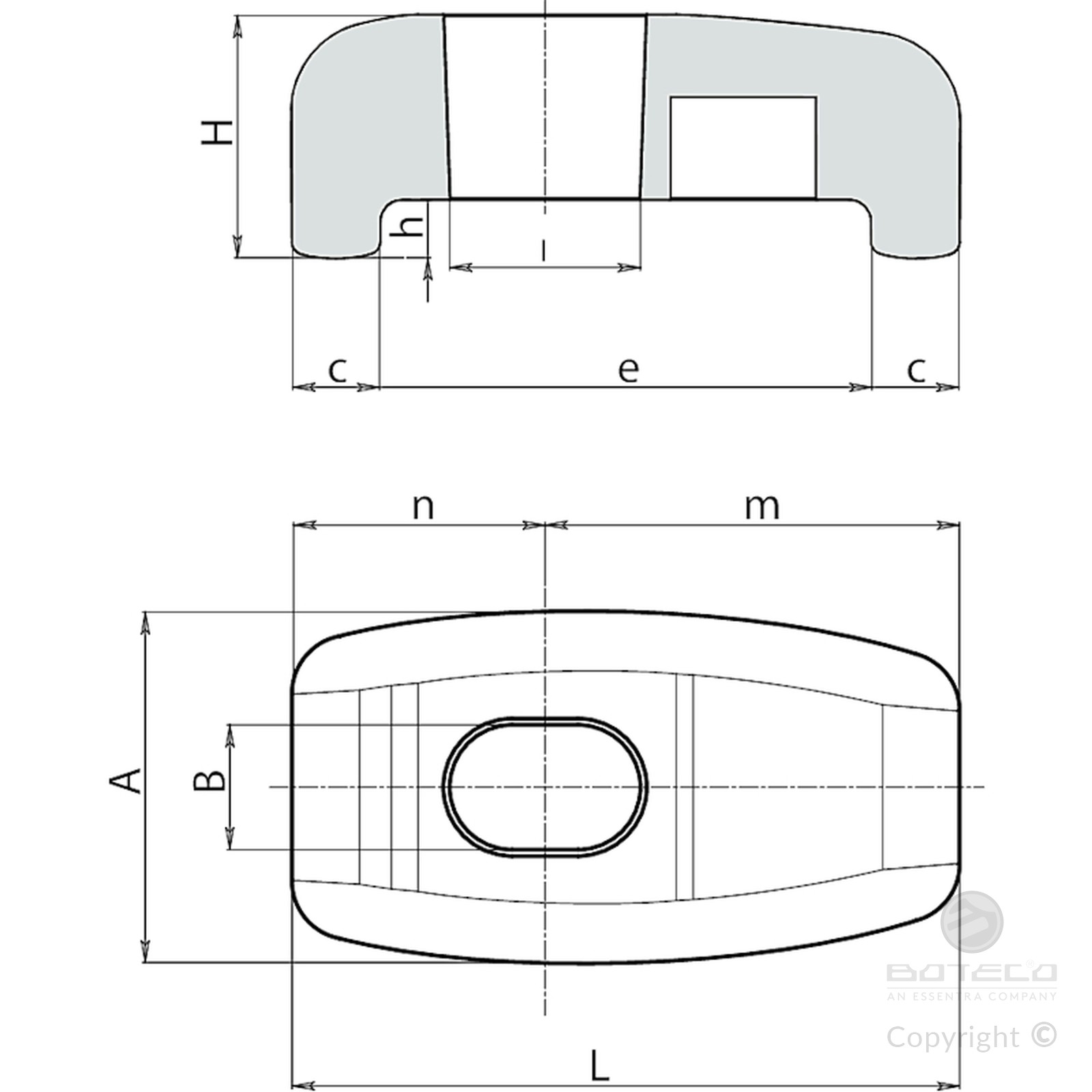

| Code | Art. | A | L | H | B | I | c | e | h | n | m | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| J30046.0001 | J30046.TG08.501 | 24 | 45.5 | 16.5 | 8.5 | 13 | 6 | 33.5 | 4 | 17 | 28.5 | 15 |
| J30068.0001 | J30068.TG08.501 | 24 | 67.5 | 16.5 | 8.5 | 13 | 6 | 55.5 | 4 | 17.5 | 50 | 19 |
