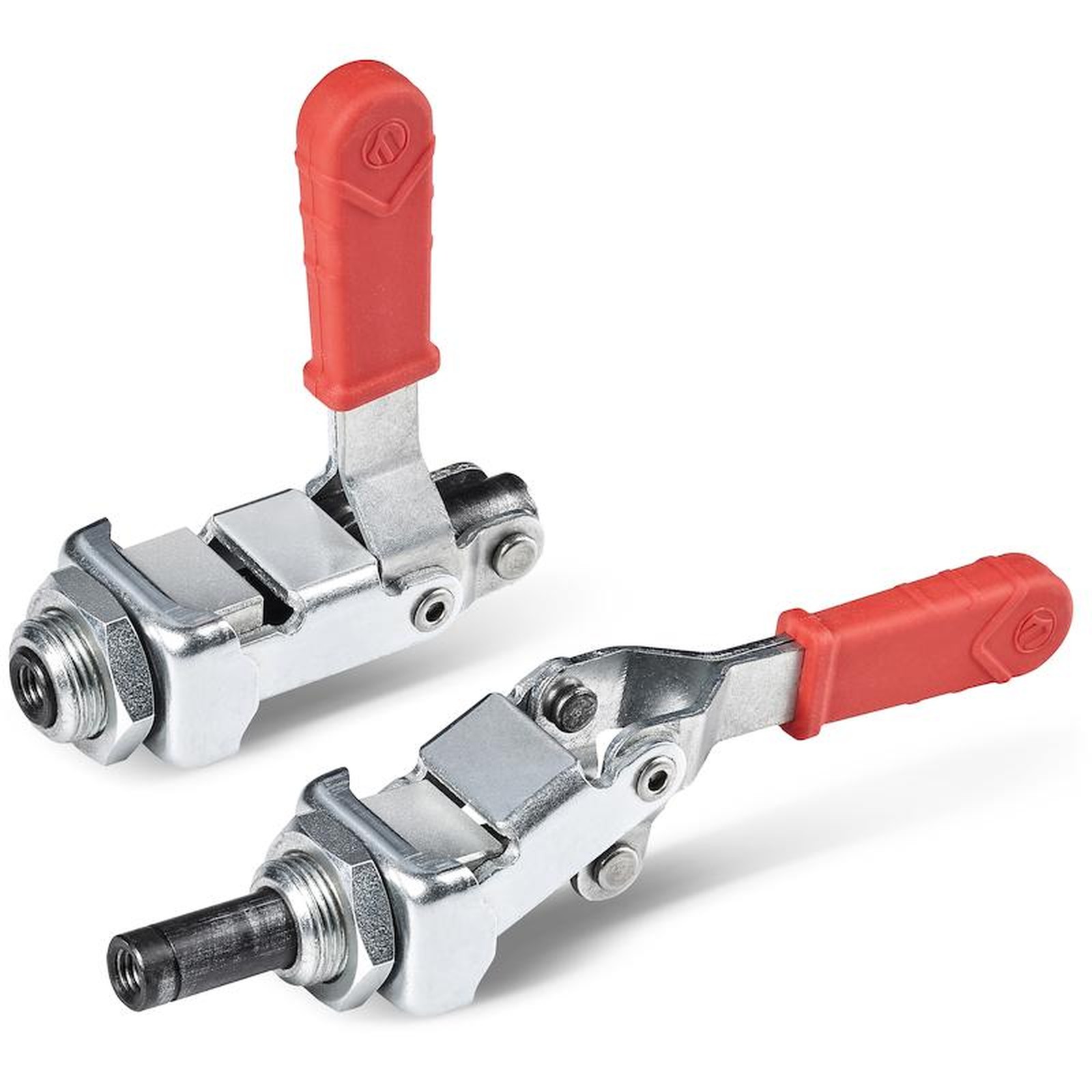

LIGHT TOGGLE CLAMP WITH THRUST ROD AND THREADED ATTACHMENT
10
J295
Chiusure a ginocchiera con leva e manico
Materials:
(1) TPV thermoplastic rubber handle. Hardness 75 Shore.
(2) Sheared and bent base and lever system in sheet metal (DD13).
(3) Rotation pins and fixing rivets in stainless steel (Aisi 304).
(4) Thrust rod with threaded hole in free-cutting steel.
(5) Steel lock nut, thin series with fine pitch.
(6) Sheared and bent rectangular washers in sheet metal (DD13) for panel mounting.
Surface finish:
Smooth.
Colour:
(1) Red (RAL 3000).
(4) Black-oxide treated.
(2-5-6) Standard blue galvanising.
Special Requests:
None.

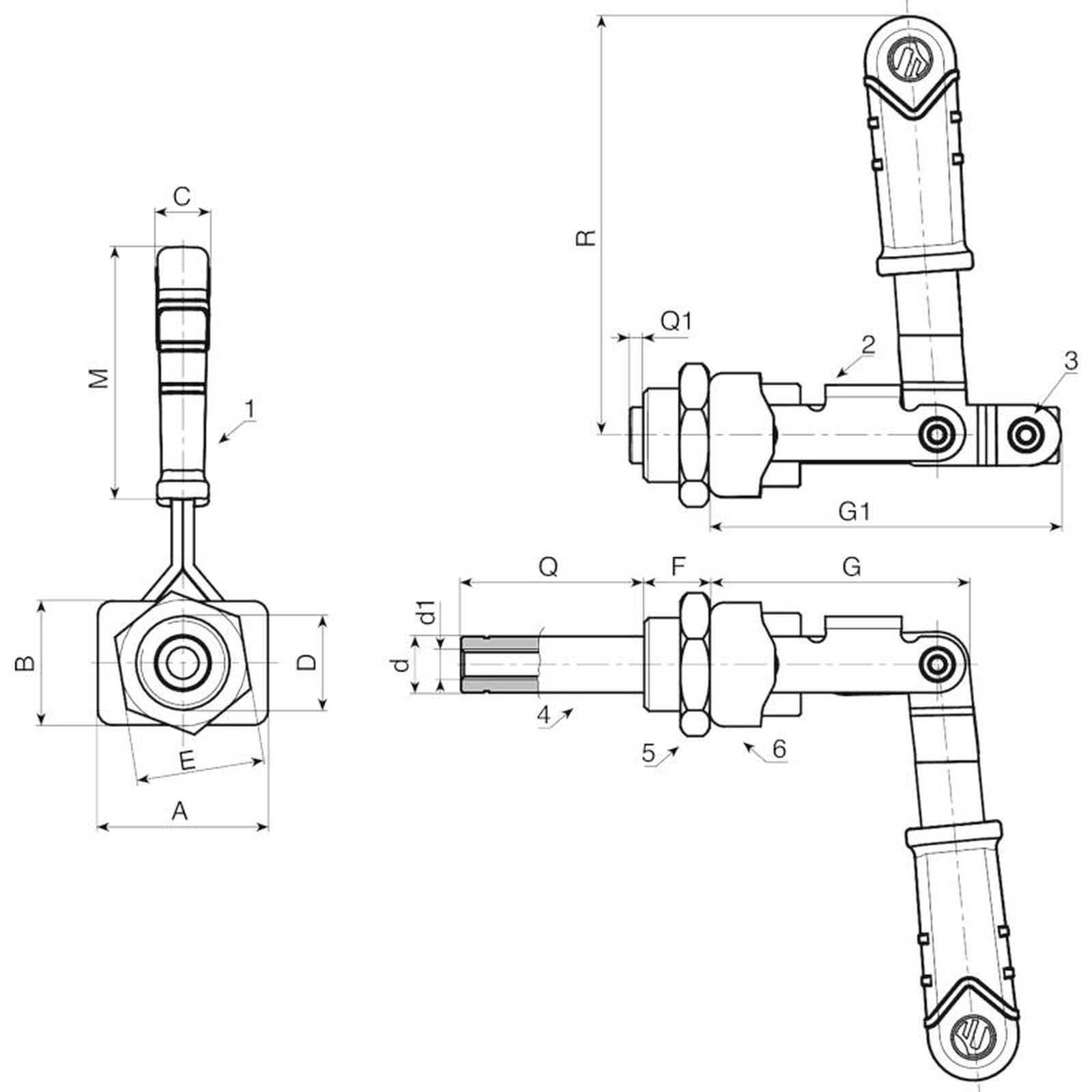

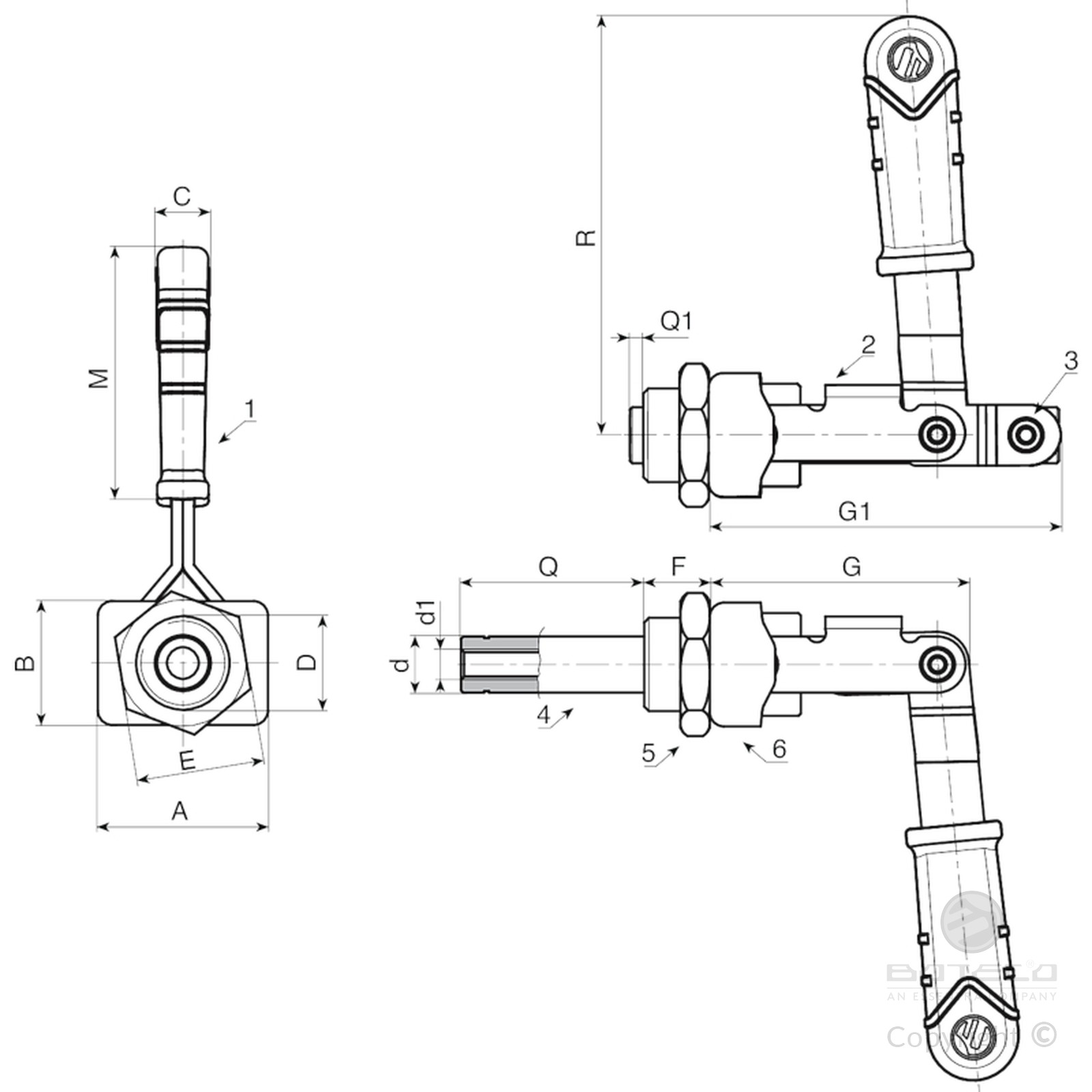

Code | art. | F1 (Kg) | A | B | C | D | E | F | G | G1 | Q | Q1 | M | R | d | d1 | Weight (g) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
J295015.0001 | J295015.FZ16 | 150 | 36,5 | 26,5 | 12 | M20x1,5 | 27 | 14 | 75 | 56 | 38,5 | 1,5 | 53 | 90 | 12 | M8 | 280 |
