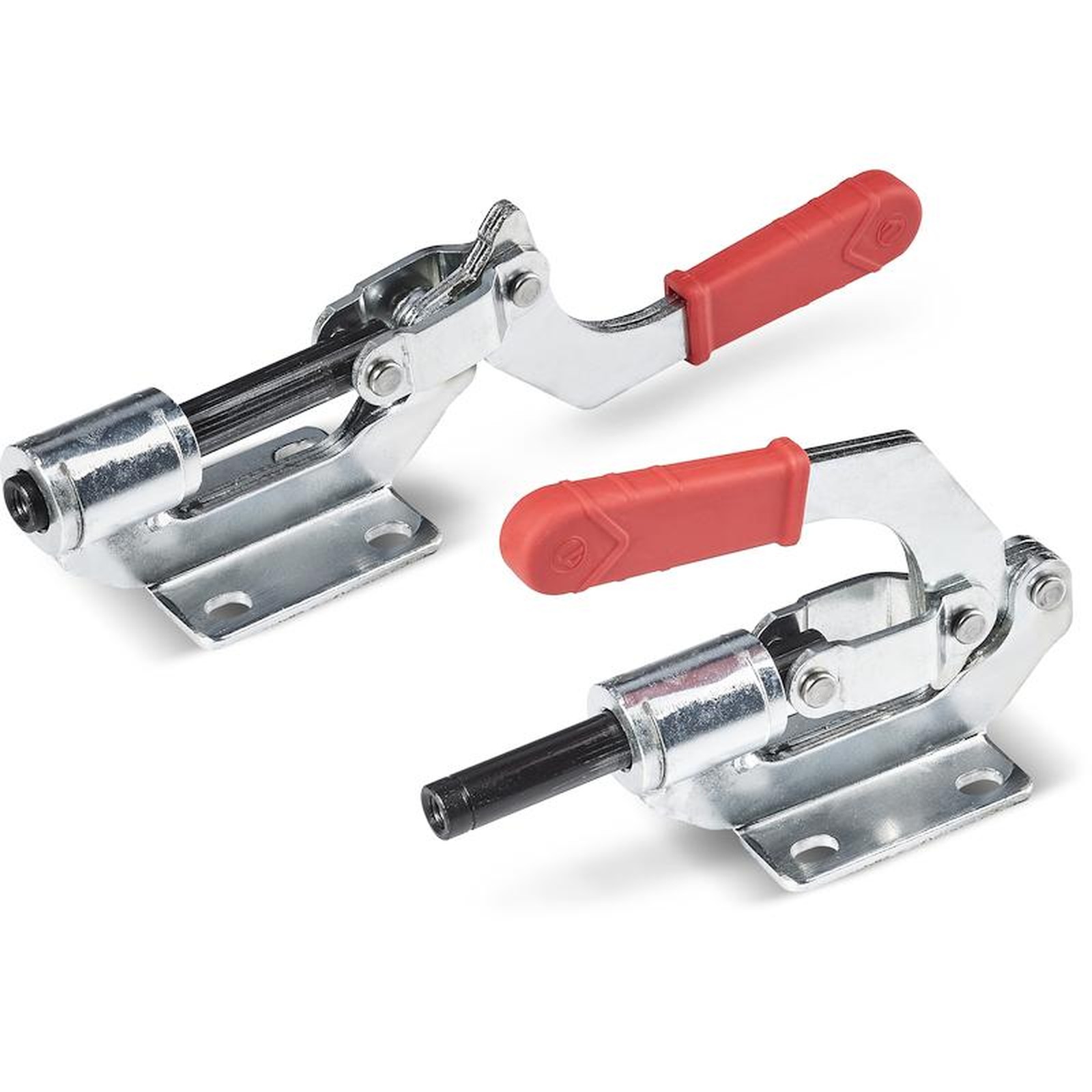

LIGHT TOGGLE CLAMP WITH THRUST ROD AND RUBBER HANDLE
10
J290
Chiusure a ginocchiera con leva e manico
Materials:
(1) TPV thermoplastic rubber handle. Hardness 75 Shore.
(2) Sheared and bent base and lever system in sheet metal (DD13).
(3) Rotation pins and fixing rivets in stainless steel (Aisi 304).
(4) Thrust rod with threaded hole in free-cutting steel.
Surface finish:
Smooth.
Colour:
(1) Red (RAL 3000).
(4) Black-oxide treated.
(2) Standard blue galvanising.
Special Requests:
None.

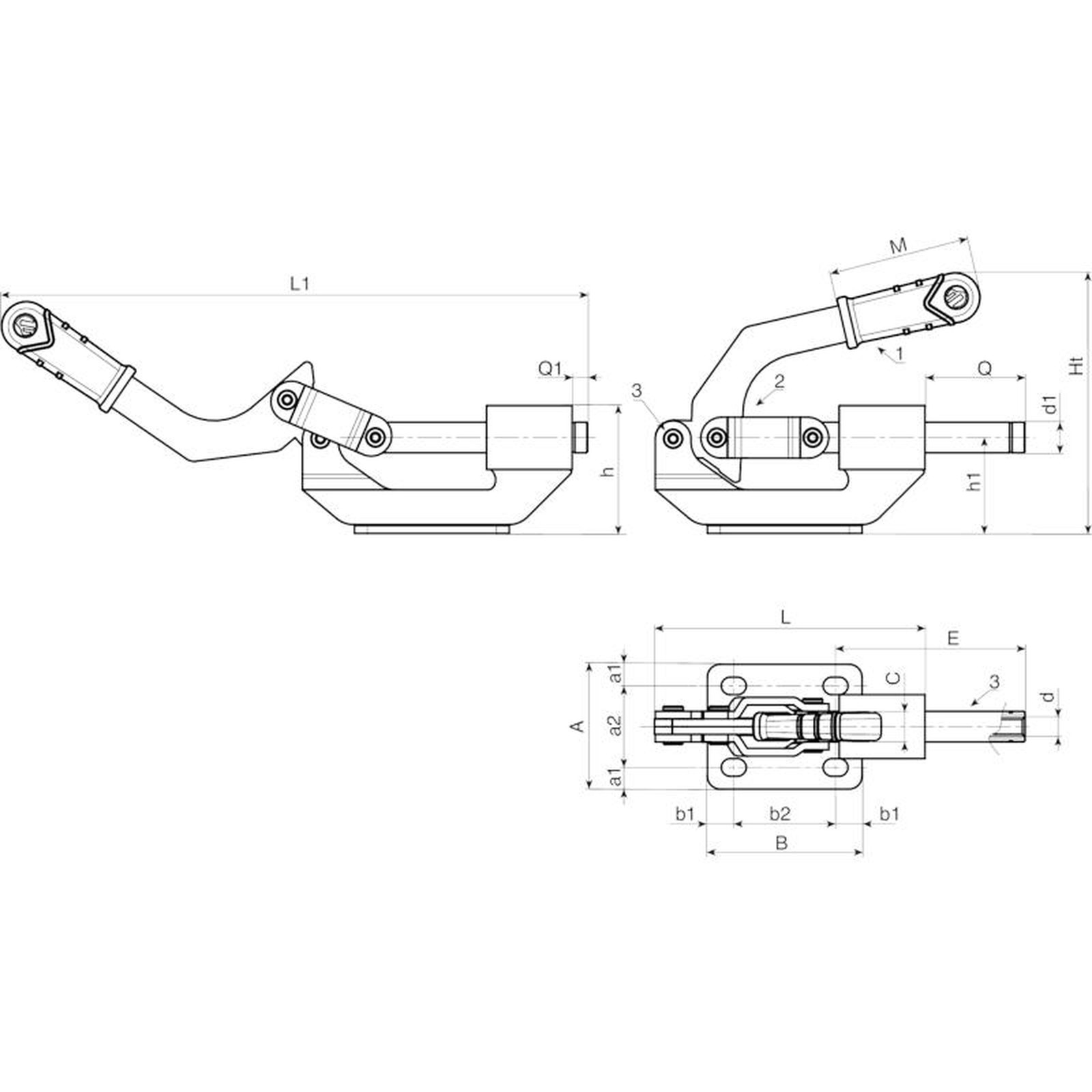

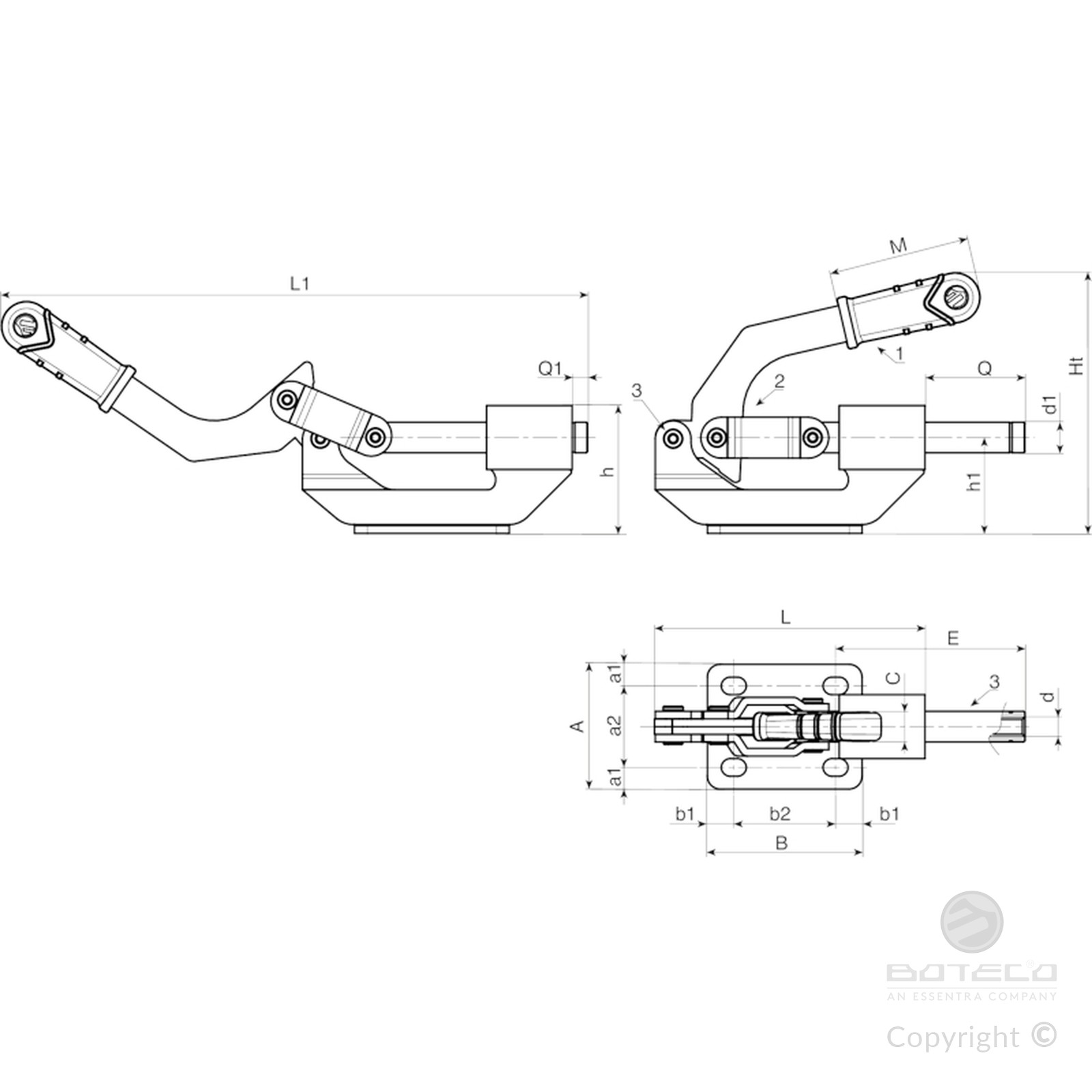

Code | art. | F1 (Kg) | L | L1 | Ht | h | h1 | A | B | C | E | M | Q | Q1 | s | a1 | a2 | b1 | b2 | d | d1 | o | p | Weight (g) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
J290022.0001 | J290022.FZ16 | 220 | 107 | 234 | 98 | 47 | 34 | 49 | 60 | 12,5 | 79 | 65 | 41 | 3 | 3 | 8,5 | 32 | 10 | 40 | M8 | 12 | 10 | 7 | 458 |
