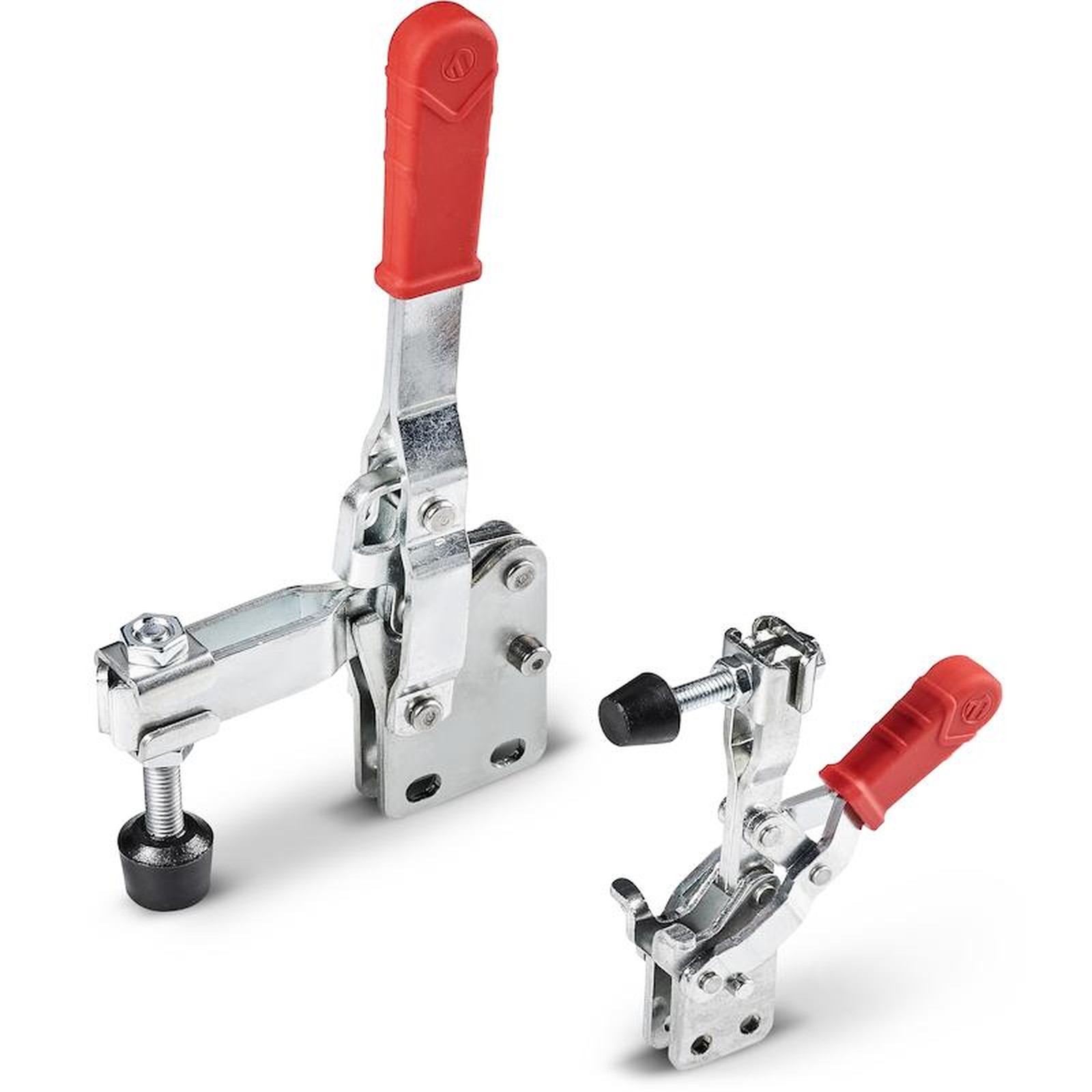

VERTICAL STEEL TOGGLE CLAMP WITH RUBBER HANDLE AND WITHOUT BASE
10
J278
Chiusure a ginocchiera con leva e manico
Materials:
(1) TPV thermoplastic rubber handle. Hardness 75 Shore.
(2) Free-cutting steel threaded stud.
(3) Chloroprene rubber pressure tip. Hardness 75 shore.
(4) Steel lock nut (DIN 934).
(5) Sheared and bent base and lever system in sheet metal (DD13).
(6) Rotation pins and fixing rivets in stainless steel (Aisi 303).
(7) Bent washers in sheet metal (DD13).
Surface finish:
Smooth.
Colour:
(1) Red (RAL 3000).
(3) Black (RAL 9011).
(2-3-4-5-7) Standard blue galvanising.
Special Requests:
None.

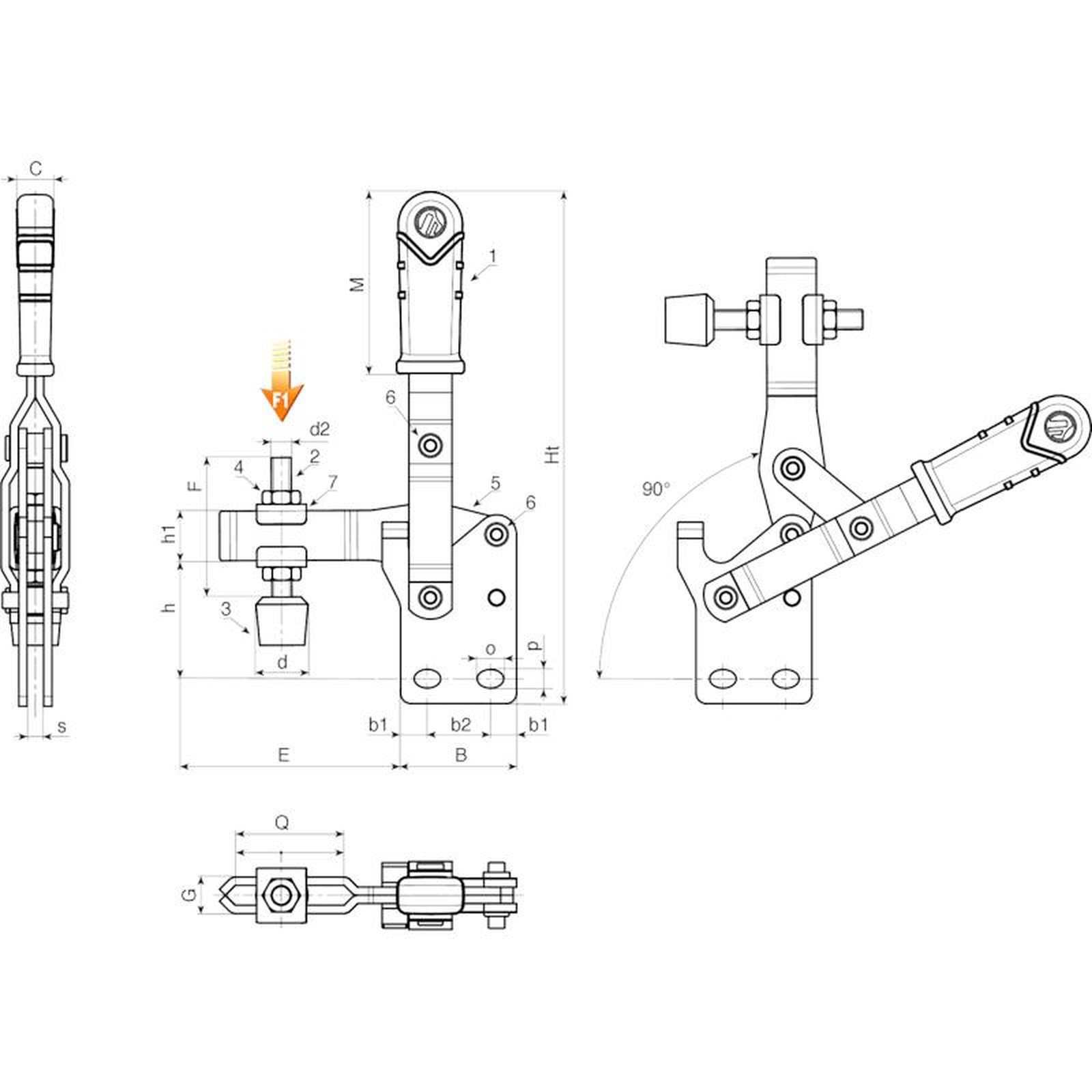

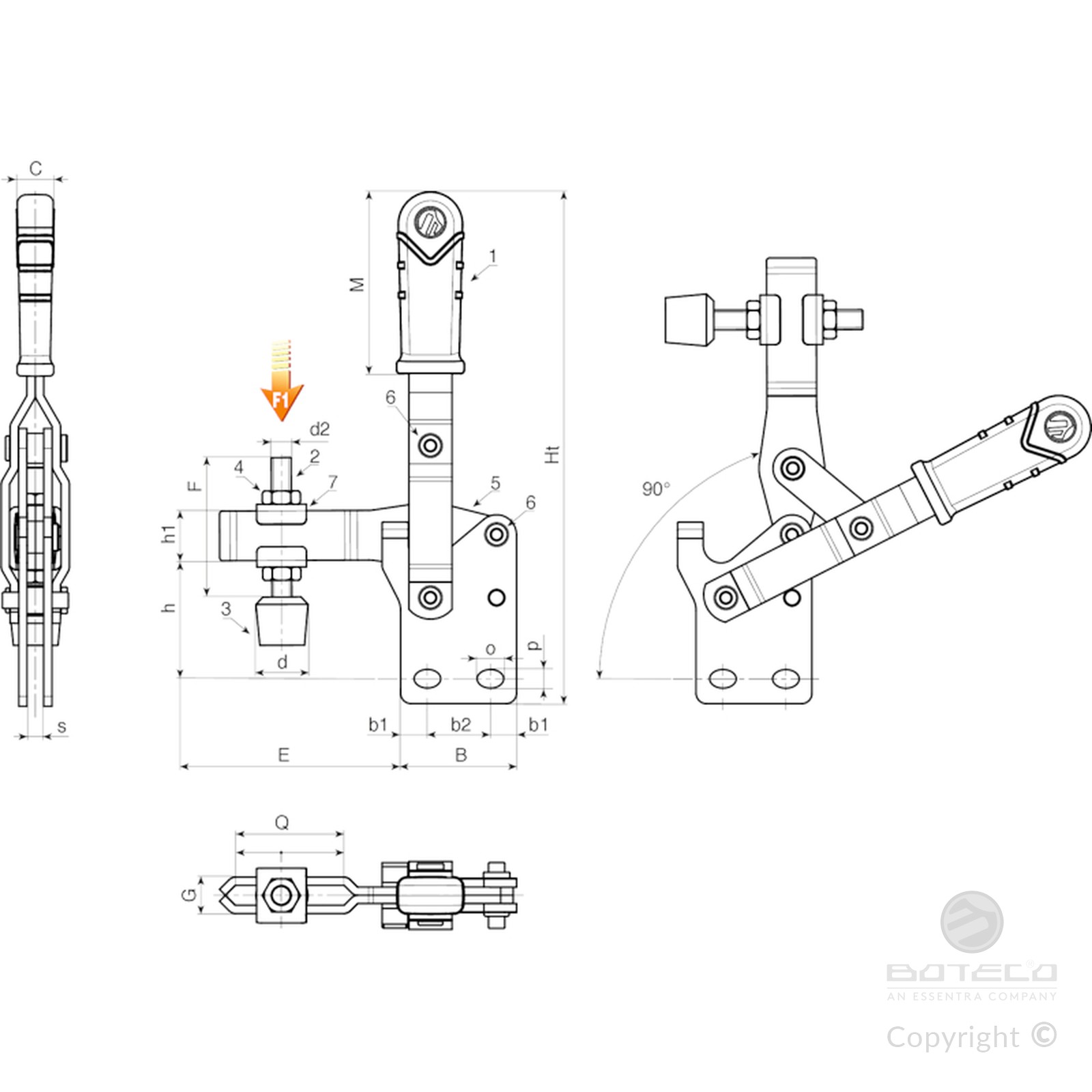

| Code | art. | F1 (Kg) | B | C | E | F | G | Ht | Q | M | d | d2 | o | p | b1 | b2 | h | h1 | s | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| J278009.0001 | J278009.FZ16 | 90 | 25,5 | 12 | 42 | 32 | 12,5 | 112 | 20 | 40 | 15 | M6 | 5,3 | 5,3 | 6,4 | 12,7 | 29 | 10 | 6 | 167 |
| J276012.0001 | J276012.FZ16 | 125 | 35 | 12 | 50 | 44 | 11 | 155 | 32 | 55 | 15 | M6 | 5,3 | 5,3 | 8 | 19 | 36 | 15 | 5 | 245 |
| J278020.0001 | J278020.FZ16 | 200 | 42.5 | 12 | 64 | 54 | 14,5 | 180 | 40 | 65 | 20 | M8 | 9 | 6,5 | 10,25 | 22 | 42 | 17,8 | 6 | 401 |
| J278030.0001 | J278030.FZ16 | 300 | 56 | 14,5 | 83 | 75 | 18 | 225 | 60 | 75 | 25 | M10 | 10,5 | 8,5 | 13,5 | 29 | 55 | 20,5 | 8 | 783 |
