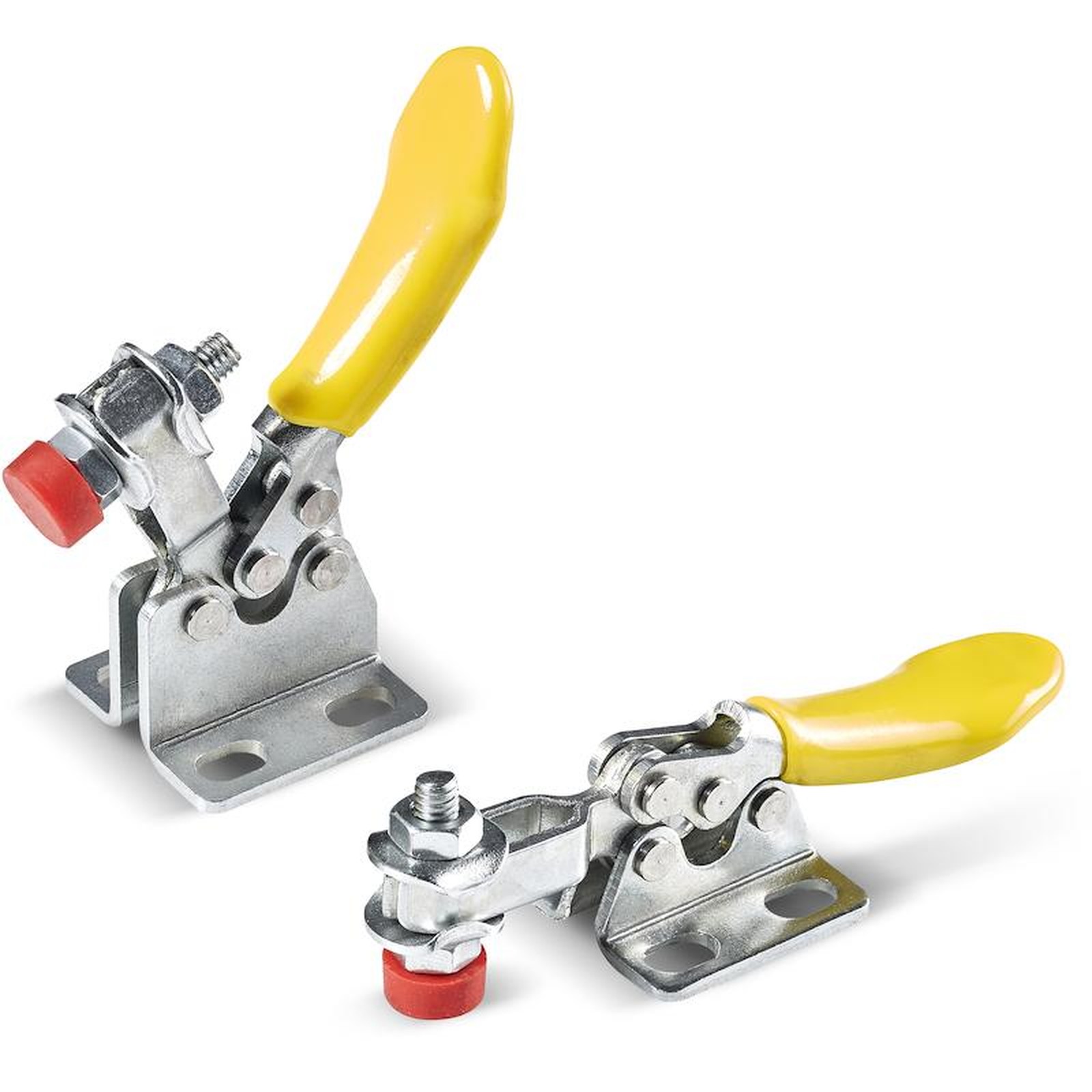

SMALL HORIZONTAL STEEL TOGGLE CLAMP WITH BASE
10
J270
Chiusure a ginocchiera con leva e manico
Materials:
(1) Handle covered with thermoplastic rubber.
(2) Free-cutting steel threaded stud.
(3) TPV rubber pressure tip.
(4) Steel lock nut (DIN 934).
(5) Sheared and bent base and lever system in sheet metal (DD13).
(6) Rotation pins and rivets in stainless steel (Aisi 304).
(7) Sheared and bent washers in sheet metal (DD13).
Surface finish:
Smooth.
Colour:
(1) Yellow.
(3) Red.
(2-4-5-7) Standard blue galvanising.
Special Requests:
None.

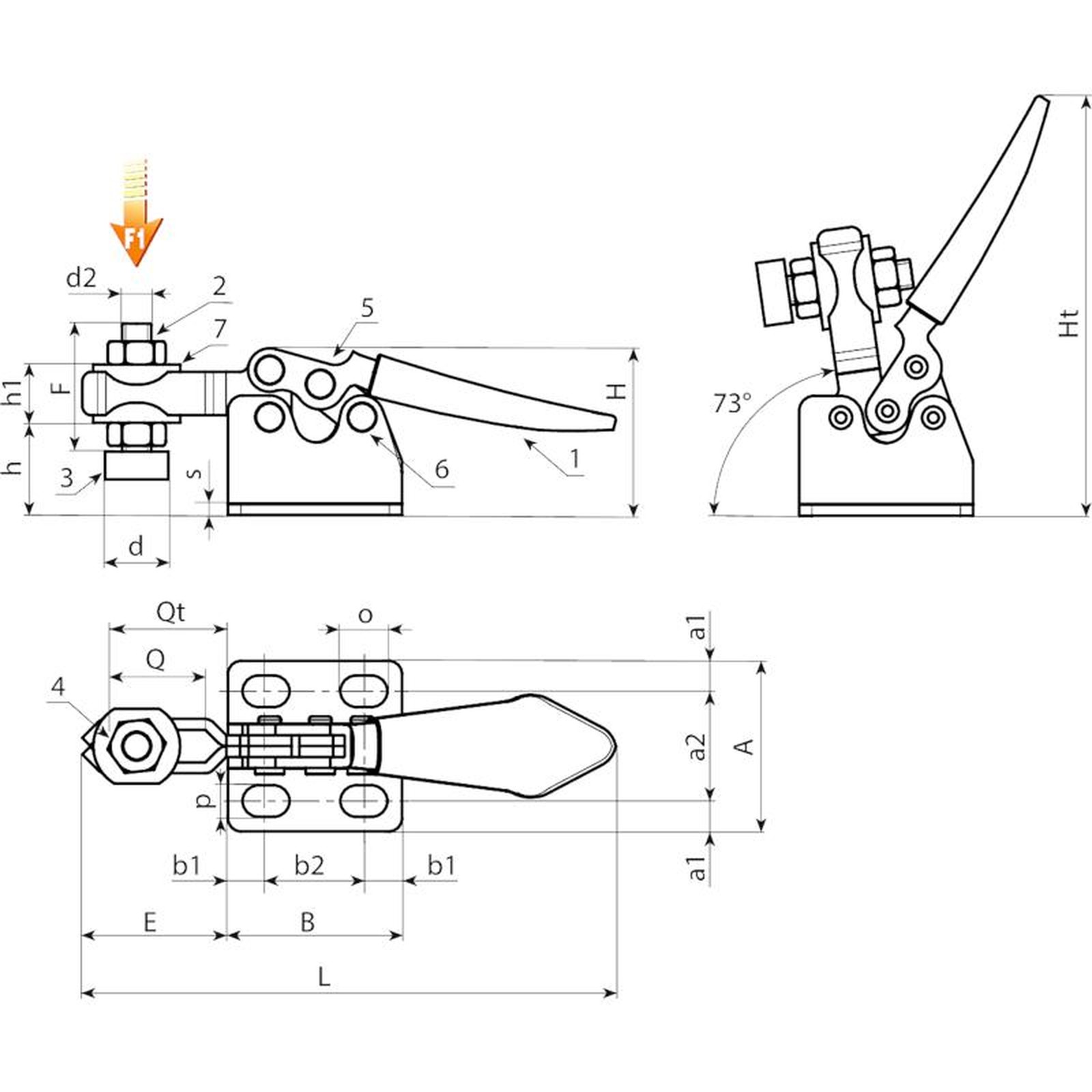

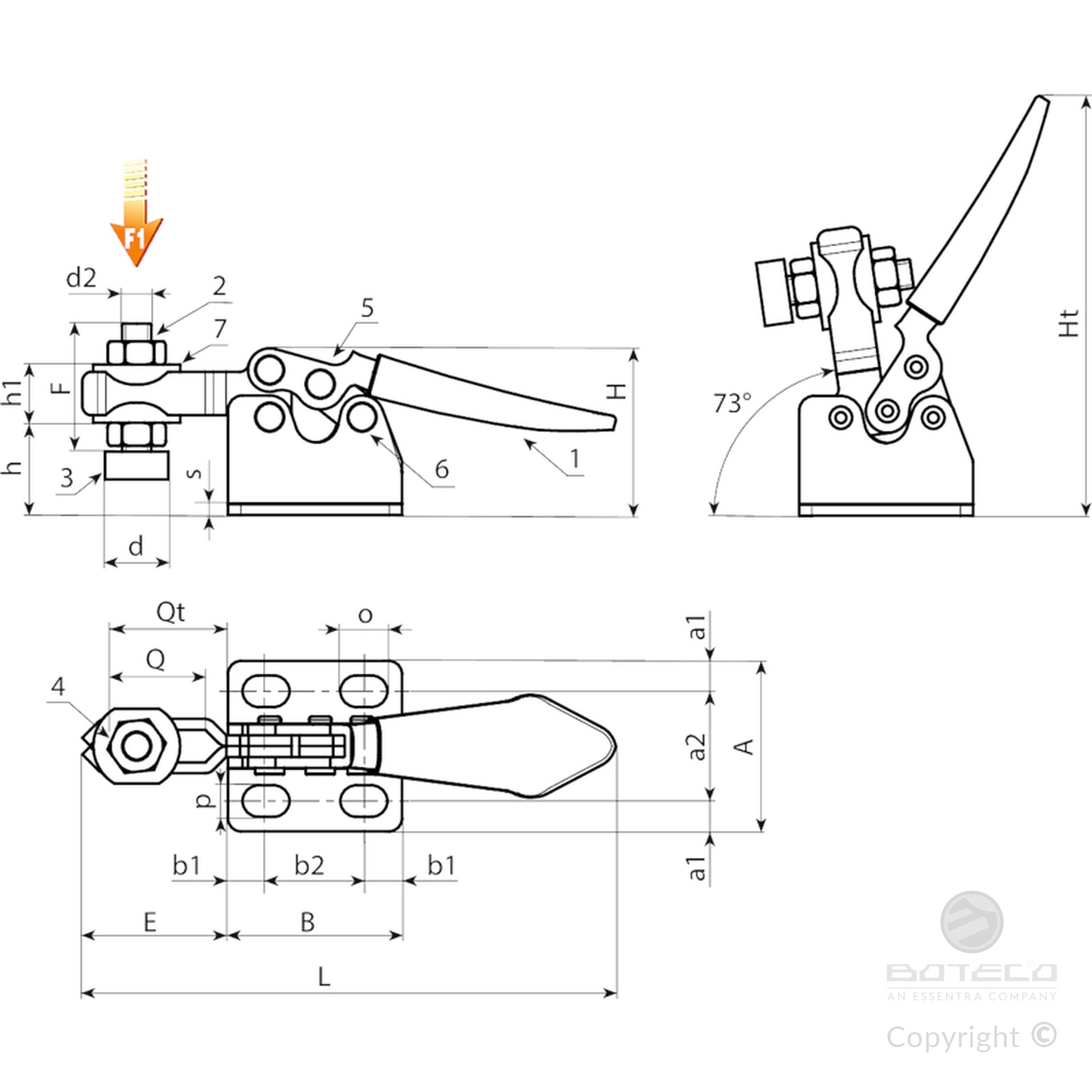

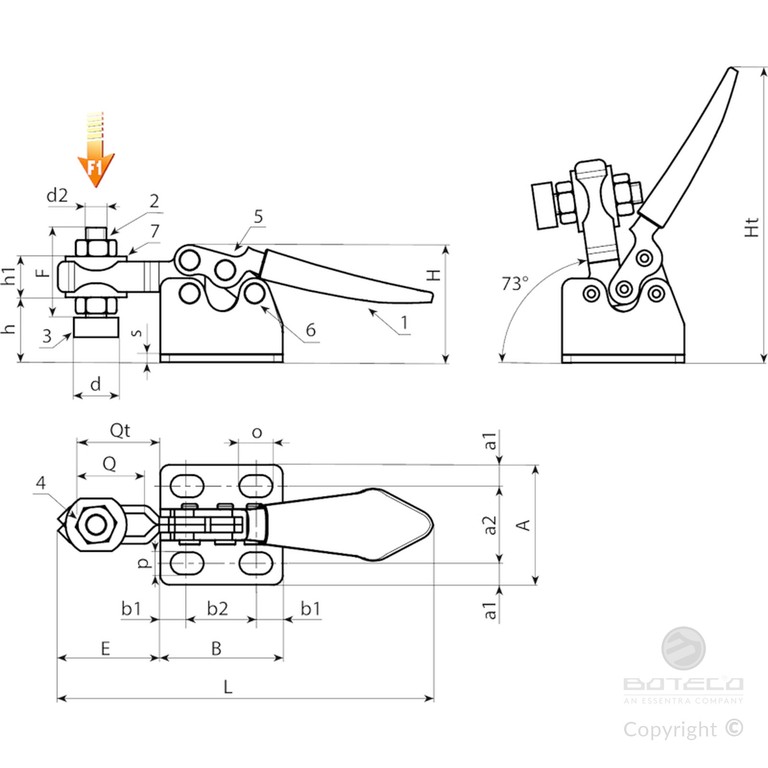

| Code | art. | h | L | A | B | E | F | H | Ht | Q | Qt | d | d2 | o | p | a1 | a2 | b1 | b2 | h1 | s | F1 (Kg) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| J270008.0001 | J270008.FZ10 | 9 | 75 | 24 | 24,5 | 20 | 18 | 18 | 54 | 12 | 16 | 9 | M4 | 6,5 | 4,5 | 4,3 | 15,5 | 5,5 | 13,5 | 6 | 1,5 | 40 | 26 |
| J270014.0001 | J270014.FZ10 | 9 | 75 | 24 | 24,5 | 20 | 18 | 24 | 60 | 12 | 16 | 9 | M4 | 6,5 | 4,5 | 4,3 | 15,5 | 5,5 | 13,5 | 6 | 1,5 | 40 | 29 |
