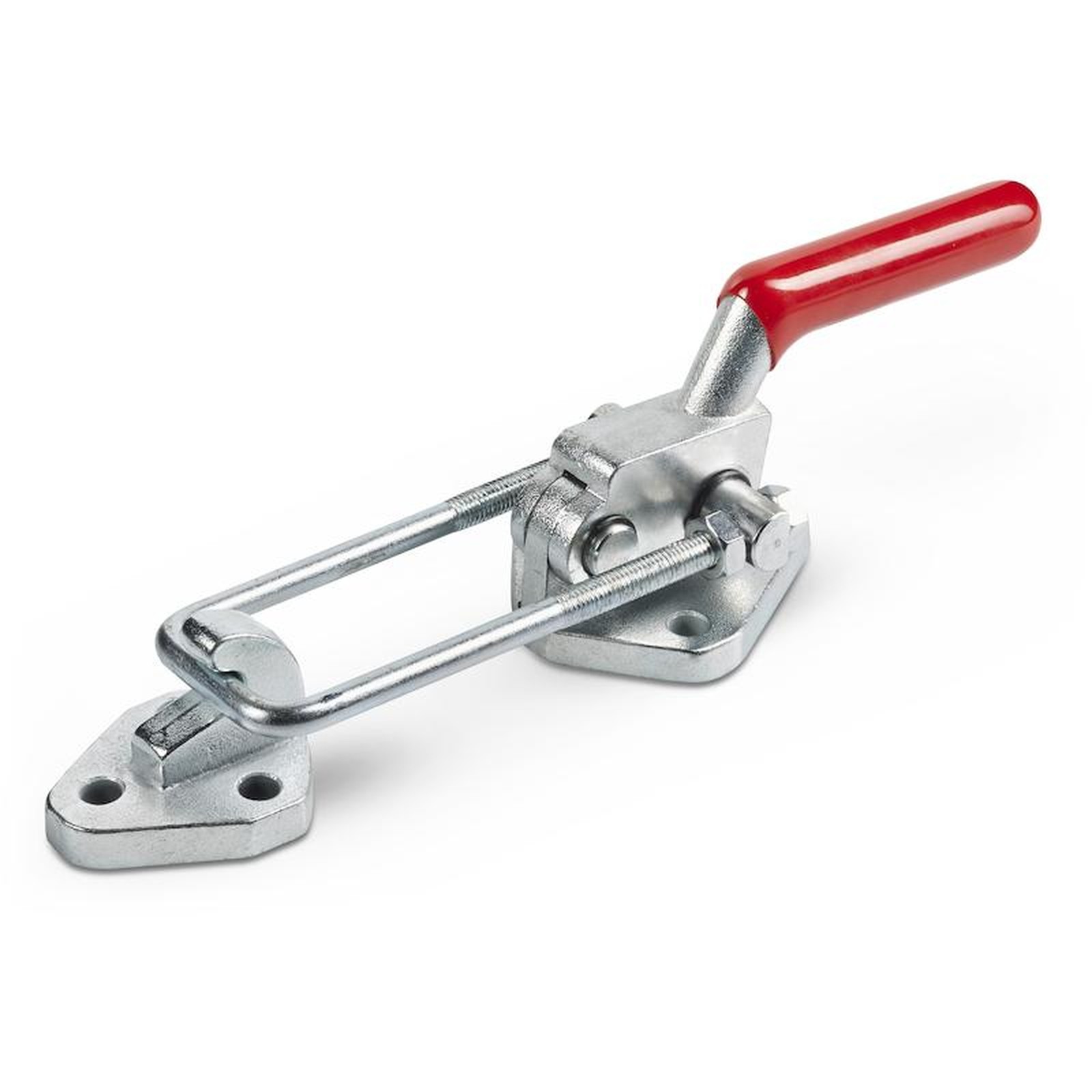

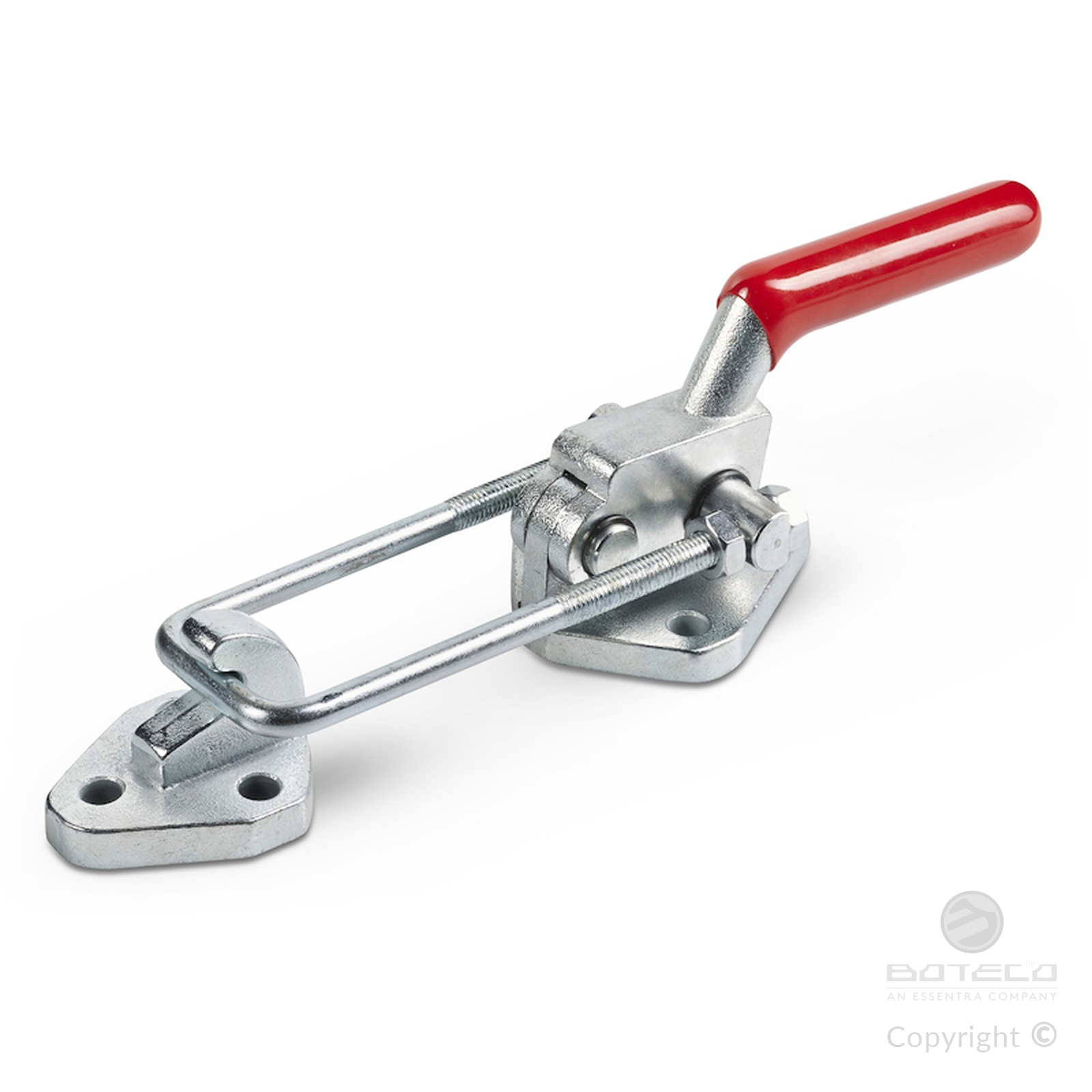

HEAVY DUTY LEVER TOGGLE LATCH
10
J265
Chiusure a gancio con leva e manico
Materials:
(1) Thin plastic handle. Resistant to oils and greases.
(2) Cast steel lever system and base.
(3) Cast steel catch plate.
(4) Hardened steel U-shaped hook with threaded ends.
(5-6) Galvanised steel lock nuts.
(7) Galvanised, hardened steel pivot pin. With lubricated guide bearing. Fixed with snap rings.
(8) Galvanised, hardened steel rotary retainer bush. With lubricated guide bearing. Fixed with snap rings.
(9) Stainless steel fixing rivets (Aisi 303).
Surface finish:
(1-4-5-6-7-8-9) Smooth.
(2-3) Sandblasted satin finish.
Colour:
(1) Red.
(2-3-4-5-6-7-8) Standard blue galvanising.
(9) Natural.
Packaging:
The code includes the toggle latch and its catch plate. The catch plate can also be ordered separately with the following codes:
J266150.FZ for toggle latch J265150.FZ
Special Requests:
None.

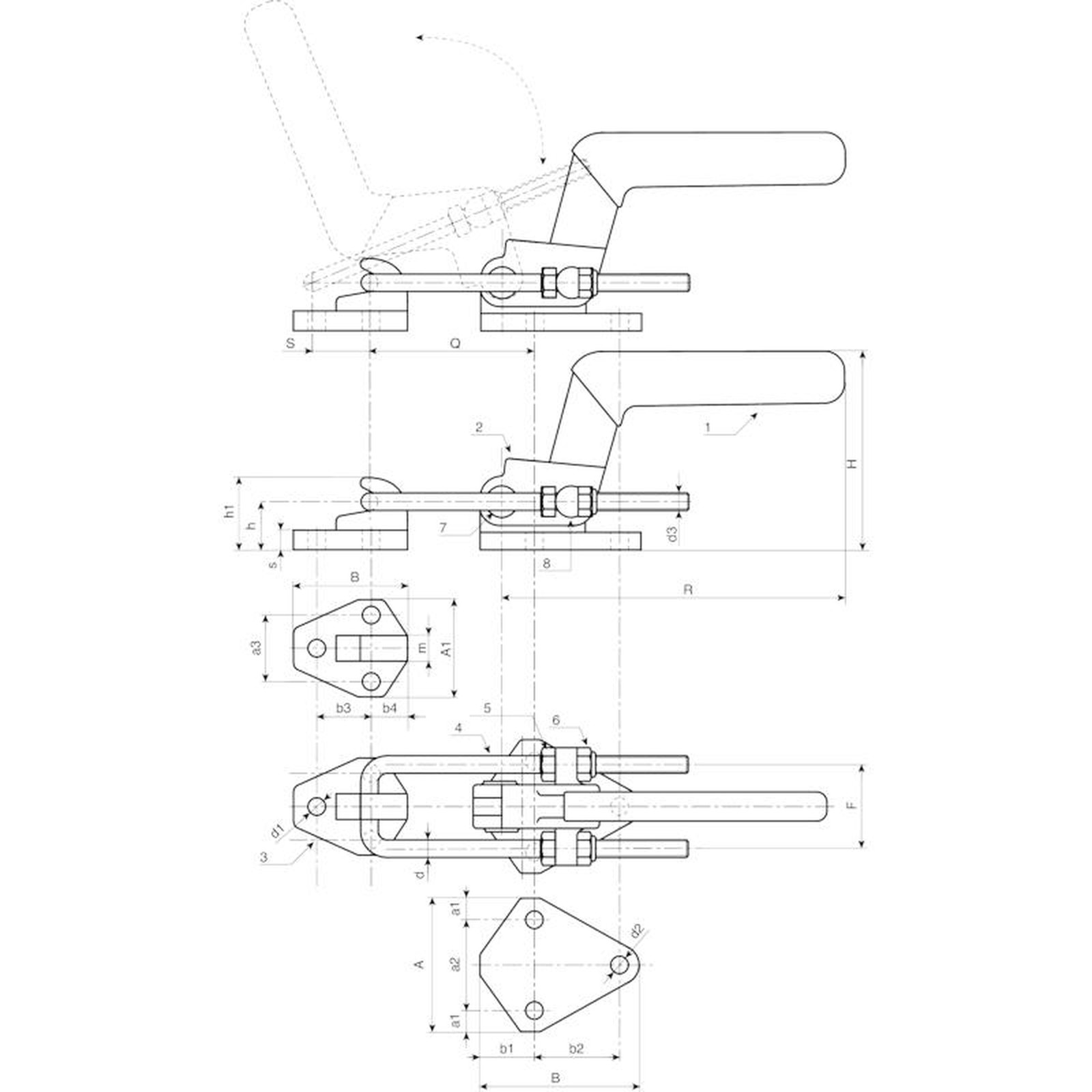

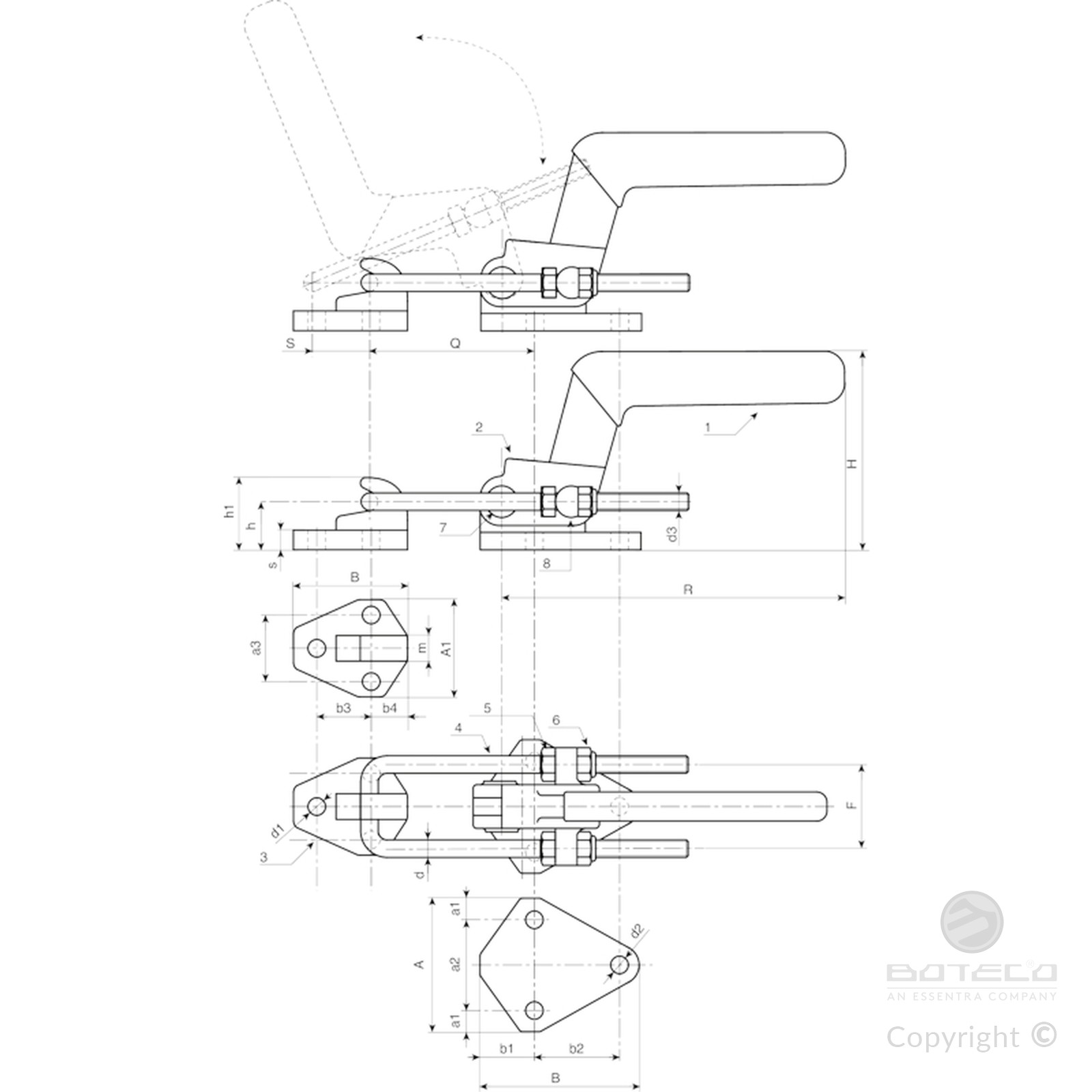

| Code | Art. | F1 (kN) | R | H | S | Q | F | A | A1 | a1 | a2 | a3 | B | B1 | d | d1 | d2 | d3 | b1 | b2 | b3 | b4 | h | h1 | m | s | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| J265150.0001 | J265150.FZ | 15 | 168 | 94 | 50 | 81÷132 | 54 | 82 | 60 | 13 | 56 | 42 | 98.5 | 70 | 9 | 10.5 | 10.5 | M10 | 33.5 | 52.5 | 35 | 23 | 33 | 50 | 15.5 | 11 | 1800 |
