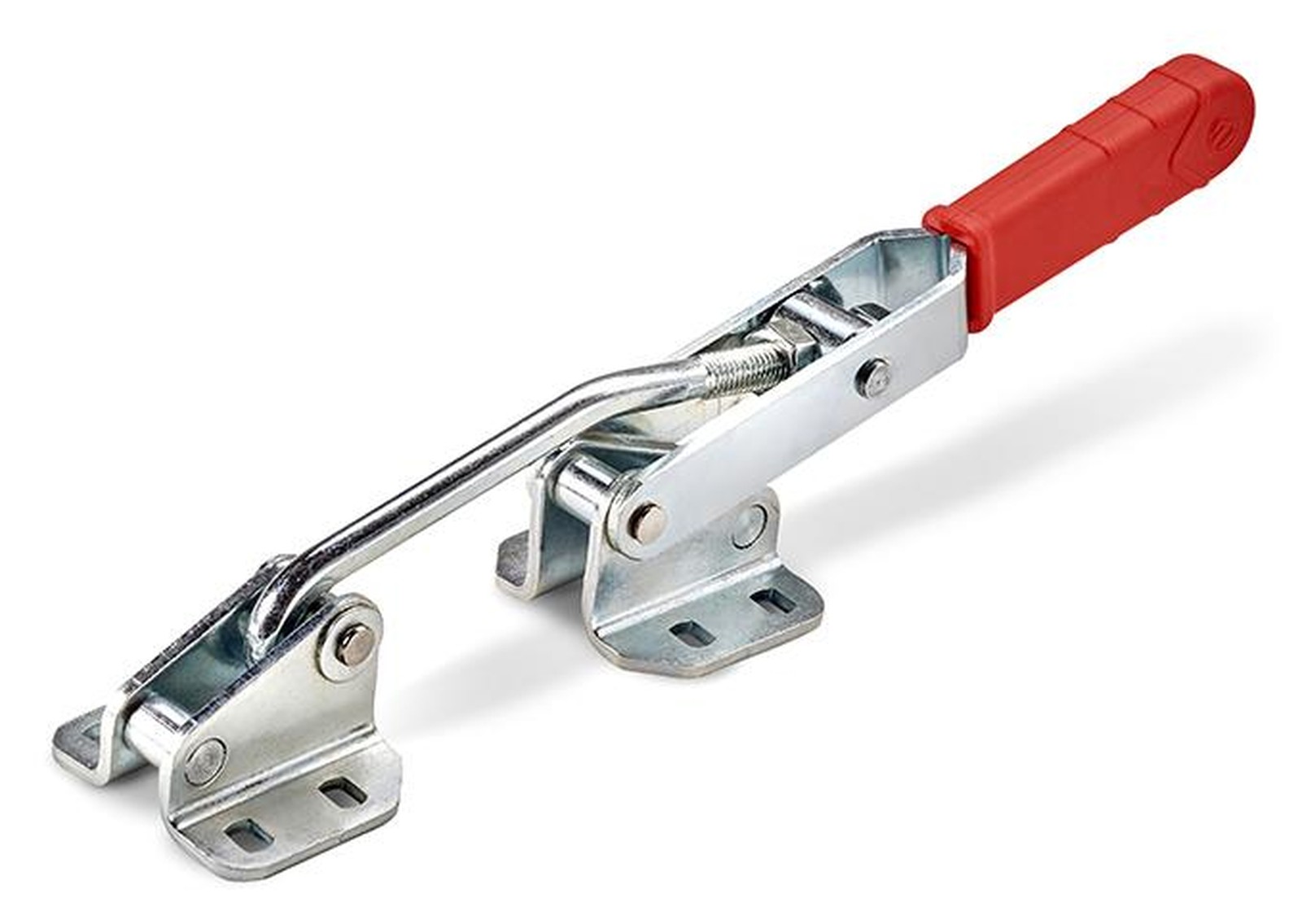

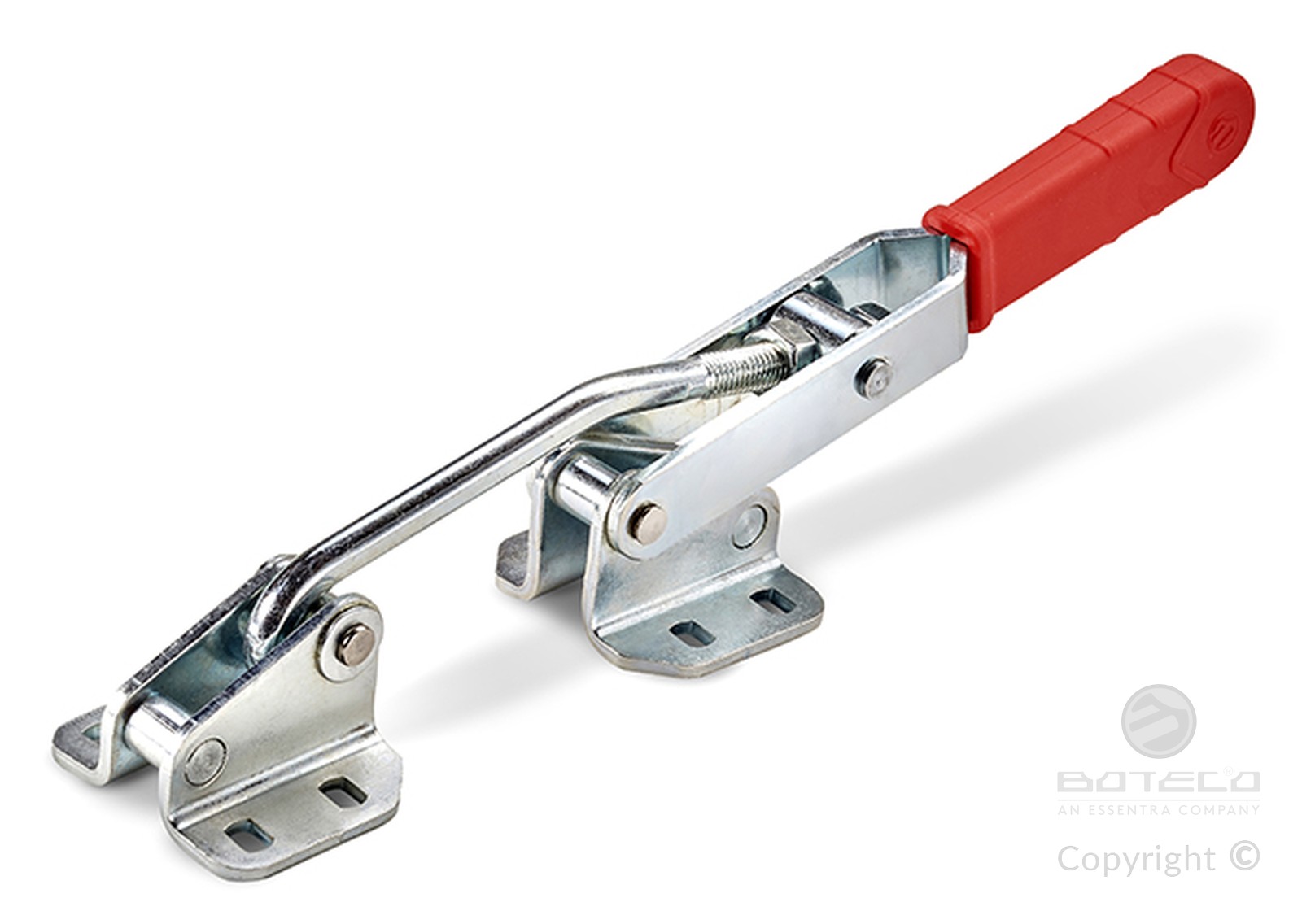

J-HOOK TOGGLE LATCH WITH CATCH PLATE
10
J250
Chiusure a gancio con leva e manico

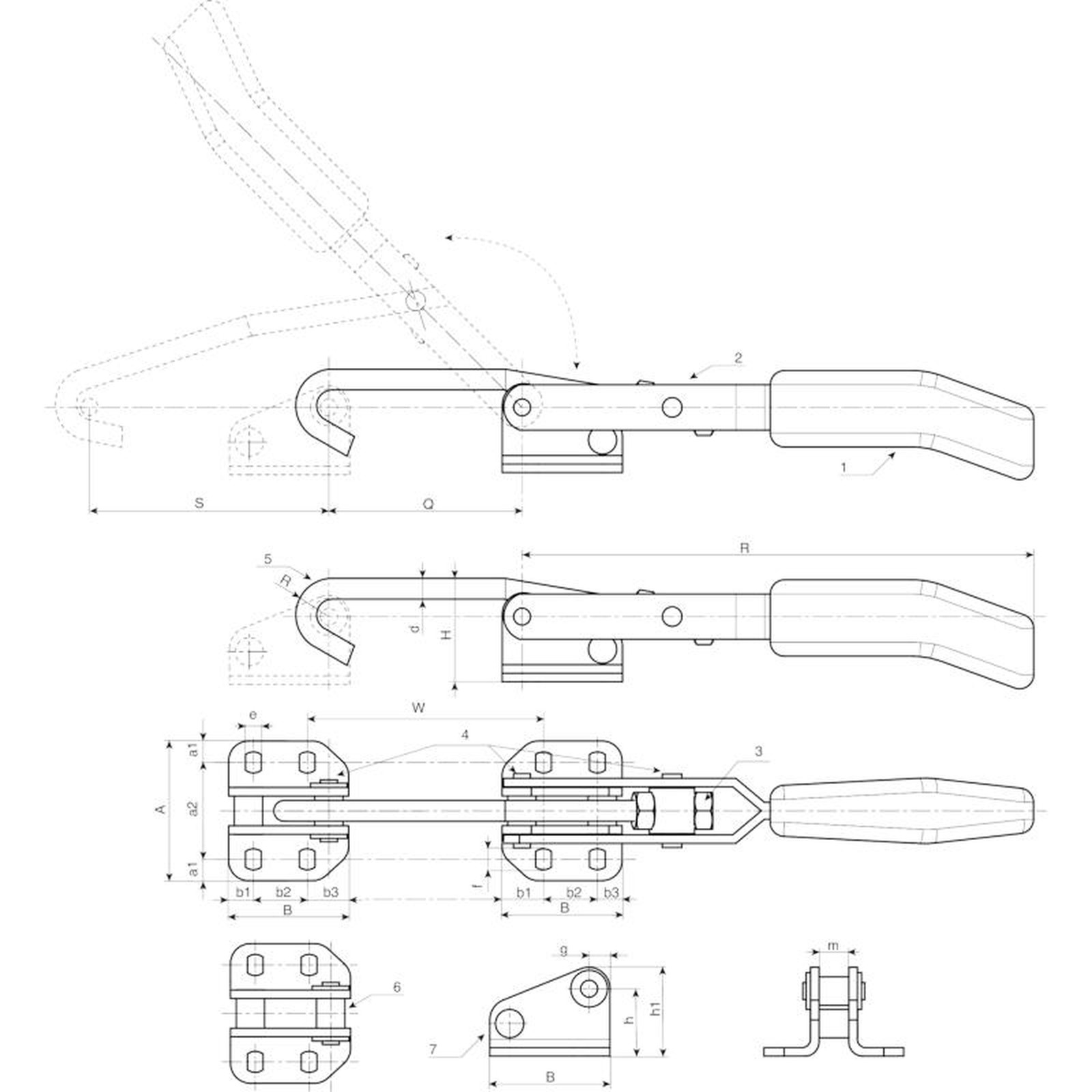

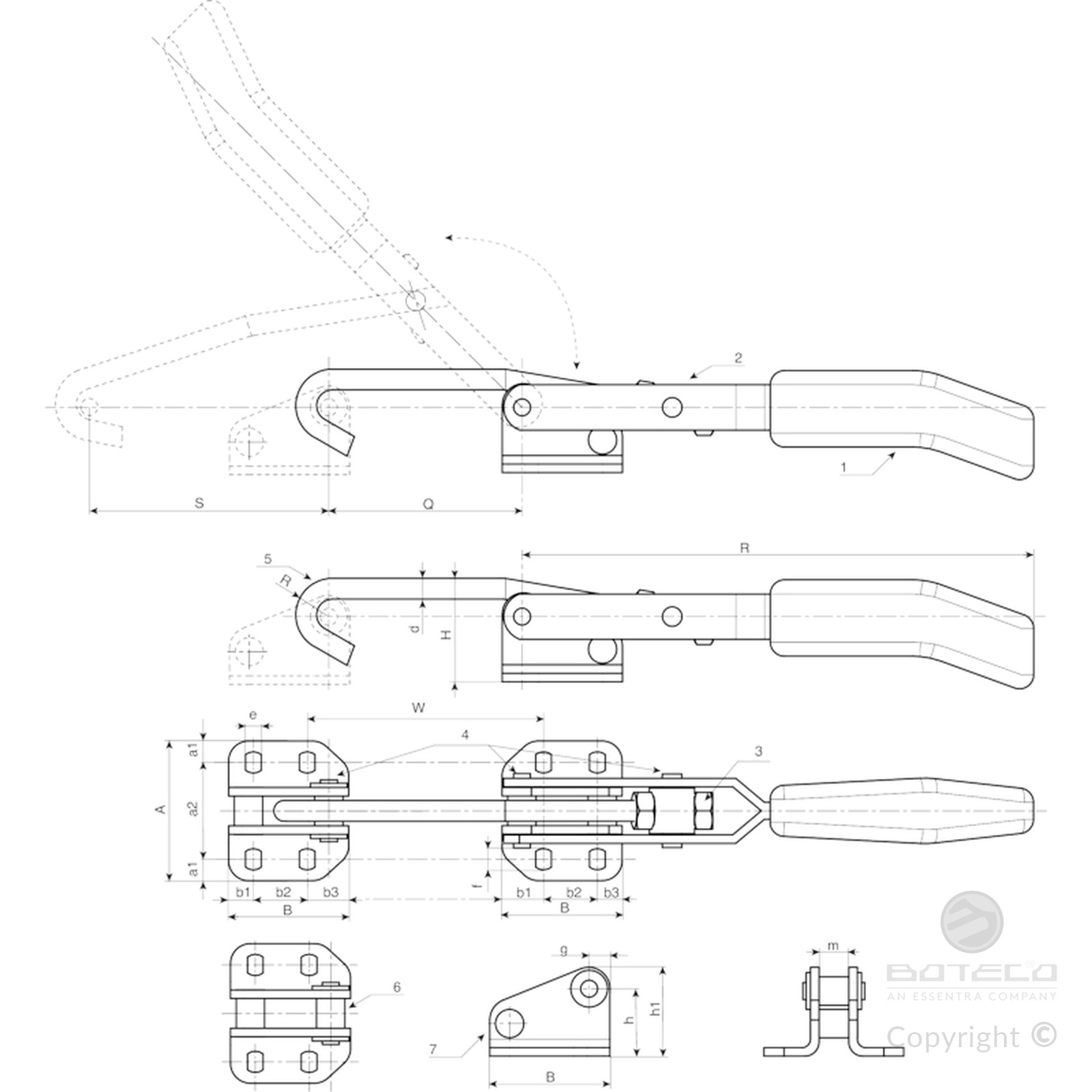

Materials:
(1) Technopolymer handle. Resistant to oils and greases.
(2) Sheared and bent steel lever system.
(3) Steel lock nut.
(4) Stainless steel fixing rivets (Aisi 303).
(5) Hardened steel hook.
(6) Hardened and greased retainer bush.
(7) Sheared and bent steel catch plate.
Surface finish:
(1) Light satin.
(2-3-5-6-7) Smooth.
Colour:
(1) Two-tone (red and black).
(2-3-5-6-7) Standard blue galvanising.
Packaging:
The article comes complete with the corresponding standard catch plate.
Special Requests:
None.
| Code | art. | F1 (kN) | R | H | S | Q | R | d | W | A | a2 | B | b1 | b2 | b3 | e | f | g | h | h1 | m | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| J250020.0001 | J250020.FZ | 2 | 97 | 40 | 40 | 30÷38 | 97 | 6 | 32÷41 | 43 | 29 | 33 | 7 | 19 | 7 | 4.5 | 6.5 | 185 | 27.5 | 35 | 6.8 | 185 |
| J250030.0001 | J250030.FZ | 3 | 160 | 40 | 98 | 53÷63 | 160 | 6.5 | 71,5÷81 | 43 | 34 | 42 | 14.5 | 19 | 8.5 | 5.5 | 7.5 | 410 | 23 | 31 | 10.8 | 410 |
