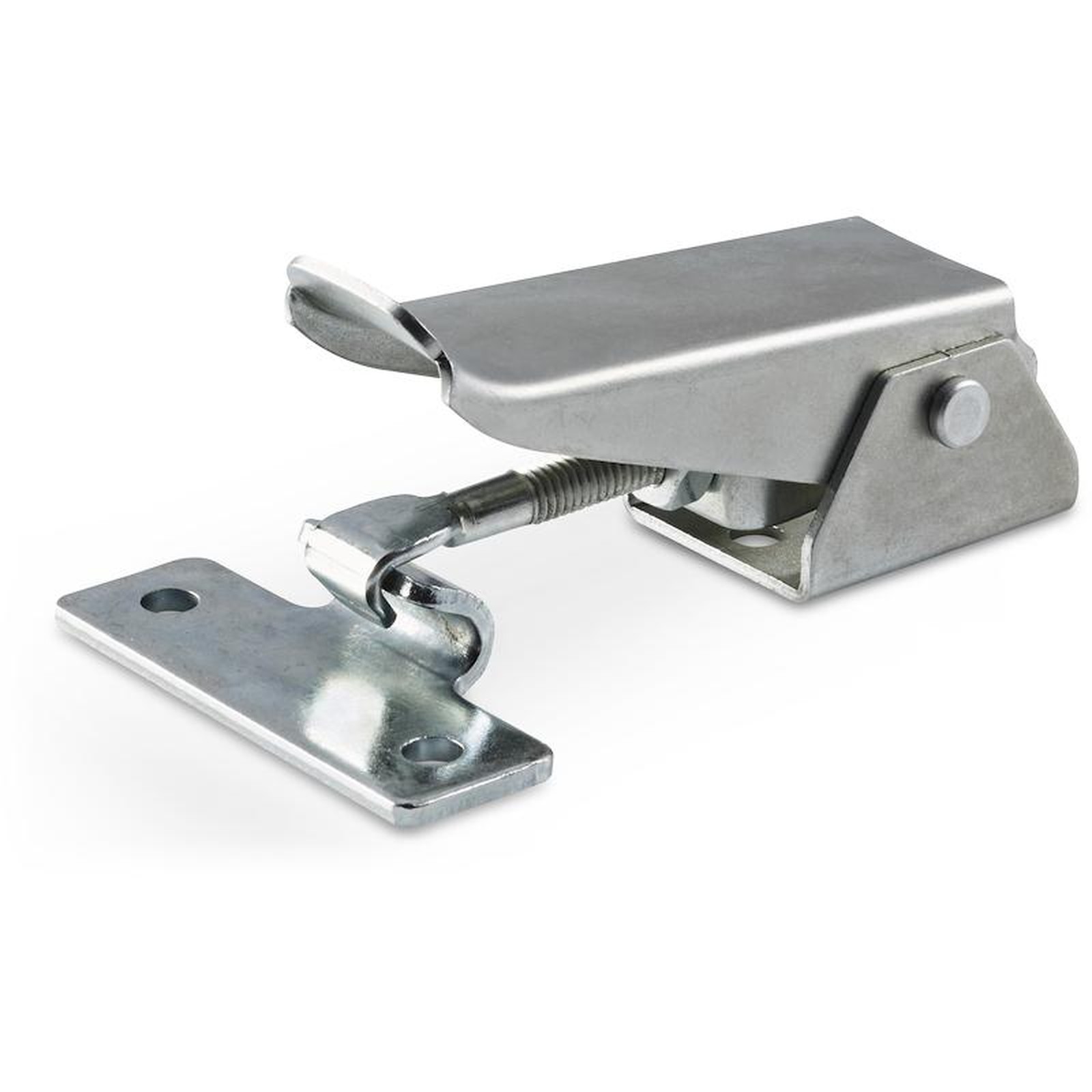

REVERSE TOGGLE LATCH
10
J190
Chiusure a gancio ed incontri
Materials:
(1) Sheared and bent steel body.
(2) Sheared and bent steel catch plate.
(3) Moulded and threaded steel hook.
(4) Stainless steel fixing rivets (Aisi 304).
Surface finish:
Smooth.
Colour:
Natural.
Packaging:
The article comes complete with the corresponding standard catch plate.
Special Requests:
Upon request and for special quantities the article can be supplied in stainless steel.

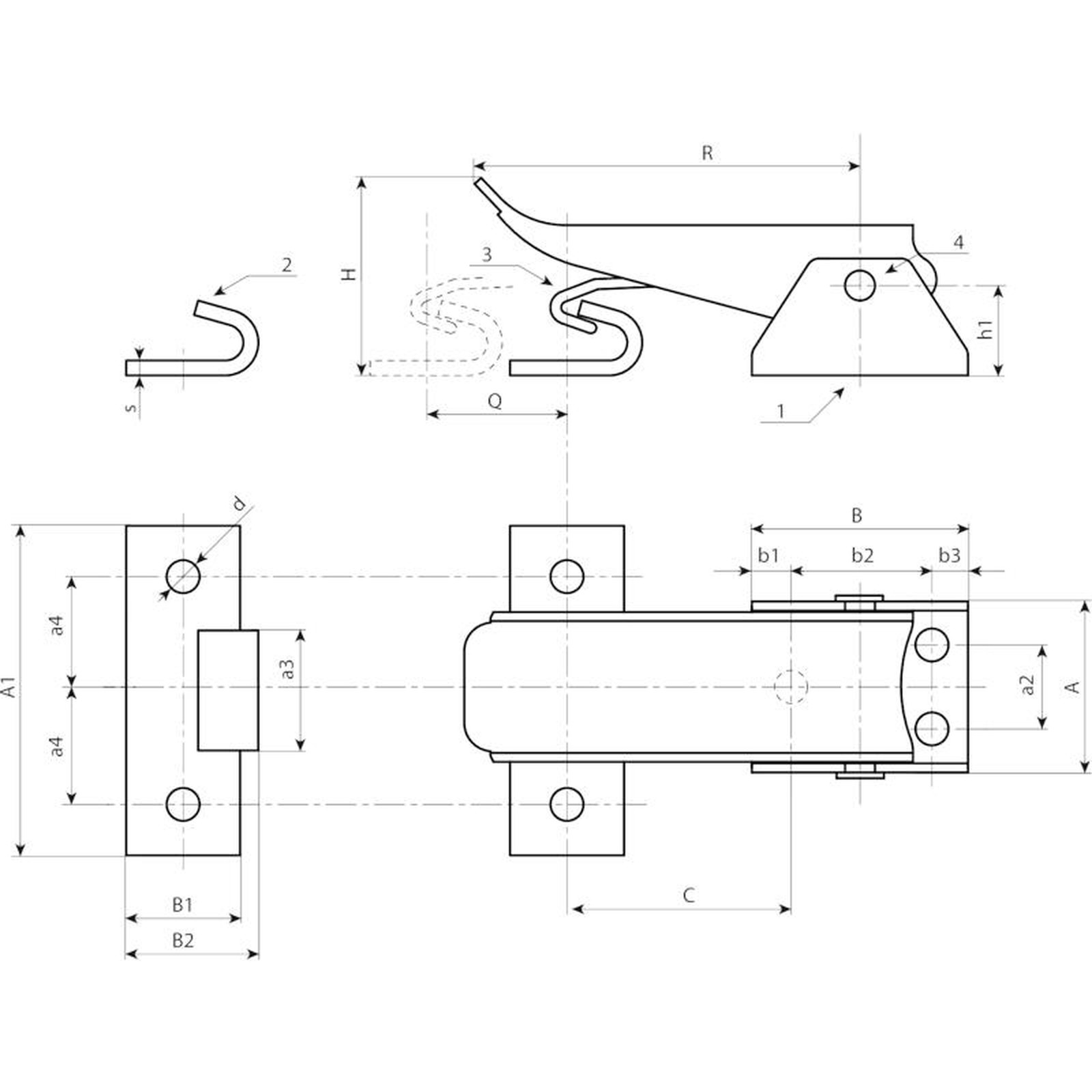

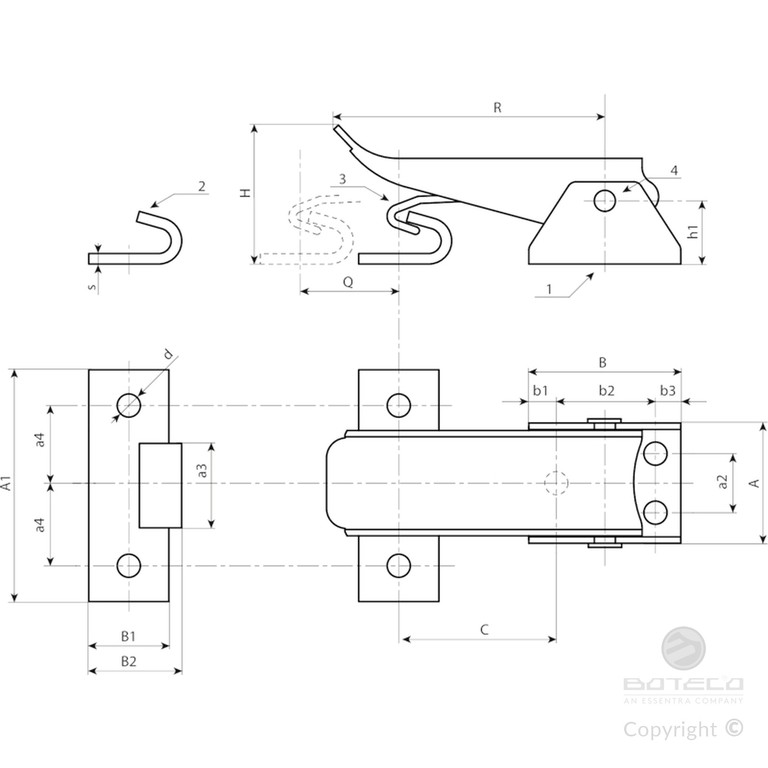

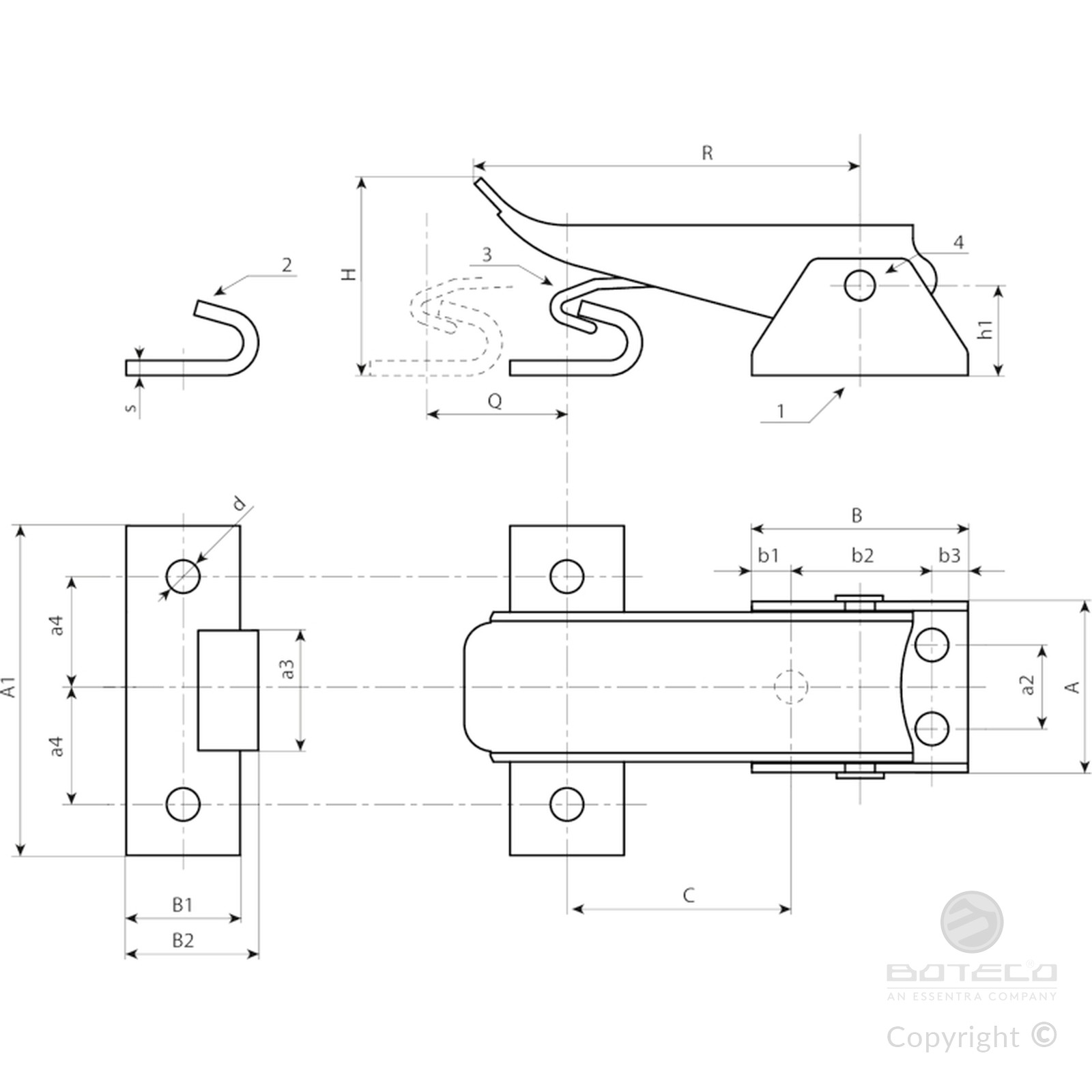

Code | art. | R | Q | H | C | h1 | A | B | A1 | B1 | b1 | b2 | b3 | a2 | a3 | a4 | s | d | Weight (g) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
J190036.0001 | J190036.FZ | 65,5 | 18 | 29 | 39÷57 | 16 | 28,5 | 35 | 55 | 17,5 | 5,5 | 24 | 5,5 | 14 | 20 | 20 | 2,5 | 5,5 | 115 |
