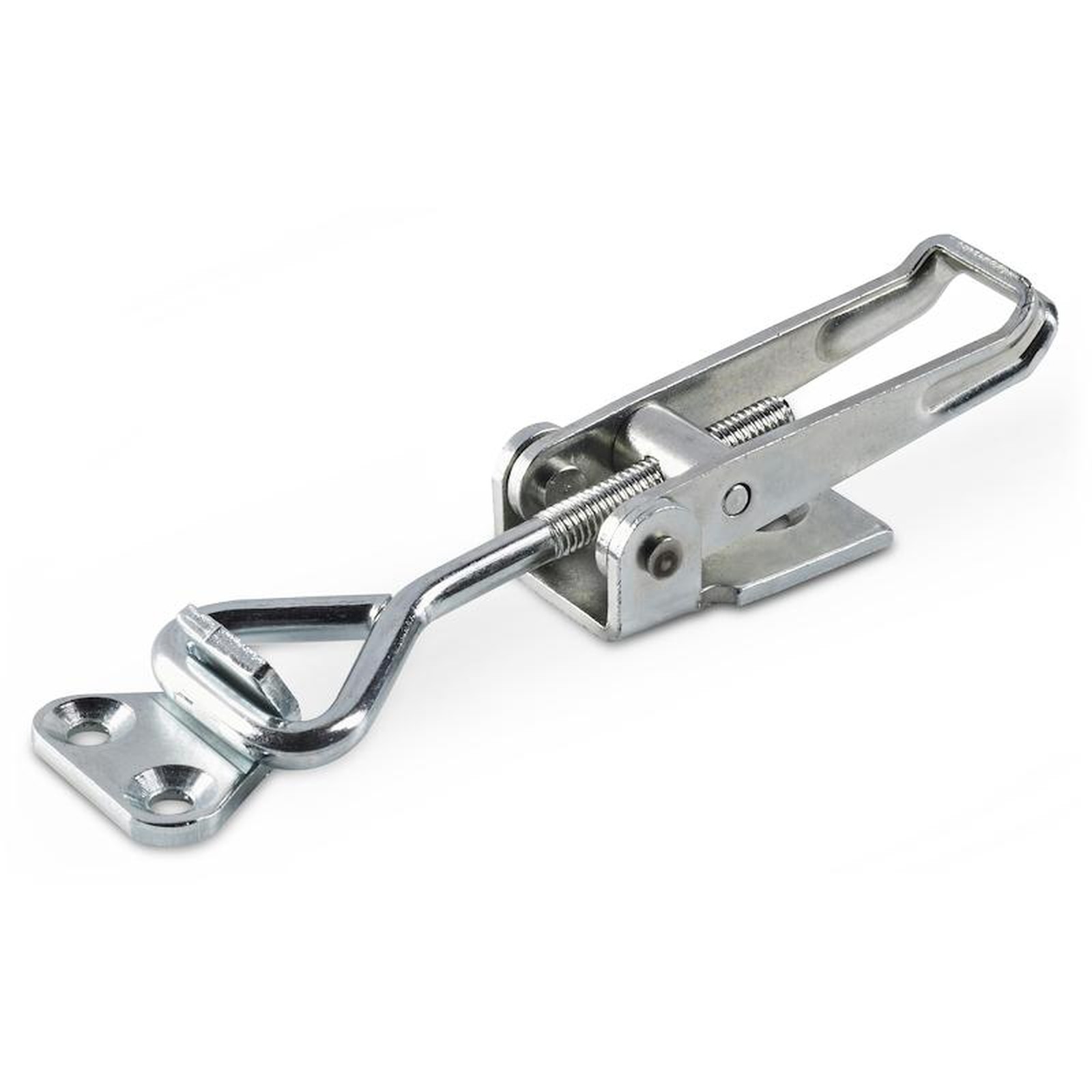

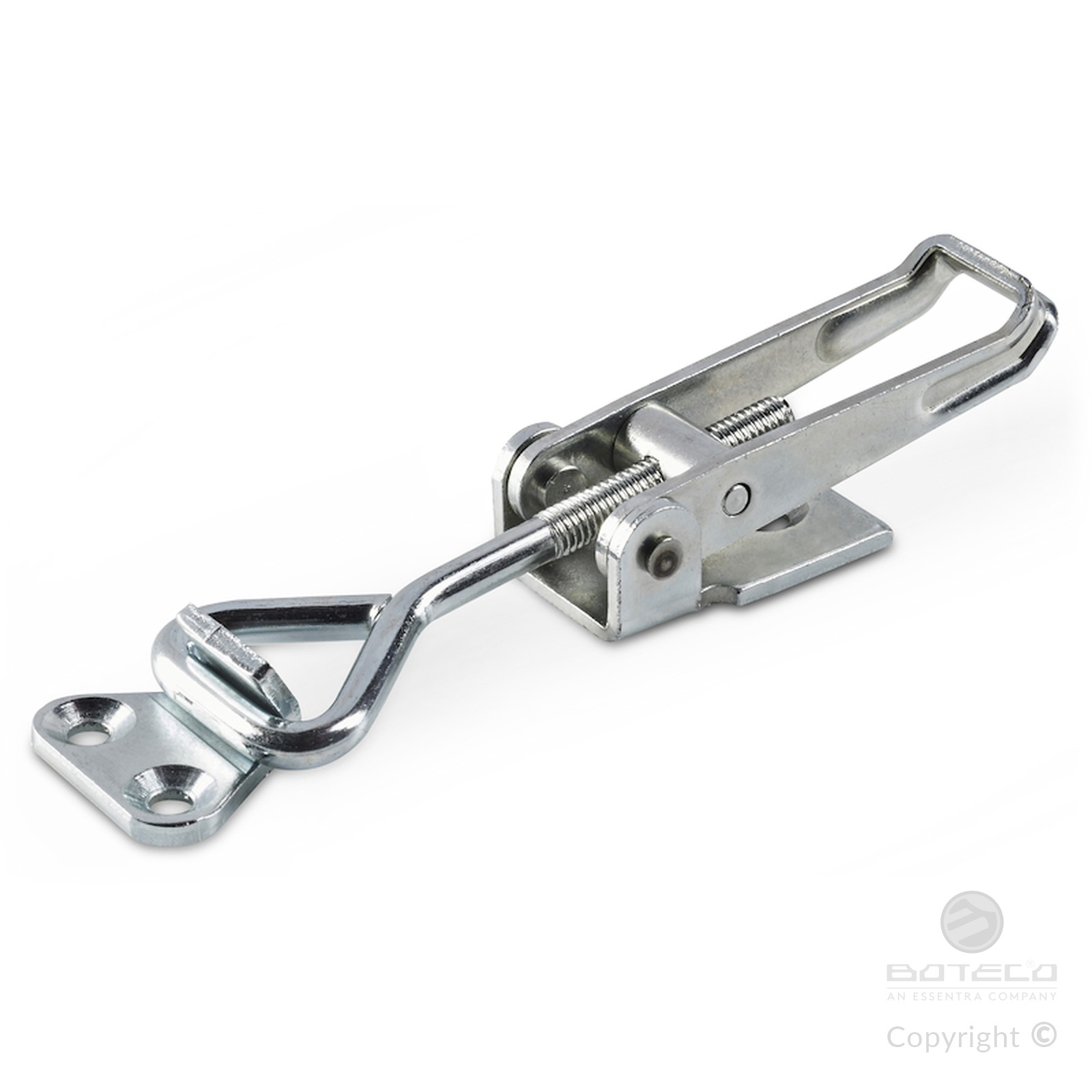

LIGHT DUTY TOGGLE LATCH
10
J188
Chiusure a gancio ed incontri
Materials:
(1) Sheared and bent steel body.
(2) Sheared and bent steel catch plate.
(3) Moulded and threaded steel hook.
(4) Stainless steel fixing rivets (Aisi 304).
Surface finish:
Smooth.
Colour:
Natural.
Packaging:
The article comes complete with the corresponding standard catch plate.
Special Requests:
Upon request and for special quantities the article can be supplied in stainless steel.

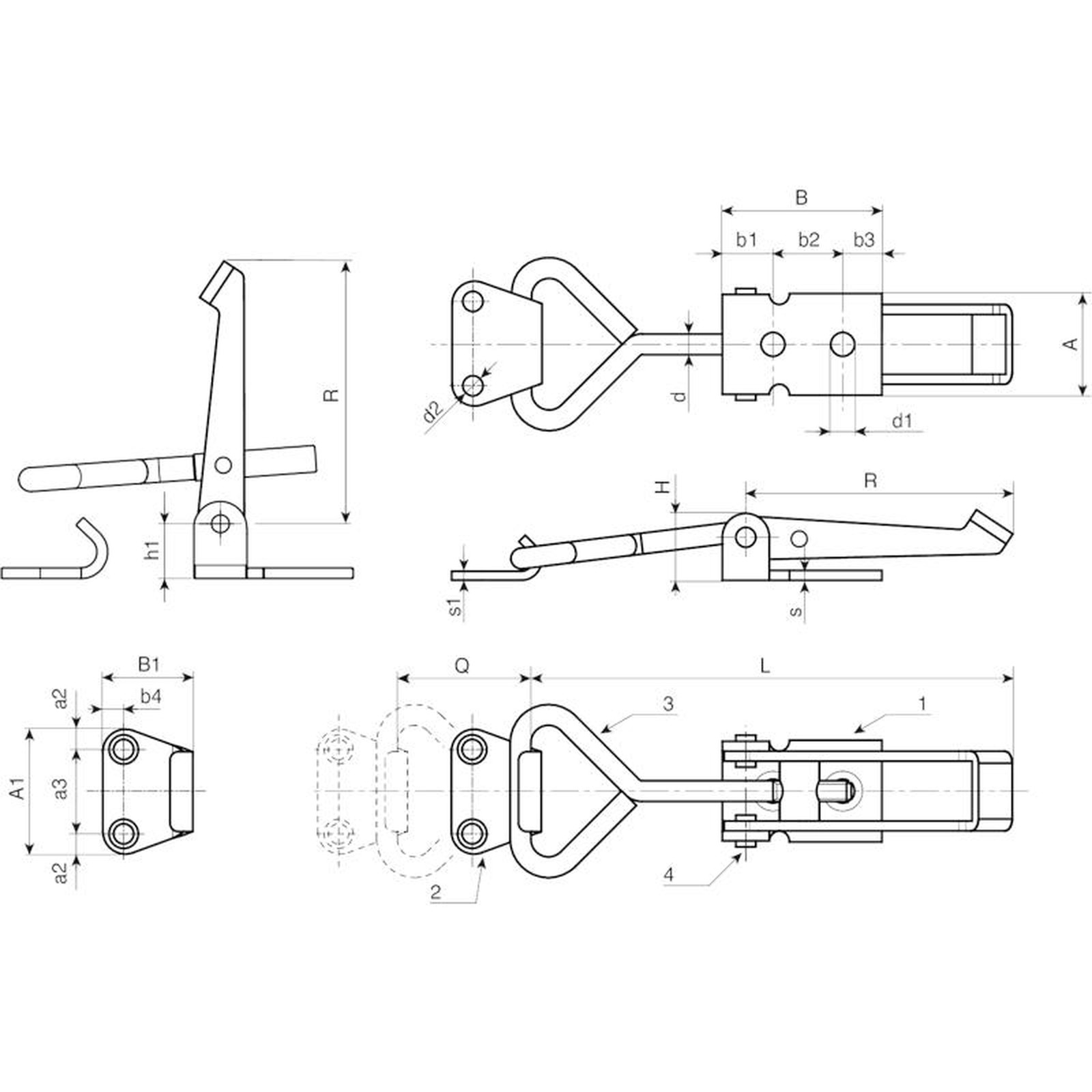

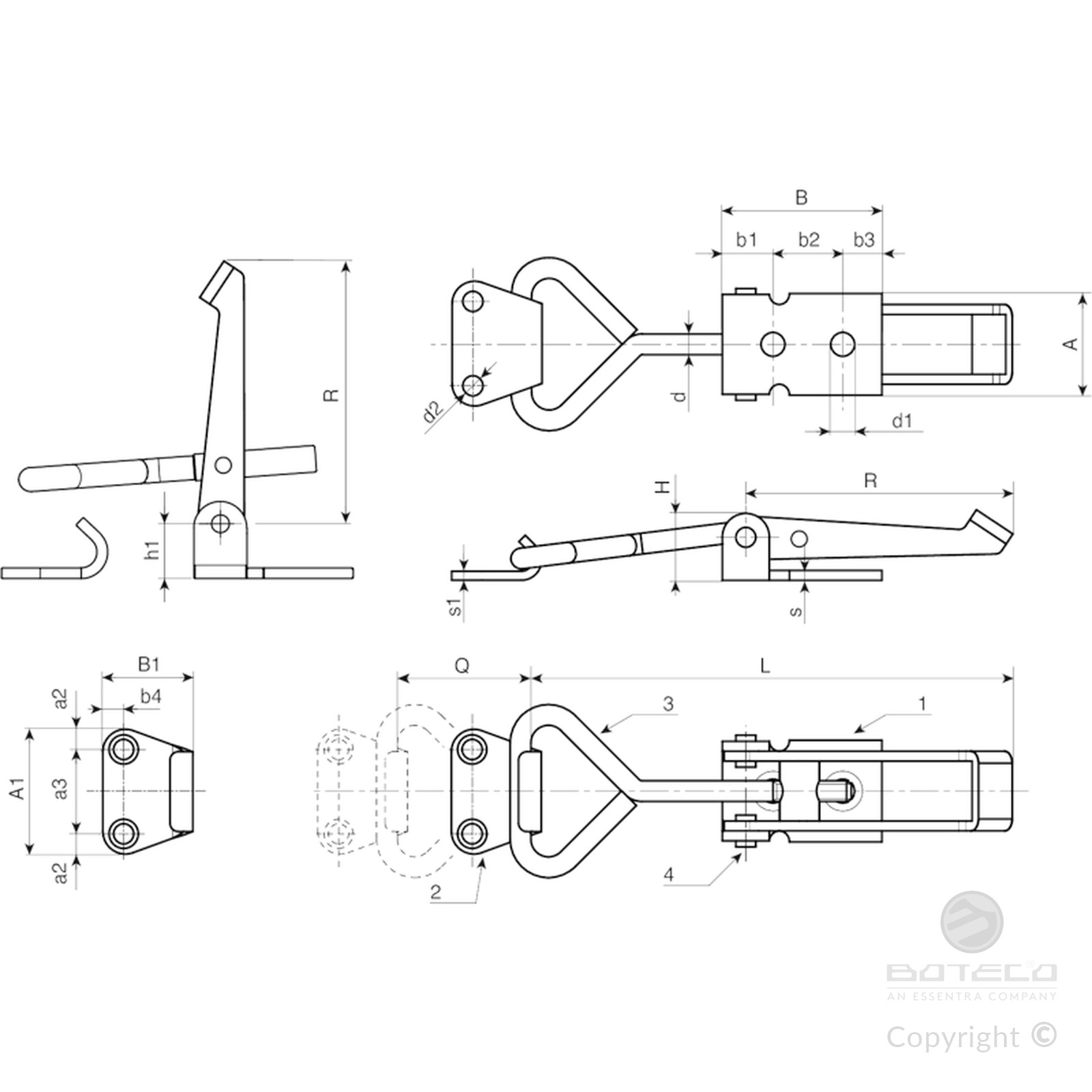

| Code | art. | R | L | Q | H | A | B | A1 | B1 | b1 | b2 | b3 | b4 | a2 | a3 | h1 | s | s1 | d | d1 | d2 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| J188040.0001 | J188040.FZ | 50 | 73,5 | 0÷13 | 15 | 20.5 | 30 | 25 | 20 | 5.5 | 18 | 6,5 | 4.5 | 5.5 | 14 | 10 | 2 | 2 | 4,5 | 4.7 | 4.5 | 56 |
