STEEL CATCH PLATE FOR ADJUSTABLE TOGGLE LATCH
10
J185
Chiusure a gancio ed incontri
Materials:
J185:

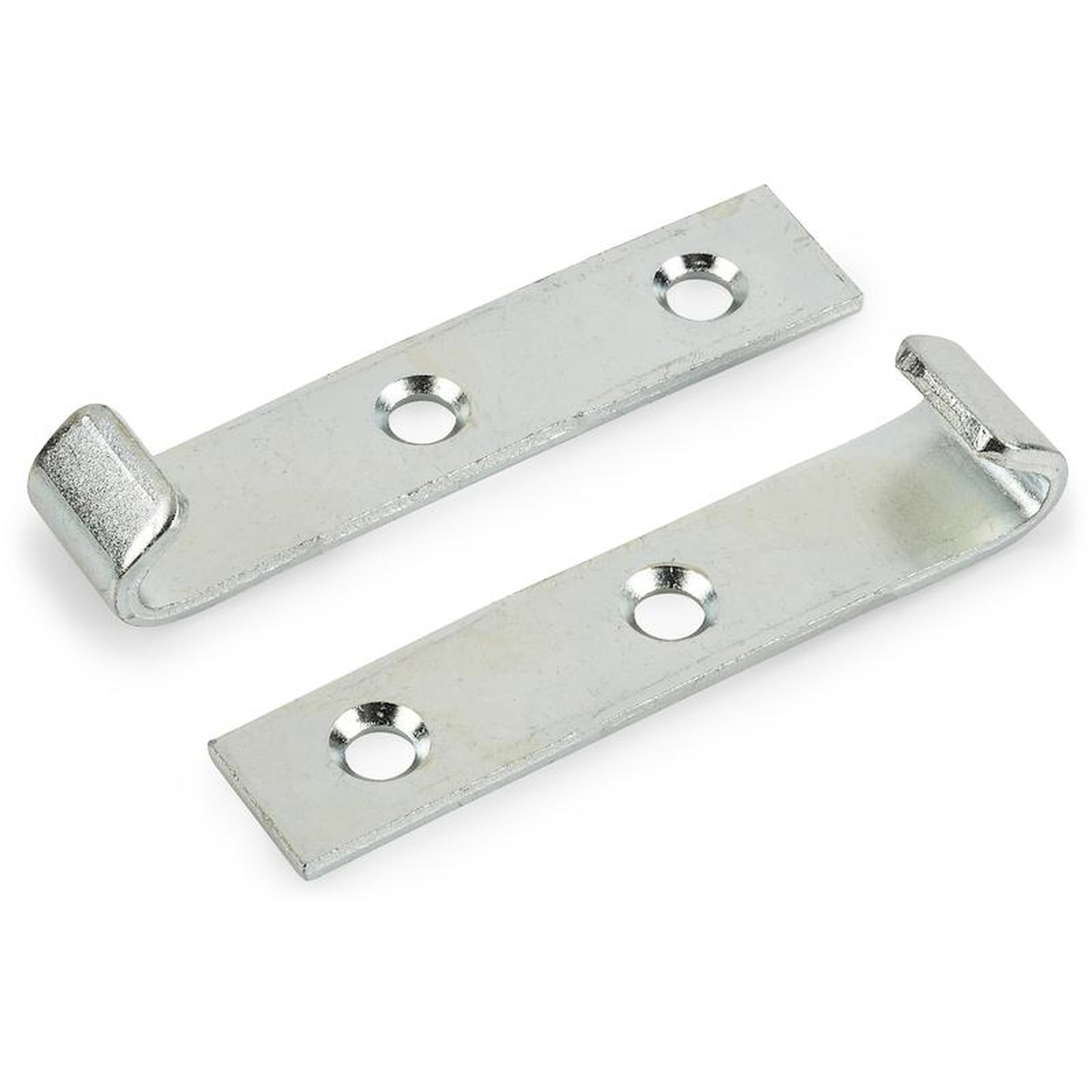

Extended drilled catch plate made of sheared steel.
J185CIN:
Extended drilled catch plate made of sheared stainless steel (Aisi 304).
Surface finish:
Glossy.
Colour:
J185:
Standard blue galvanising.
J185CIN:
Natural.
ATTENTION:
The toggle latch must be ordered separately from the catch plate.
Special Requests:
None.
COMBINABLE CATCH PLATES:
Catch plate J185065 combinable with toggle latches: J180065-J182065-J180112-J182112.
Version J185 - galvanised steel

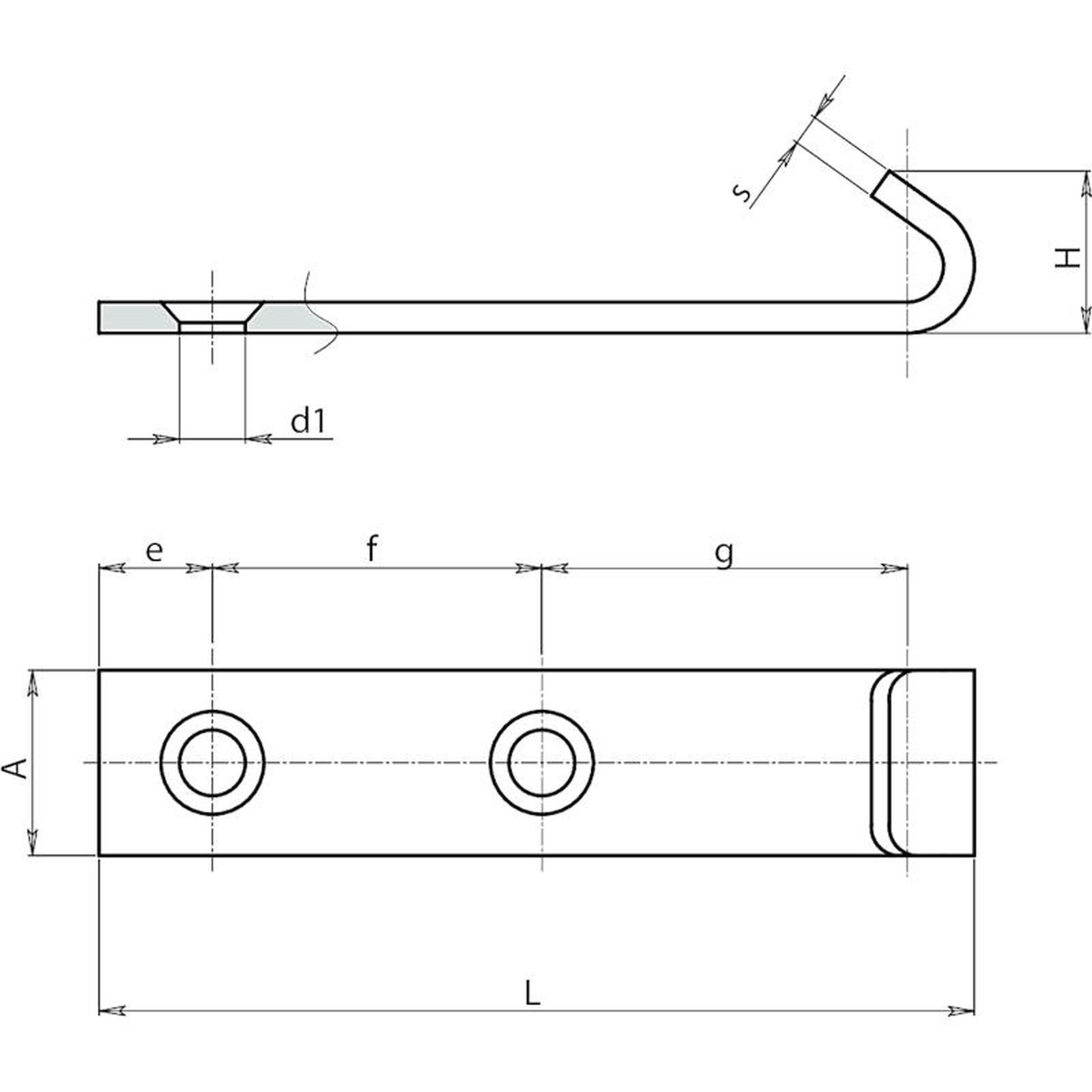

| Code | Art. | H | L | A | e | f | d1 | s | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| J185065.0001 | J185065.FZ16 | 16.5 | 85 | 18 | 13.5 | 29 | 7 | 3 | 40 |
Version J185CIN - stainless steel
| Code | Art. | H | L | A | e | f | d1 | s | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| J185065.0002 | J185065.FZ16CIN | 16.5 | 85 | 18 | 13.5 | 29 | 7 | 3 | 40 |
