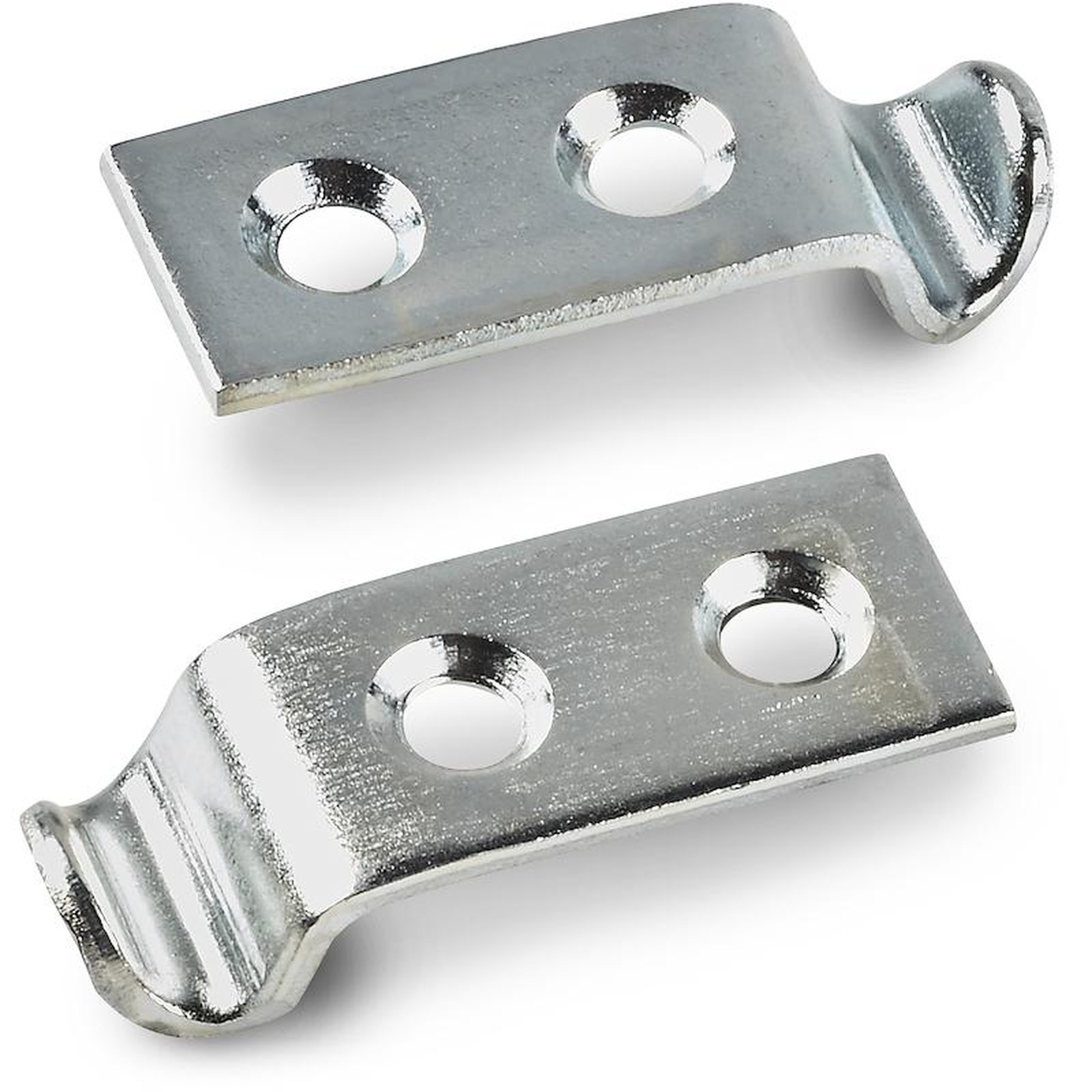

STEEL CATCH PLATE FOR ADJUSTABLE TOGGLE LATCH
10
J184
Chiusure a gancio ed incontri
Materials:
Drilled and sheared catch plate made of steel.
Surface finish:
Glossy.
Colour:
Standard blue galvanising.
ATTENTION:
The toggle latch must be ordered separately from the catch plate.
Special Requests:
None.
COMBINABLE CATCH PLATES:
Catch plate J184048 combinable with toggle latches: J180048-J182048.
Catch plate J184065 combinable with toggle latches: J180065-J182065-J180112-J182112.

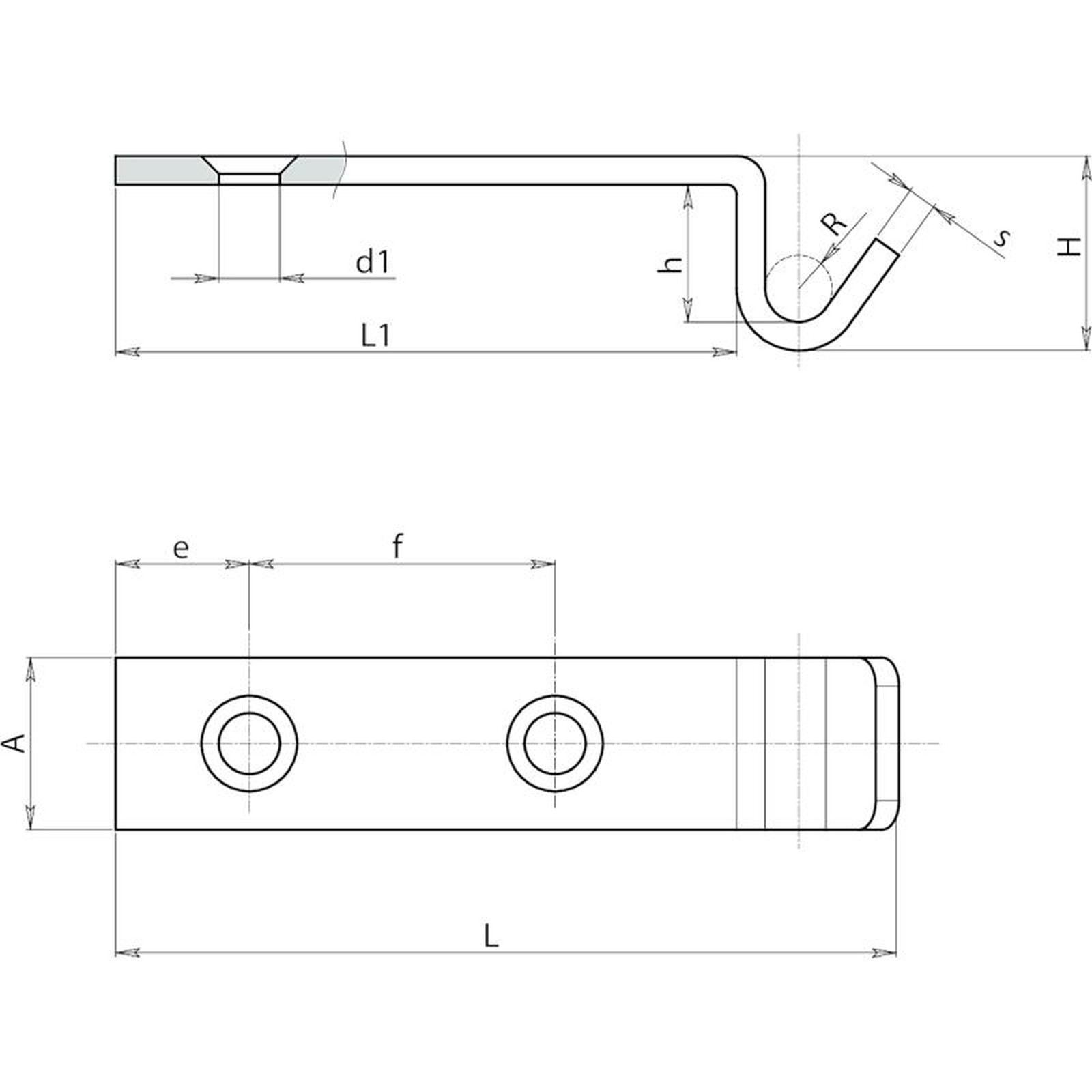

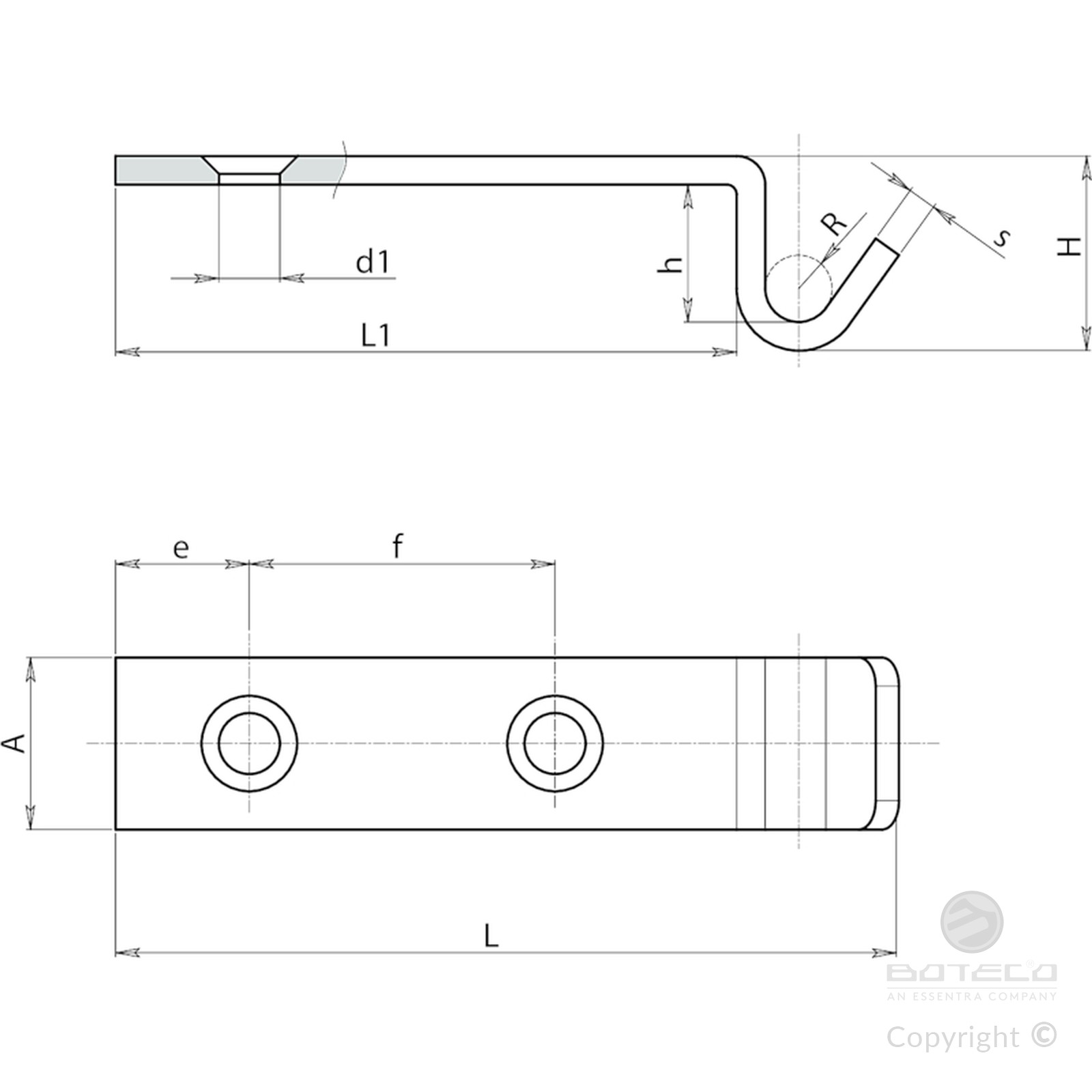

| Code | Art. | H | L | L1 | h | A | e | f | R | d1 | s | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| J184048.0001 | J184048.FZ09 | 9 | 40 | 29 | 5 | 16 | 7 | 14 | 2.5 | 5.1 | 2 | 7 |
| J184065.0001 | J184065.FZ21 | 21 | 82 | 65 | 16 | 18 | 14 | 32 | 3.5 | 6.5 | 3 | 31 |
