STEEL CATCH PLATE FOR ADJUSTABLE TOGGLE LATCH
10
J183
Chiusure a gancio ed incontri
Materials:

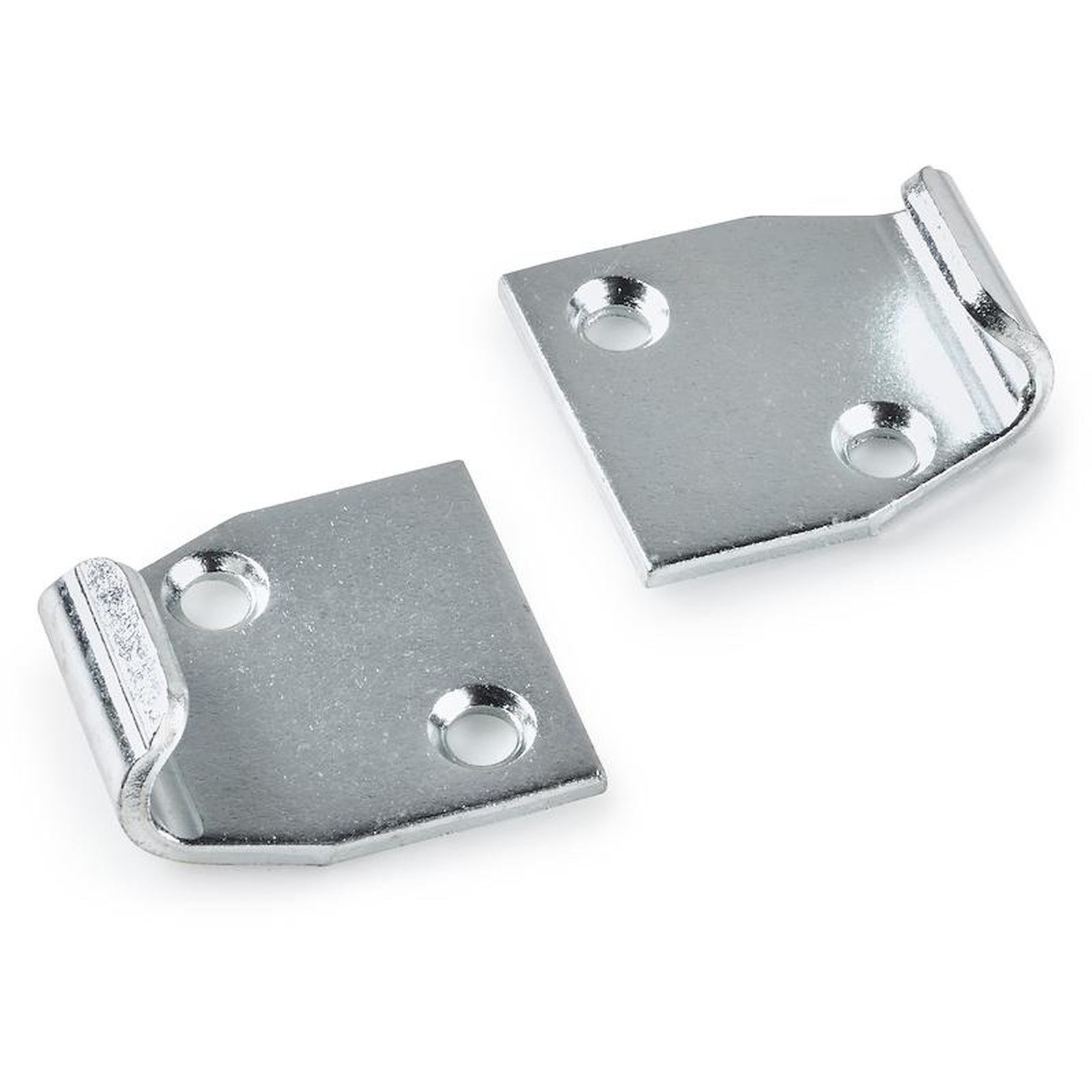

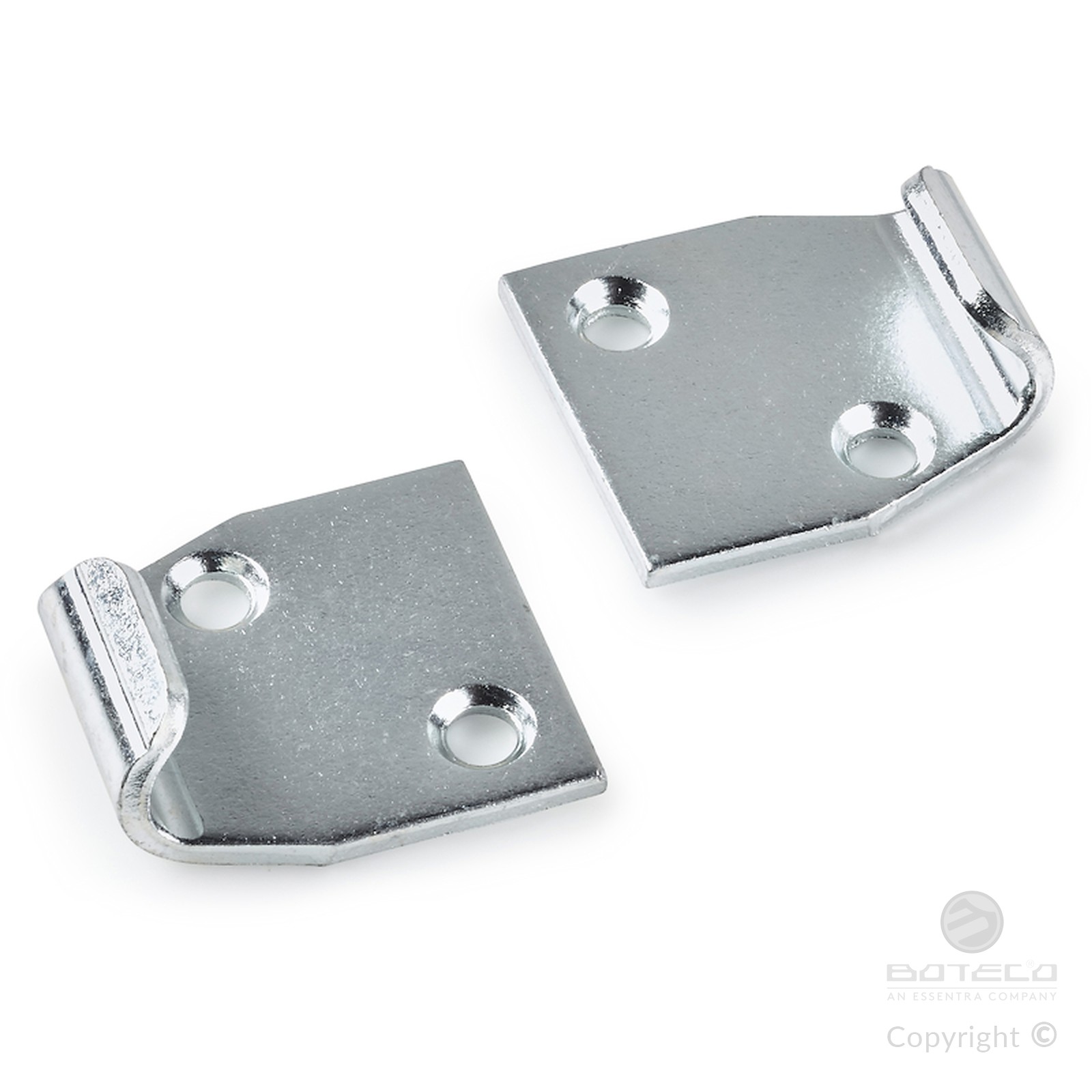

J183:
Drilled and sheared catch plate made of steel.

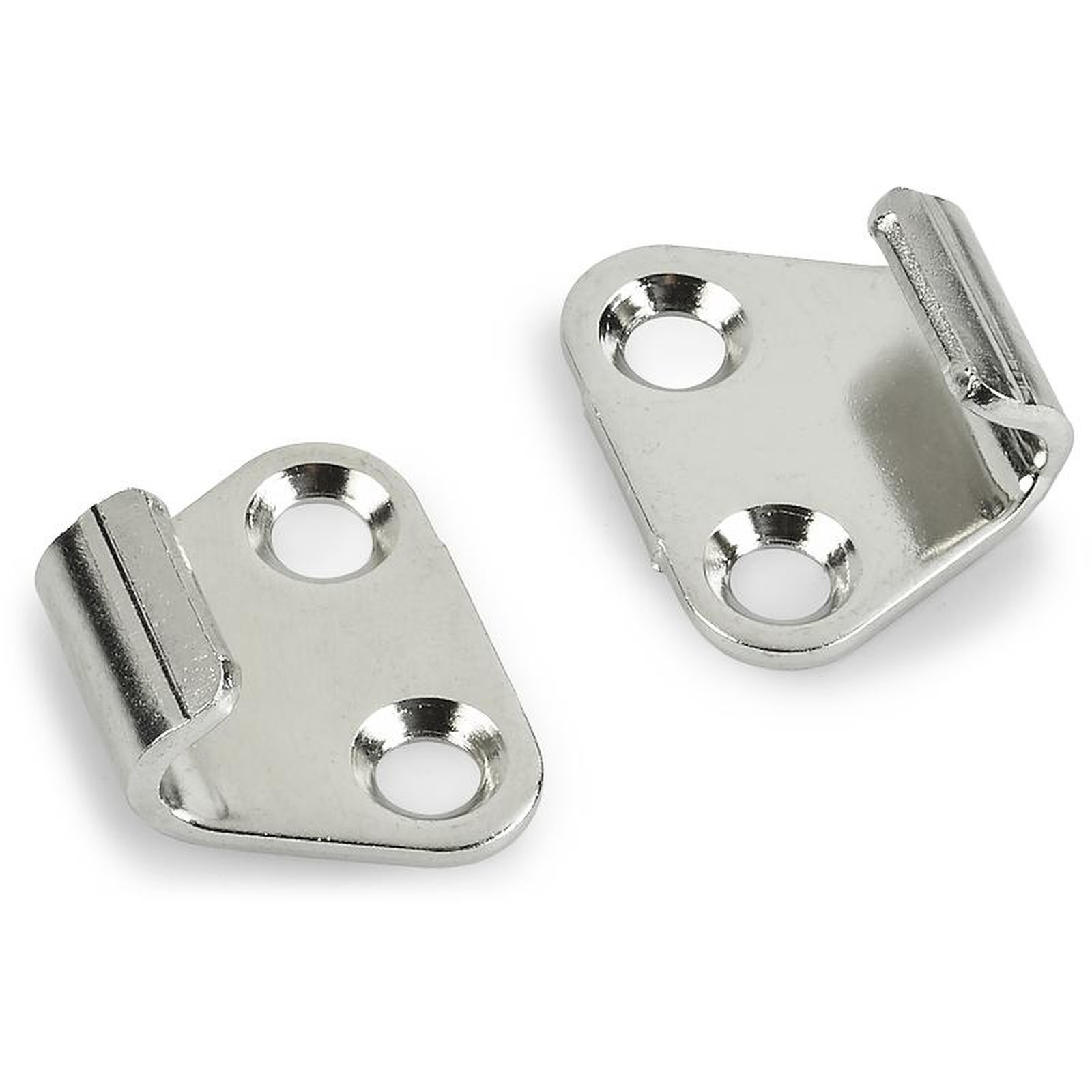

J183CIN:
Drilled and sheared catch plate made of stainless steel (Aisi 304).
Surface finish:
Glossy.
Colour:
J183:
Standard blue galvanising.
J183CIN:
Natural.
ATTENTION:
The toggle latch must be ordered separately from the catch plate.
Special Requests:
None.
COMBINABLE CATCH PLATES:
Catch plate J183048 combinable with toggle latches: J180048-J182048.
Catch plate J183065 combinable with toggle latches: J180065-J182065-J180112-J182112.
Version J183 - galvanised steel

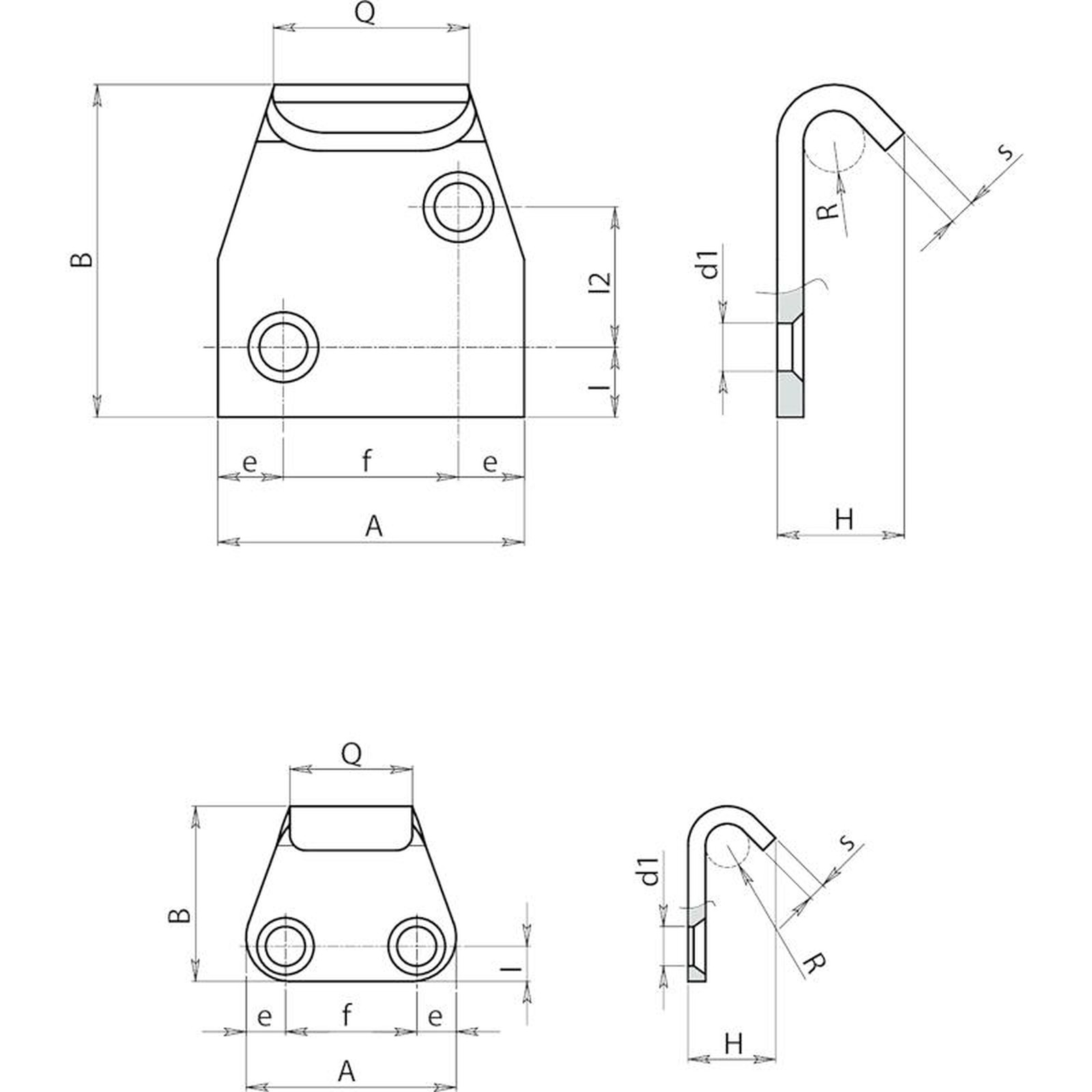

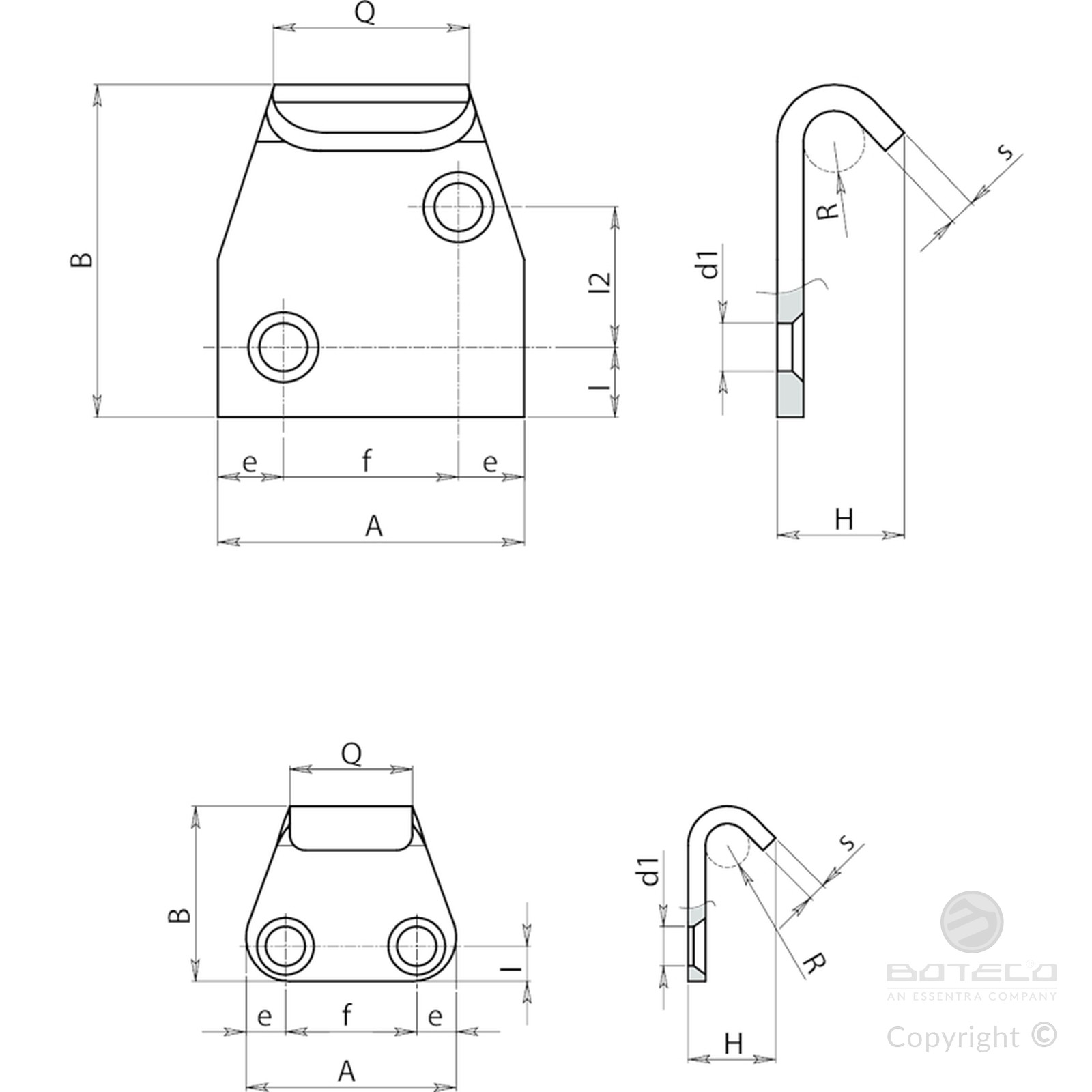

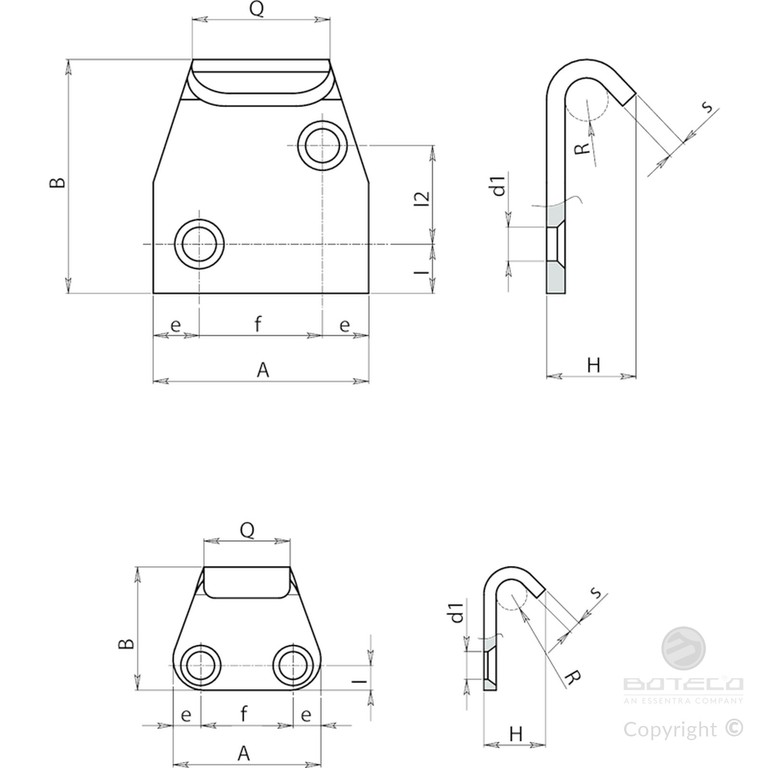

| Code | Art. | H | I | I2 | A | B | Q | e | f | R | d1 | s | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| J183048.0001 | J183048.FZ10 | 10 | 5 | - | 26 | 21 | 14 | 5.5 | 15 | 2.5 | 5.1 | 2 | 7 |
| J183065.0001 | J183065.FZ14 | 14,5 | 8.5 | 16 | 35 | 38,5 | 22 | 7.5 | 20 | 3.5 | 5,5 | 3 | 32 |
Version J183CIN - stainless steel
| Code | Art. | H | I | I2 | A | B | Q | e | f | R | d1 | s | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| J183048.0002 | J183048.FZ10CIN | 10 | 5 | - | 26 | 21 | 14 | 5.5 | 15 | 2.5 | 5,1 | 2 | 7 |
| J183065.0002 | J183065.FZ14CIN | 14,5 | 8.5 | 16 | 35 | 38,5 | 22 | 7.5 | 20 | 3.5 | 5,5 | 3 | 32 |
