Materials:
J182:
Adjustable toggle latch made of shear steel with padlock hasp.
J182CIN:
Adjustable toggle latch made of shear stainless steel with padlock hasp (Aisi 304).
Surface finish:
Glossy.
Colour:
J182:
Standard blue galvanising.
J182CIN:
Natural.
ATTENTION:
The catch plate must be ordered separately from the toggle latch.
Special Requests:
None.
COMBINABLE CATCH PLATES:
Article J182048 combinable with catch plates: J183048-J184048
Article J182065 combinable with catch plates: J183065-J184065-J185065
Article J182112 combinable with catch plates: J183065-J184065-J185065

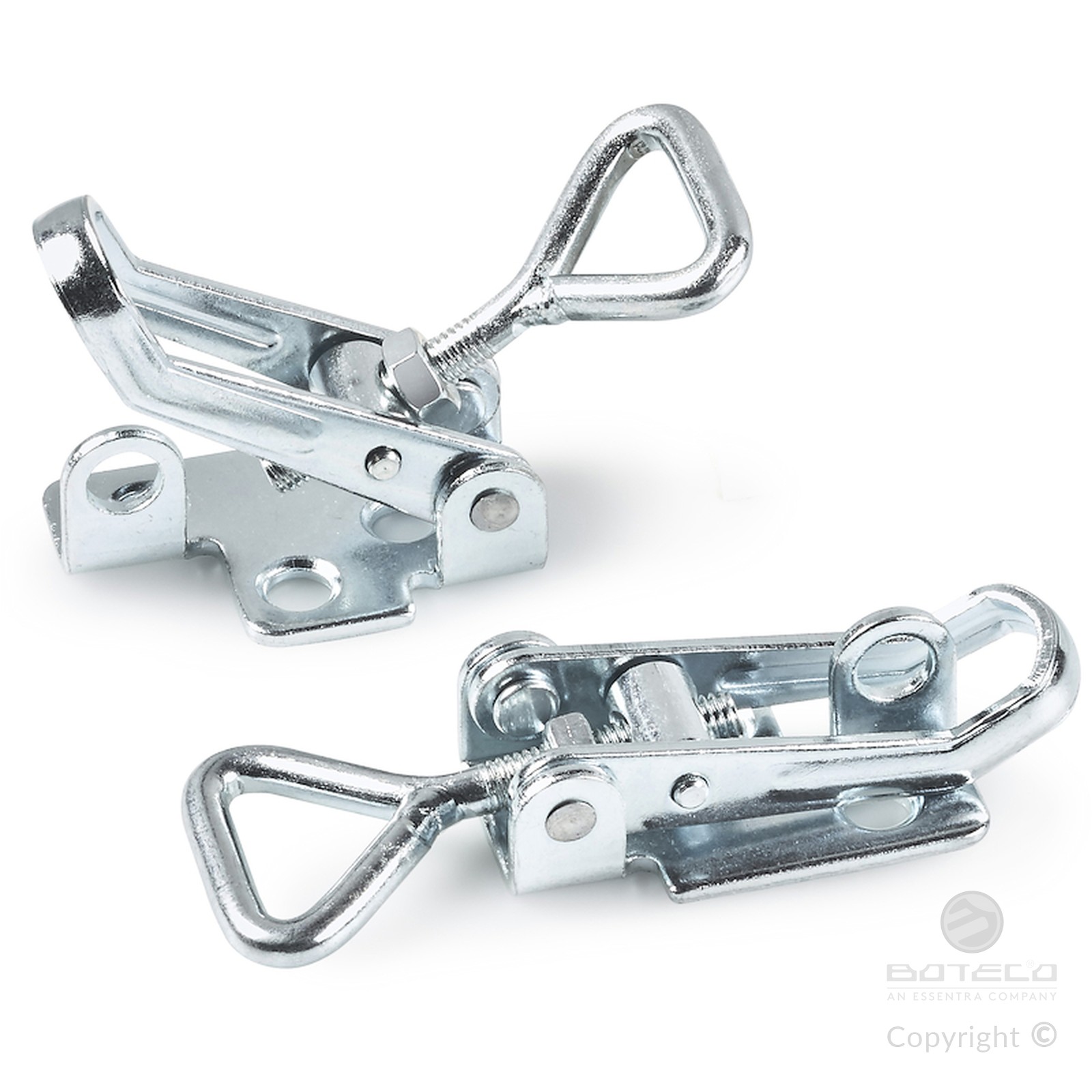

Version J182: Galvanised steel version.

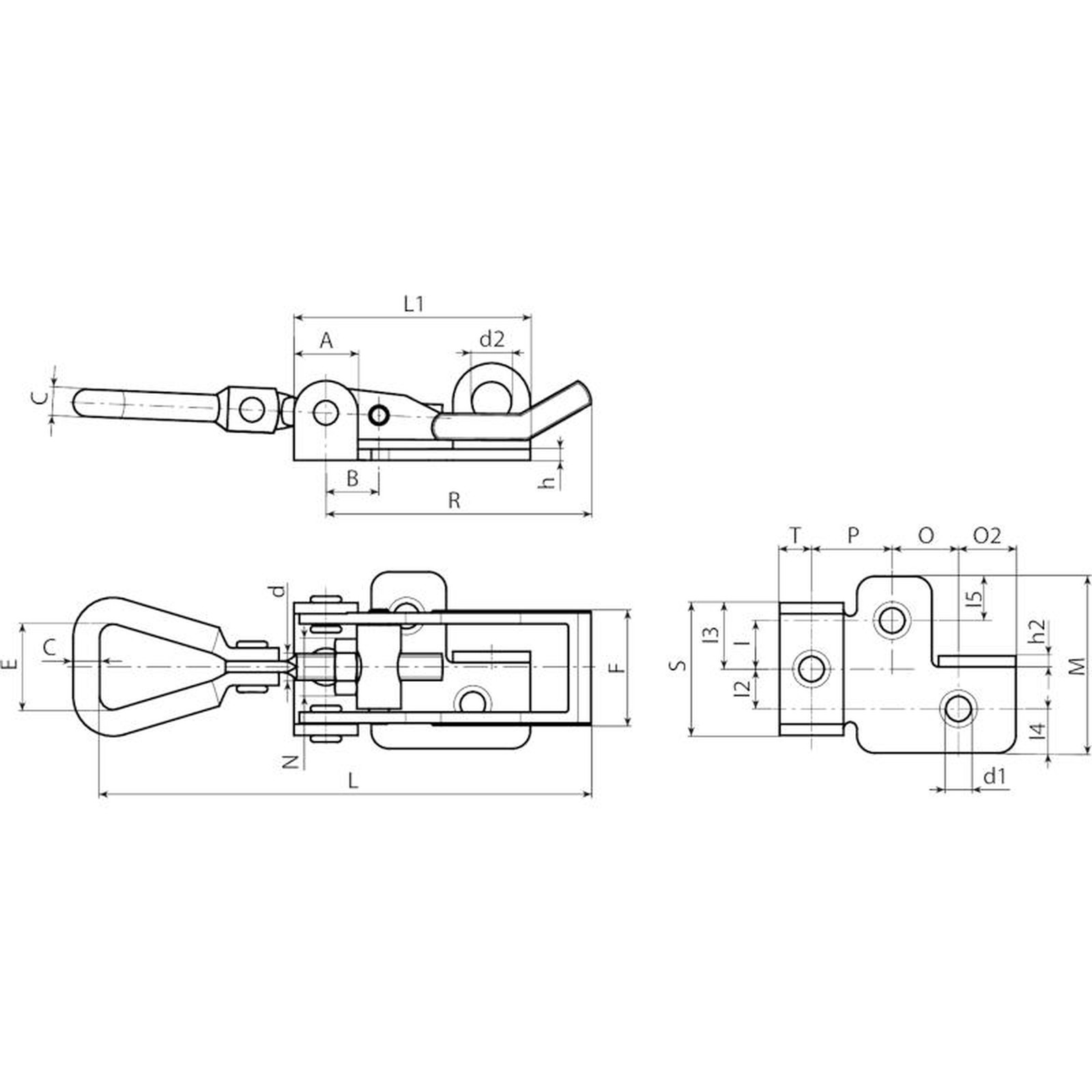

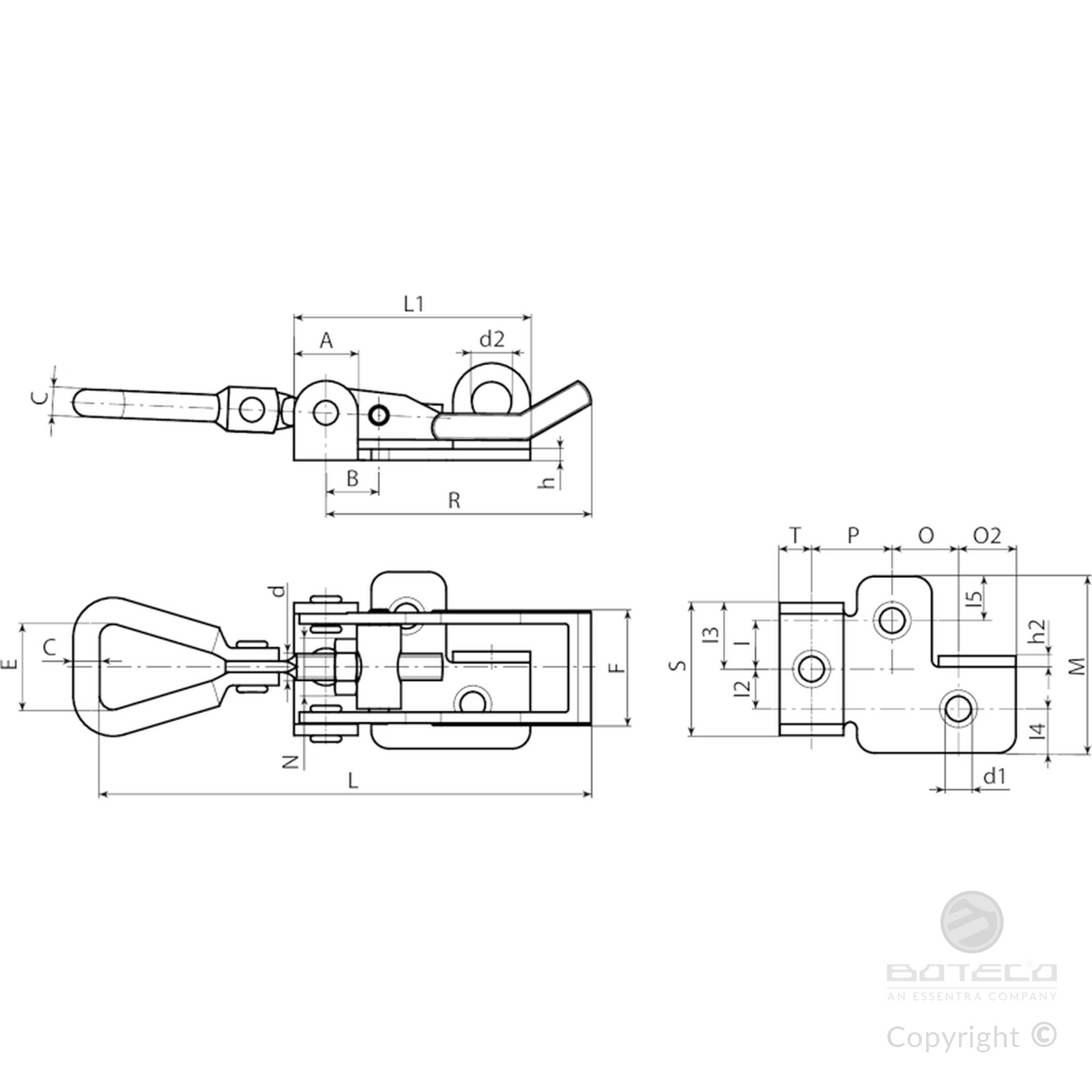

| Code | art. | R | L | L1 | A | B | C | d | d1 | d2 | E | F | h | h2 | I | I2 | I3 | I4 | I5 | M | O | O2 | P | T | S | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| J182048.0001 | J182048.FZ | 48 | 66-75 | 42.5 | 11 | 11 | 4.3 | M5 | 5.3 | 7 | 17 | 17 | 2 | 2 | 7 | 7 | 10 | 6.5 | 6.5 | 27 | 11 | 9 | 11 | 11.5 | 20 | 43 |
| J182065.0001 | J182065.FZ | 65 | 104-124 | 53 | 14 | 12 | 5 | M5 | 5.3 | 9.5 | 25 | 26 | 2.5 | 2.5 | 10 | 10 | 15 | 10 | 10 | 40 | 15 | 12 | 18 | 8 | 30 | 100 |
| J182112.0001 | J182112.FZ | 112 | 160-175 | 70 | 17 | 14 | 7 | M6 | 7 | 9 | 31 | 30 | 3 | 3 | 17.5 | 16.5 | 19 | 13.5 | 12.5 | 60 | 22 | 13 | 22 | 13 | 38 | 216 |

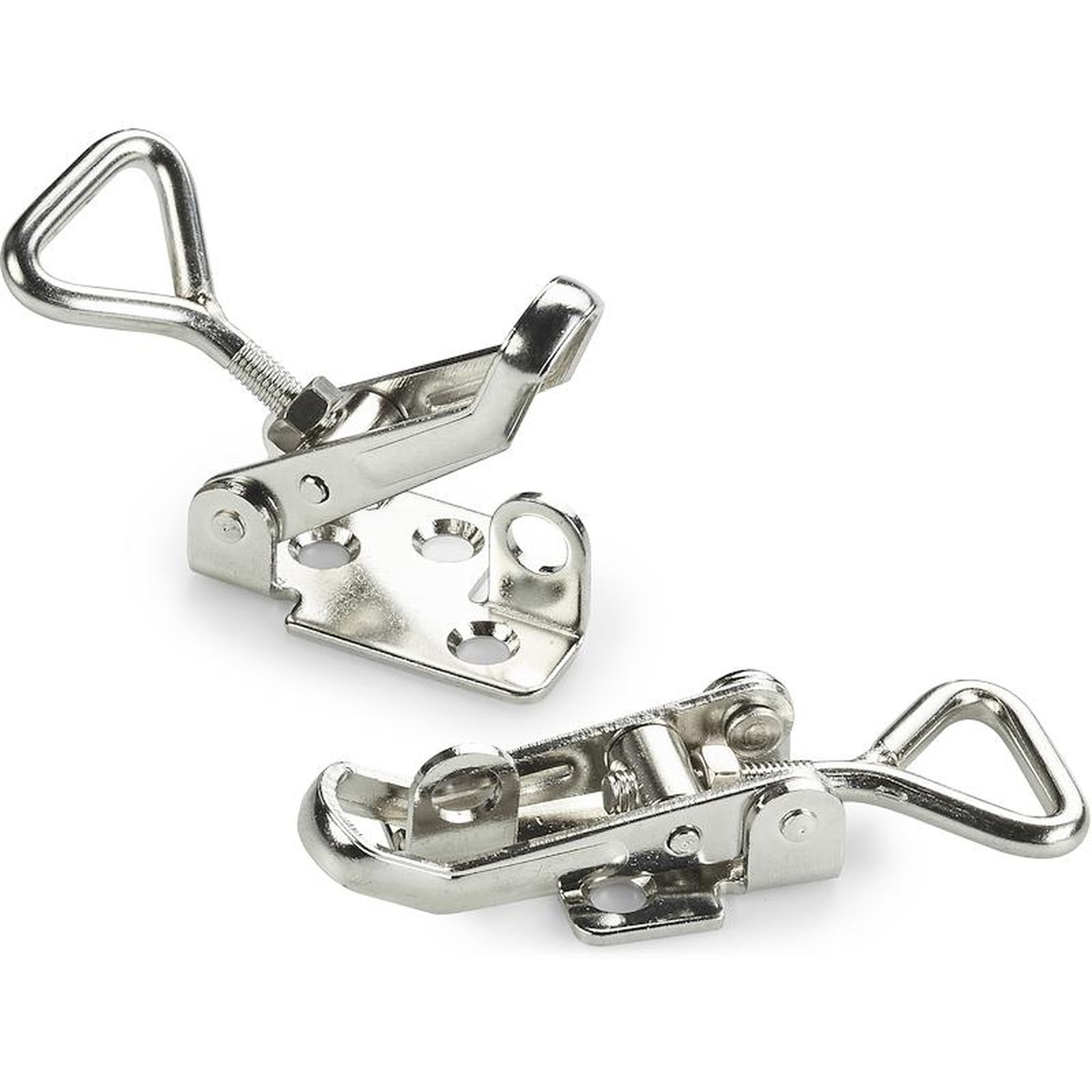

Version J182CIN: Stainless steel version (Aisi 304).
| Code | art. | R | L | L1 | A | B | C | d | d1 | d2 | E | F | h | h2 | I | I2 | I3 | I4 | I5 | M | O | O2 | P | T | S | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| J182048.0002 | J182048.FZCIN | 48 | 66-75 | 42.5 | 11 | 11 | 4.3 | M5 | 5.3 | 7 | 17 | 18 | 2 | 2 | 7 | 7 | 10 | 6.5 | 6.5 | 27 | 11 | 9 | 11 | 11.5 | 20 | 43 |
| J182065.0002 | J182065.FZCIN | 65 | 104-124 | 53 | 14 | 12 | 5 | M5 | 5.3 | 9.5 | 25 | 26 | 2.5 | 2.5 | 10 | 10 | 15 | 10 | 10 | 40 | 15 | 12 | 18 | 8 | 30 | 100 |
| J182112.0002 | J182112.FZCIN | 112 | 160-175 | 70 | 17 | 14 | 6.5 | M6 | 7 | 9 | 31 | 30 | 3 | 3 | 18 | 18 | 18 | 60 | 22 | 13 | 22 | 13 | 38 | 216 | - | - |
