ADJUSTABLE STEEL TOGGLE LATCH
10
J180
Chiusure a gancio ed incontri
Materials:
J180:

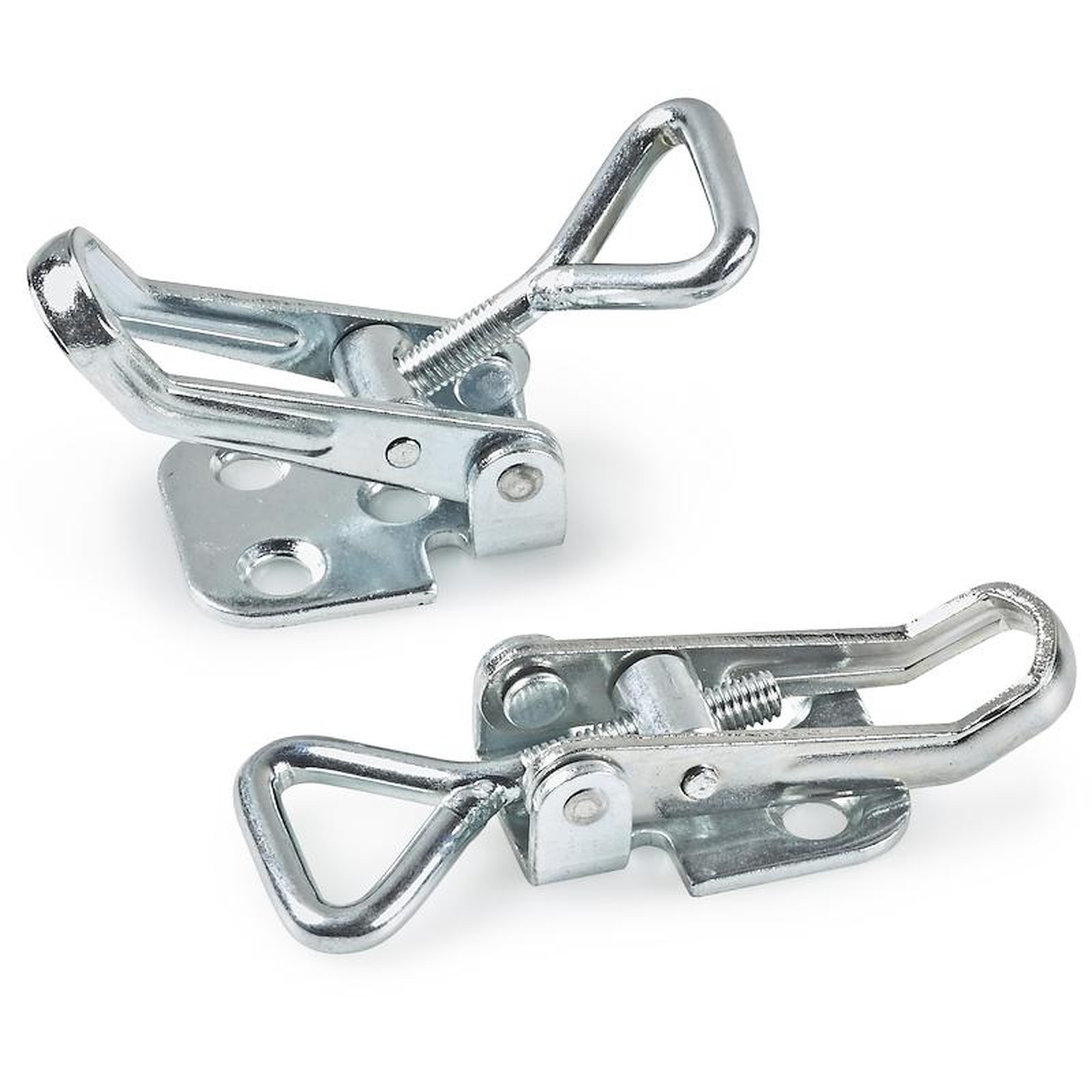

Adjustable toggle latch made of sheared galvanised steel.
J180CIN:

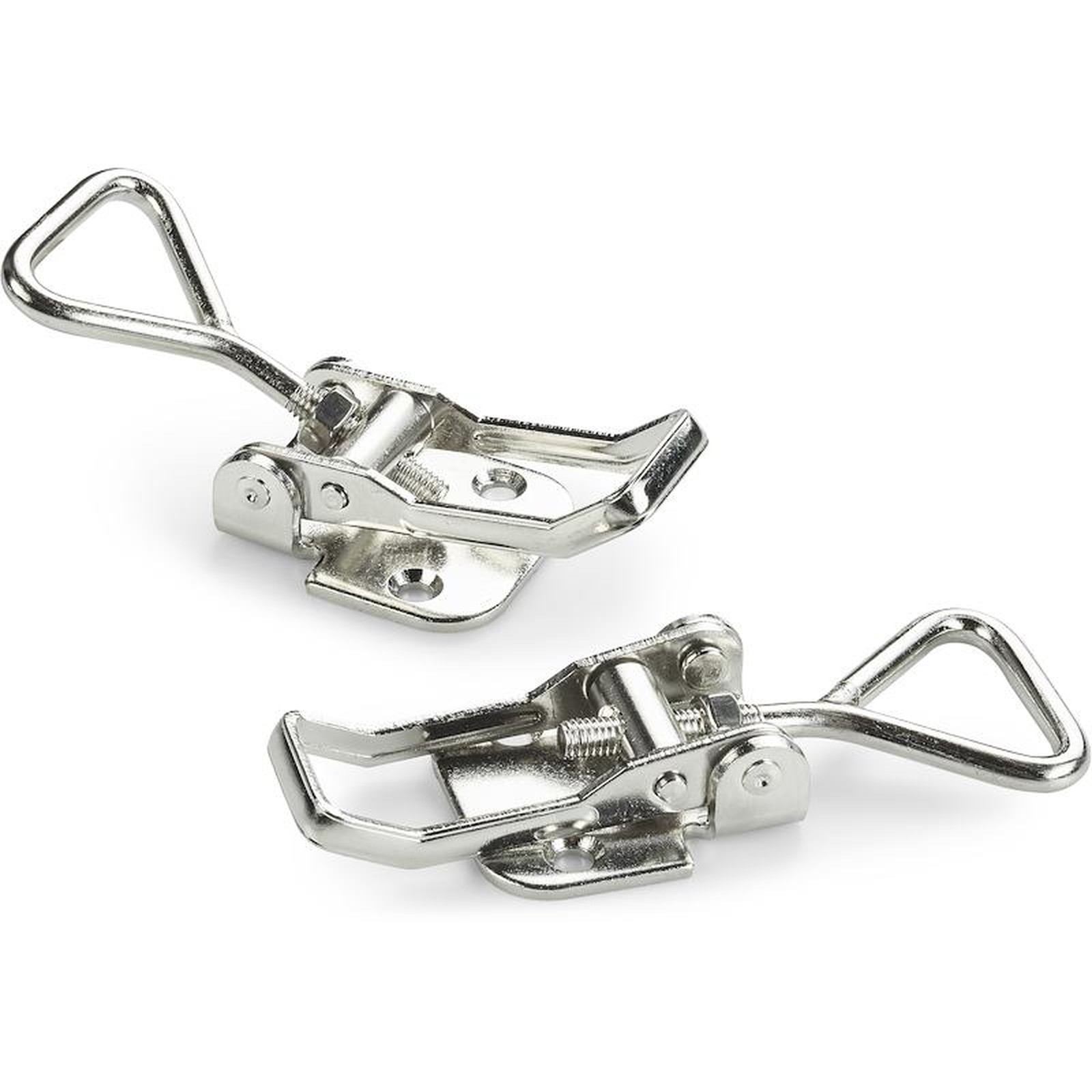

Adjustable toggle latch made of sheared stainless steel (Aisi 304).
Surface finish:
Glossy.
Colour:
J180:
Standard blue galvanising.
J180CIN:
Natural.
ATTENTION:
The catch plate must be ordered separately from the toggle latch.
Special Requests:
None.
COMBINABLE CATCH PLATES:

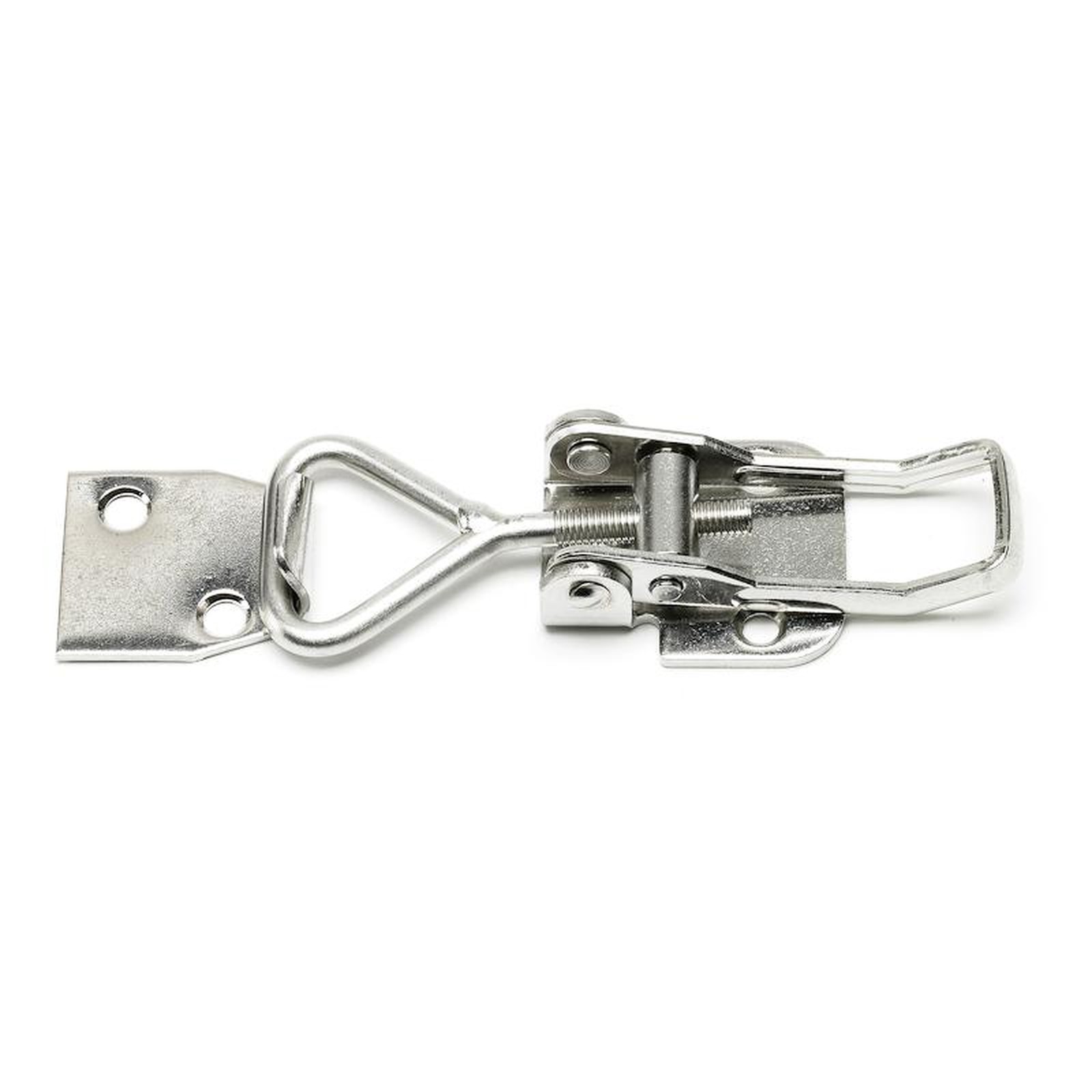

Article J180048 combinable with catch plates: J183048-J184048
Article J180065 combinable with catch plates: J183065-J184065-J185065
Article J180112 combinable with catch plates: J183065-J184065-J185065
Version J180: Galvanised steel version.

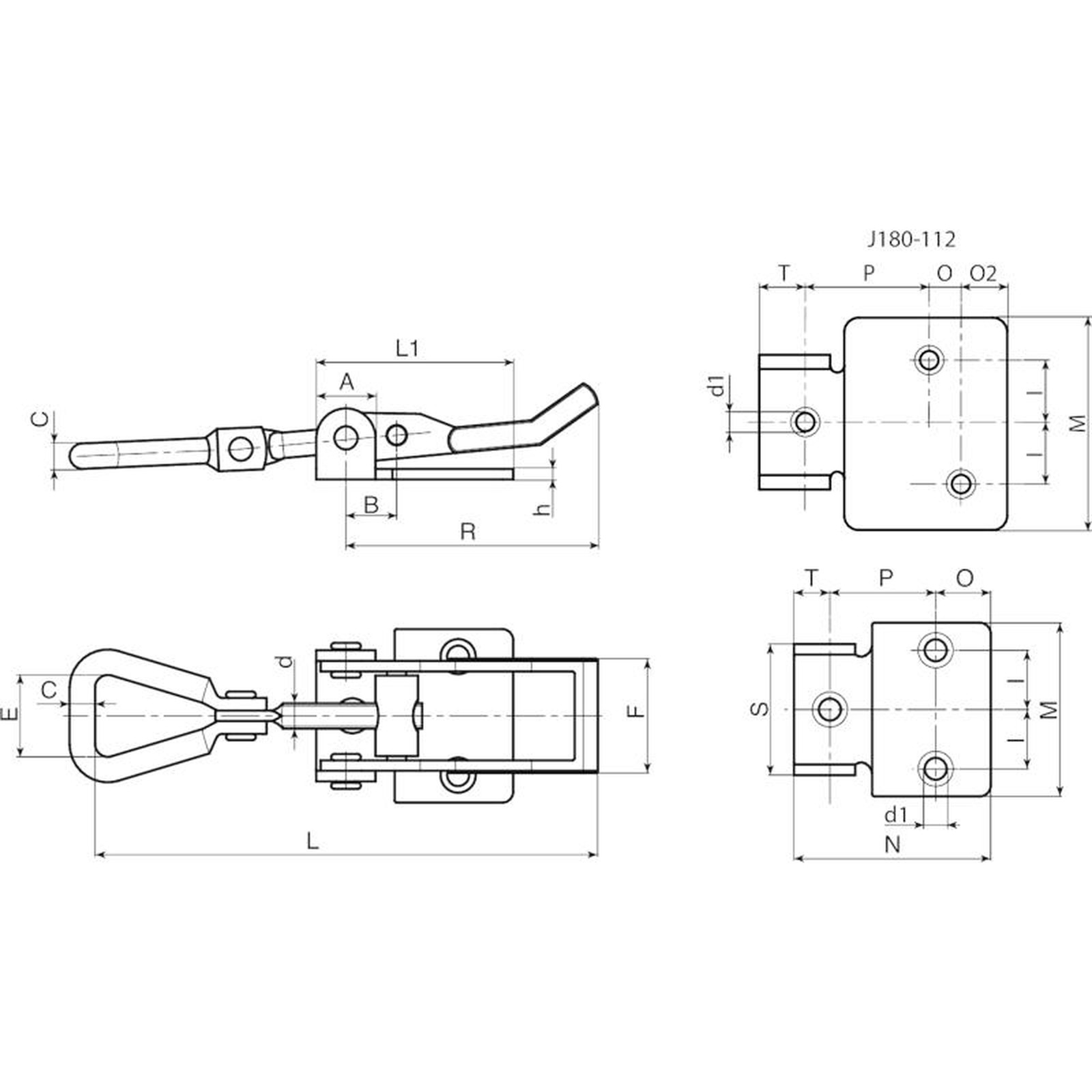

| Code | art. | R | L | L1/N | A | B | C | d | d1 | E | F | h | I | M | O | O2 | P | T | S | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| J180048.0001 | J180048.FZ | 48 | 66-75 | 35 | 10 | 11 | 4.3 | M5 | 5.5 | 18 | 17 | 2 | 7.5 | 28 | 9 | - | 12 | 14 | 20 | 35 |
| J180065.0001 | J180065.FZ | 65 | 104-124 | 46 | 14 | 12 | 6 | M6 | 5.1 | 24 | 25 | 3 | 13 | 41 | 13.5 | - | 24.5 | 8 | 31 | 110 |
| J180112.0001 | J180112.FZ | 112 | 160-175 | 70 | 20 | 14 | 7 | M8 | 7.5 | 34 | 30 | 2.5 | 17.5 | 60 | 9 | 13 | 35 | 13 | 37 | 210 |
Version J180CIN: Stainless steel version (Aisi 304).
| Code | art. | R | L | L1/N | A | B | C | d | d1 | E | F | h | I | M | O | O2 | P | T | S | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| J180048.0002 | J180048.FZCIN | 48 | 66-75 | 35 | 10 | 11 | 4.3 | M5 | 5.5 | 18 | 17 | 2 | 7.5 | 28 | 9 | - | 12 | 14 | 20 | 35 |
| J180065.0002 | J180065.FZCIN | 65 | 104-124 | 46 | 14 | 12 | 6 | M6 | 5.1 | 24 | 25 | 3 | 13 | 41 | 13.5 | - | 24.5 | 8 | 31 | 110 |
