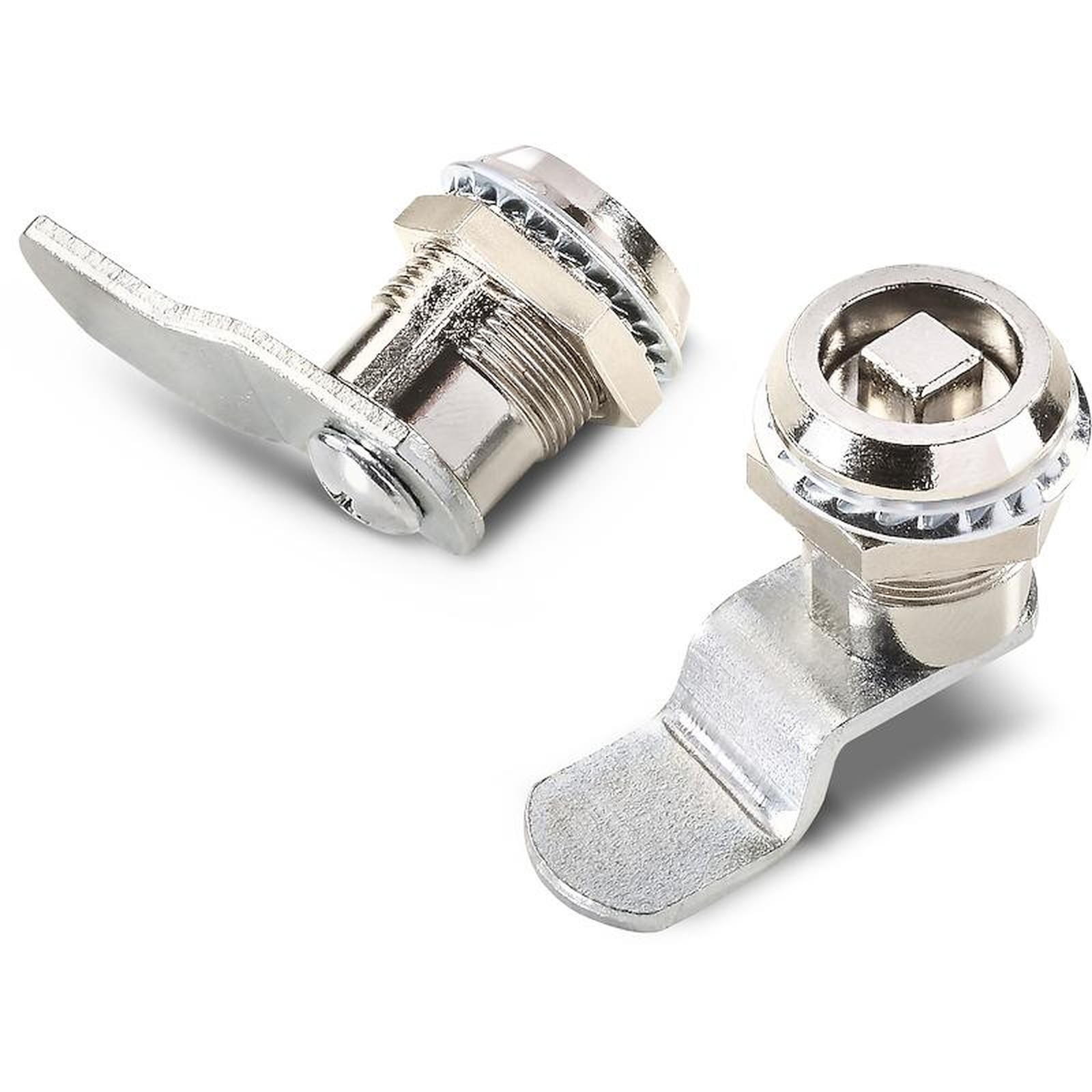

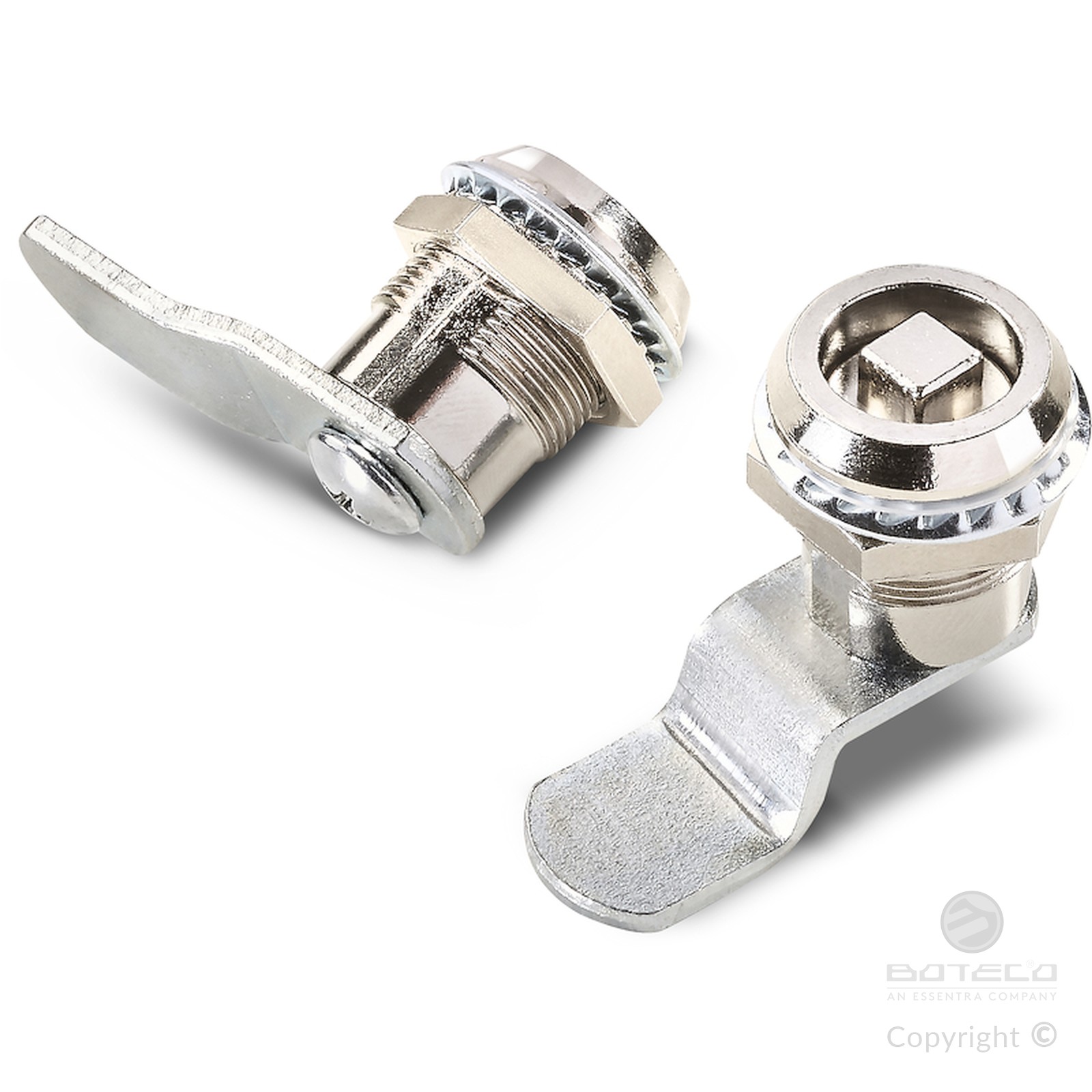

UNIVERSAL LOCK FOR 7 MM SQUARE INSERT KEY
10
J144
Serrature 1/4 giro M19

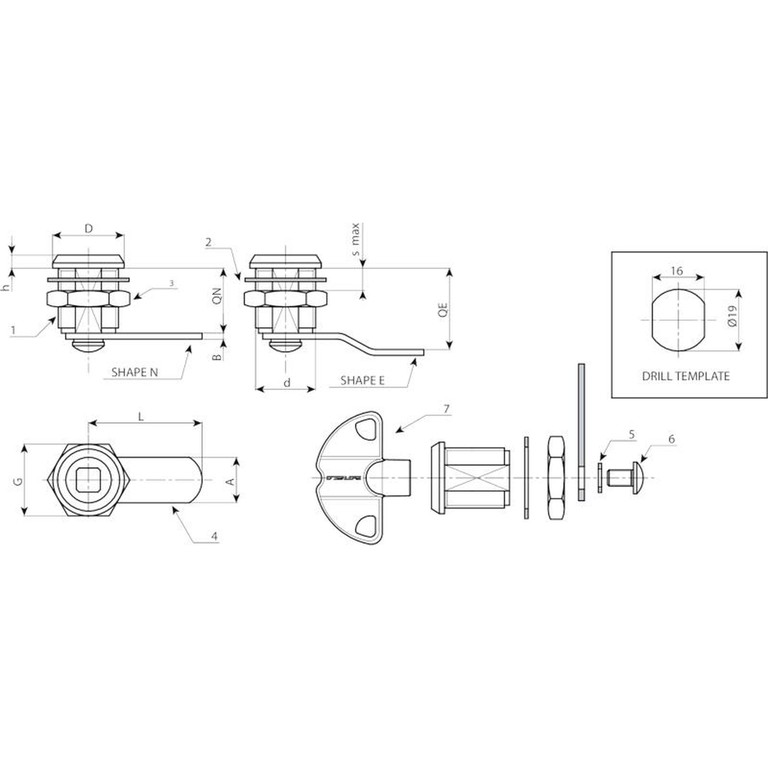

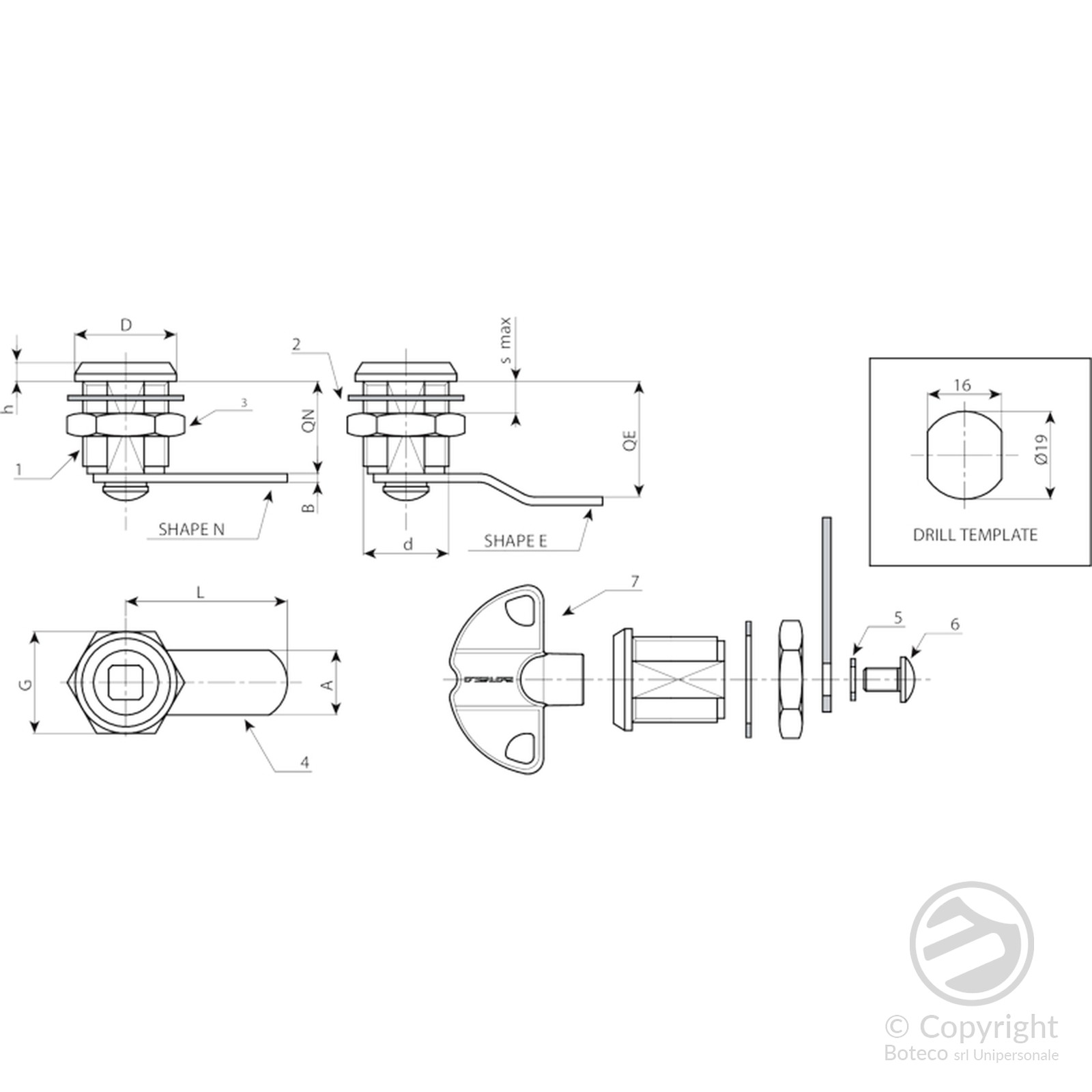

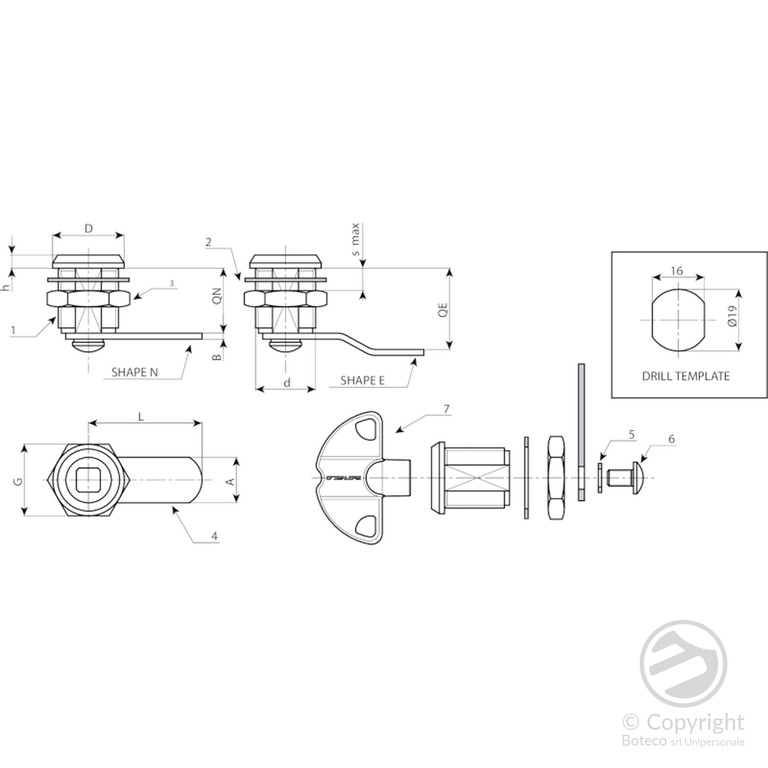

Materials:
(1) Die-cast zamak lock body M19 (stator) and rotor. 7 mm square insert key.
(2) Elastic washer d. 24x1 with bore d. 19.4.
(3) Steel hexagon lock nut M19x1.
(4) Steel locking lever. (Qn design N flat - Qe design E bent outwards).
(5) Conical steel elastic washer d. 12x1.5.
(6) Steel Phillips dome head screw M5x8.
Surface finish:
(1) Nickel-plated.
(2-5) Black oxide treated.
(3-4-6) Standard blue galvanising.
Key (optional):

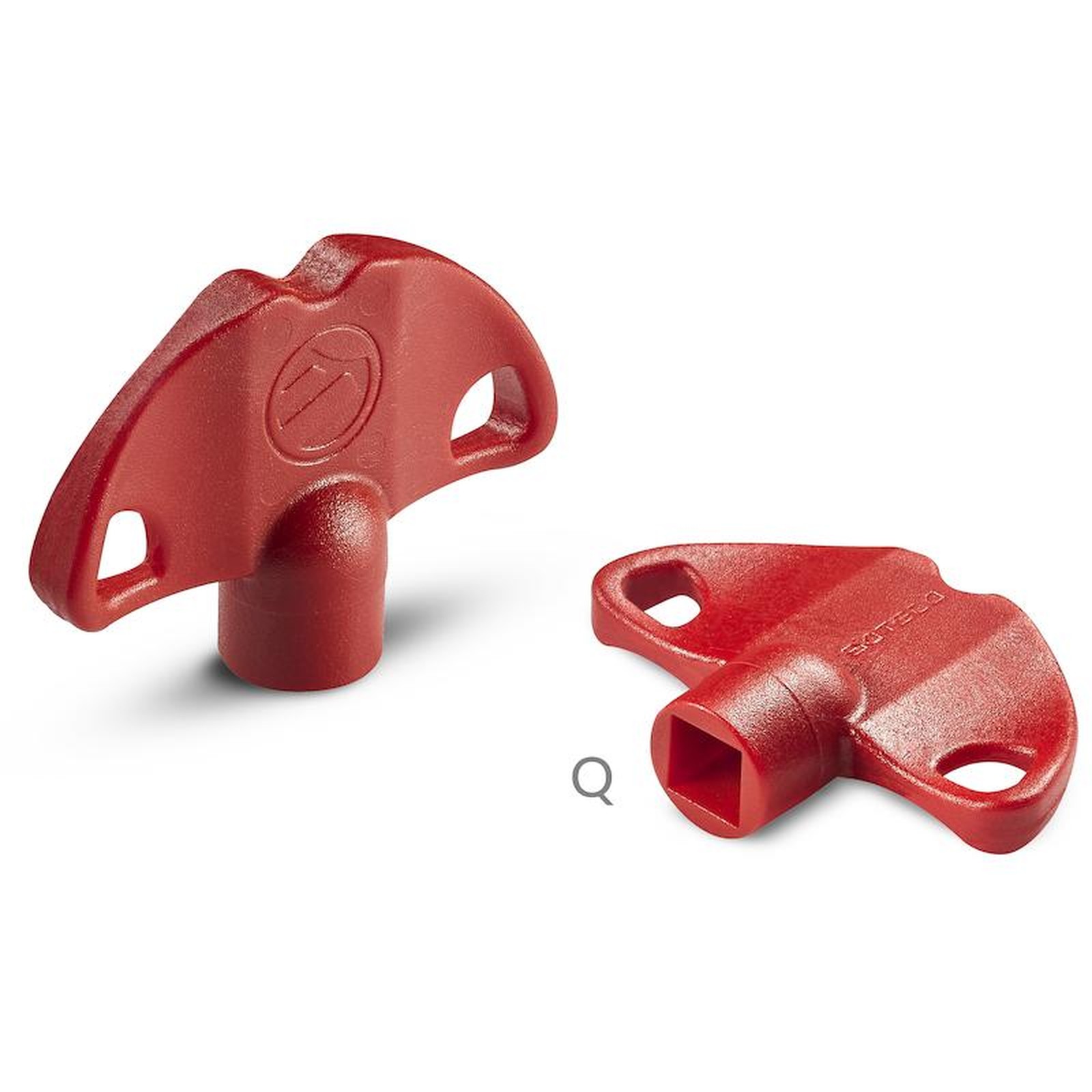

(7) Red plastic key. Art. J09050.TQ0816.
ATTENTION: The key is not supplied. To be ordered separately.
Rotation:
90°.
Special Requests:
None.
New product version
| Code | Art. | A | d | D | L | Q | E | F | G | Ht | H | s (max.) | s1 | Weight (g) | Key |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| J14419.0001 | J14419.Z07E00X38L | 7 | M19 | 22 | 38 | 20 | 0 | 16 | 22 | 31 | 4 | 6 | 2,5 | - | J09050.TQ0816 |
| J14419.0002 | J14419.Z07E02X38L | 7 | M19 | 22 | 38 | 20 | 2 | 16 | 22 | 31 | 4 | 6 | 2,5 | - | J09050.TQ0816 |
| J14419.0003 | J14419.Z07E05X35L | 7 | M19 | 22 | 35 | 20 | 5 | 16 | 22 | 31 | 4 | 6 | 2,5 | - | J09050.TQ0816 |
| J14419.0004 | J14419.Z07E09X35L | 7 | M19 | 22 | 35 | 20 | 9 | 16 | 22 | 31 | 4 | 6 | 2,5 | - | J09050.TQ0816 |
