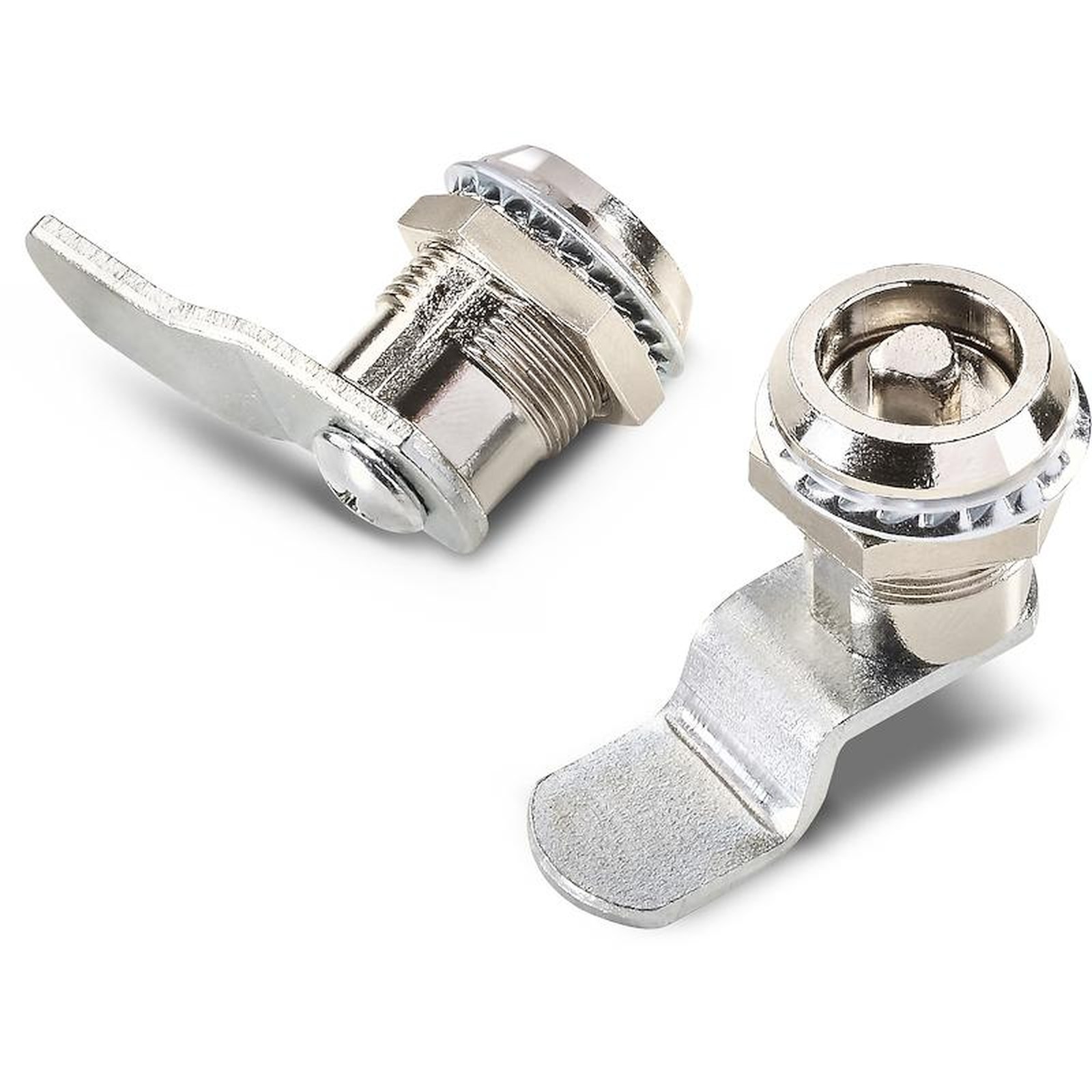

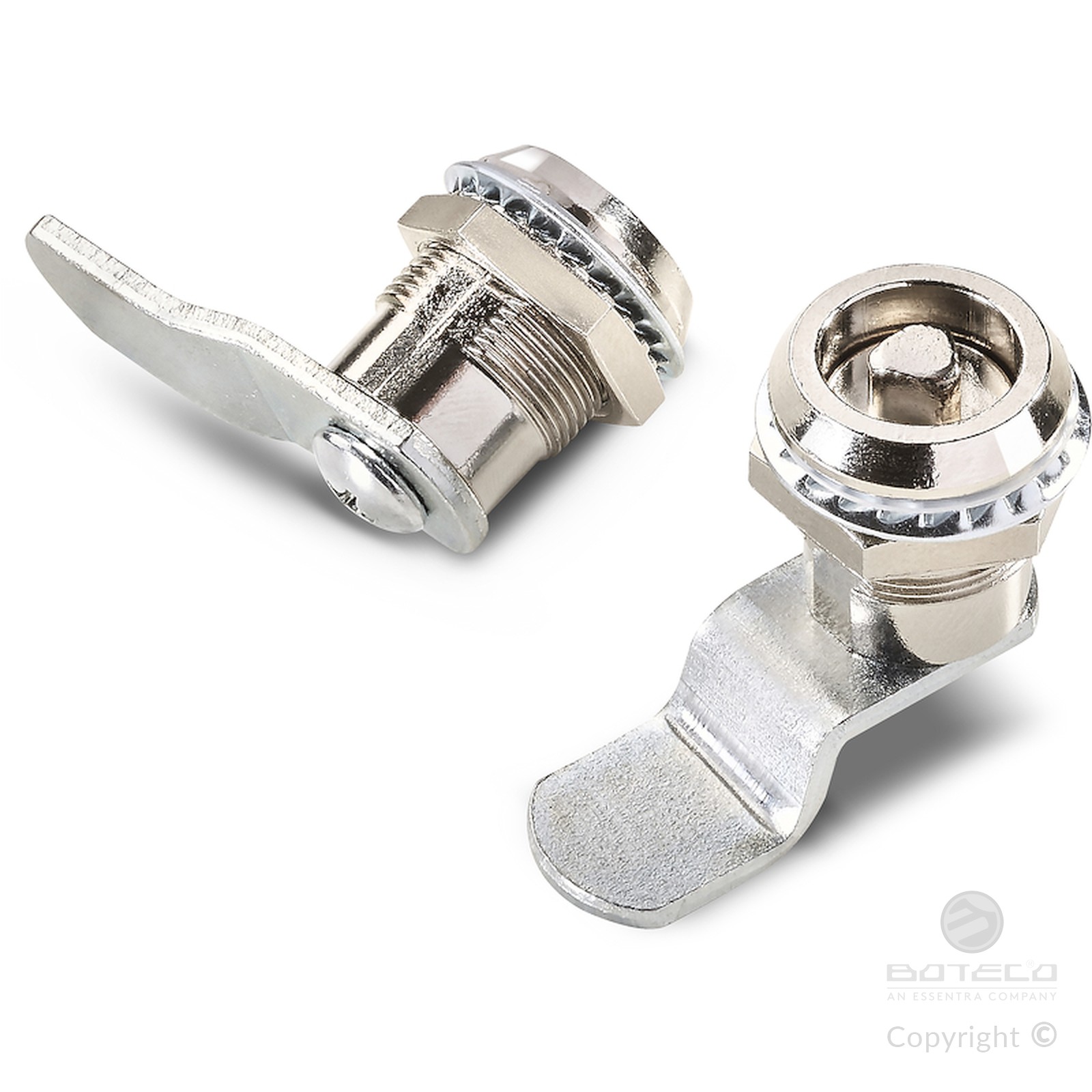

UNIVERSAL LOCK FOR TRIANGULAR INSERT KEY
10
J140
Serrature 1/4 giro M19

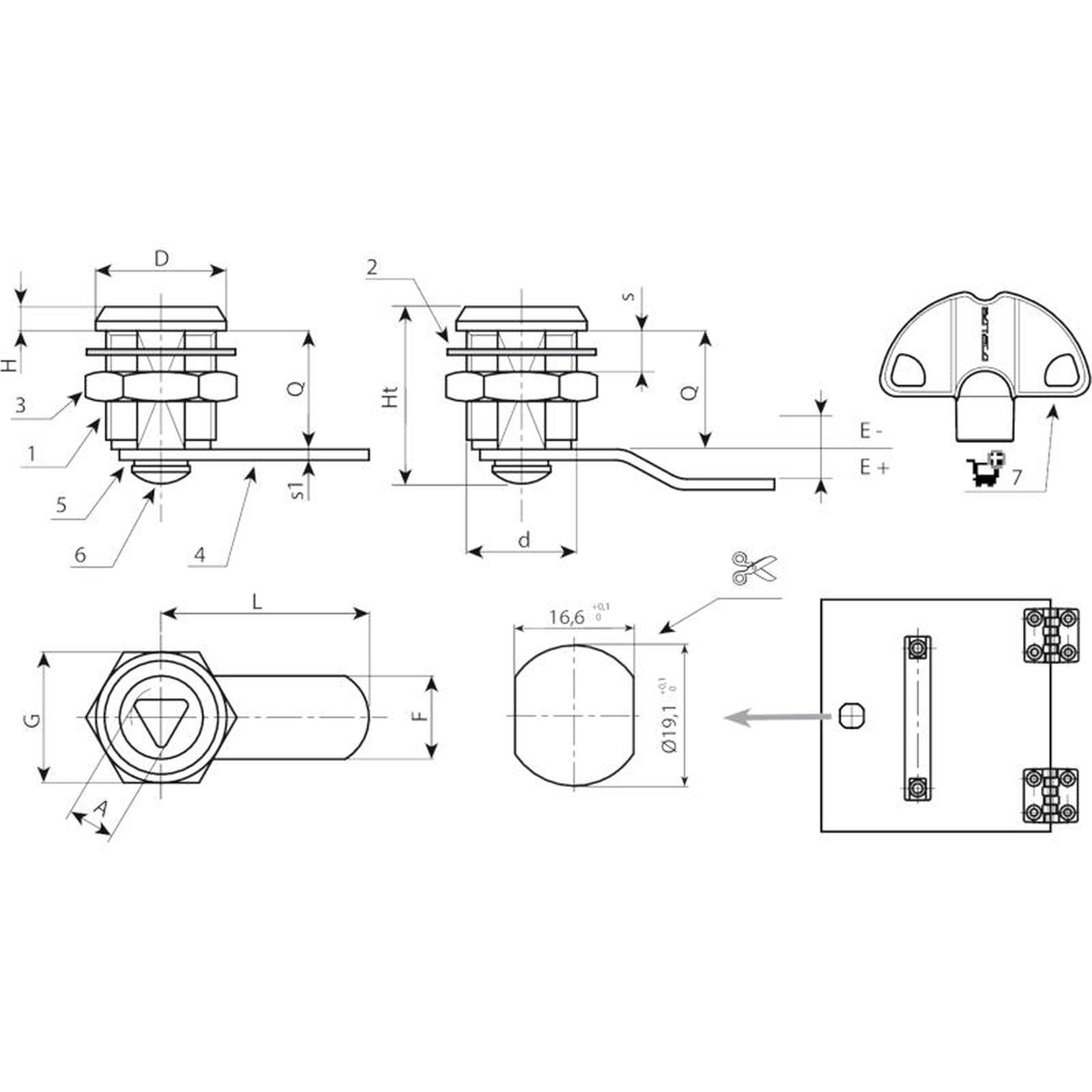

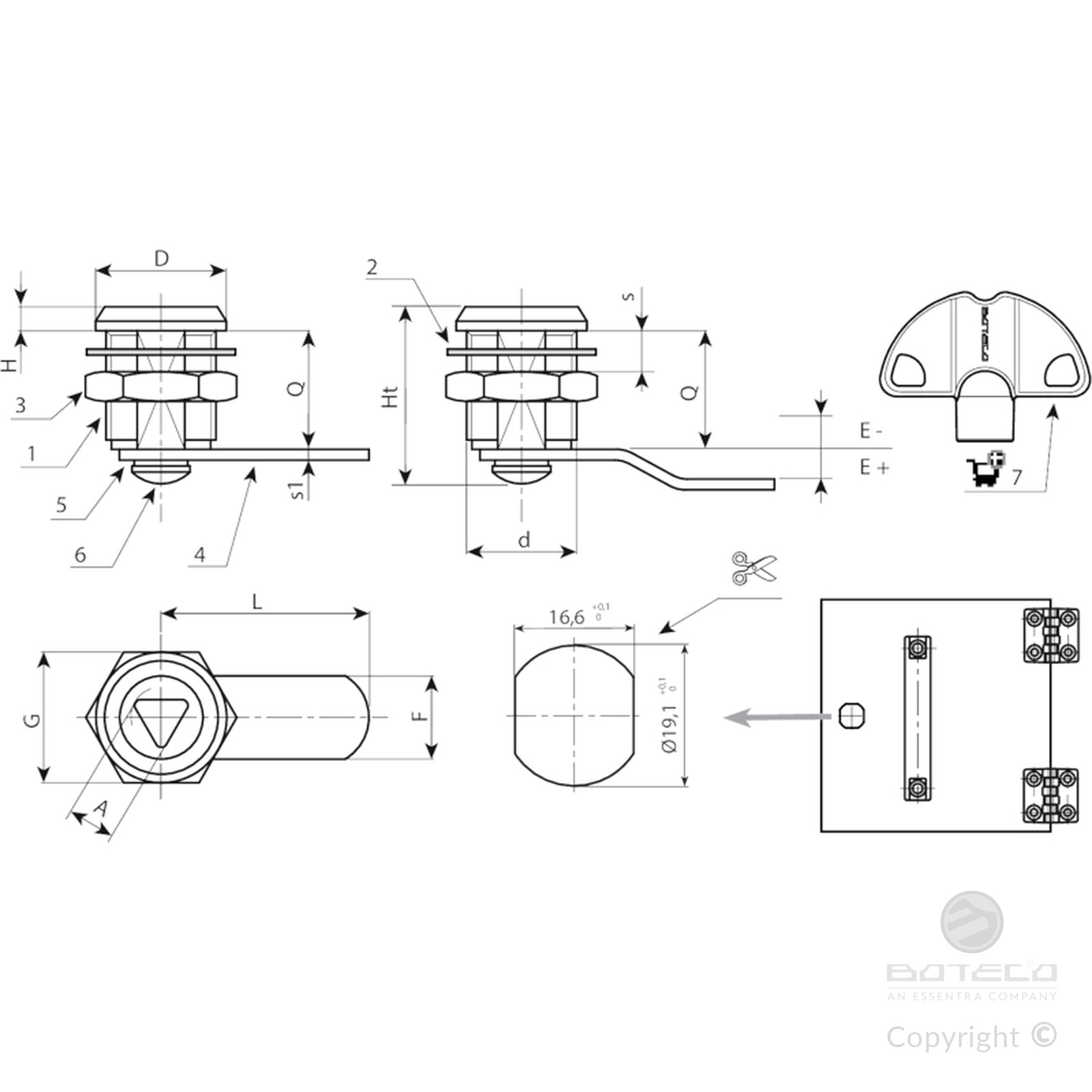

Materials:
(1) Die-cast zamak lock body M19 (stator) and rotor. 6 mm triangular insert key.
(2) Elastic washer d. 24x1 with bore d. 19.4.
(3) Steel hexagon lock nut M19x1.
(4) Steel locking lever (Qn design N flat - Qe design E bent outwards).
(5) Conical steel elastic washer d. 12x1.5.
(6) Steel Phillips dome head screw M5x8.
Surface finish:
(1) Nickel-plated.
(2-5) Black oxide treated.
(3-4-6) Standard blue galvanising.
Key (optional):

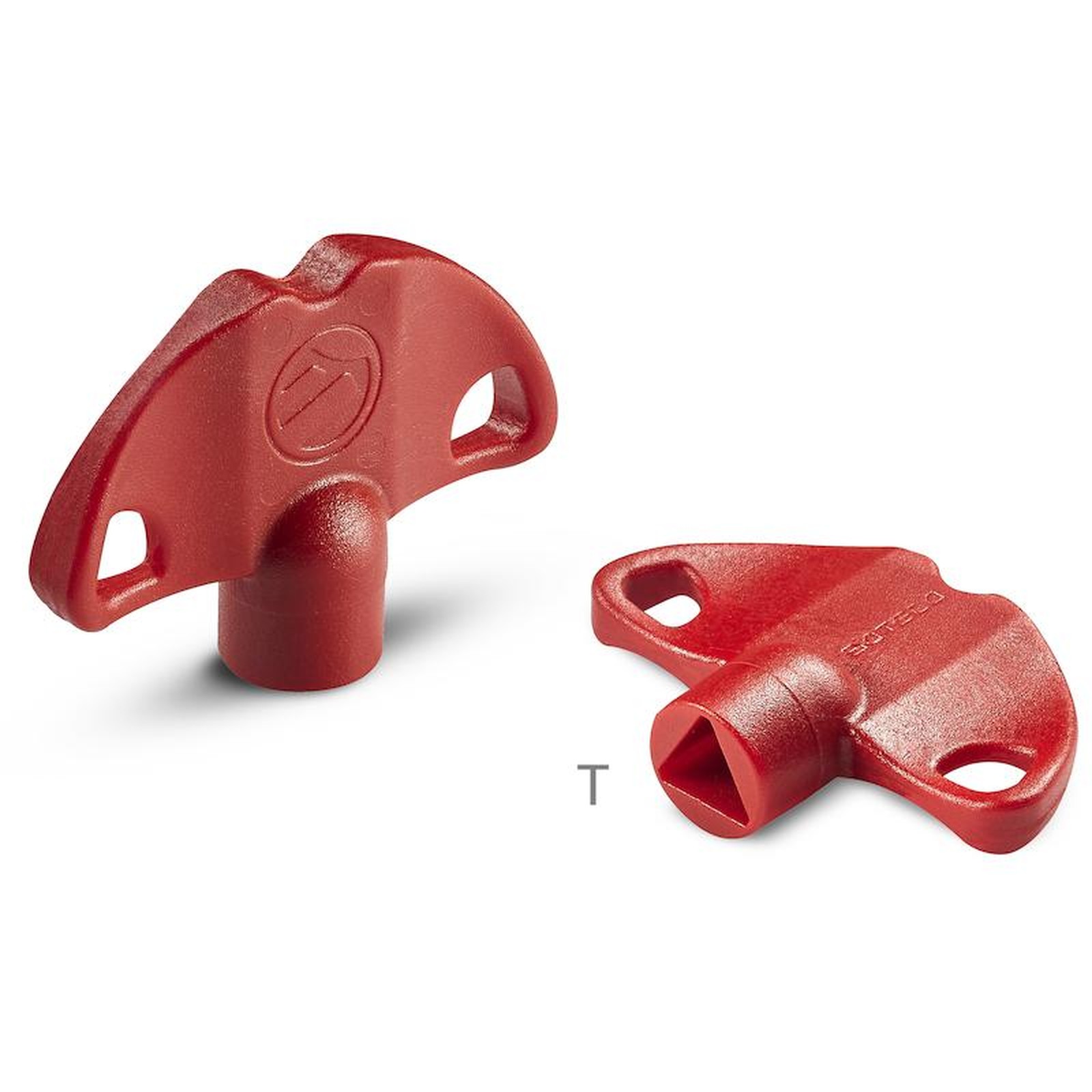

(7) Red plastic key art. J090.
ATTENTION: The key is not supplied. To be ordered separately.
Rotation:
90°.
Special Requests:
None.
New product version: with 6.5 mm triangle
| Code | Art. | A | d | D | L | Q | E | F | G | Ht | H | s (max.) | s1 | Weight (g) | Key |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| J14019.0001 | J14019.Z06E00X38L | 6,5 | M19 | 22 | 38 | 20 | 0 | 16 | 22 | 31 | 4 | 6 | 2.5 | 50 | J09050.0005 |
| J14019.0002 | J14019.Z06E02X38L | 6,5 | M19 | 22 | 38 | 20 | 2 | 16 | 22 | 31 | 4 | 6 | 2.5 | 50 | J09050.0005 |
| J14019.0003 | J14019.Z06E05X35L | 6,5 | M19 | 22 | 35 | 20 | 5 | 16 | 22 | 31 | 4 | 6 | 2.5 | 50 | J09050.0005 |
| J14019.0004 | J14019.Z06E09X35L | 6,5 | M19 | 22 | 35 | 20 | 9 | 16 | 22 | 31 | 4 | 6 | 2.5 | 50 | J09050.0005 |
New product version: with 8 mm triangle
| Code | Art. | A | d | D | L | Q | E | F | G | Ht | H | s (max.) | s1 | Weight (g) | Key |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| J14019.0005 | J14019.Z08E00X38L | 8 | M19 | 22 | 38 | 20 | 0 | 16 | 22 | 31 | 4 | 6 | 2.5 | 50 | J09050.0004 |
| J14019.0006 | J14019.Z08E02X38L | 8 | M19 | 22 | 38 | 20 | 2 | 16 | 22 | 31 | 4 | 6 | 2.5 | 50 | J09050.0004 |
| J14019.0007 | J14019.Z08E05X35L | 8 | M19 | 22 | 35 | 20 | 5 | 16 | 22 | 31 | 4 | 6 | 2.5 | 50 | J09050.0004 |
| J14019.0008 | J14019.Z08E09X35L | 8 | M19 | 22 | 35 | 20 | 9 | 16 | 22 | 31 | 4 | 6 | 2.5 | 50 | J09050.0004 |
