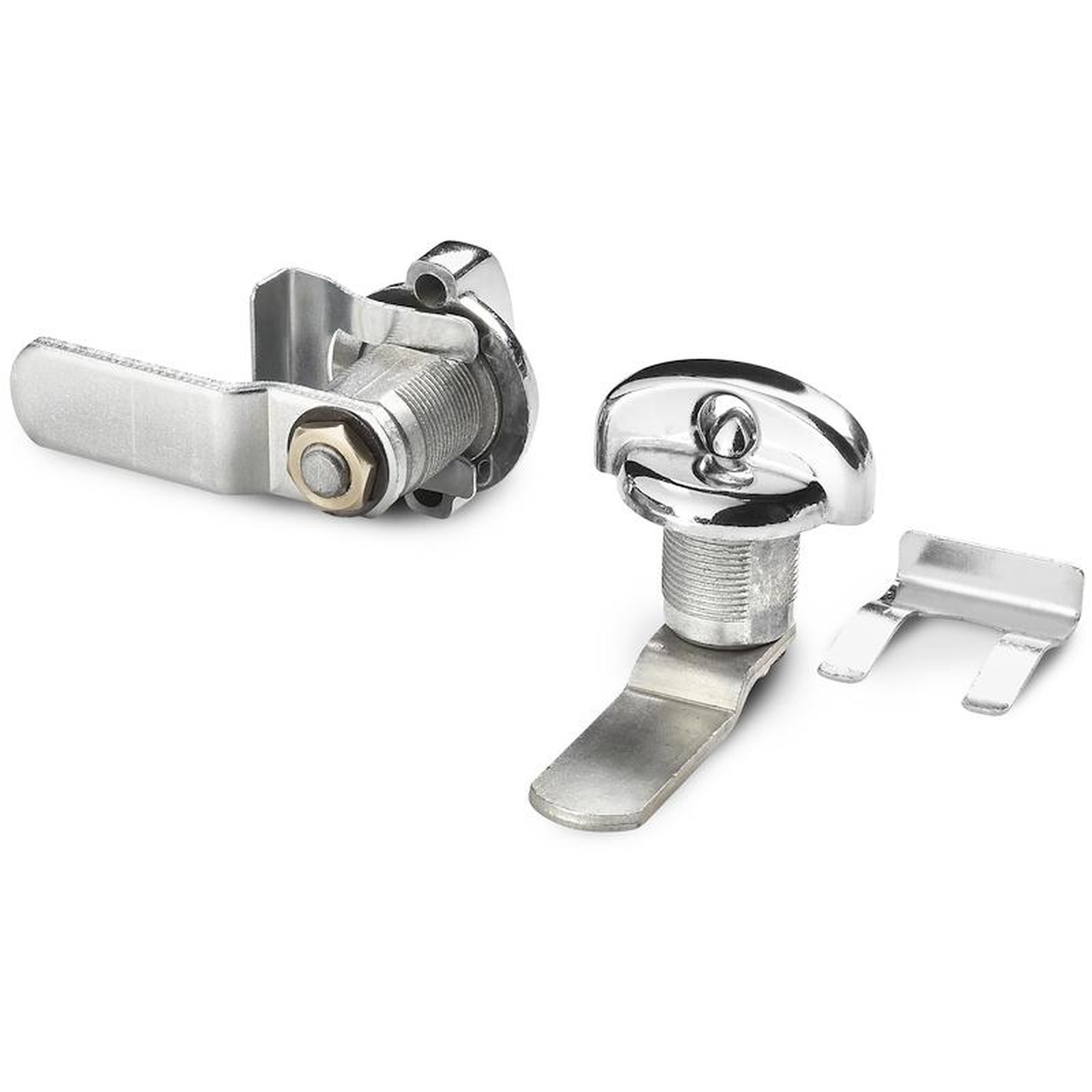

UNIVERSAL QUARTER TURN ZAMAK CAM LOCK, M19 THREAD WITH KNOB AND HOLE FOR PADLOCK
J131
Serrature 1/4 giro M19

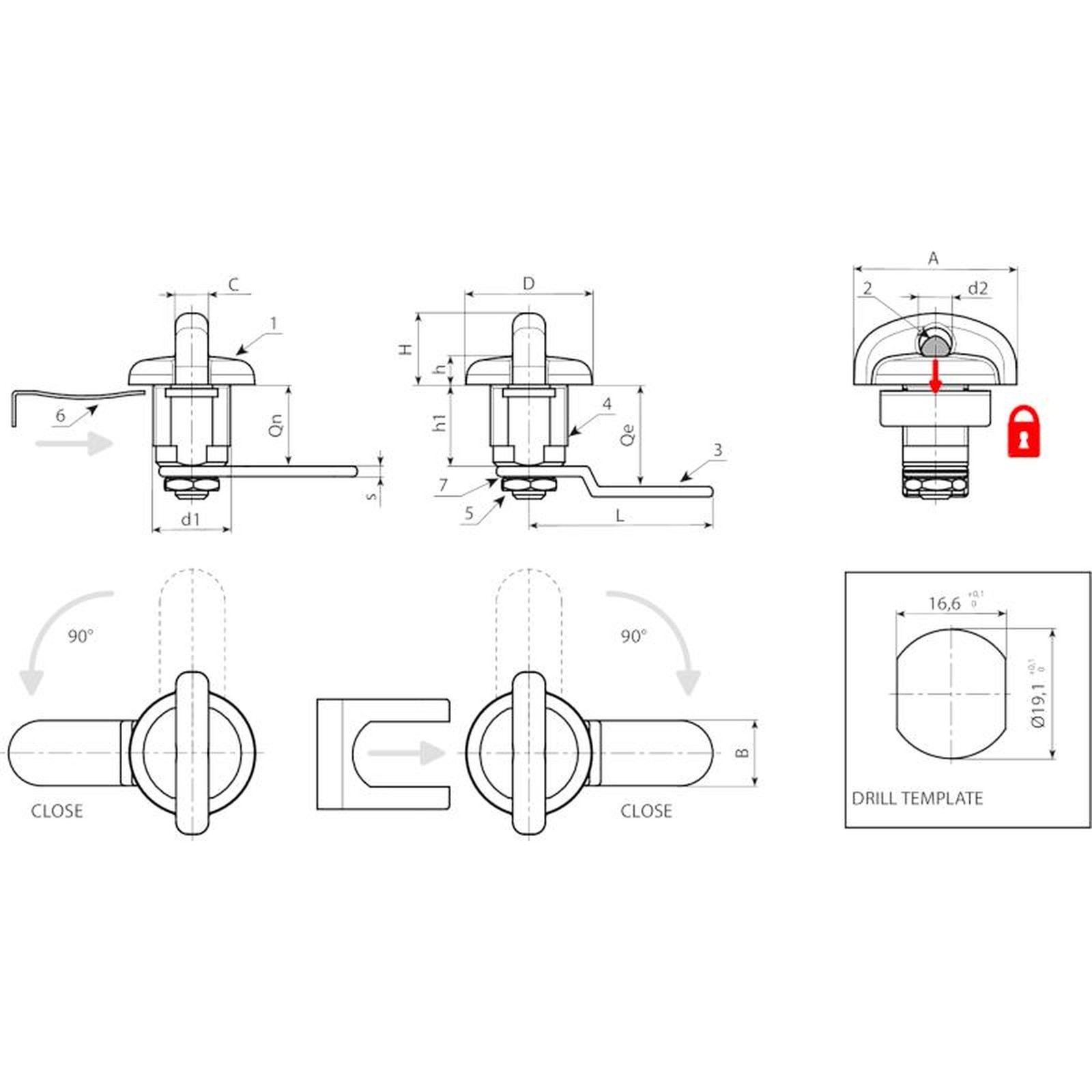

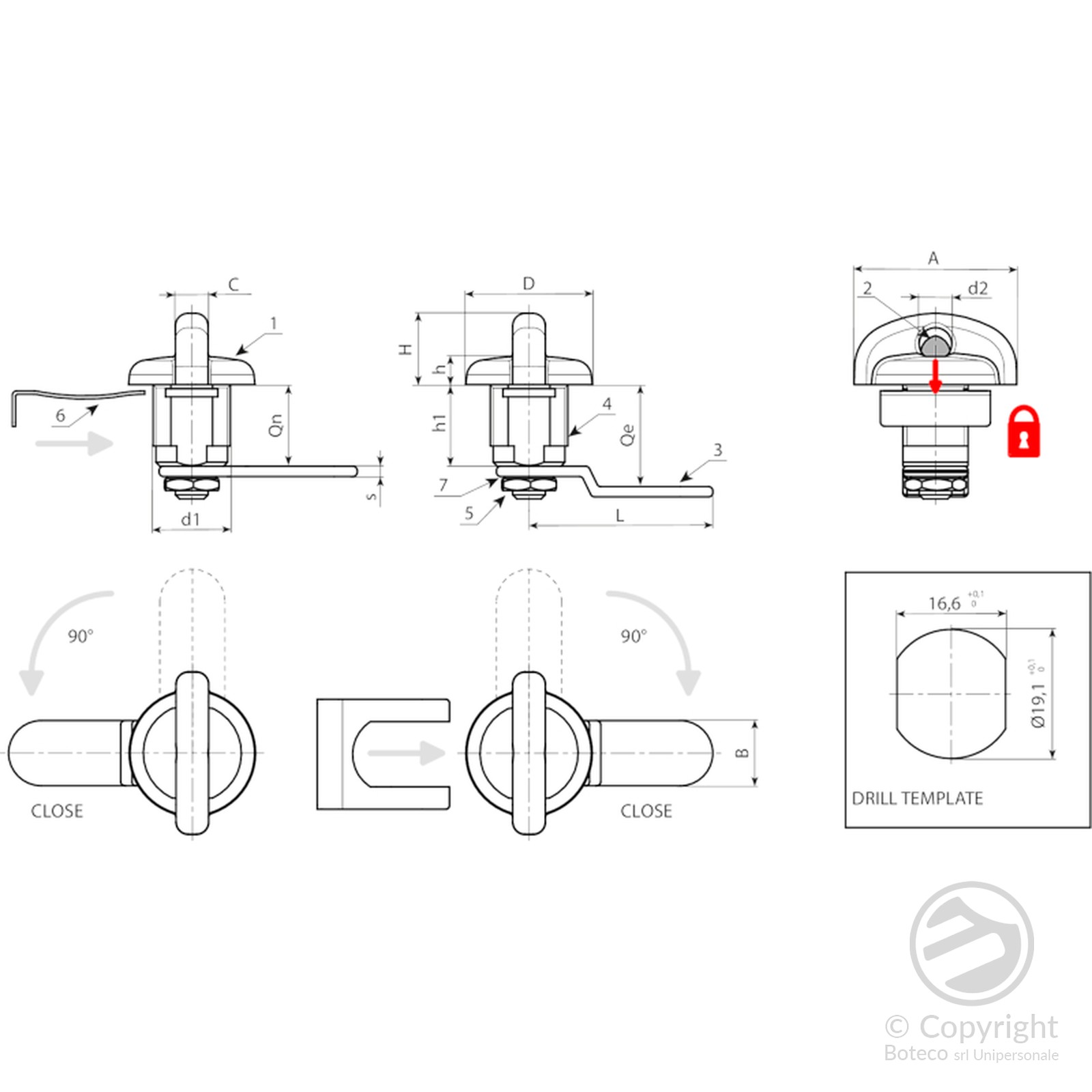

Materials:
(1-4) Die-cast zamak lock body M19 (stator), rotor and knob.
(2) Zamak locking pawl. If pressed, the lock rotates idle. It is possible to insert the bow of a padlock (maximum diameter: 7.5 mm).
(3) Steel cam (E=0 straight, E=2, 7 formed out, E=-2 formed in).
(5) Brass hexagon lock nut M19x1.
(6) Steel locking fork. To be inserted into the special groove to secure the lock to the panel.
(7) Anti-rotation split washer in black-oxide treated steel.
Surface finish:
Smooth.
Colour:
(1) Chromed.
(3-4-6) Galvanised.
Rotation:
J131-O:
90° with clockwise closing movement.
J131-A:
90° with counterclockwise closing movement.
Special Requests:
Cams available for the locks with E=0:
L=30 (J131019.ZN30X20O - J131019.ZN30X20A),
L=41 (J131019.ZN41X20O - J131019.ZN41X20A),
Cams available for the locks with E=2:
L=45 (J131019.ZE45X22O - J131019.ZE45X22A),
Cams available for the locks with E=7:
L=41 (J131019.ZE41X27O - J131019.ZE41X27A),
Version J131-O: with clockwise rotation.
| Code | Art. | A | d | d2 | D | L1 | L | Q | E | F | G | H1 | Ht | H | s | s1 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| J131019.0004 | J131019.ZN45X20O | 8 | M19 | 8 | 31,5 | 40 | 45 | 20 | 0 | 16 | 20,5 | 18 | 29 | 7 | 2 | 2,5 | 90 |
| J131019.0002 | J131019.ZE41X25O | 8 | M19 | 8 | 31,5 | 40 | 45 | 20 | 5 | 16 | 20,5 | 18 | 29 | 7 | 2 | 2,5 | 95 |
Version J131-A: with counterclockwise rotation.
| Code | Art. | A | d | d2 | D | L1 | L | Q | E | F | G | H1 | Ht | H | s | s1 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| J131019.0003 | J131019.ZN45X20A | 8 | M19 | 8 | 31,5 | 40 | 45 | 20 | 0 | 16 | 20,5 | 18 | 29 | 7 | 2 | 2,5 | 90 |
| J131019.0001 | J131019.ZE41X25A | 8 | M19 | 8 | 31,5 | 40 | 45 | 20 | 5 | 16 | 20,5 | 18 | 29 | 7 | 2 | 2,5 | 95 |
