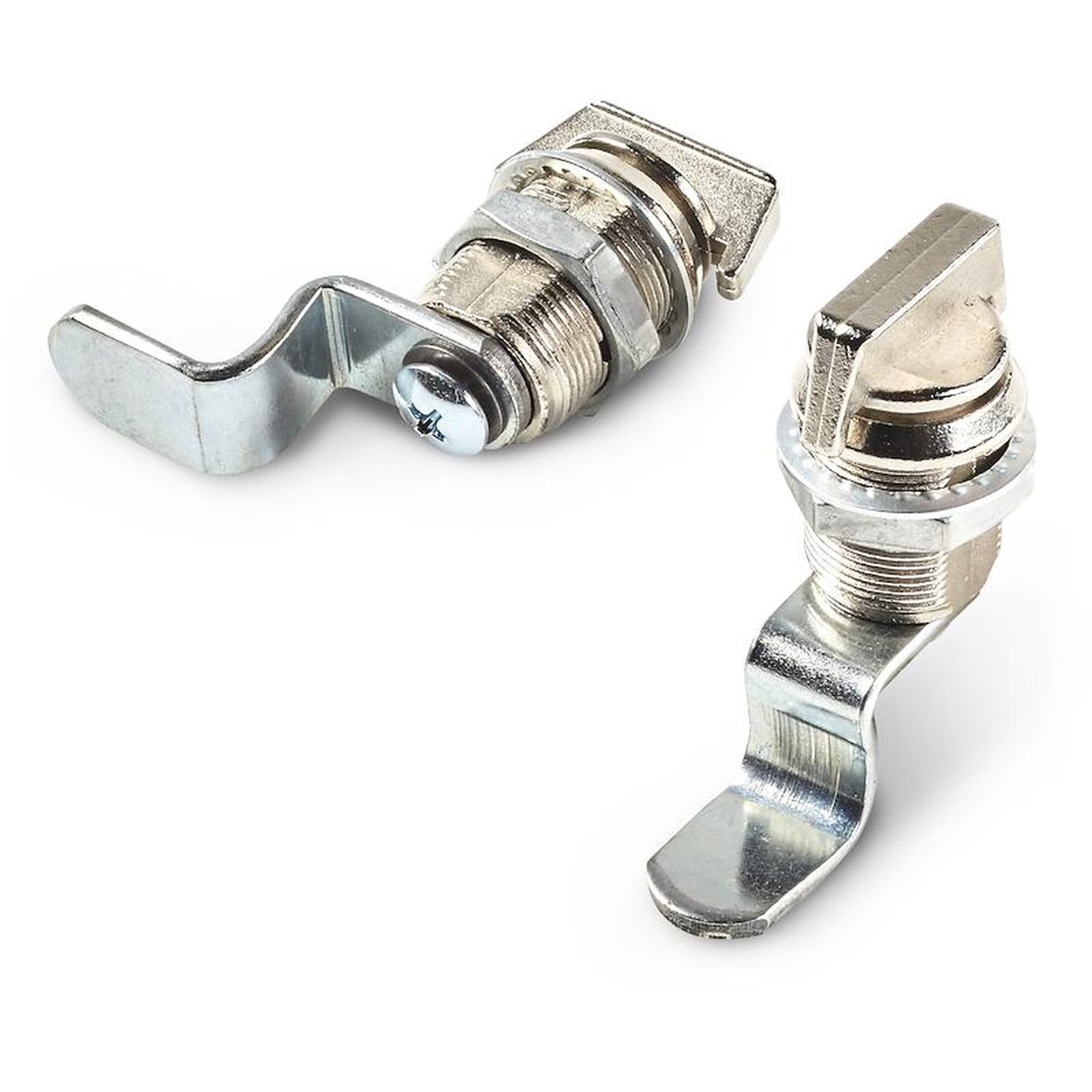

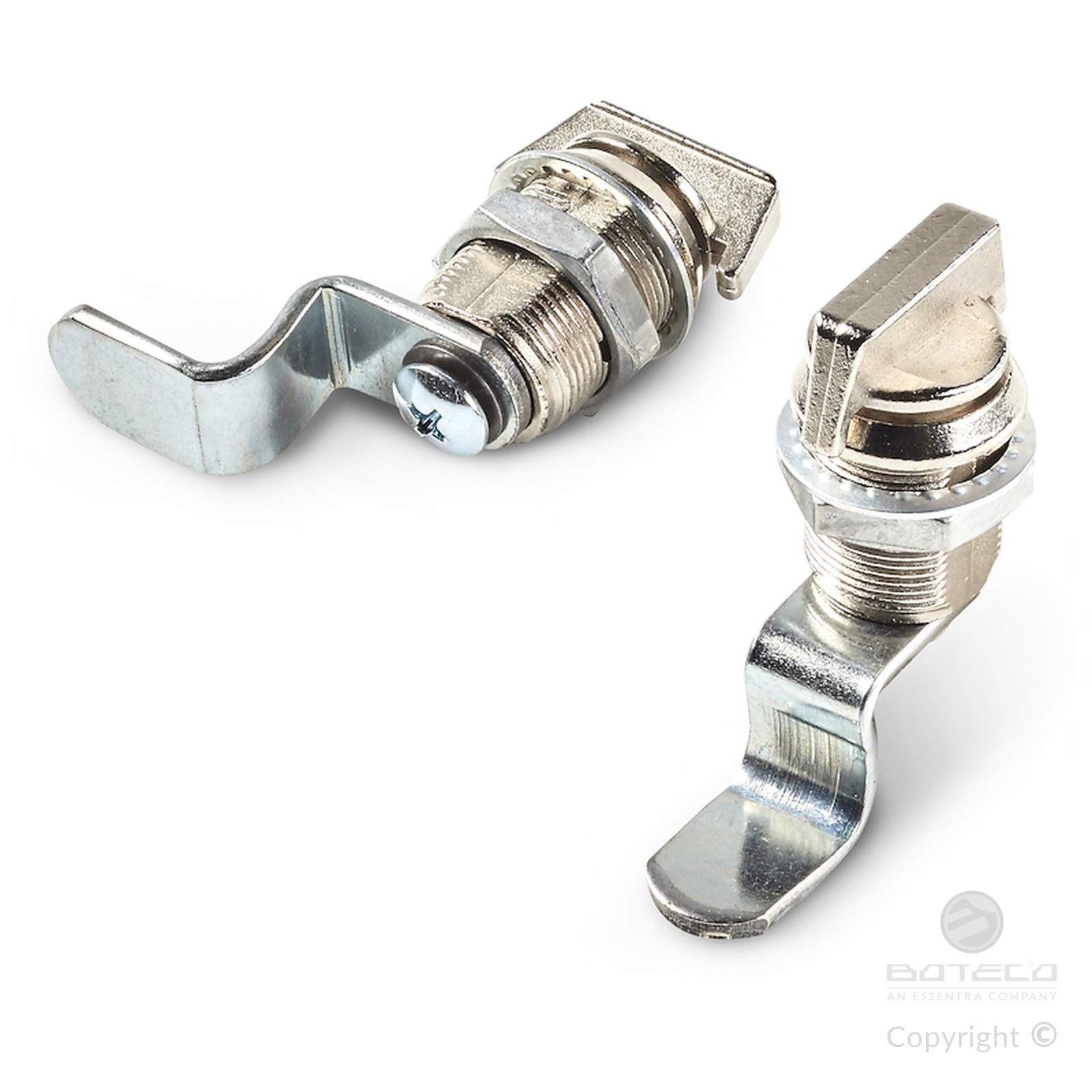

UNIVERSAL LOCK WITH KNOB
10
J130
Serrature 1/4 giro M19

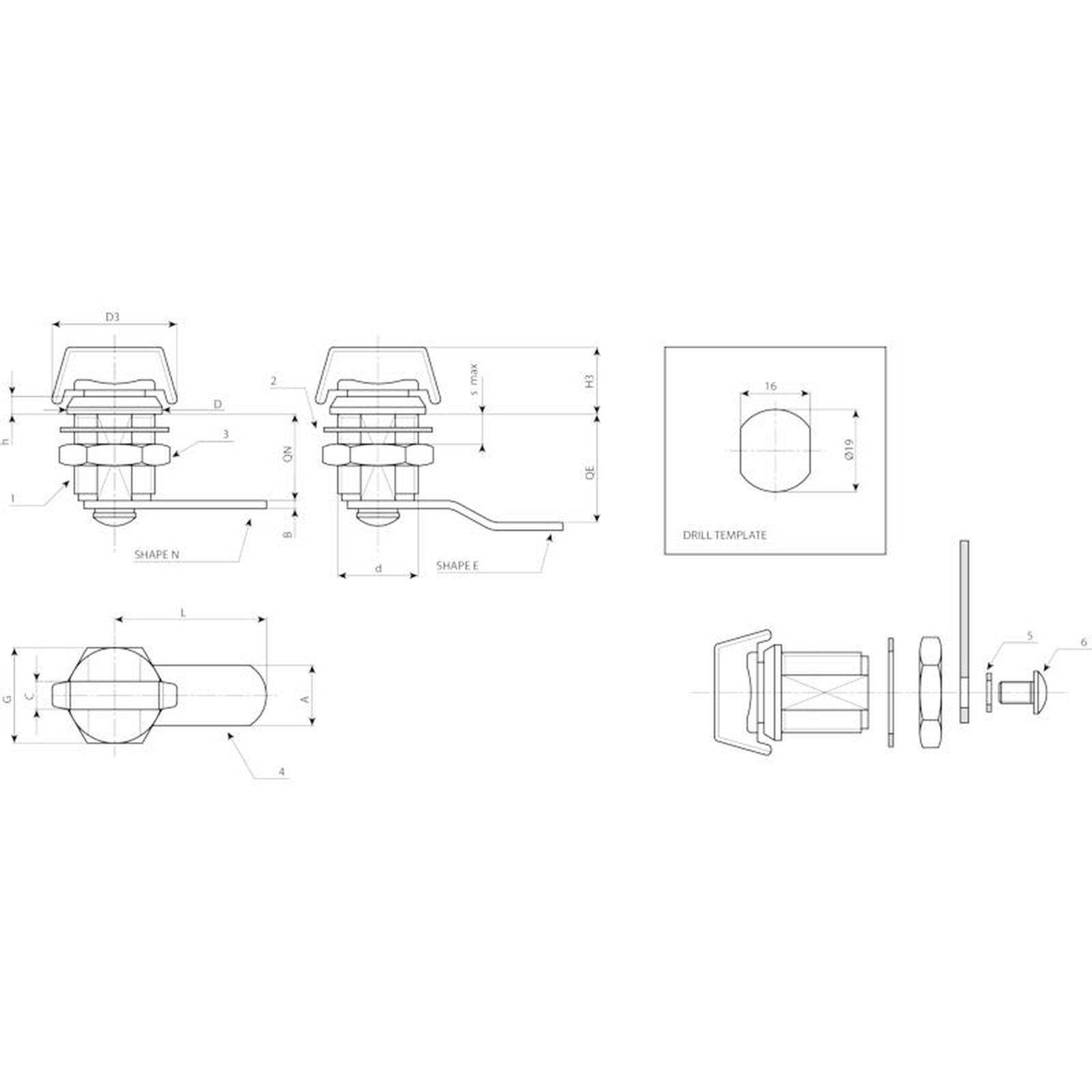

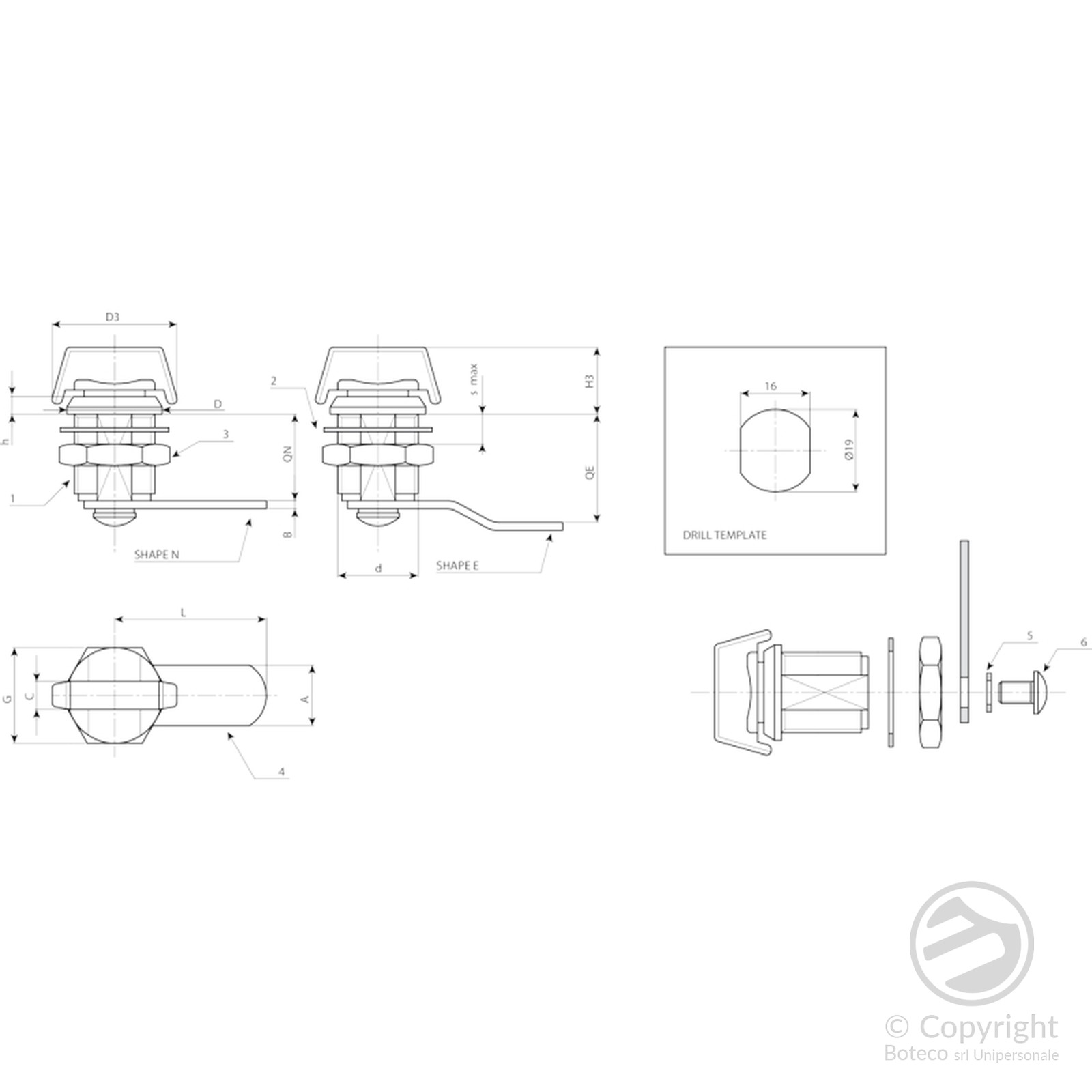

Materials:
(1) Die-cast zamak lock body M19 (stator), rotor and knob.
(2) Elastic washer d. 24x1 with bore d. 19.4.
(3) Galvanised steel hexagon lock nut M19x1.
(4) Galvanised steel locking lever. (Qn design N flat - Qe design E bent outwards).
(5) Conical steel elastic washer d. 12x1.5.
(6) Galvanised steel Phillips dome head screw M5x8.
Surface finish:
(1) Nickel-plated.
(2-5) Black oxide treated.
(3-4-6) Standard blue galvanising.
Rotation:
90°.
Special Requests:
None.
| Code | Art. | A | d | D | L1 | L | Q | E | F | G | H1 | Ht | H | s (max.) | s1 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| J130019.0004 | J130019.ZN30X20 | 6.5 | M19 | 22 | 29,5 | 30 | 20 | 0 | 14 | 22 | 15 | 31 | 4 | 6 | 2.5 | 57 |
