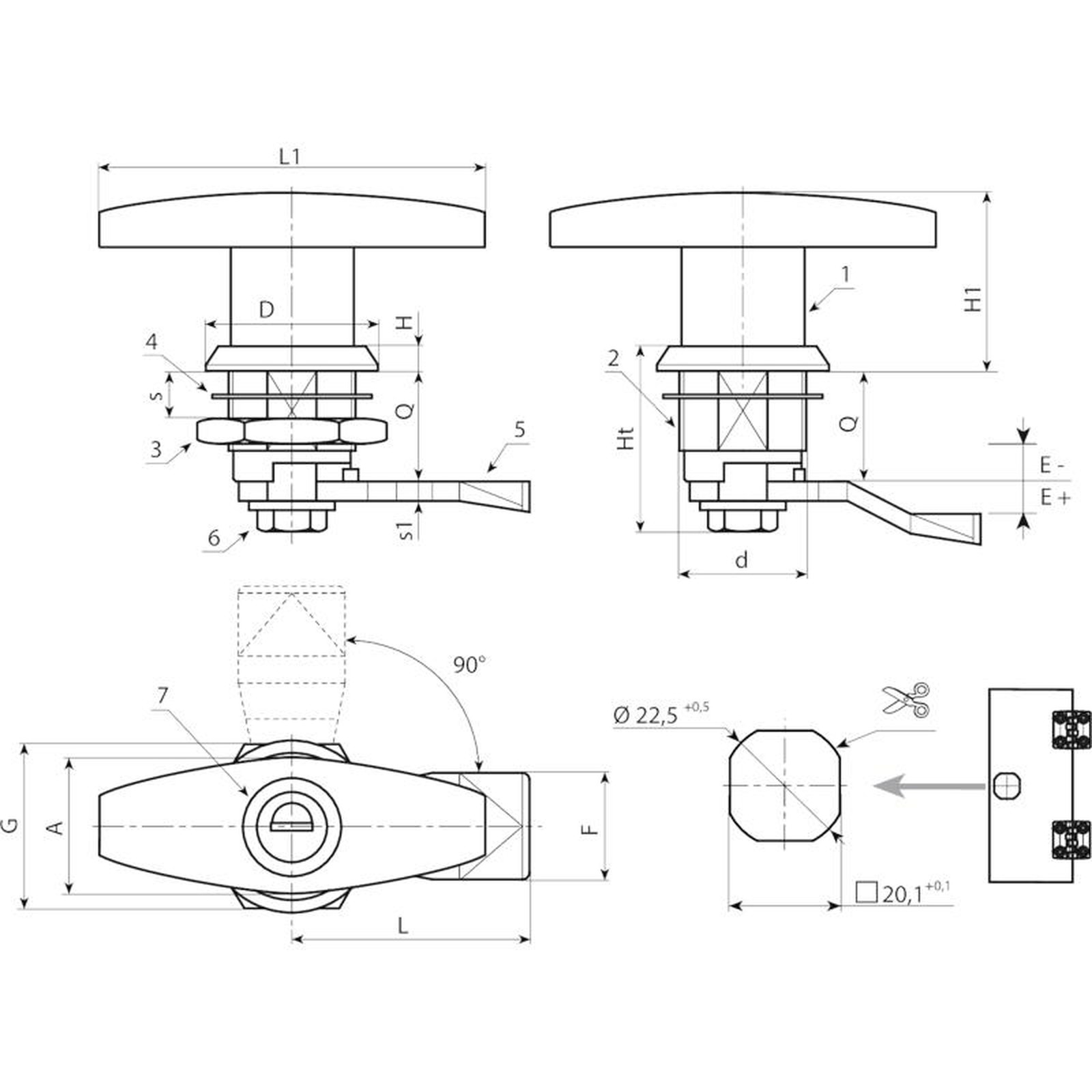

Materials:
(1) T-handle made in zamak alloy (zinc, aluminium, copper).
(2) Die-cast zamak lock body M22x1.5 (stator) and rotor.
(3) Die-cast zamak hexagon lock nut M22x1.5.
(4) Rubber gasket.
(5) Steel cam (E=0 straight, E=2,4,6,8,10 formed out).
(6) Phillips steel fixing screw M6x10.
(7) Stainless steel lock cylinder, keyed alike.
Surface finish:
L129-01
(1) Satin.
(2-3-4-5-6) Smooth.
L129-L
Smooth.
Colour:
L128-01
(1) Black epoxy powder coated (RAL 9011).
(2-3-4-5-6) Standard galvanising.
L128-L
(1) Bright chrome plating.
(2-3-4-5-6) Standard galvanising.
Key:
Pair of keyed alike keys with plastic body.
Rotation: 90°
Special Requests:

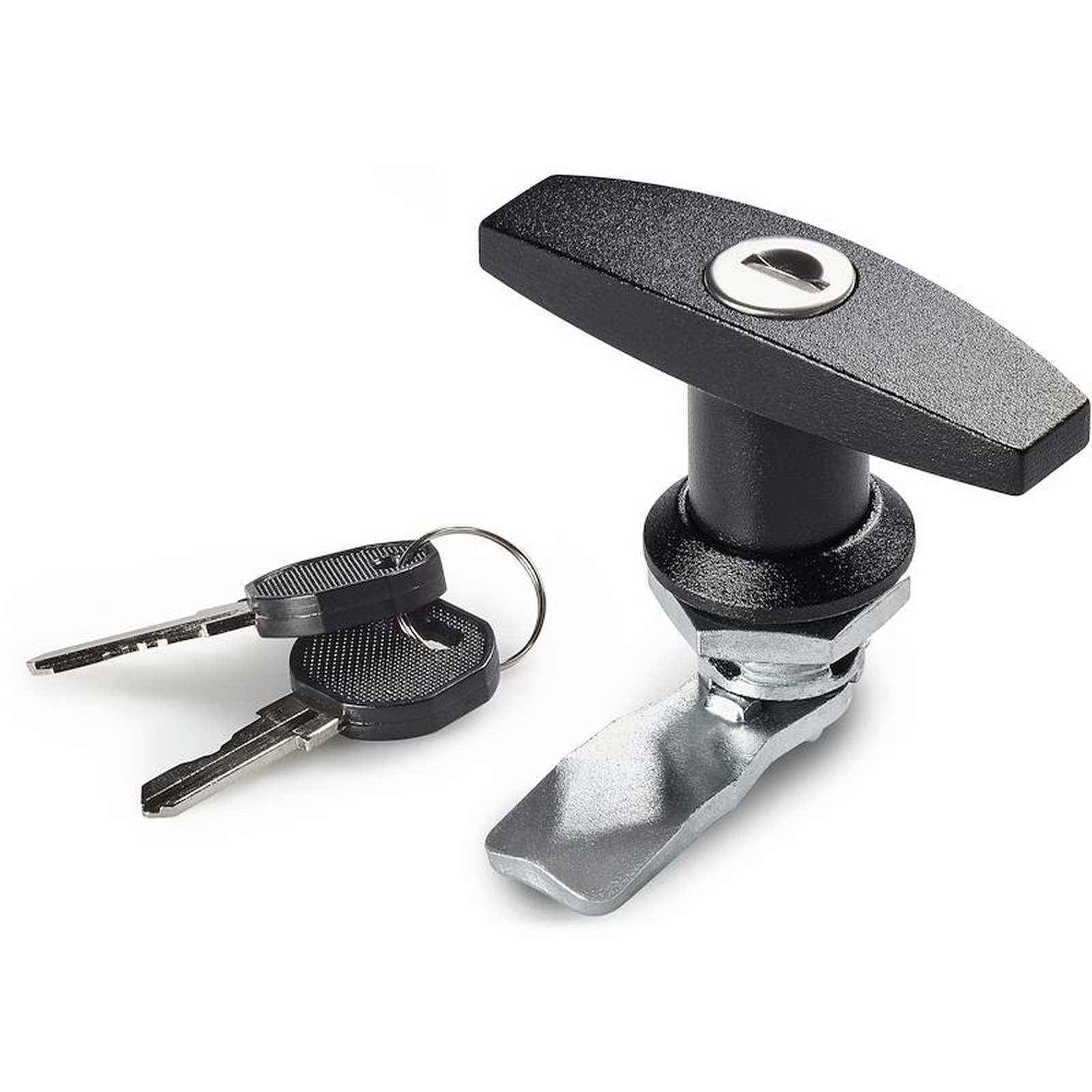

Version J129-01: black coated.
| Code | Art. | d | Q | L1 | L | E | F | D | A | G | H1 | Ht | H | H1 | s (max.) | s1 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| J12922.0004 | J12922.Z18E-4X4501 | M22 | 18 | 78 | 45 | -4 | 19 | 32 | 23 | 27 | 38 | 32,5 | 6 | 38 | 8 | 4 | - |
| J12922.0005 | J12922.Z18E-2X4501 | M22 | 18 | 78 | 45 | -2 | 19 | 32 | 23 | 27 | 38 | 32,5 | 6 | 38 | 8 | 4 | - |
| J12922.0001 | J12922.Z18E00X4501 | M22 | 18 | 78 | 45 | 0 | 19,5 | 32 | 23 | 27 | 38 | 32,5 | 6 | 38 | 8 | 4 | - |
| J12922.0006 | J12922.Z18E02X4501 | M22 | 18 | 78 | 45 | 2 | 19 | 32 | 23 | 27 | 38 | 32,5 | 6 | 38 | 8 | 4 | - |
| J12922.0007 | J12922.Z18E04X4501 | M22 | 18 | 78 | 45 | 4 | 19 | 32 | 23 | 27 | 38 | 32,5 | 6 | 38 | 8 | 4 | - |
| J12922.0008 | J12922.Z18E06X4501 | M22 | 18 | 78 | 46 | 6 | 19,5 | 32 | 23 | 27 | 38 | 32,5 | 6 | 38 | 8 | 4 | - |
| J12922.0003 | J12922.Z18E08X4501 | M22 | 18 | 78 | 45 | 8 | 19,5 | 32 | 23 | 27 | 38 | 32,5 | 6 | 38 | 8 | 4 | - |
| J12922.0009 | J12922.Z18E10X4501 | M22 | 18 | 78 | 45 | 10 | 19,5 | 32 | 23 | 27 | 38 | 32,5 | 6 | 38 | 8 | 4 | - |
| J12922.0010 | J12922.Z18E12X4501 | M22 | 18 | 78 | 45 | 12 | 19,5 | 32 | 23 | 27 | 38 | 32,5 | 6 | 38 | 8 | 4 | - |

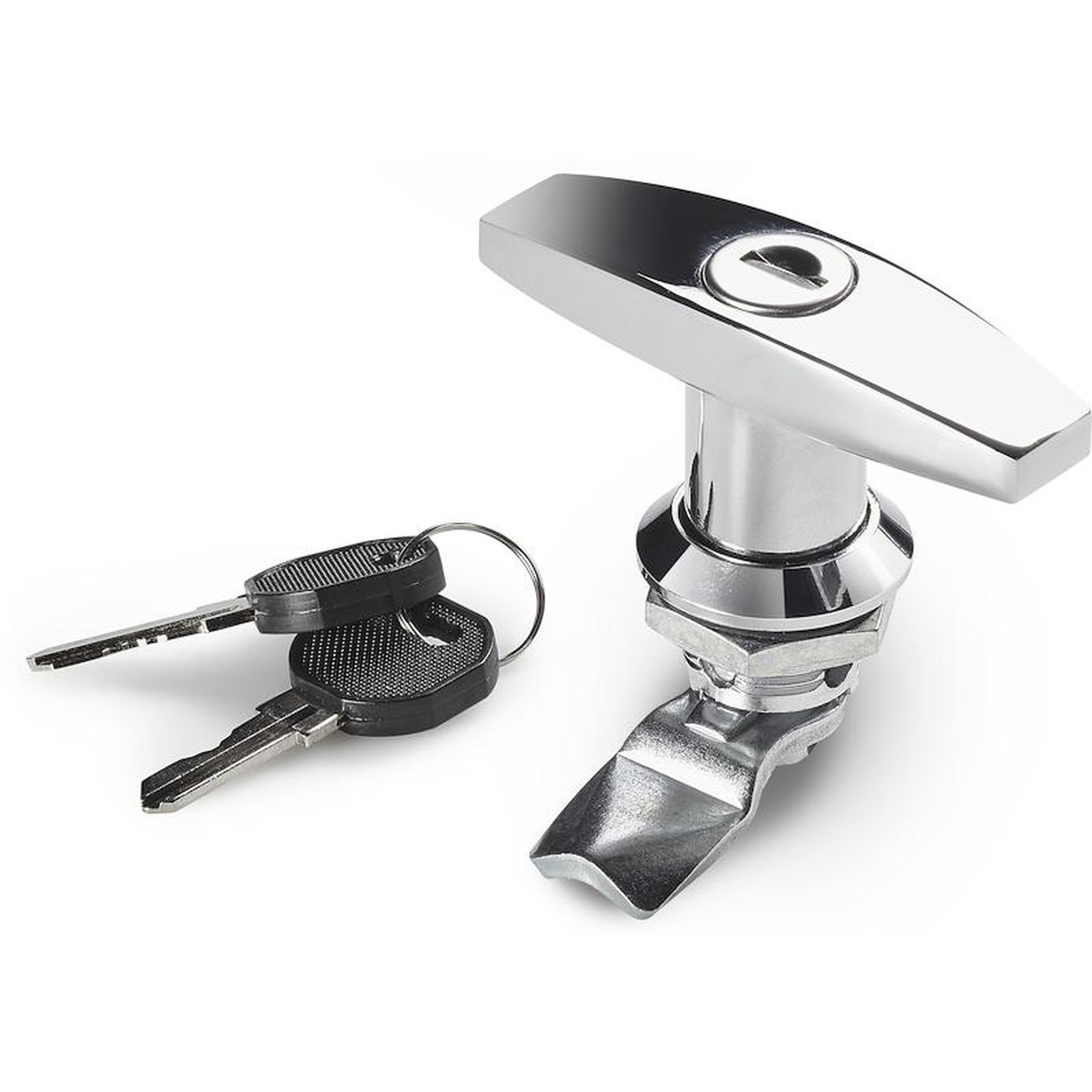

Version J129-L: chromed.
| Code | Art. | d | Q | L1 | L | E | F | D | A | G | H1 | Ht | H | H1 | s (max.) | s1 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| J12922.0011 | J12922.Z18E-4X45L | M22 | 18 | 78 | 45 | -4 | 19 | 32 | 23 | 27 | 38 | 32,5 | 6 | 38 | 8 | 4 | - |
| J12922.0012 | J12922.Z18E-2X45L | M22 | 18 | 78 | 45 | -2 | 19 | 32 | 23 | 27 | 38 | 32,5 | 6 | 38 | 8 | 4 | - |
| J12922.0002 | J12922.Z18E00X45L | M22 | 18 | 78 | 45 | 0 | 19,5 | 32 | 23 | 27 | 38 | 32,5 | 6 | 38 | 8 | 4 | - |
| J12922.0013 | J12922.Z18E02X45L | M22 | 18 | 78 | 45 | 2 | 19 | 32 | 23 | 27 | 38 | 32,5 | 6 | 38 | 8 | 4 | - |
| J12922.0014 | J12922.Z18E04X45L | M22 | 18 | 78 | 45 | 4 | 19,5 | 32 | 23 | 27 | 38 | 32,5 | 6 | 38 | 8 | 4 | - |
| J12922.0015 | J12922.Z18E06X45L | M22 | 18 | 78 | 46 | 6 | 19,5 | 32 | 23 | 27 | 38 | 32,5 | 6 | 38 | 8 | 4 | - |
| J12922.0016 | J12922.Z18E08X45L | M22 | 18 | 78 | 45 | 8 | 19,5 | 32 | 23 | 27 | 38 | 32,5 | 6 | 38 | 8 | 4 | - |
| J12922.0017 | J12922.Z18E10X45L | M22 | 18 | 78 | 45 | 10 | 19,5 | 32 | 23 | 27 | 38 | 32,5 | 6 | 38 | 8 | 4 | - |
| J12922.0018 | J12922.Z18E12X45L | M22 | 18 | 78 | 45 | 12 | 19,5 | 32 | 23 | 27 | 38 | 32,5 | 6 | 38 | 8 | 4 | - |
