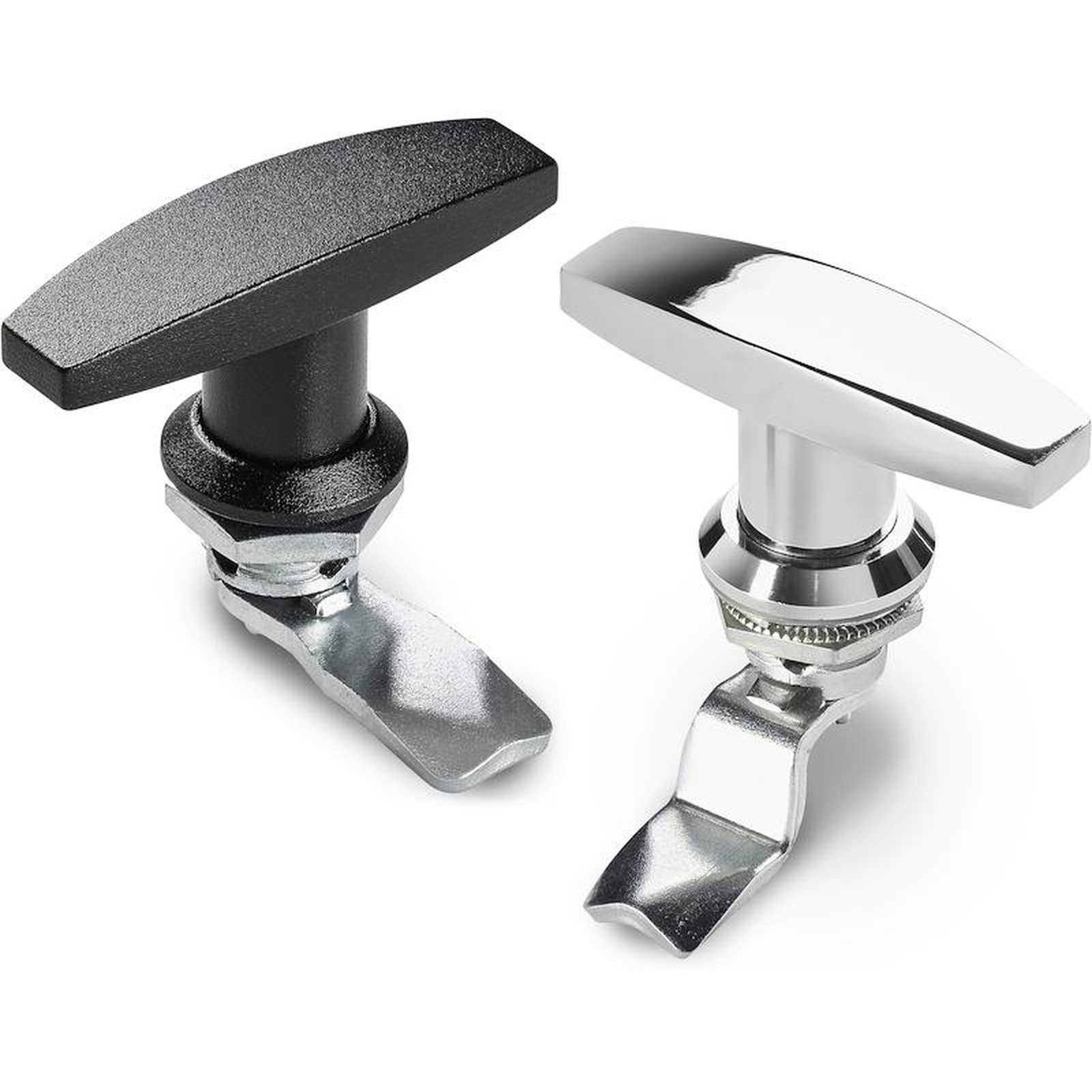

UNIVERSAL QUARTER TURN CAM LOCK, M22 THREAD WITH T-HANDLE

10

J128


Serrature 1/4 giro M22

Materials:

(1) T-handle made in zamak alloy (zinc, aluminium, copper).

(2) Die-cast zamak lock body M22x1.5 (stator) and rotor.

(3) Die-cast zamak hexagon lock nut M22x1.5.

(4) Rubber gasket.

(5) Steel cam (E=0 straight, E=2,4,6,8,10 formed out).

(6) Phillips steel fixing screw M6x10.

Surface finish:

L128-01

(1) Satin.

(2-3-4-5-6) Smooth.

L128-L

Smooth.

Colour:

L128-01

(1) Black epoxy powder coated (RAL 9011).

(2-3-4-5-6) Standard galvanising.

L128-L

(1) Bright chrome plating.

(2-3-4-5-6) Standard galvanising.

Rotation: 90°

Special Requests:

Data sheet

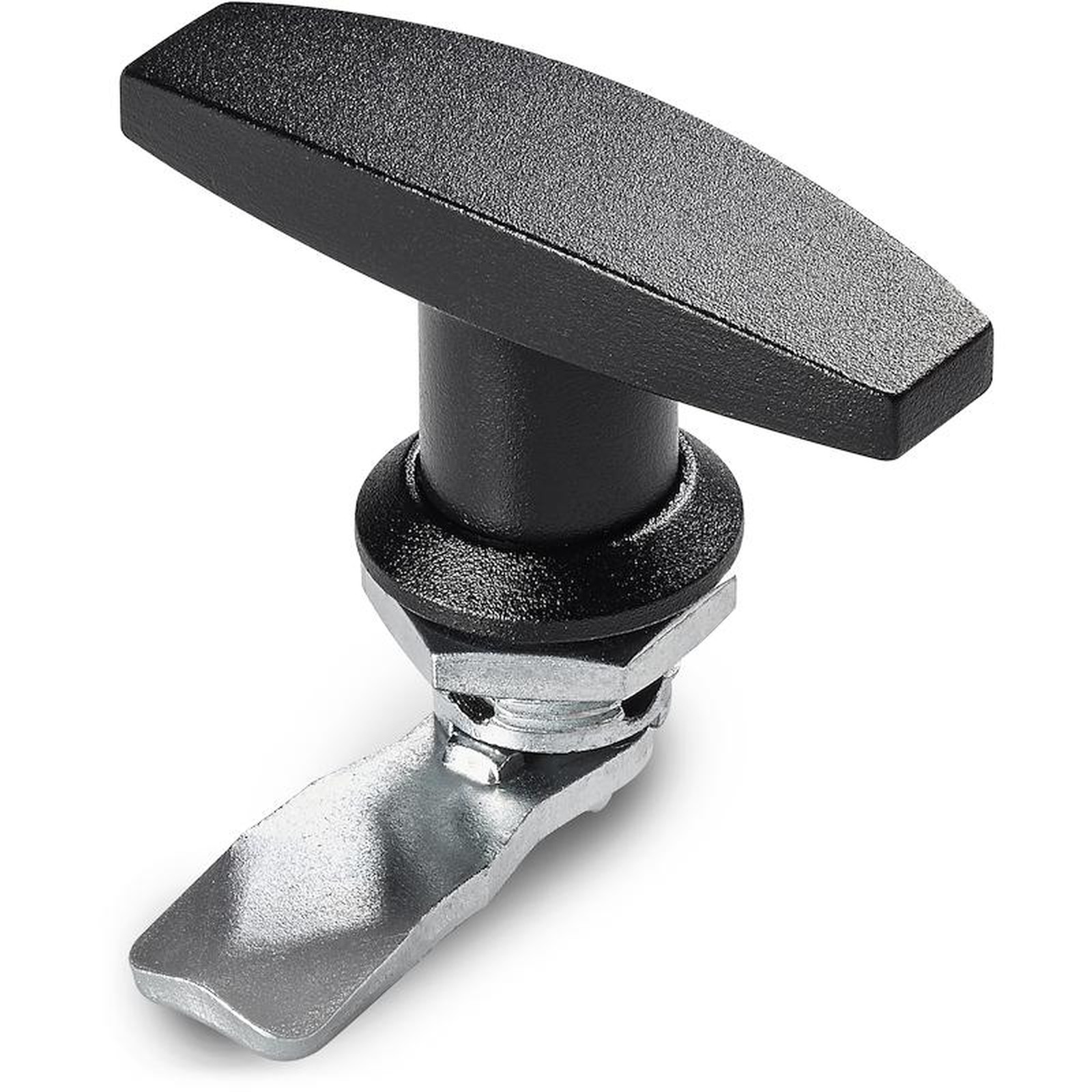

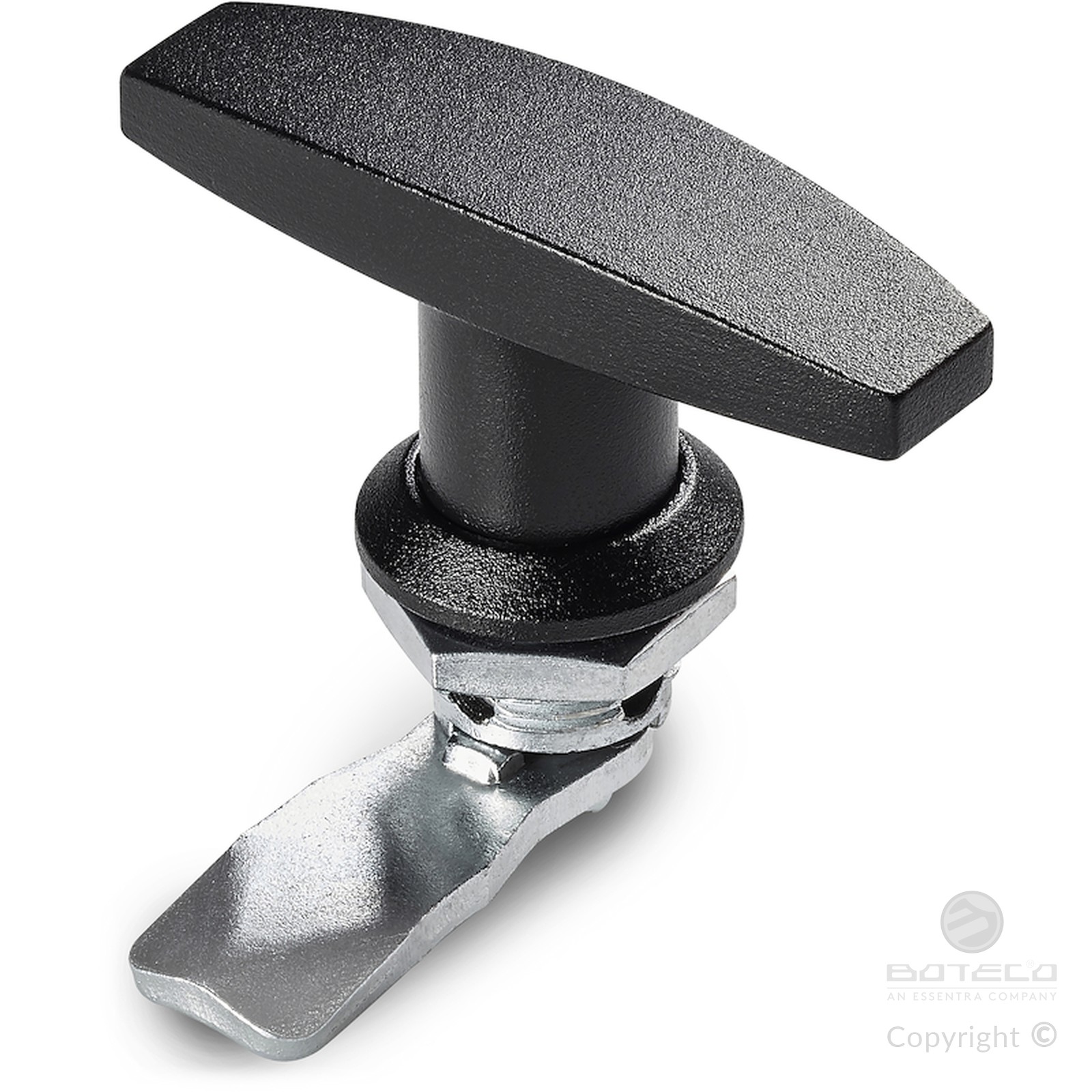

Version J128-01: black coated.

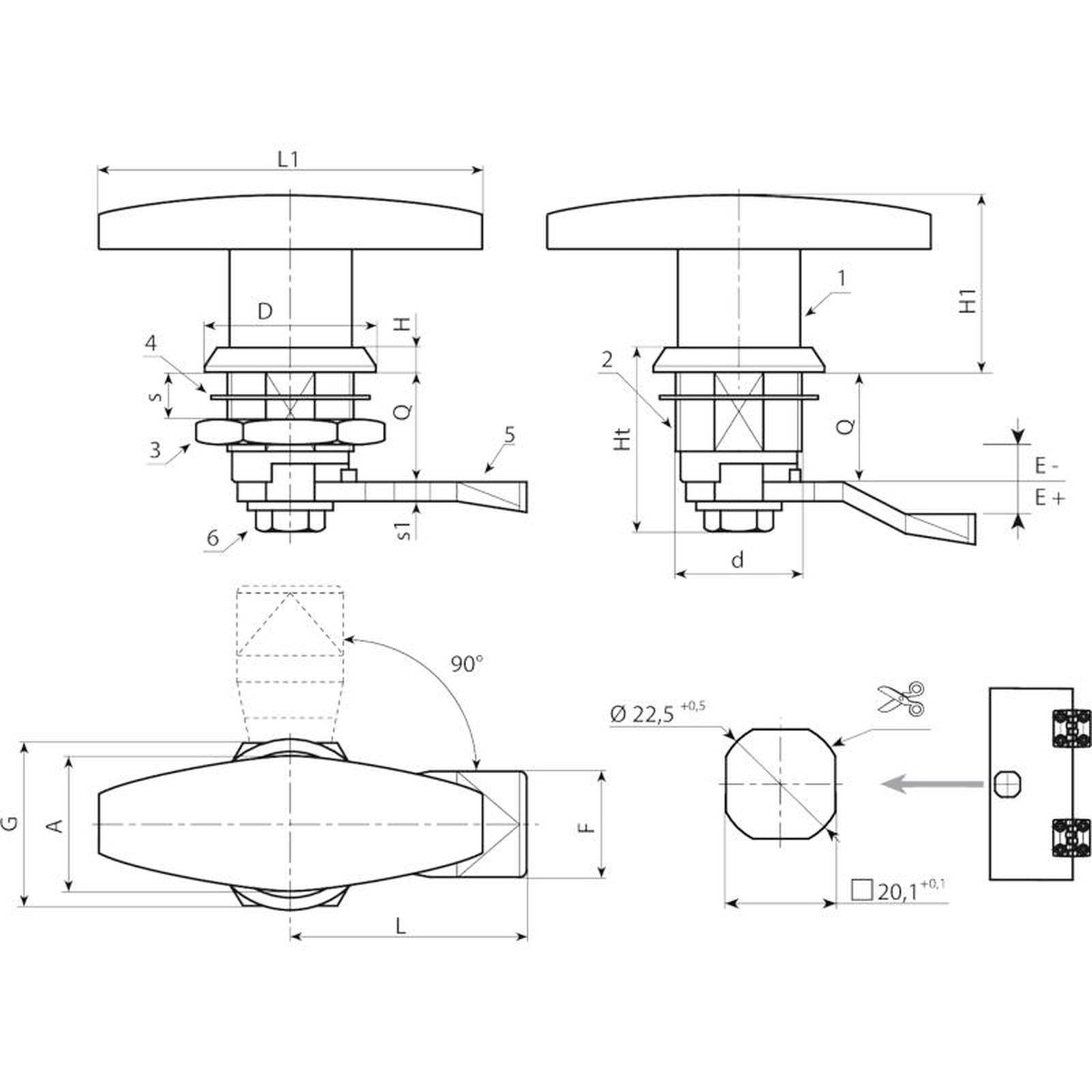

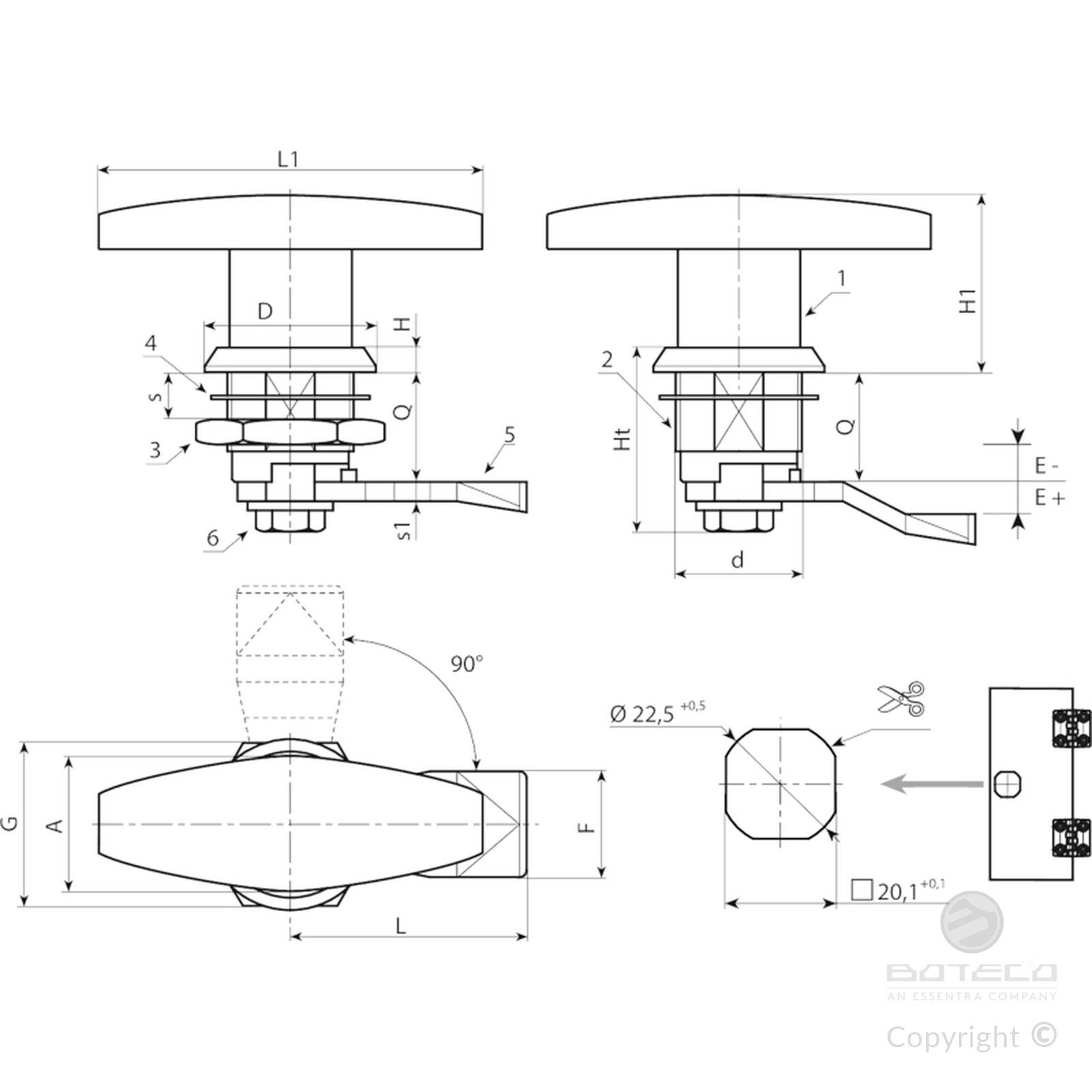

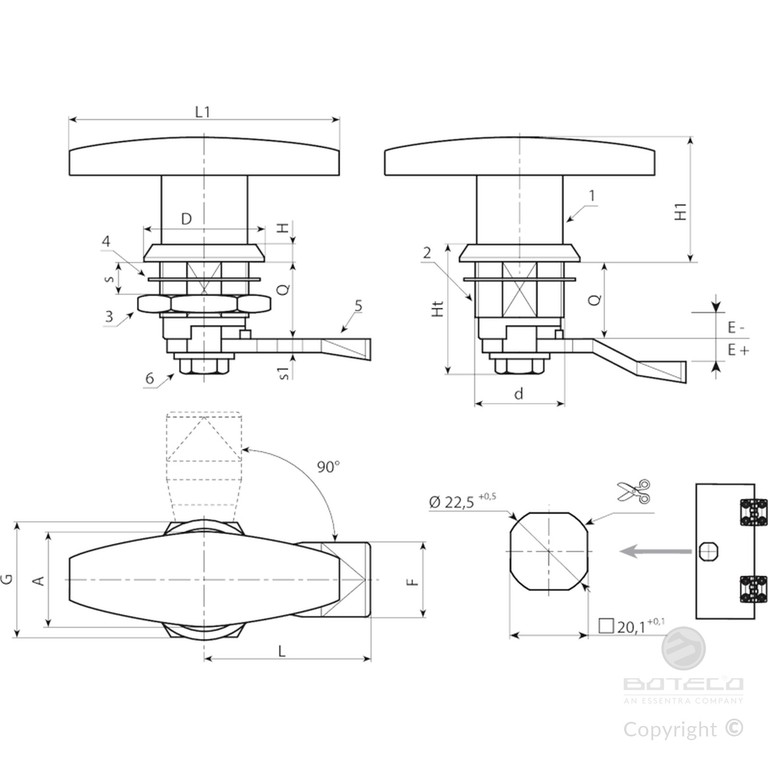

Code Art. d Q L1 L E F D A G H1 Ht H H1 s (max.) s1 Weight (g)
- J12822.Z18E-4X4501 M22 18 78 45 -4 19,5 32 23 27 38 32,5 6 38 8 4 -
- J12822.Z18E-2X4501 M22 18 78 45 -2 19,5 32 23 27 38 32,5 6 38 8 4 -
J12822.0002 J12822.Z18E00X4501 M22 18 78 45 0 19,5 32 23 27 38 32,5 6 38 8 4 -
- J12822.Z18E02X4501 M22 18 78 45 2 19,5 32 23 27 38 32,5 6 38 8 4 -
- J12822.Z18E04X4501 M22 18 78 45 4 19,5 32 23 27 38 32,5 6 38 8 4 -
- J12822.Z18E06X4501 M22 18 78 46 6 19,5 32 23 27 38 32,5 6 38 8 4 -
- J12822.Z18E08X4501 M22 18 78 45 8 19,5 32 23 27 38 32,5 6 38 8 4 -
- J12822.Z18E10X4501 M22 18 78 45 10 19,5 32 23 27 38 32,5 6 38 8 4 -
- J12822.Z18E12X4501 M22 18 78 45 12 19,5 32 23 27 38 32,5 6 38 8 4 -

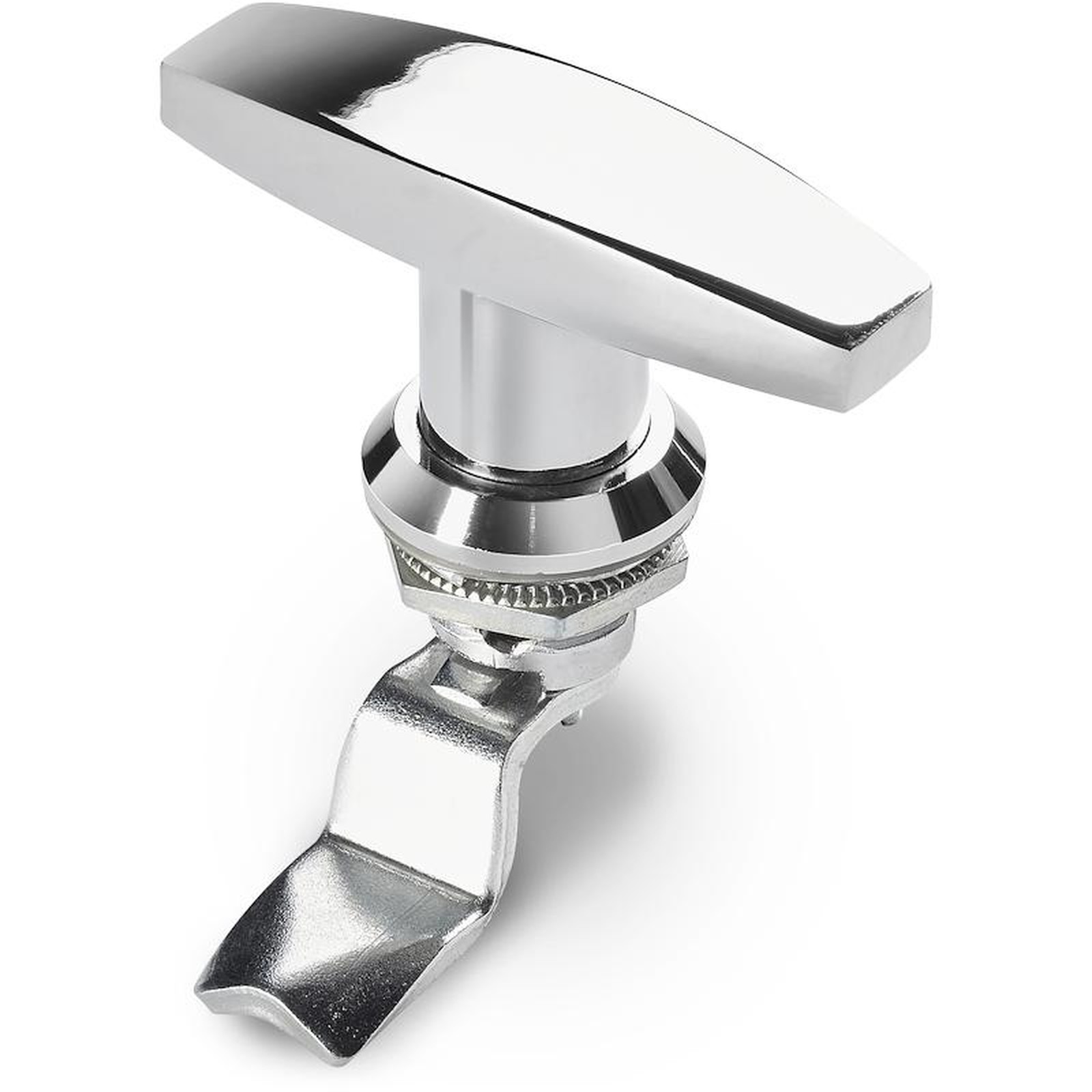

Version J128-L: chromed.

Code Art. d Q L1 L E F D A G H1 Ht H H1 s (max.) s1 Weight (g)
- J12822.Z18E-4X45L M22 18 78 45 -4 19,5 32 23 27 38 32,5 6 38 8 4 -
- J12822.Z18E-2X45L M22 18 78 45 -2 19,5 32 23 27 38 32,5 6 38 8 4 -
J12822.0001 J12822.Z18E00X45L M22 18 78 45 0 19,5 32 23 27 38 32,5 6 38 8 4 -
- J12822.Z18E02X45L M22 18 78 45 2 19,5 32 23 27 38 32,5 6 38 8 4 -
- J12822.Z18E04X45L M22 18 78 45 4 19,5 32 23 27 38 32,5 6 38 8 4 -
- J12822.Z18E06X45L M22 18 78 46 6 19,5 32 23 27 38 32,5 6 38 8 4 -
- J12822.Z18E08X45L M22 18 78 45 8 19,5 32 23 27 38 32,5 6 38 8 4 -
- J12822.Z18E10X45L M22 18 78 45 10 19,5 32 23 27 38 32,5 6 38 8 4 -
- J12822.Z18E12X45L M22 18 78 45 12 19,5 32 23 27 38 32,5 6 38 8 4 -
