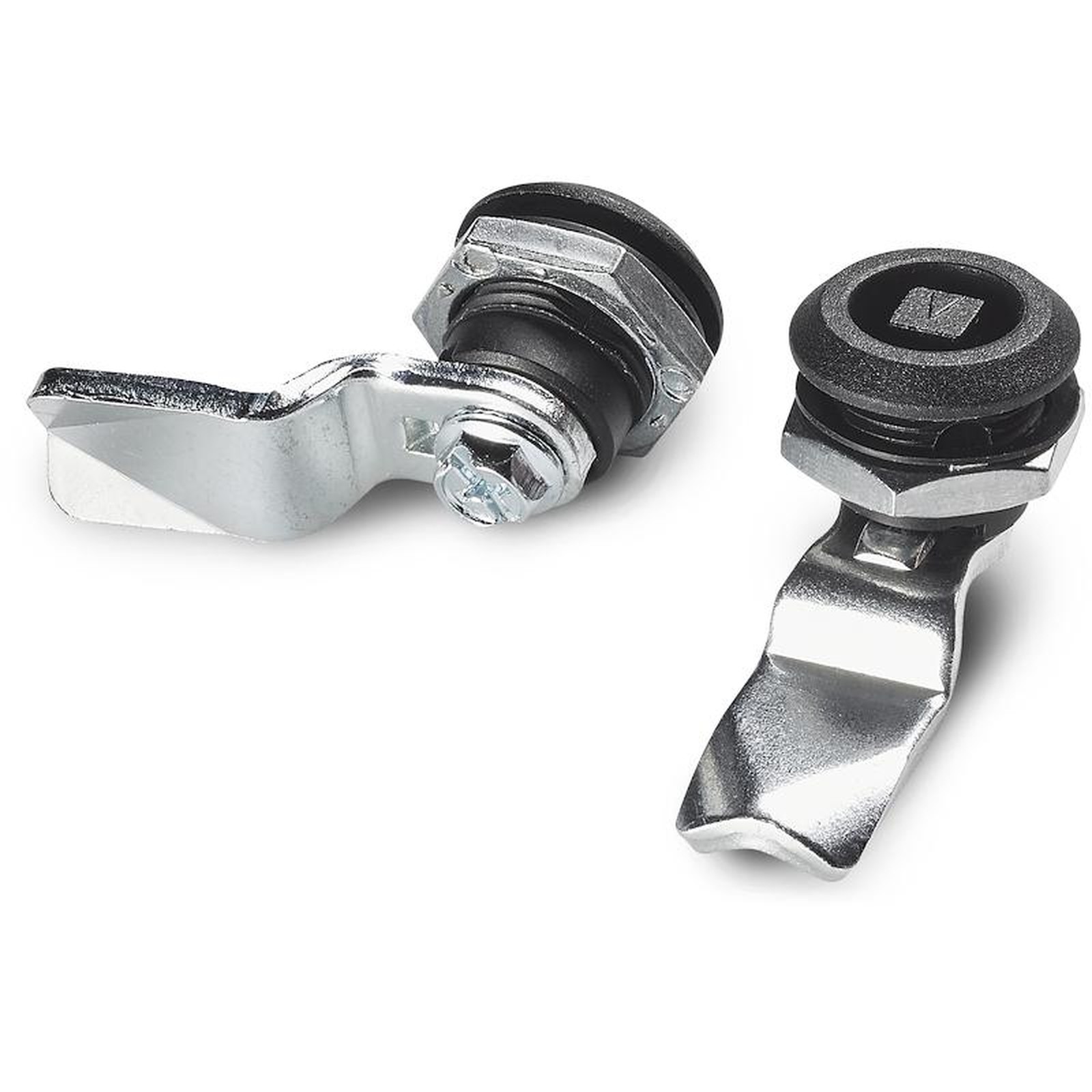

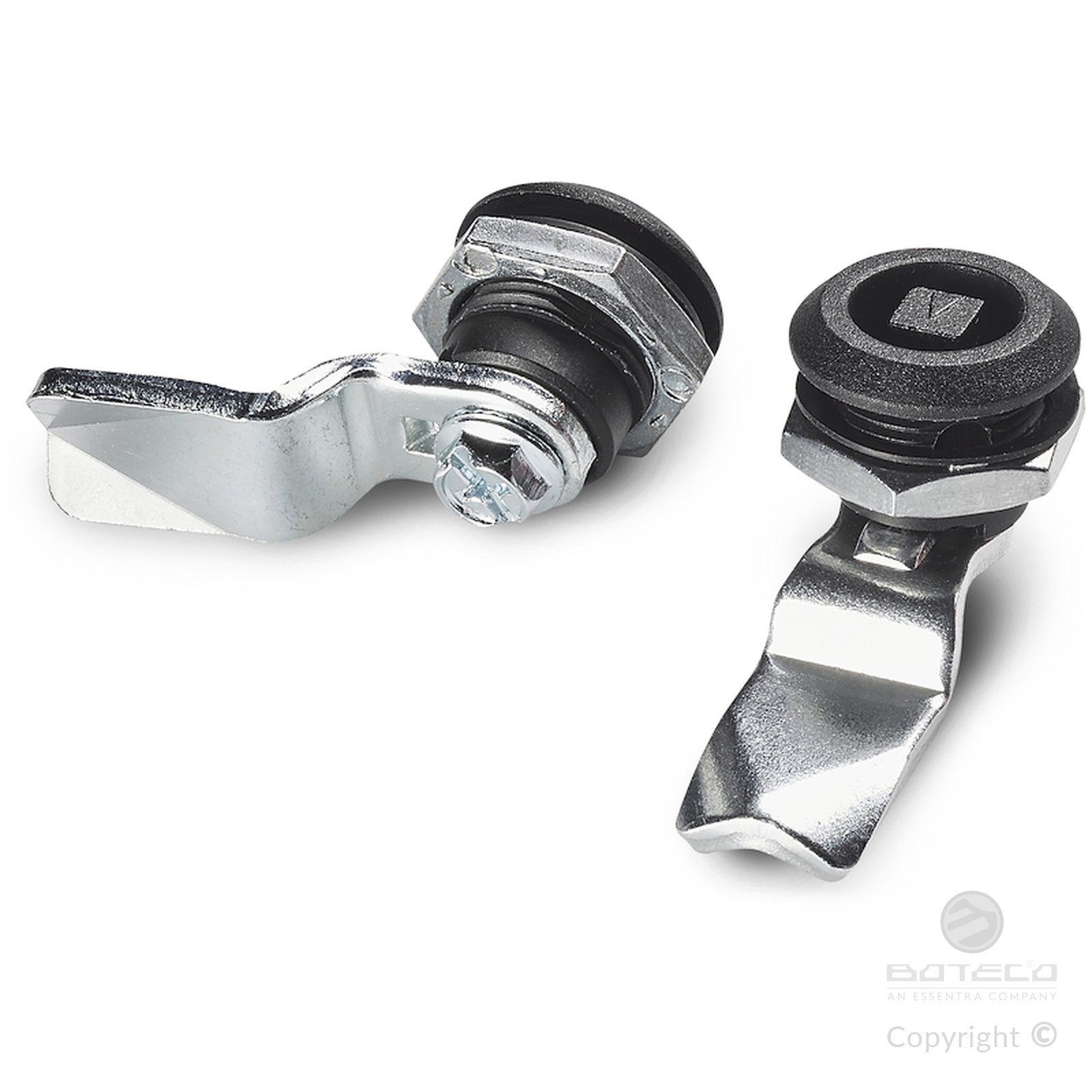

UNIVERSAL QUARTER TURN PLASTIC CAM LOCK M22 THREAD WITH SQUARE SOCKET KEY
10
J126
Serrature 1/4 giro M22

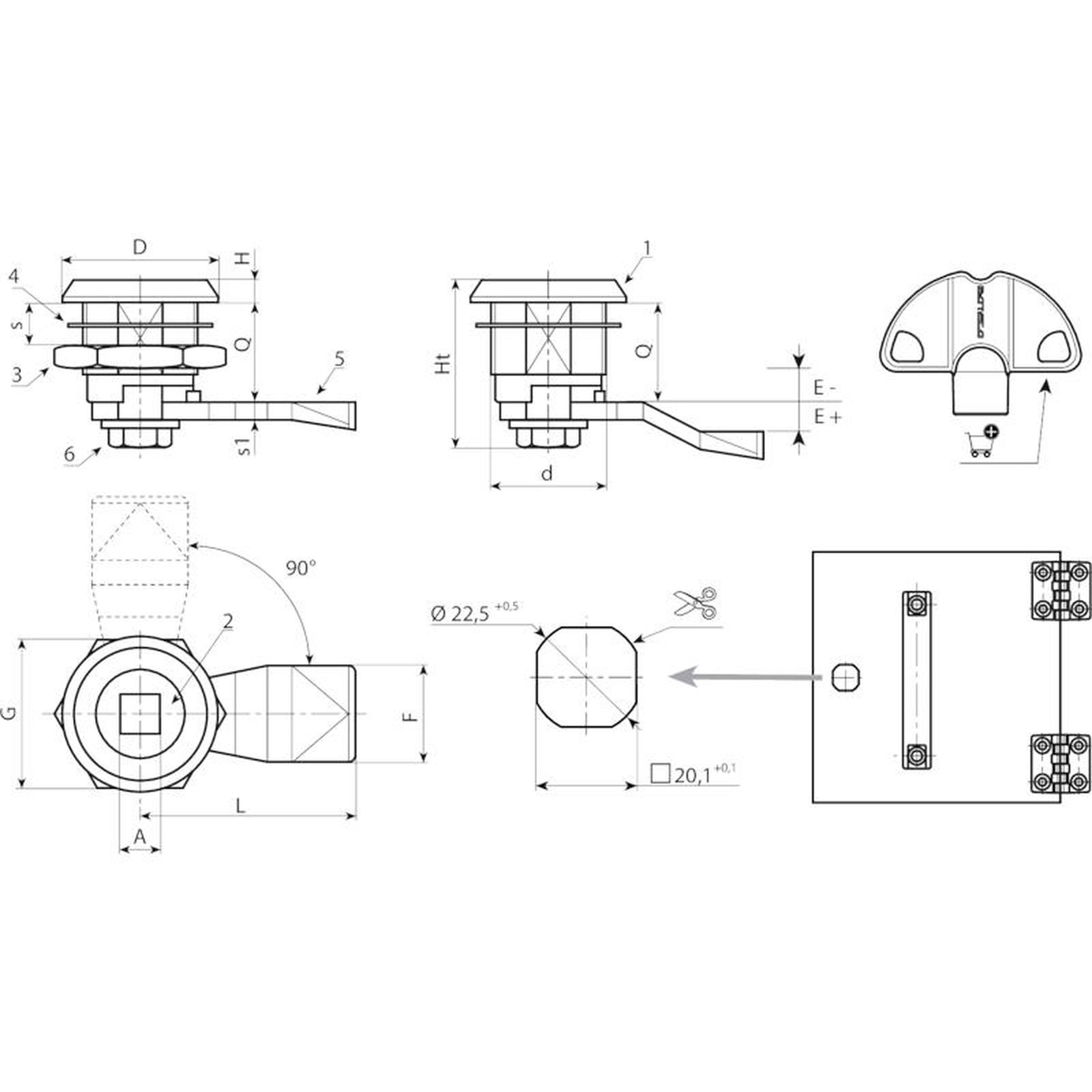

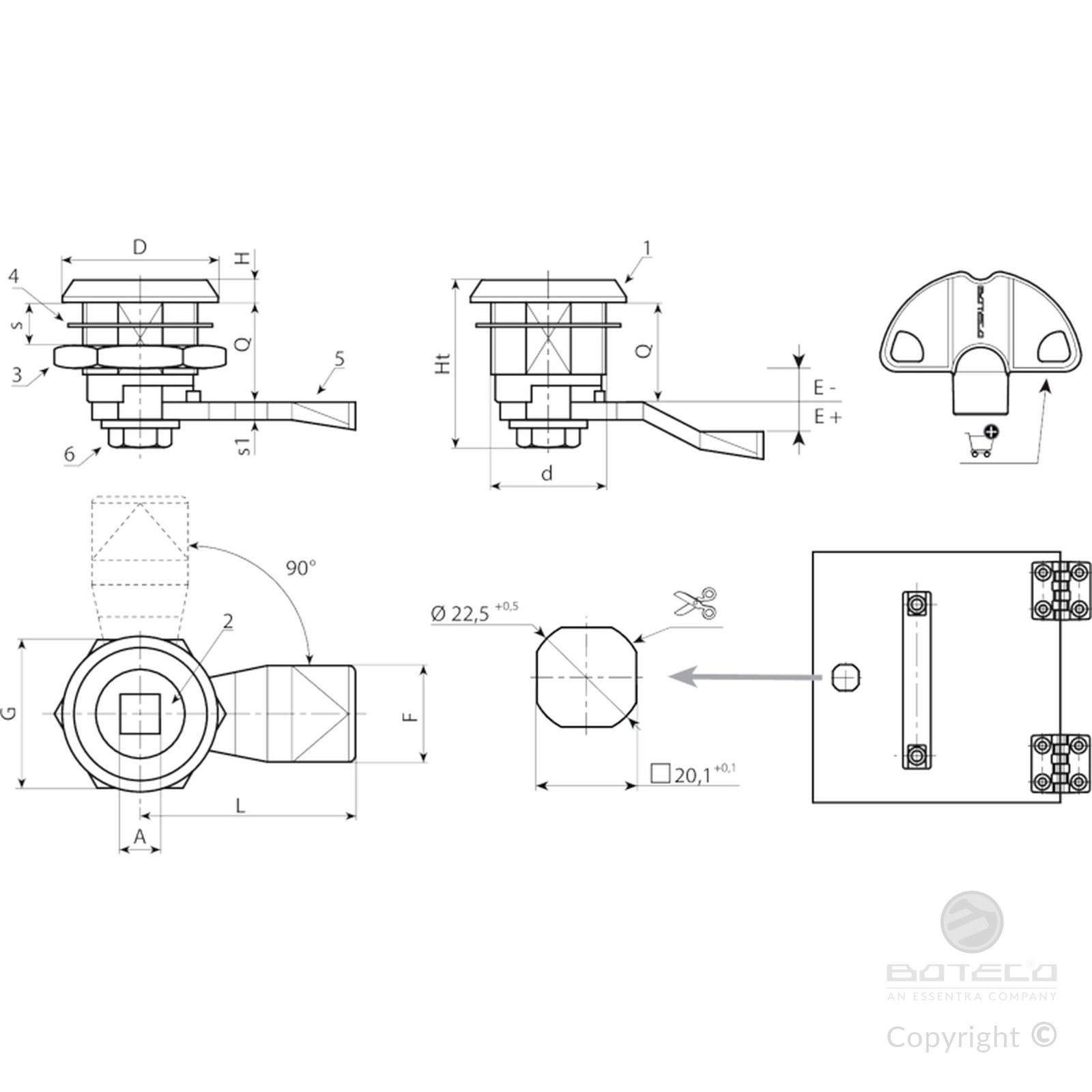

Materials:
(1) Lock body M22x1.5 (stator) in reinforced PA6.6 polyamide. Resistant to oils and greases.
(2) Square shaped groove, in reinforced polyamide PA6.6.
(3) Die-cast zamak hexagon lock nut M22x1,5.
(4) Rubber gasket.
(5) Steel cam (E=0 straight, E=2,4,6,8,10 formed out, E=-2 formed in).
(6) Phillips steel fixing screw M6x10.
Surface finish:
(1) Satin.
(2-3-4-5-6) Smooth.
Colour:
(1) Black (RAL 9011).
(2-3-4-5-6) Standard galvanising.
Key (optional):
Red polyamide key (PA6), art. J090.
ATTENTION: The key is not supplied. To be ordered separately.
Rotation:
90°.
Special Requests:
Upon request the key can be supplied with the lock. Add letter C at the end of the main code.
| Code | Art. | A | d | D | L | Q | E | F | G | Ht | H | s (max.) | s1 | Weight (g) | Key |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | J12622.T08E-4X4501 | 8 | M22 | 28 | 45 | 18 | -4 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TQ0816 |
| - | J12622.T08E-2X4501 | 8 | M22 | 28 | 45 | 18 | -2 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TQ0816 |
| - | J12622.T08E00X4501 | 8 | M22 | 28 | 45 | 18 | 0 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TQ0816 |
| - | J12622.T08E02X4501 | 8 | M22 | 28 | 45 | 18 | 2 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TQ0816 |
| - | J12622.T08E04X4501 | 8 | M22 | 28 | 45 | 18 | 4 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TQ0816 |
| - | J12622.T08E06X4501 | 8 | M22 | 28 | 45 | 18 | 6 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TQ0816 |
| - | J12622.T08E08X4501 | 8 | M22 | 28 | 45 | 18 | 8 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TQ0816 |
| - | J12622.T08E10X4501 | 8 | M22 | 28 | 45 | 18 | 10 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TQ0816 |
| - | J12622.T08E12X4501 | 8 | M22 | 28 | 45 | 18 | 12 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TQ0816 |
