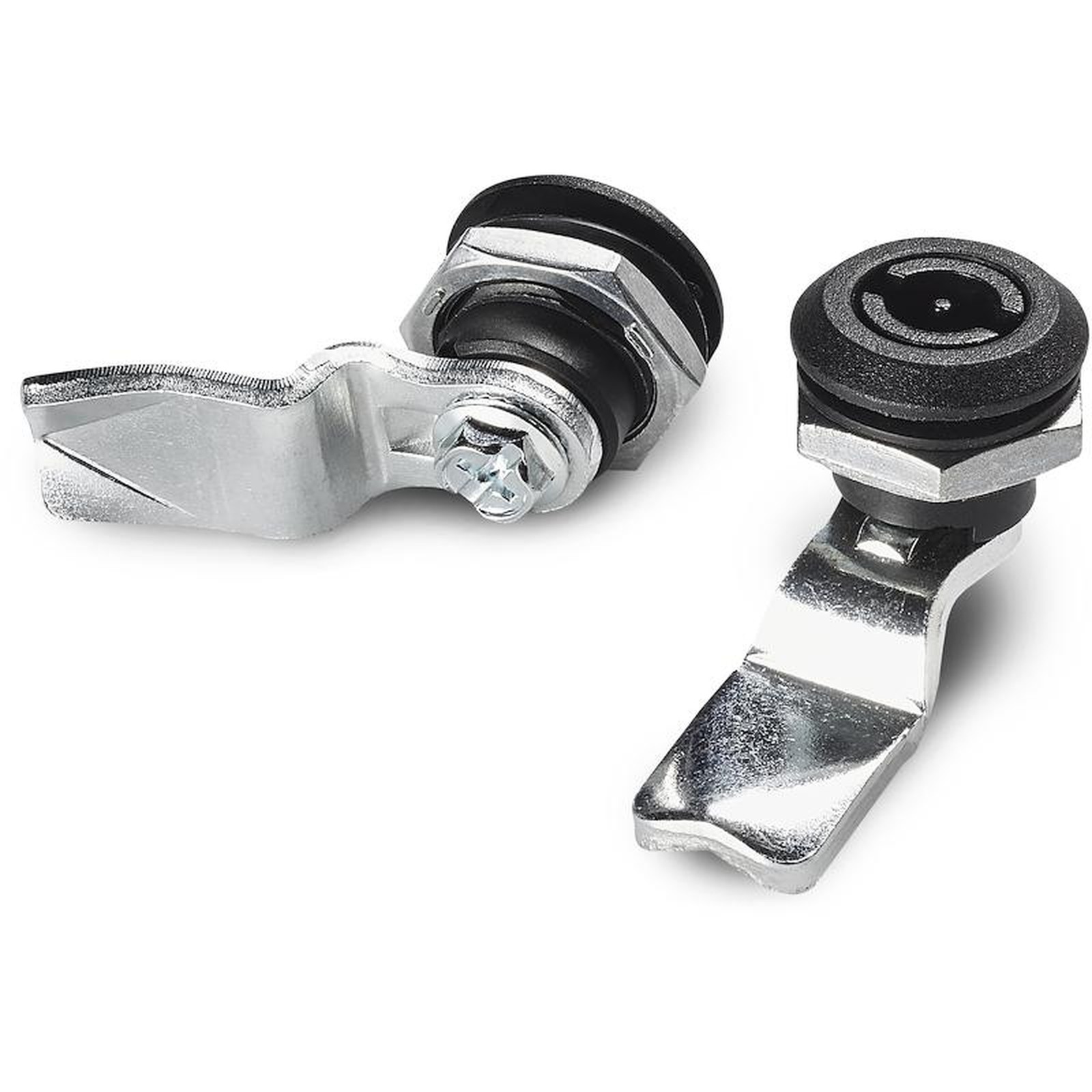

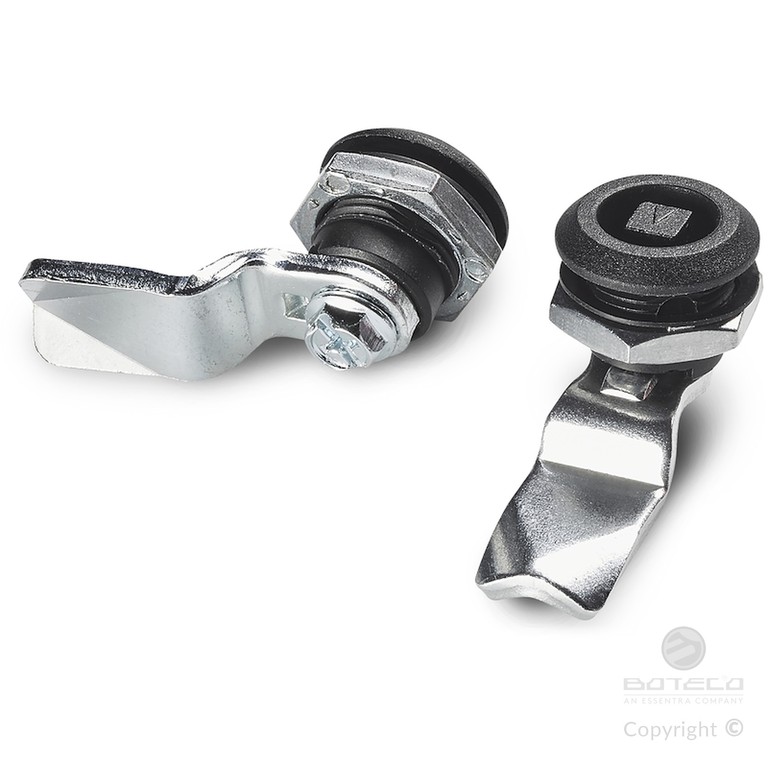

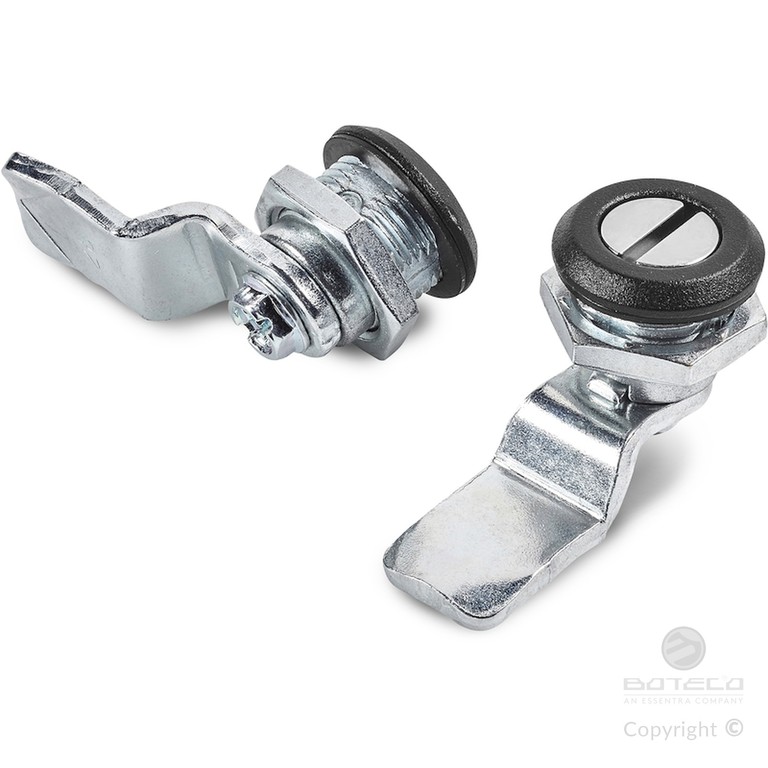

UNIVERSAL QUARTER TURN PLASTIC CAM LOCK M22 THREAD WITH WING PIN SOCKET KEY
10
J124
Serrature 1/4 giro M22
Materials:
(1) Lock body M22x1.5 (stator) in reinforced PA6.6 polyamide. Resistant to oils and greases.
(2) Groove shaped for wing pin key, in reinforced PA6.6 polyamide.
(3) Die-cast zamak hexagon lock nut M22x1,5.
(4) Rubber gasket.
(5) Steel cam (E=0 straight, E=2,4,6,8,10 formed out, E=-2 formed in).
(6) Phillips steel fixing screw M6x10.
Surface finish:
(1) Satin.
(2-3-4-5-6) Smooth.
Colour:
(1) Black (RAL 9011).
(2-3-4-5-6) Standard galvanising.
Key (optional):

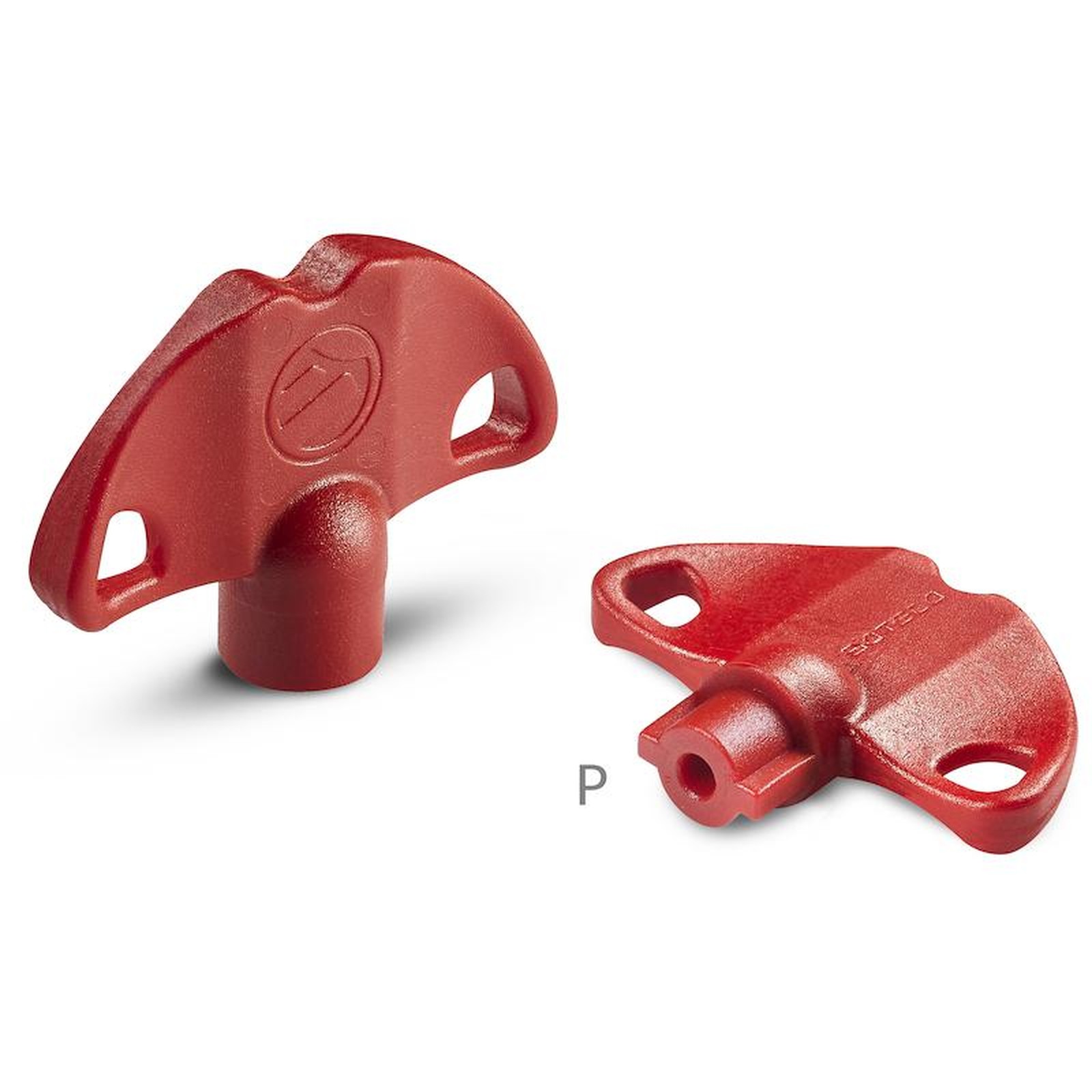

Red polyamide key (PA6), art. J090.
ATTENTION: The key is not supplied. To be ordered separately.
Rotation: 90°
Special Requests:

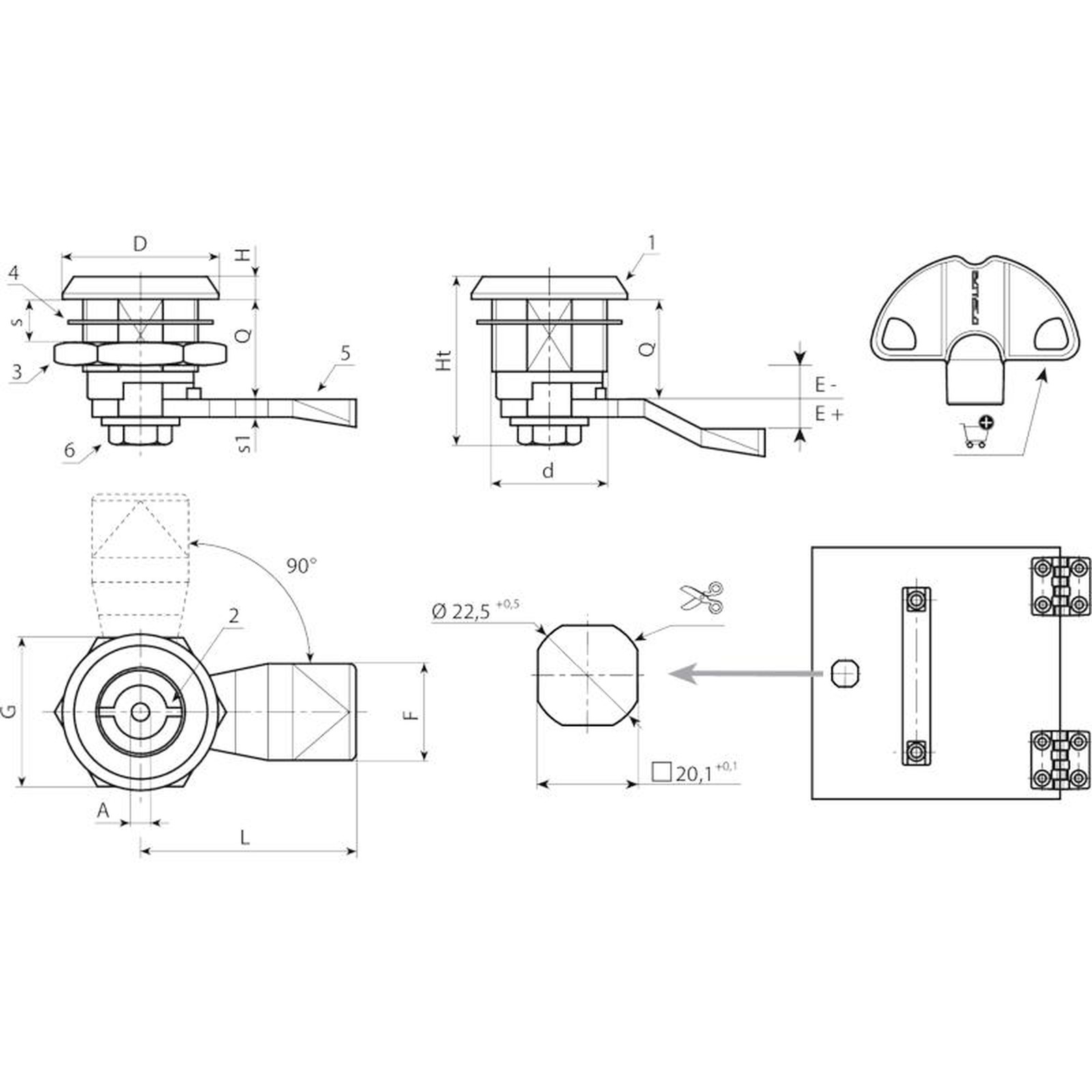

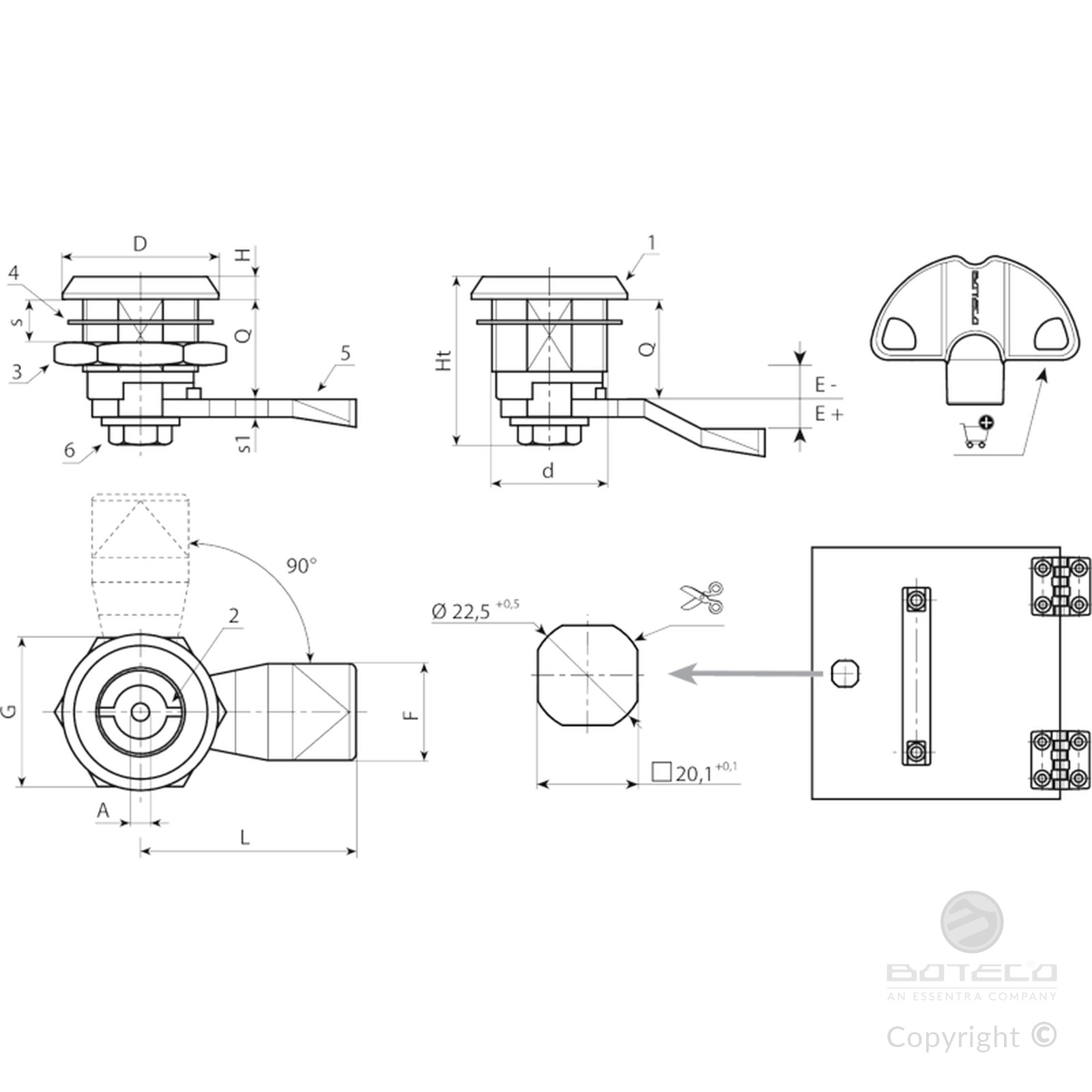

| Code | Art. | A | d | D | L | Q | E | F | G | Ht | H | s (max.) | s1 | Weight (g) | Key |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | J12422.T03E-4X4501 | 3 | M22 | 28 | 45 | 18 | -4 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TP0316 |
| - | J12422.T03E-2X4501 | 3 | M22 | 28 | 45 | 18 | -2 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TP0316 |
| - | J12422.T03E00X4501 | 3 | M22 | 28 | 45 | 18 | 0 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TP0316 |
| - | J12422.T03E02X4501 | 3 | M22 | 28 | 45 | 18 | 2 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TP0316 |
| - | J12422.T03E04X4501 | 3 | M22 | 28 | 45 | 18 | 4 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TP0316 |
| - | J12422.T03E06X4501 | 3 | M22 | 28 | 45 | 18 | 6 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TP0316 |
| - | J12422.T03E08X4501 | 3 | M22 | 28 | 45 | 18 | 8 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TP0316 |
| - | J12422.T03E10X4501 | 3 | M22 | 28 | 45 | 18 | 10 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TP0316 |
| - | J12422.T03E12X4501 | 3 | M22 | 28 | 45 | 18 | 12 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TP0316 |
| - | J12422.T05E-4X4501 | 5 | M22 | 28 | 45 | 18 | -4 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TP0516 |
| - | J12422.T05E-2X4501 | 5 | M22 | 28 | 45 | 18 | -2 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TP0516 |
| - | J12422.T05E00X4501 | 5 | M22 | 28 | 45 | 18 | 0 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TP0516 |
| - | J12422.T05E02X4501 | 5 | M22 | 28 | 45 | 18 | 2 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TP0516 |
| - | J12422.T05E04X4501 | 5 | M22 | 28 | 45 | 18 | 4 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TP0516 |
| - | J12422.T05E06X4501 | 5 | M22 | 28 | 45 | 18 | 6 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TP0516 |
| - | J12422.T05E08X4501 | 5 | M22 | 28 | 45 | 18 | 8 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TP0516 |
| - | J12422.T05E10X4501 | 5 | M22 | 28 | 45 | 18 | 10 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TP0516 |
| - | J12422.T05E12X4501 | 5 | M22 | 28 | 45 | 18 | 12 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TP0516 |
